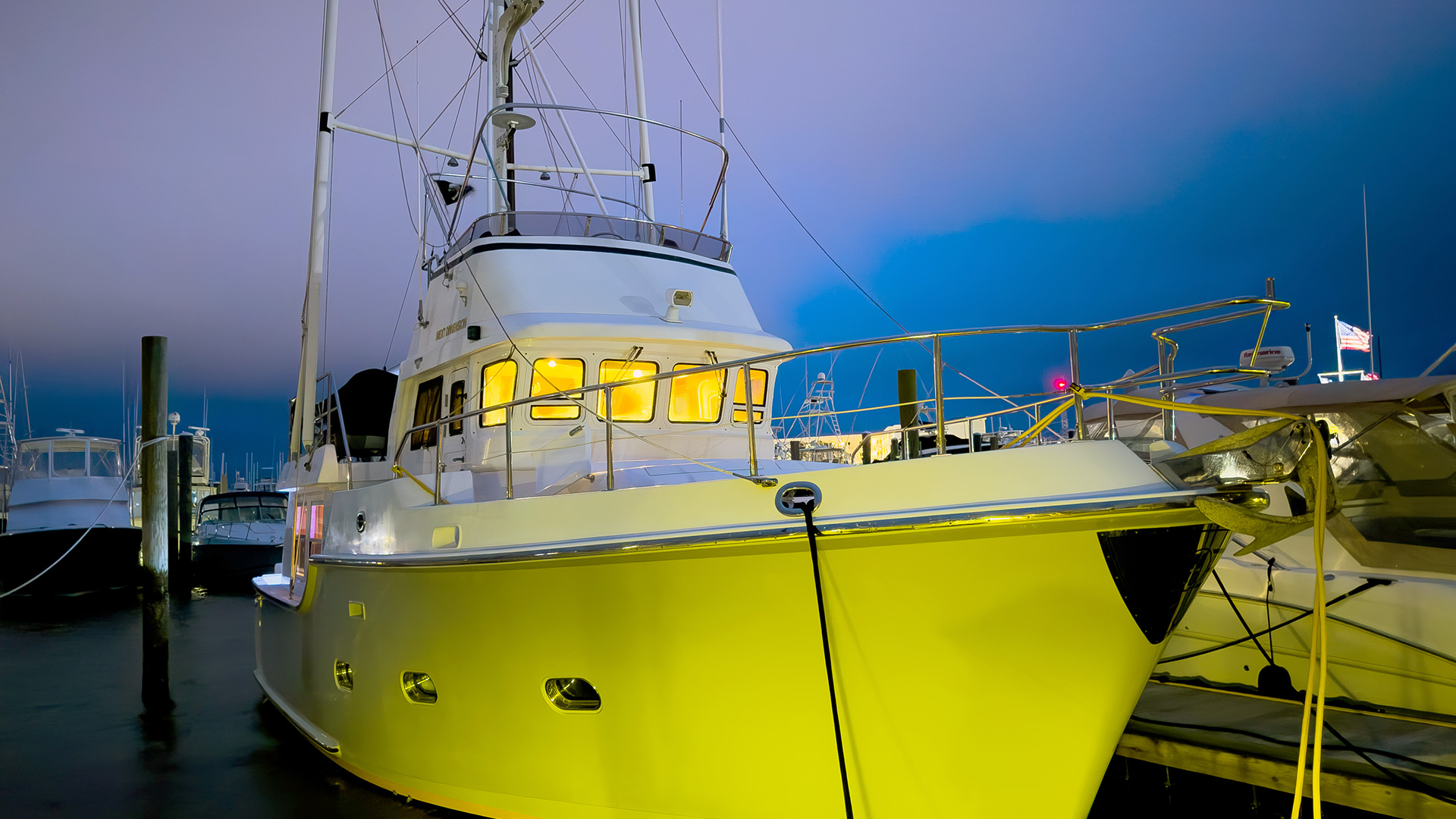

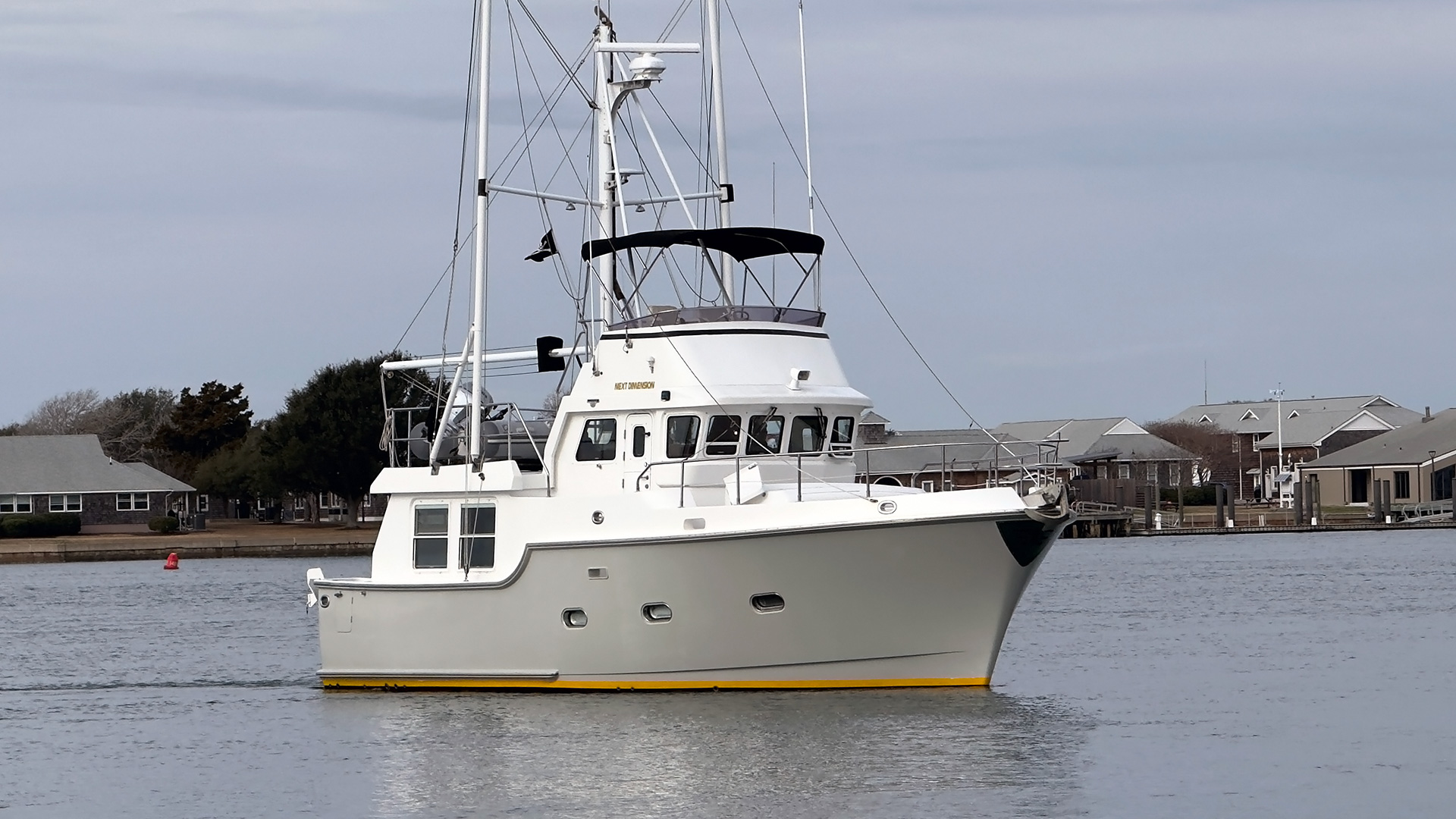

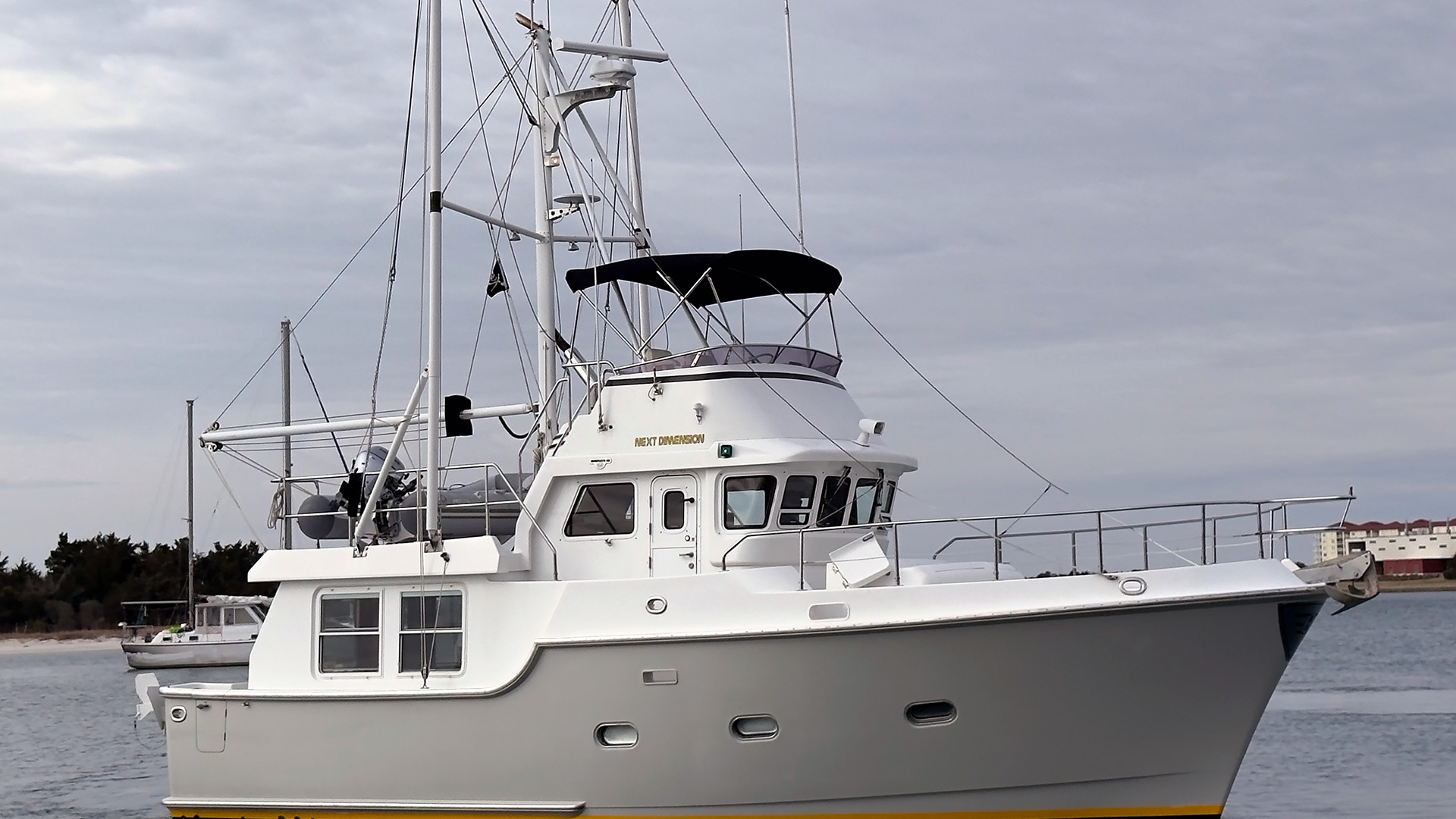

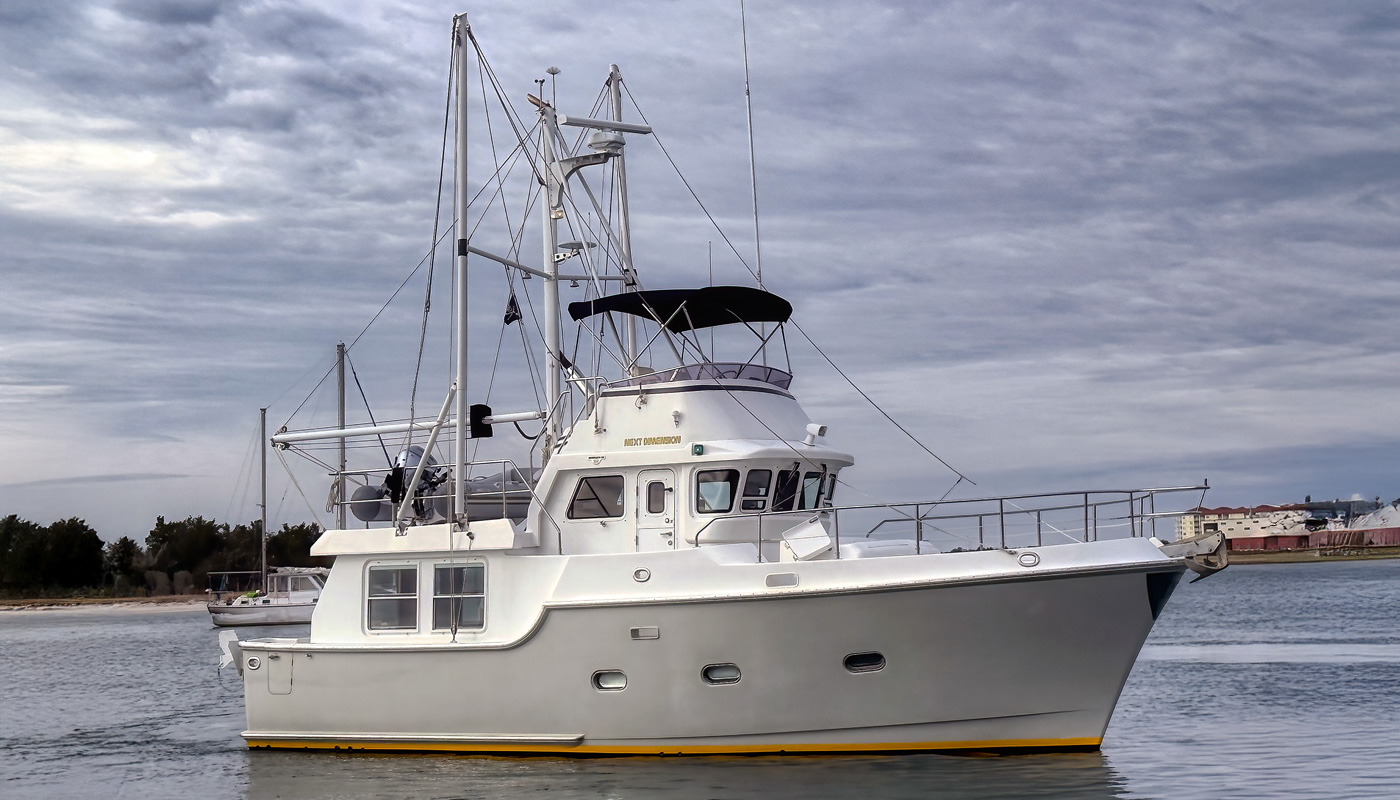

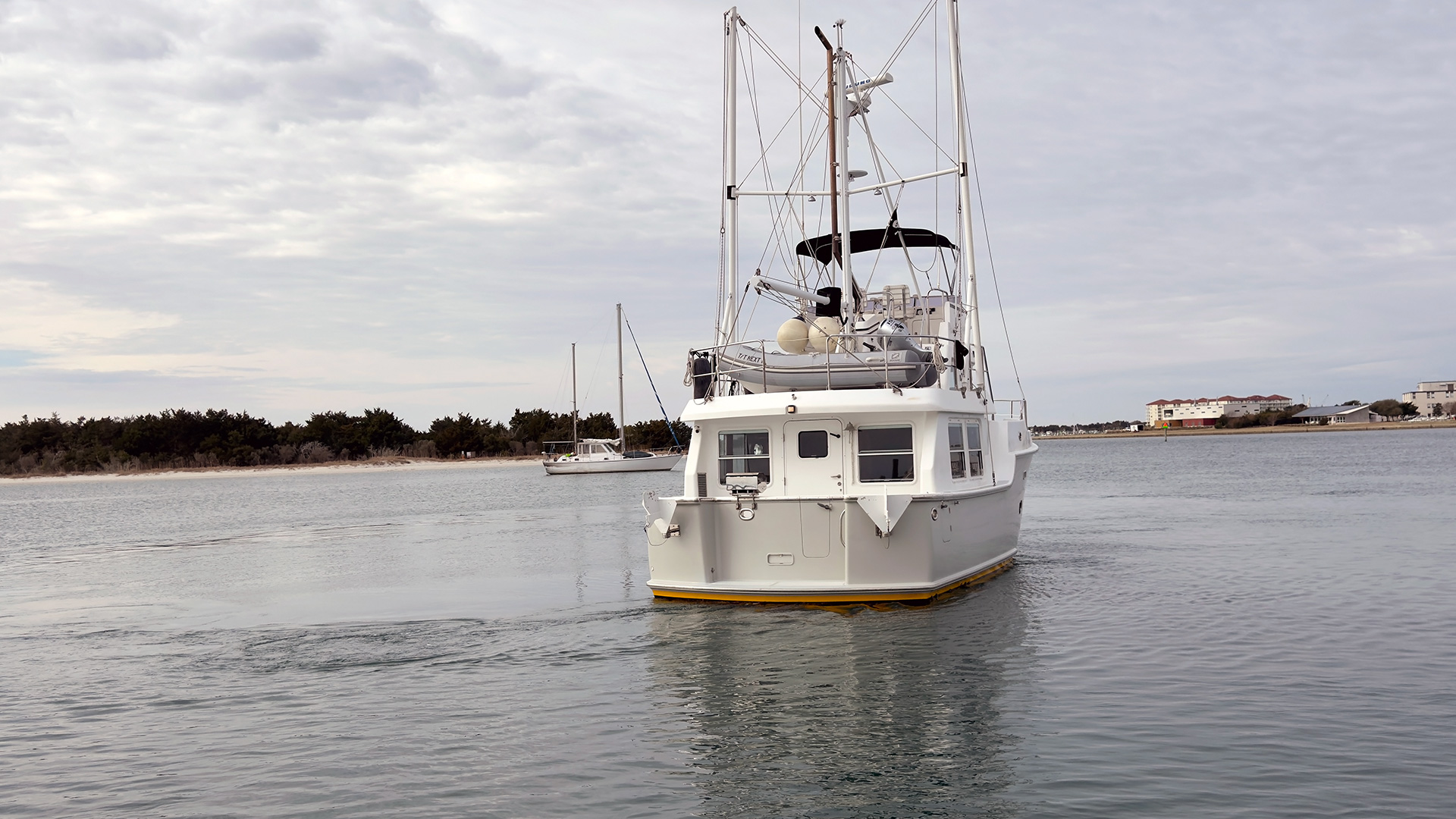

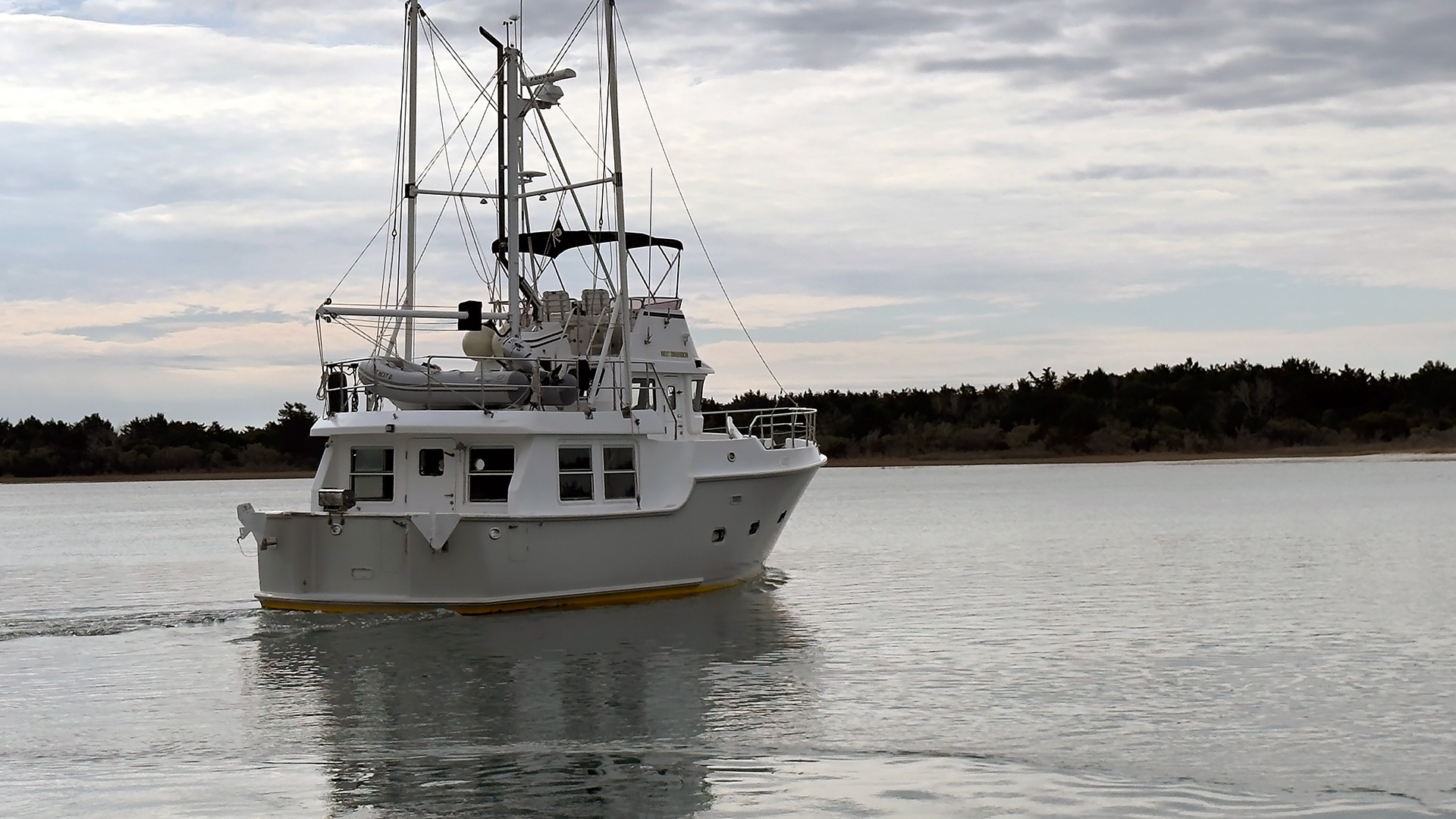

Next Dimension is in exceptional condition, well maintained with low hours and light use.  She is hull 56 in this popular Nordhavn 40 series.

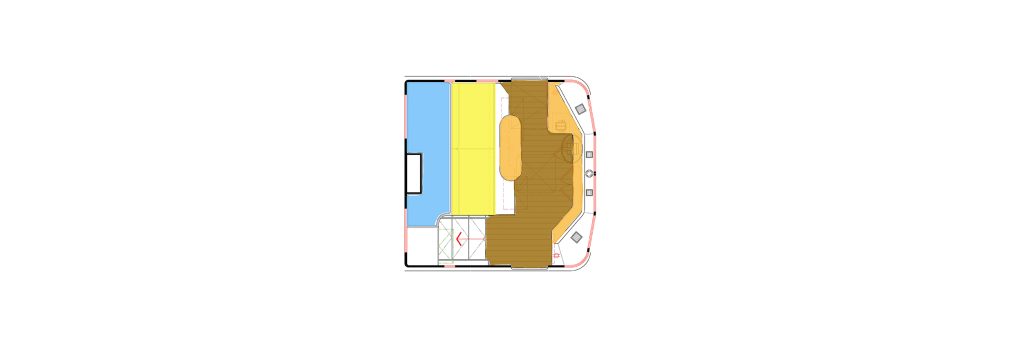

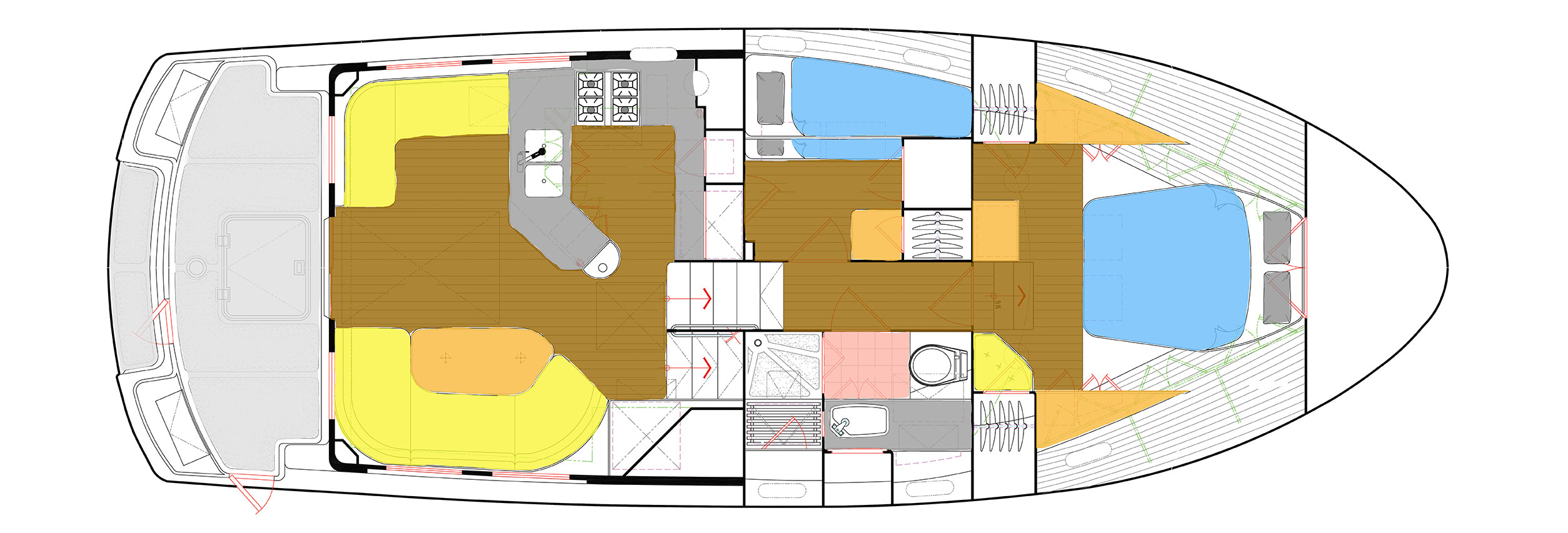

This design has generous interior accommodations (saloon and galley on the entry level, raised pilothouse and two staterooms with one head on the lower level) and a seakindly ride through the water.

Next Dimension was ordered with the optional fly bridge, which provides an excellent outdoor area above the pilothouse for taking command underway or relaxing when at rest.

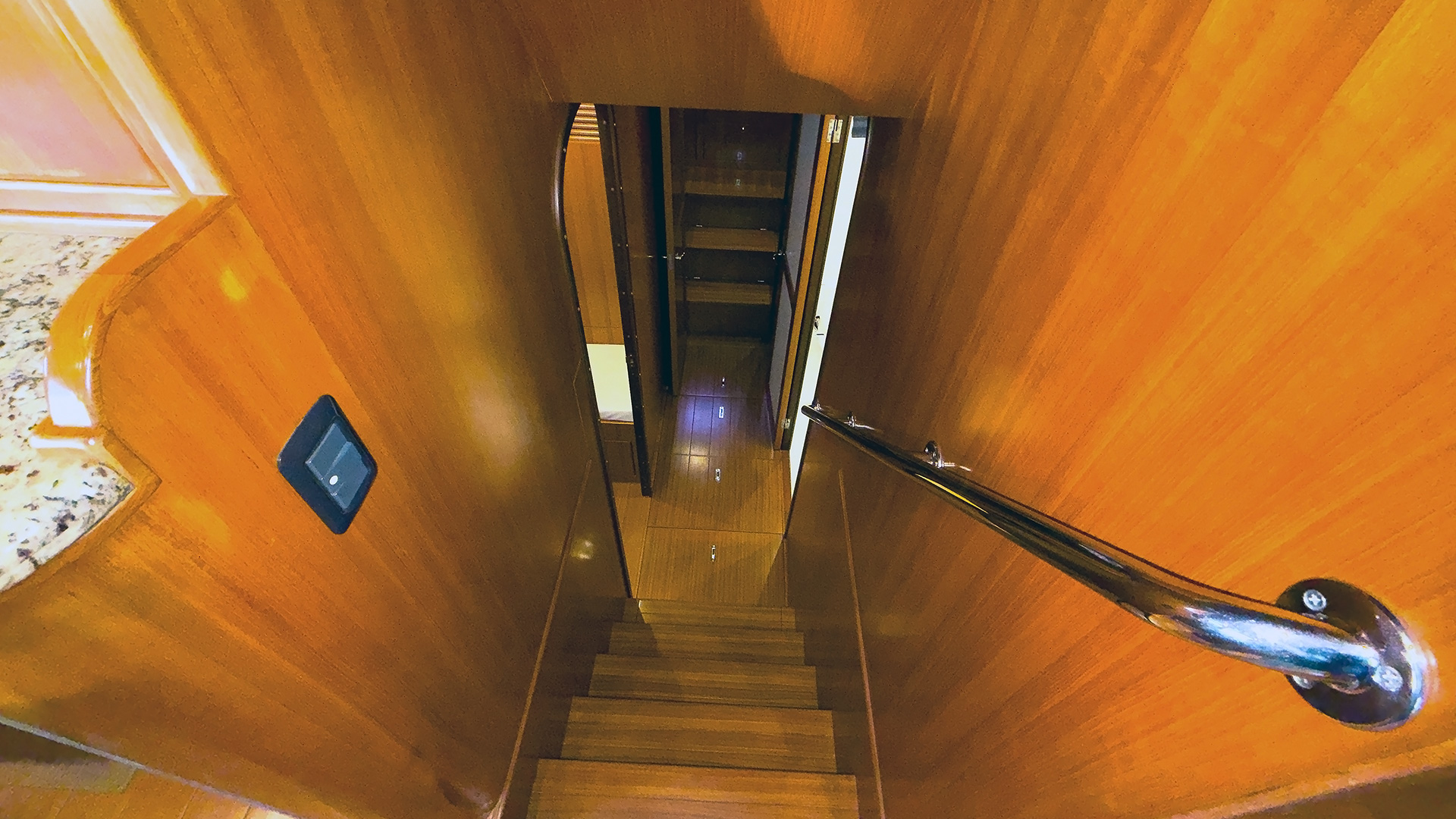

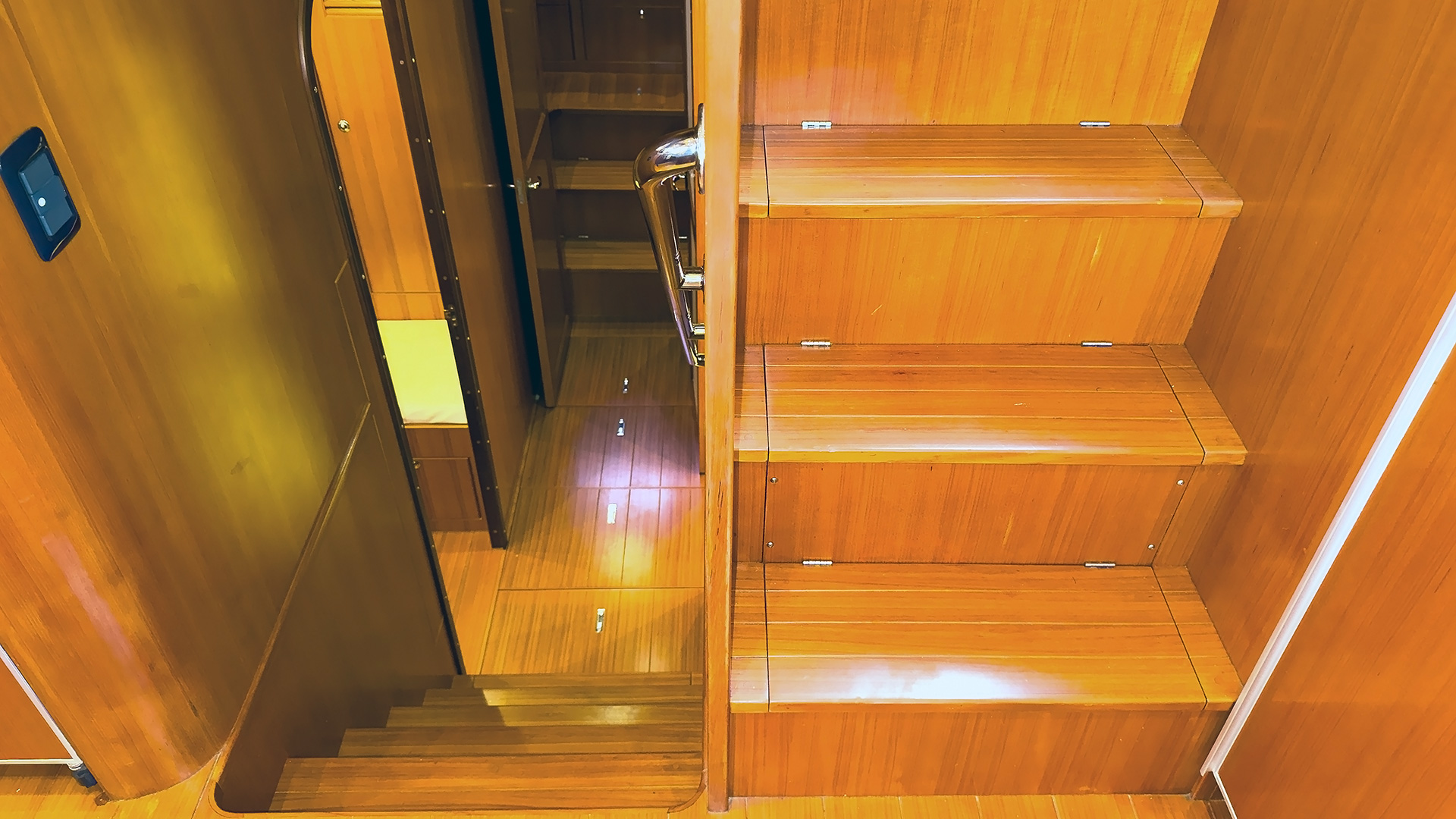

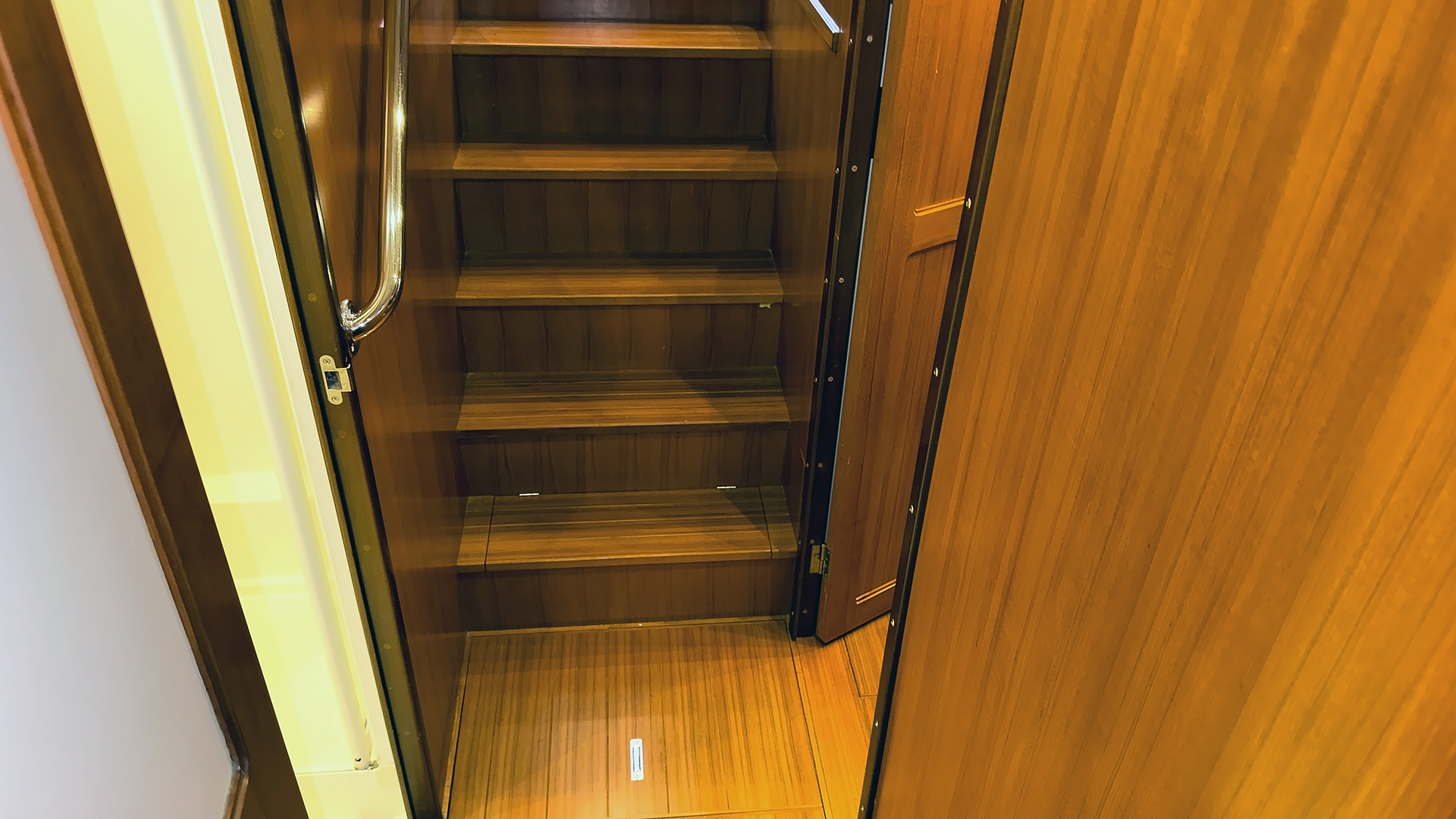

The saloon is spacious because it is pushed out on both sides, no wasted space filled with rarely used walking side decks. The entry level merges the saloon into the galley with a set of stairs up to the raised pilothouse or down to the accommodations deck.

The owner stateroom is forward, there is a shared head and shower, and the guest stateroom has two bunk berths.

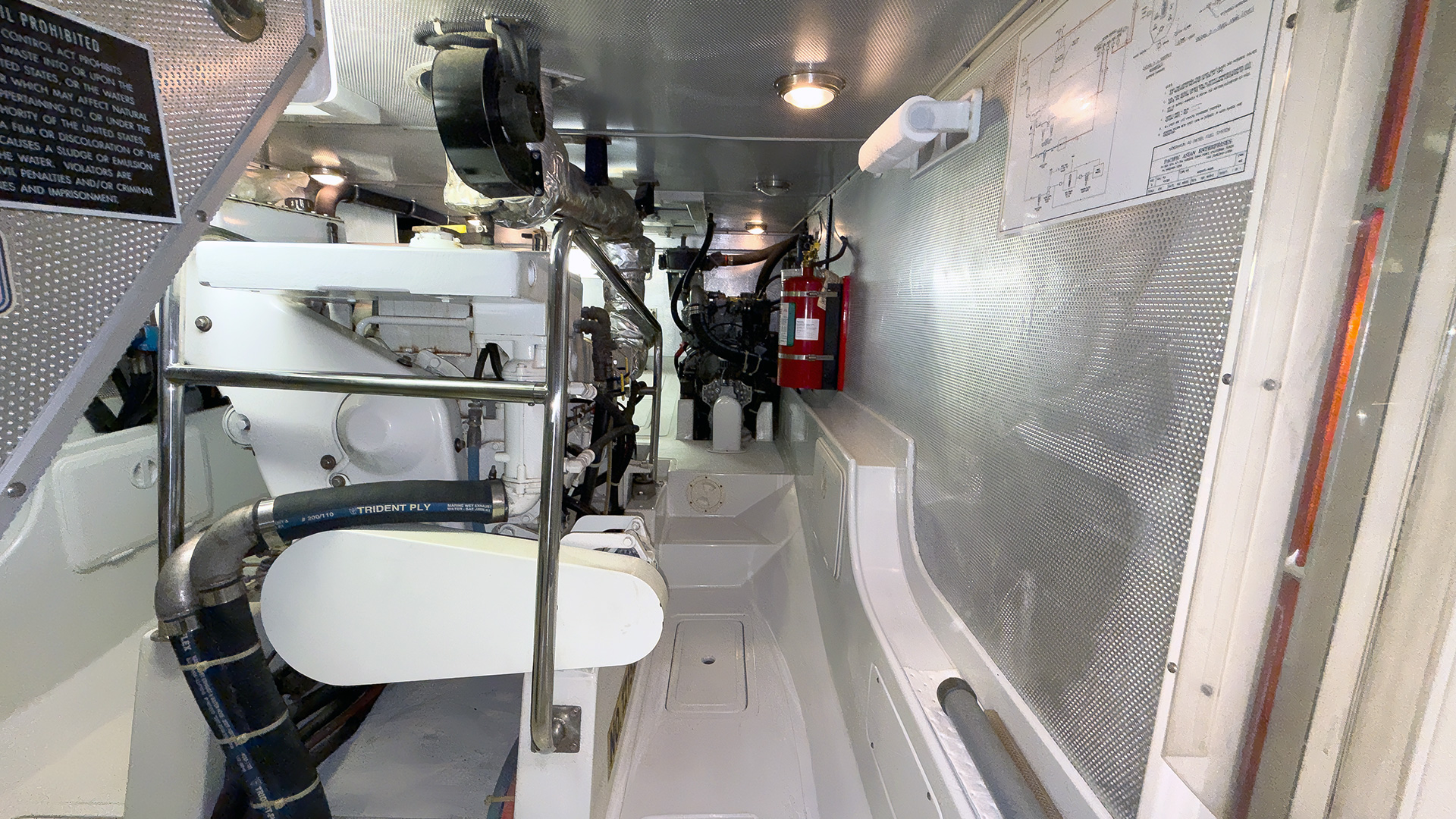

The engine room is surprisingly spacious, benefitting from the proprietary “maintenance strakes” in the hull mold that provides additional headroom on both sides of the main engine. Systems and equipment are selected and installed for reliability and service ease.

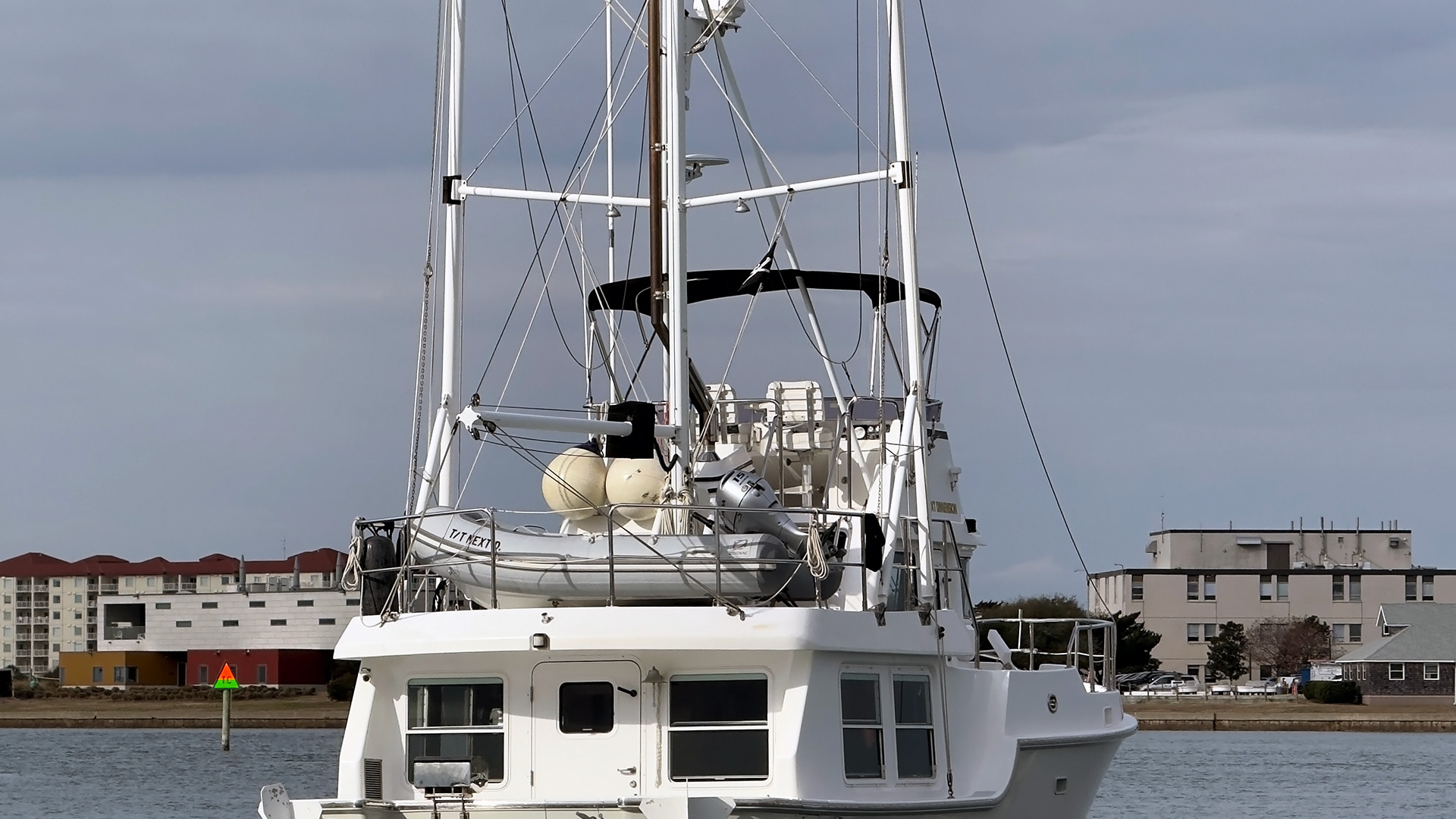

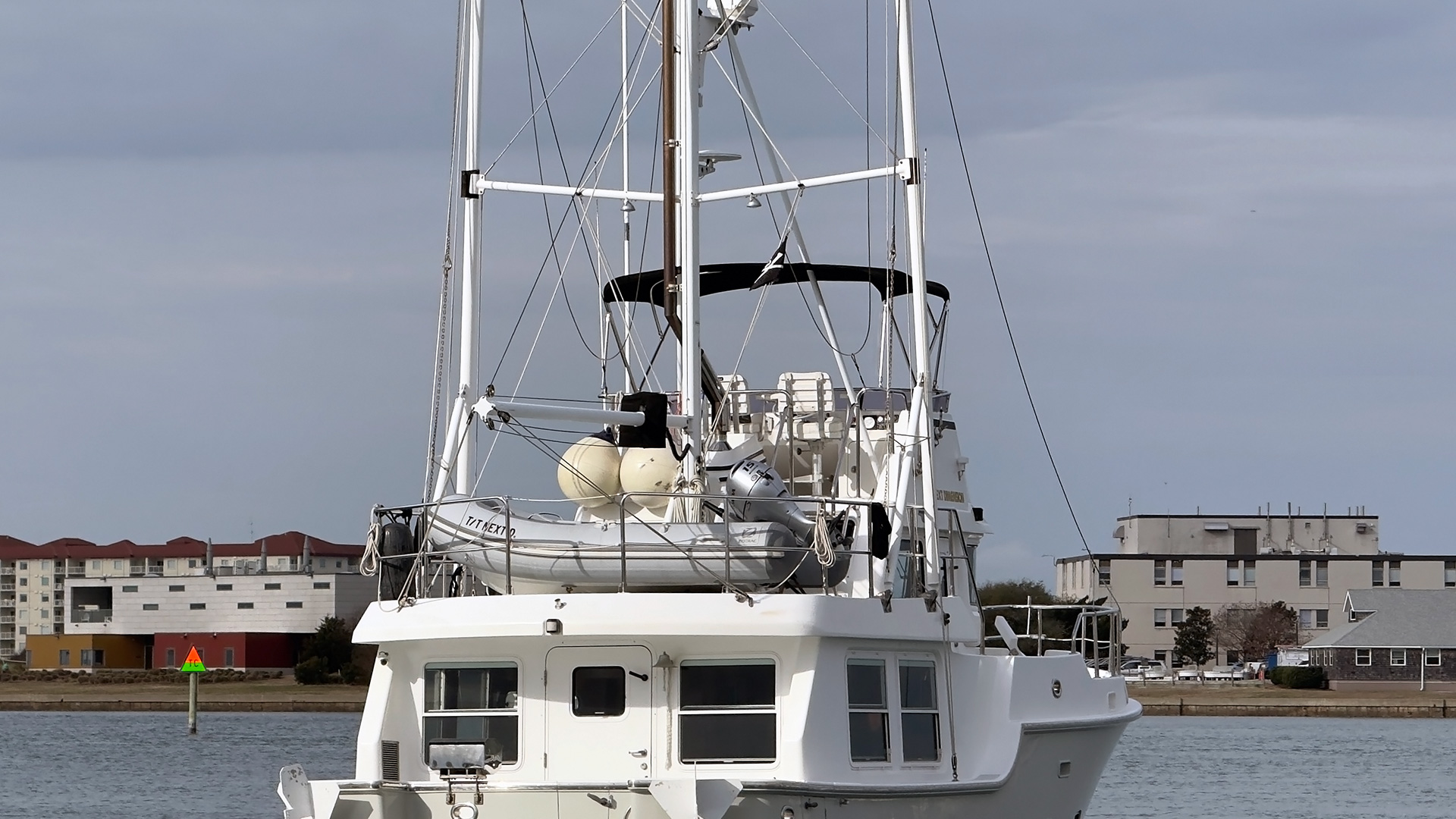

The pilothouse is arranged for optimal operation with good sight lines and easy to reach controls.  The flybridge adds a second command station and the tender is mounted on the boat deck, launched by the mast and boom.

For stabilization, she has both paravane outriggers and active fin stabilizers.

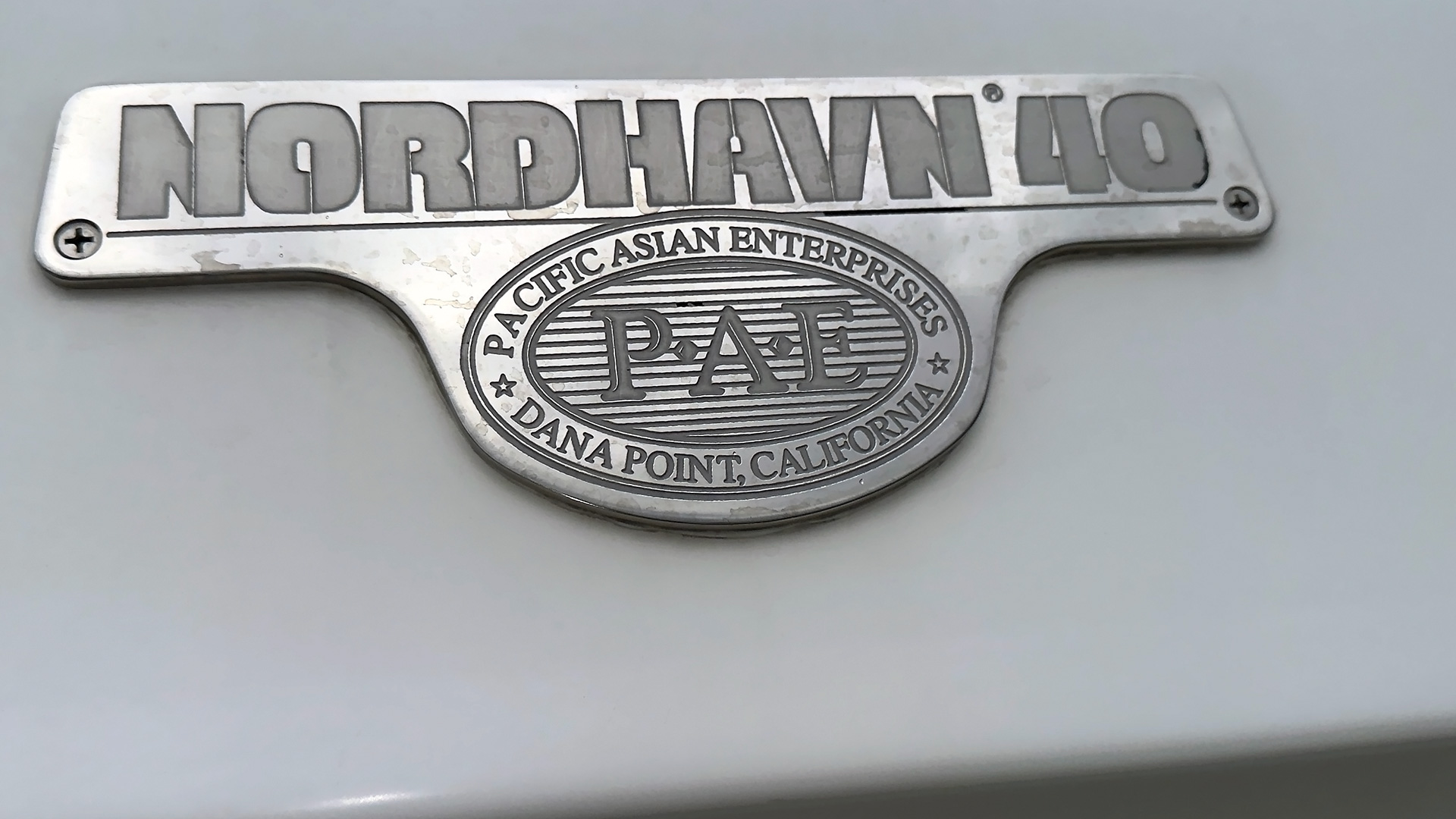

The Nordhavn 40 is a full displacement trawler that was designed and built to transit oceans.  A sistership completed a 26-week circumnavigation in 2001 (with listing broker Jeff Merrill crewing a leg). The Nordhavn 40 design is the smallest passage maker built by PAE and boasts a 3,000-mile range.

Most Nordhavn 40 owners are “owner operators” who enjoy the reliability of this design and savor time aboard, planning, traveling and resting at anchor.

Next Dimension is a second generation (MK II built in China) Nordhavn 40 – hull 56.   When the original California builder faltered at hull 44, PAE/Nordhavn shipped the tooling to the Nordhavn yard in China to continue production stating with hull 45 and differentiated the two versions in this series as Mark I US made, and Mark II China built.

Note: Next Dimension has her CBP-7501 Entry Summary papers.  She has remained USCG Documented and US flagged through all three owners. Tariff issues are subject to change and JMYS cannot offer legal advice – please consult with a qualified maritime attorney before purchasing any vessel built outside of the United States.

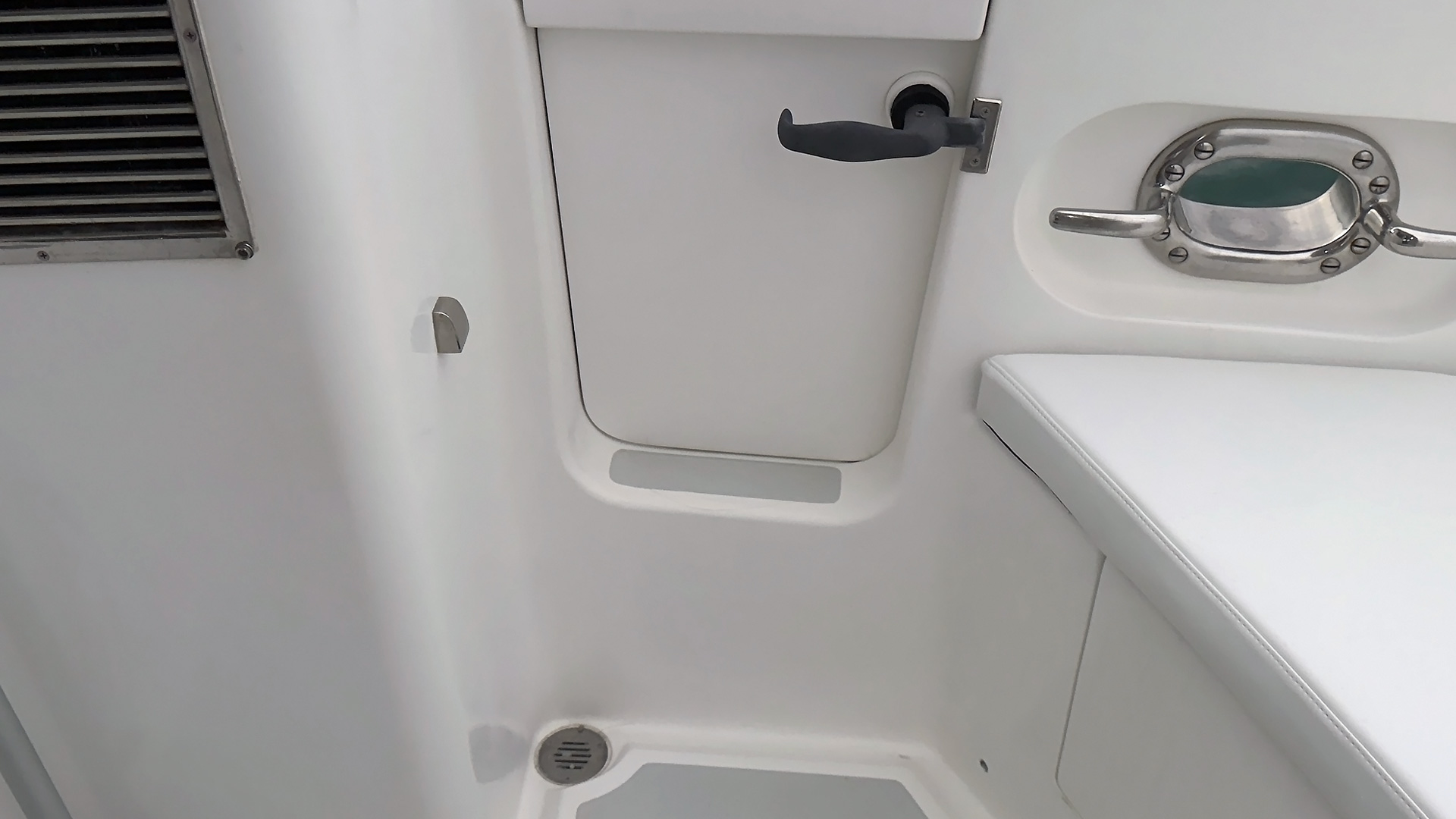

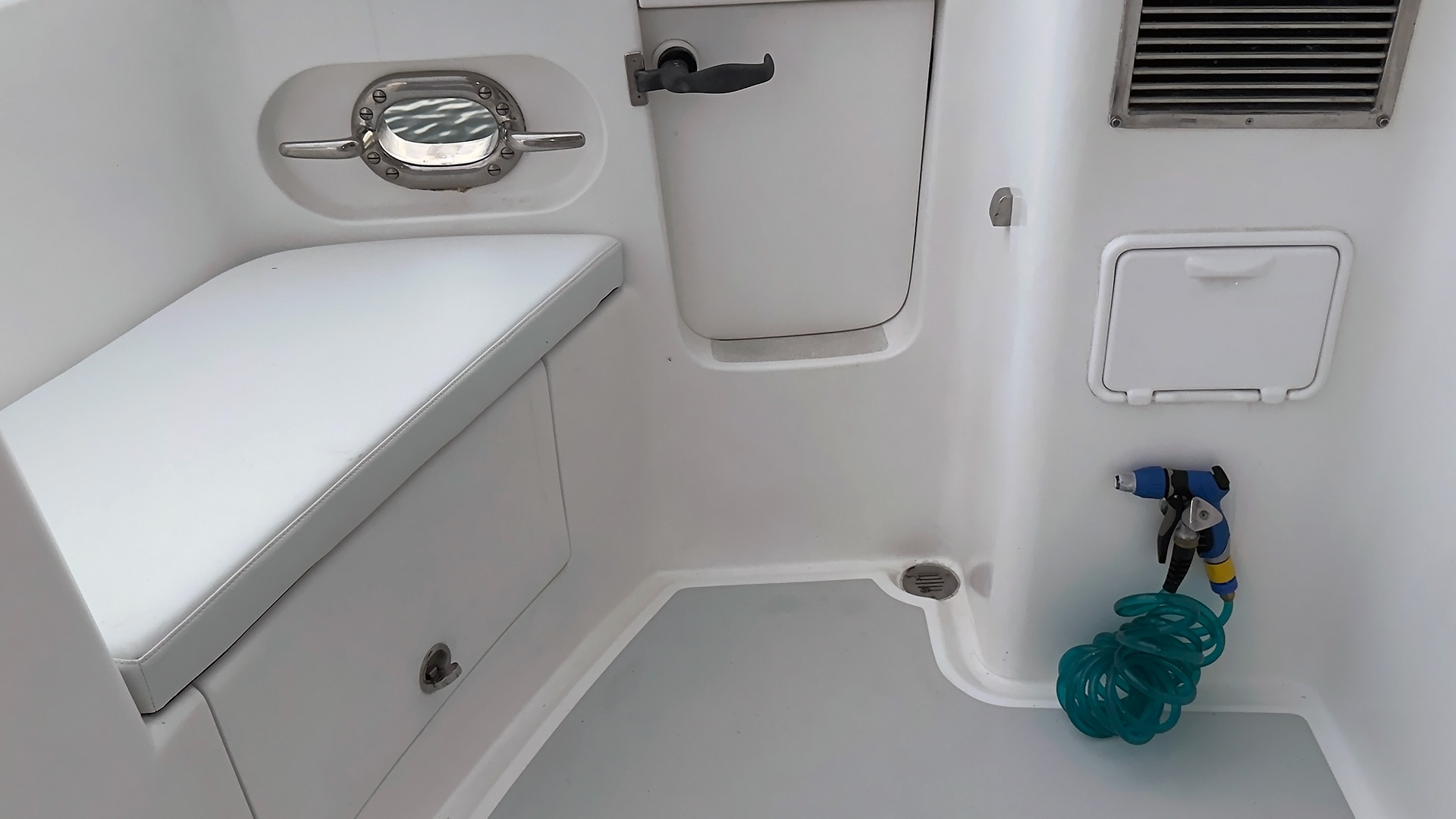

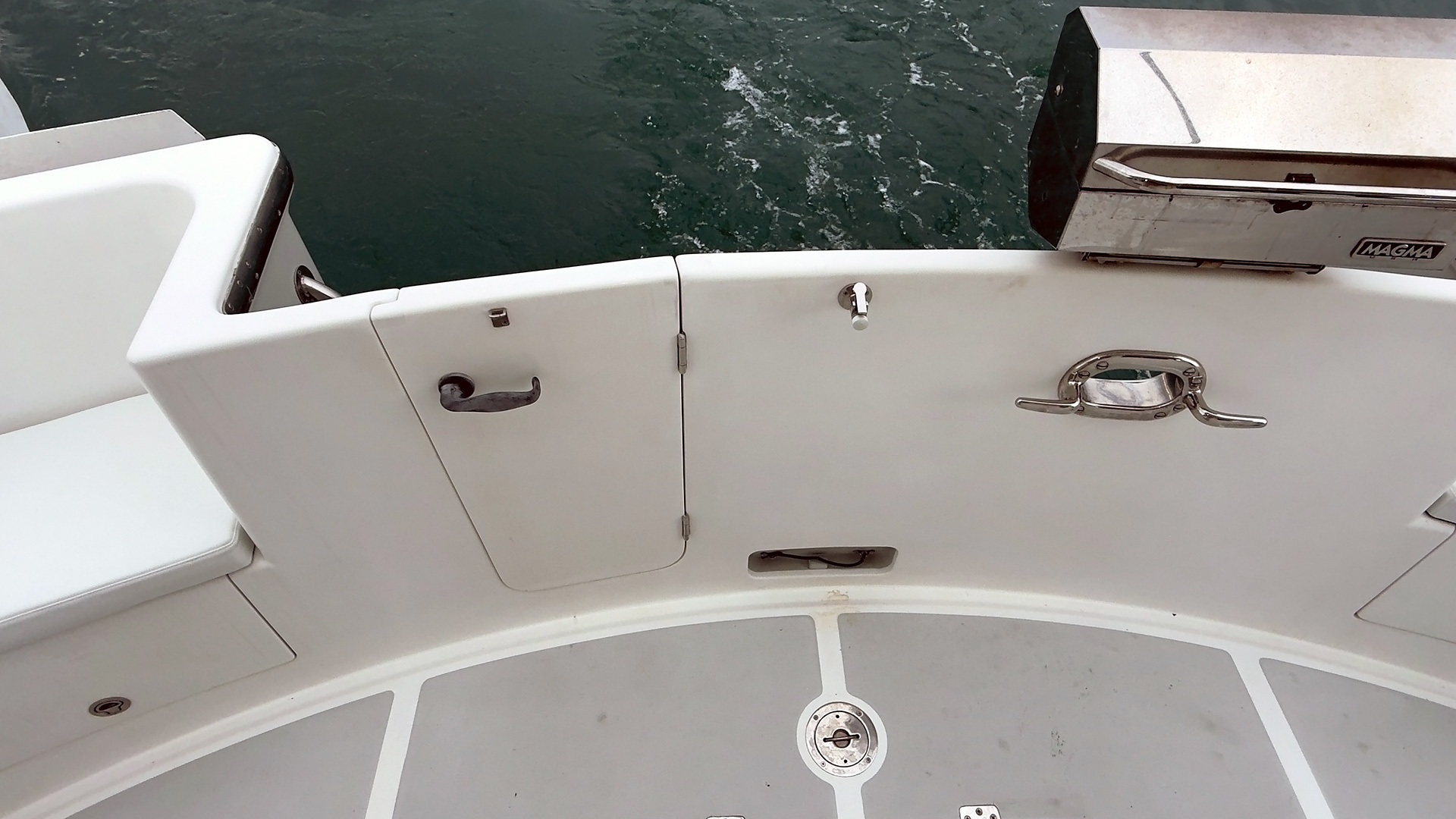

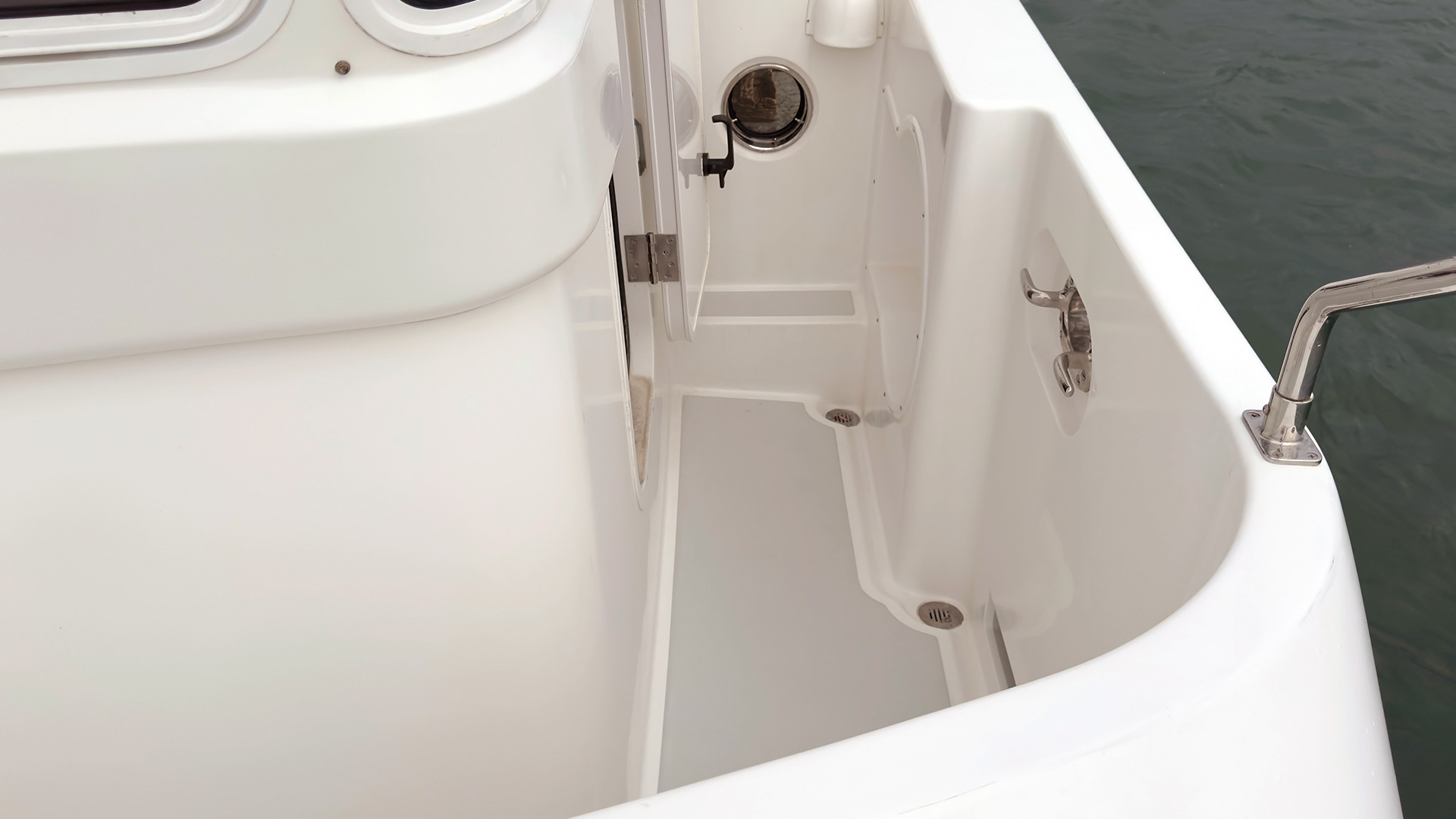

Cockpit:

• Swim platform
• Three boarding doors – aft, port and starboard

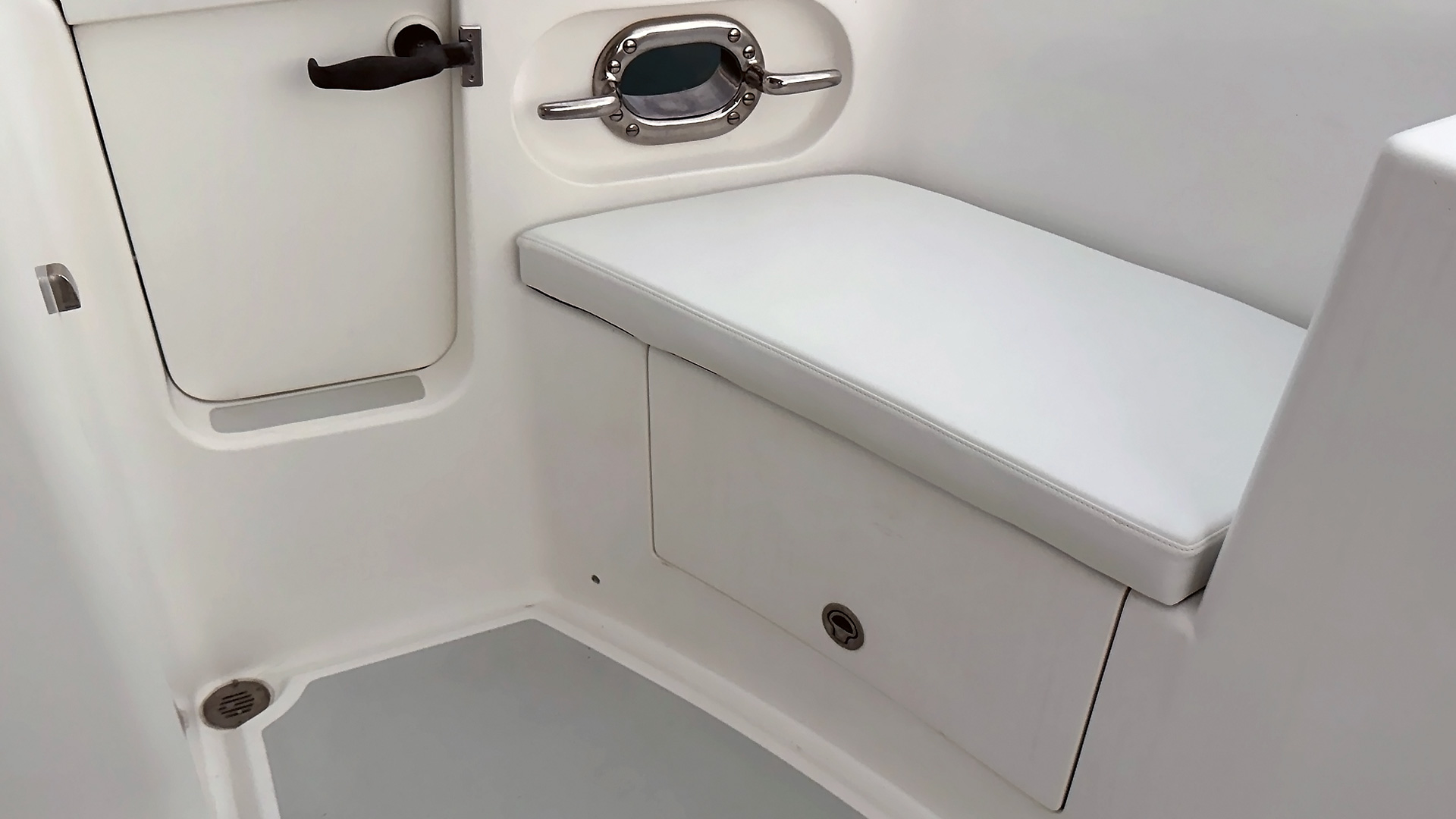

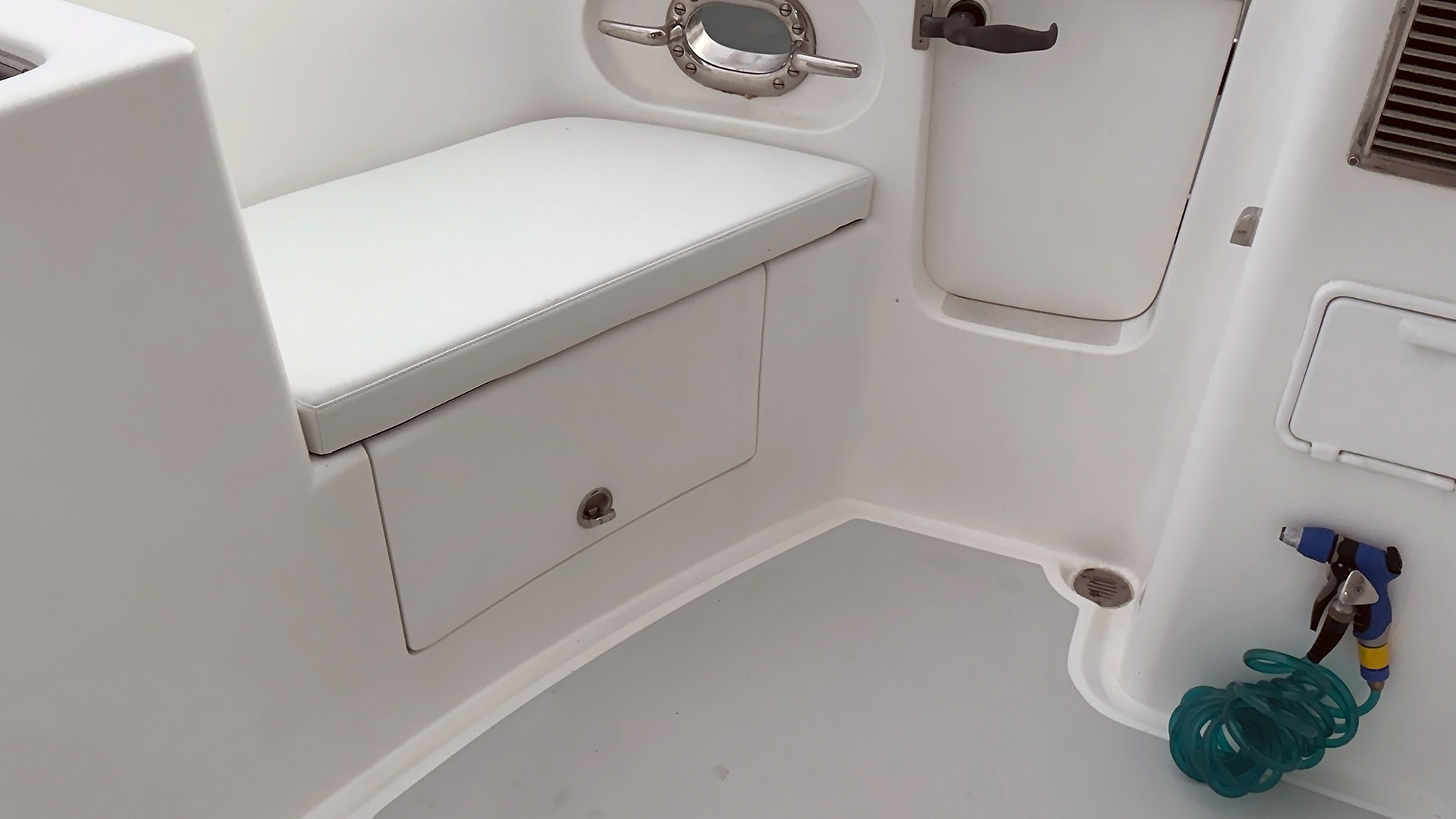

• Two built-in seats with cushions are aft, facing forward (port side doubles as propane locker)
• Hot and cold freshwater shower
• Air vents for engine room

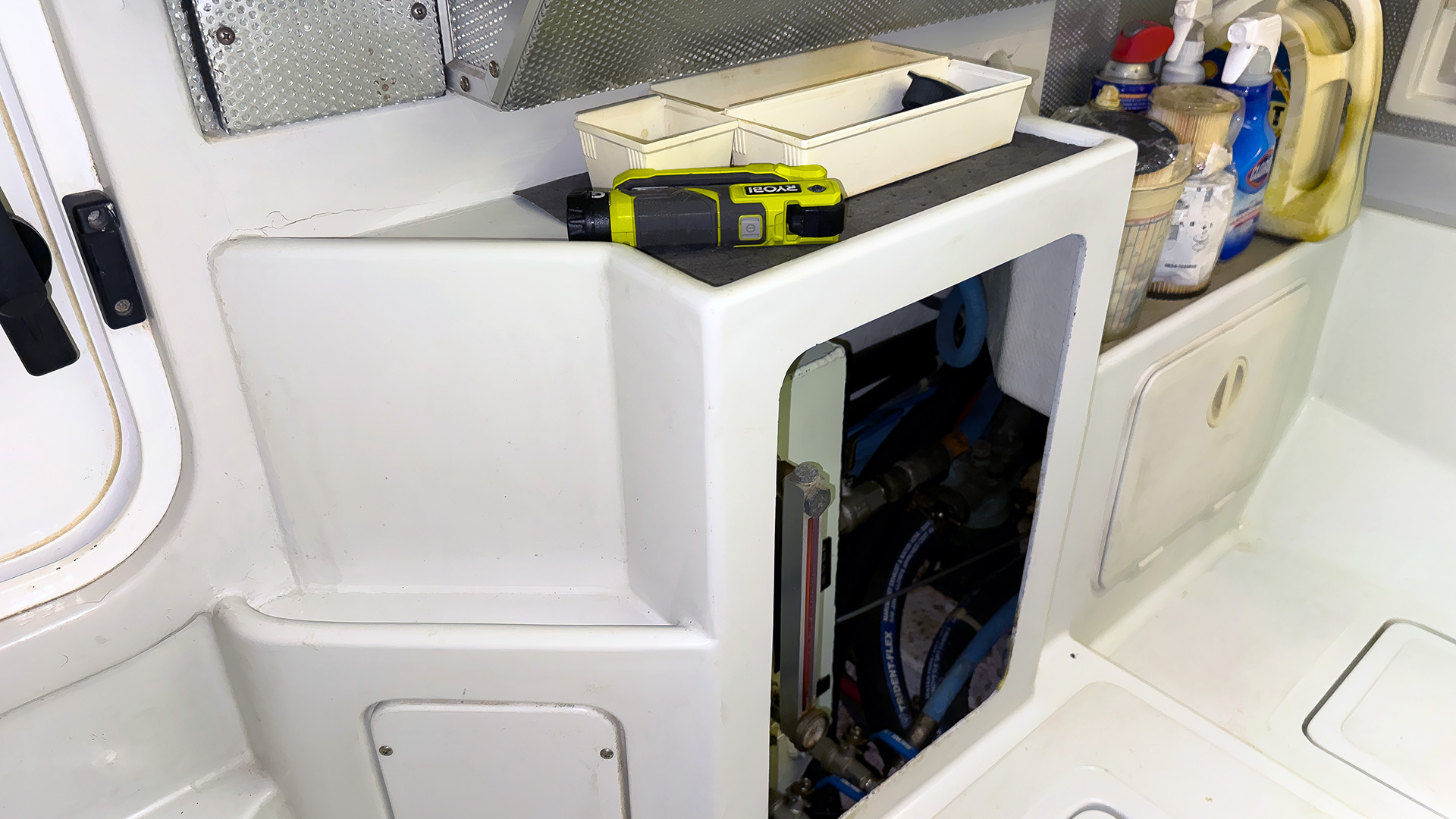

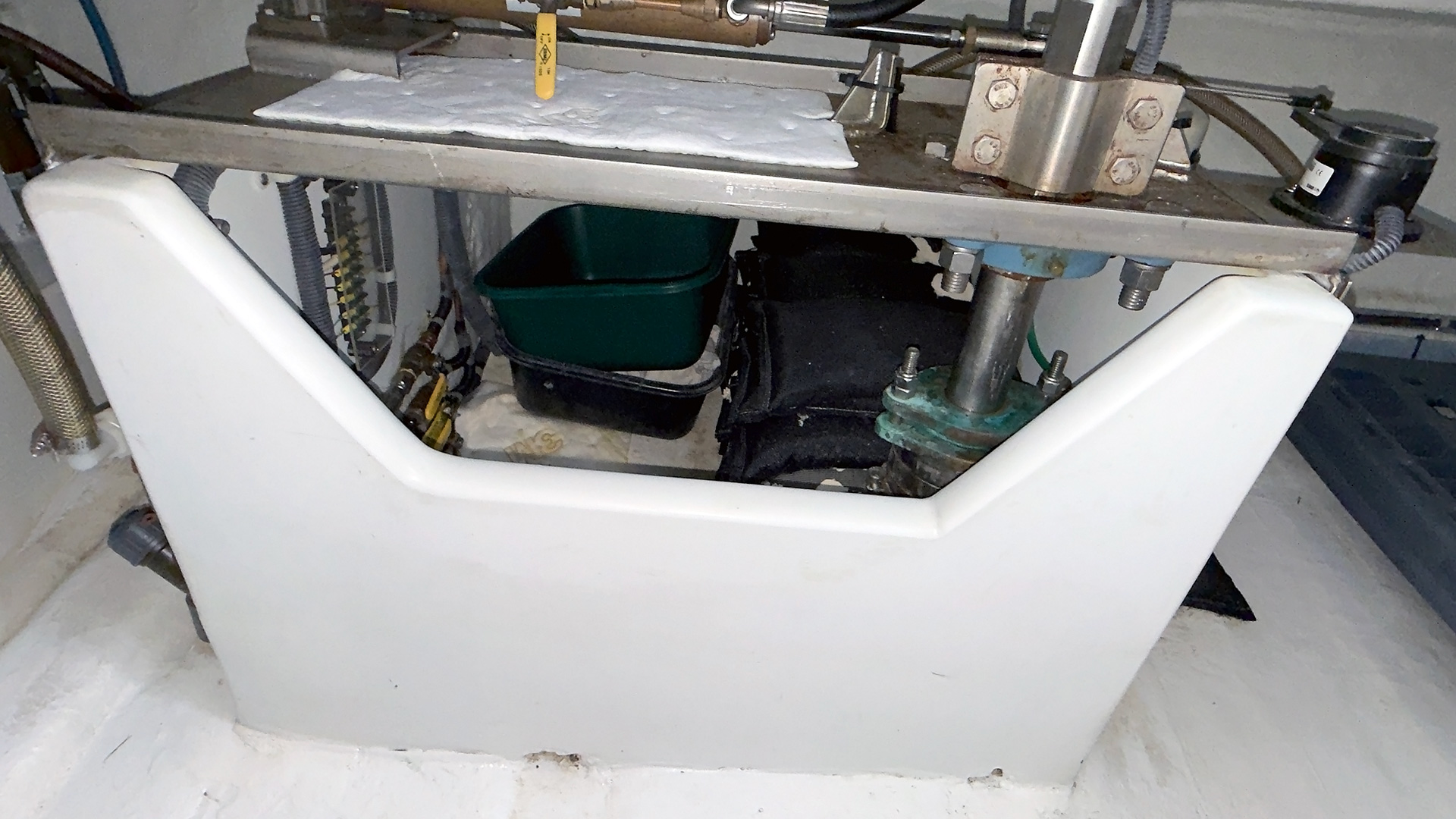

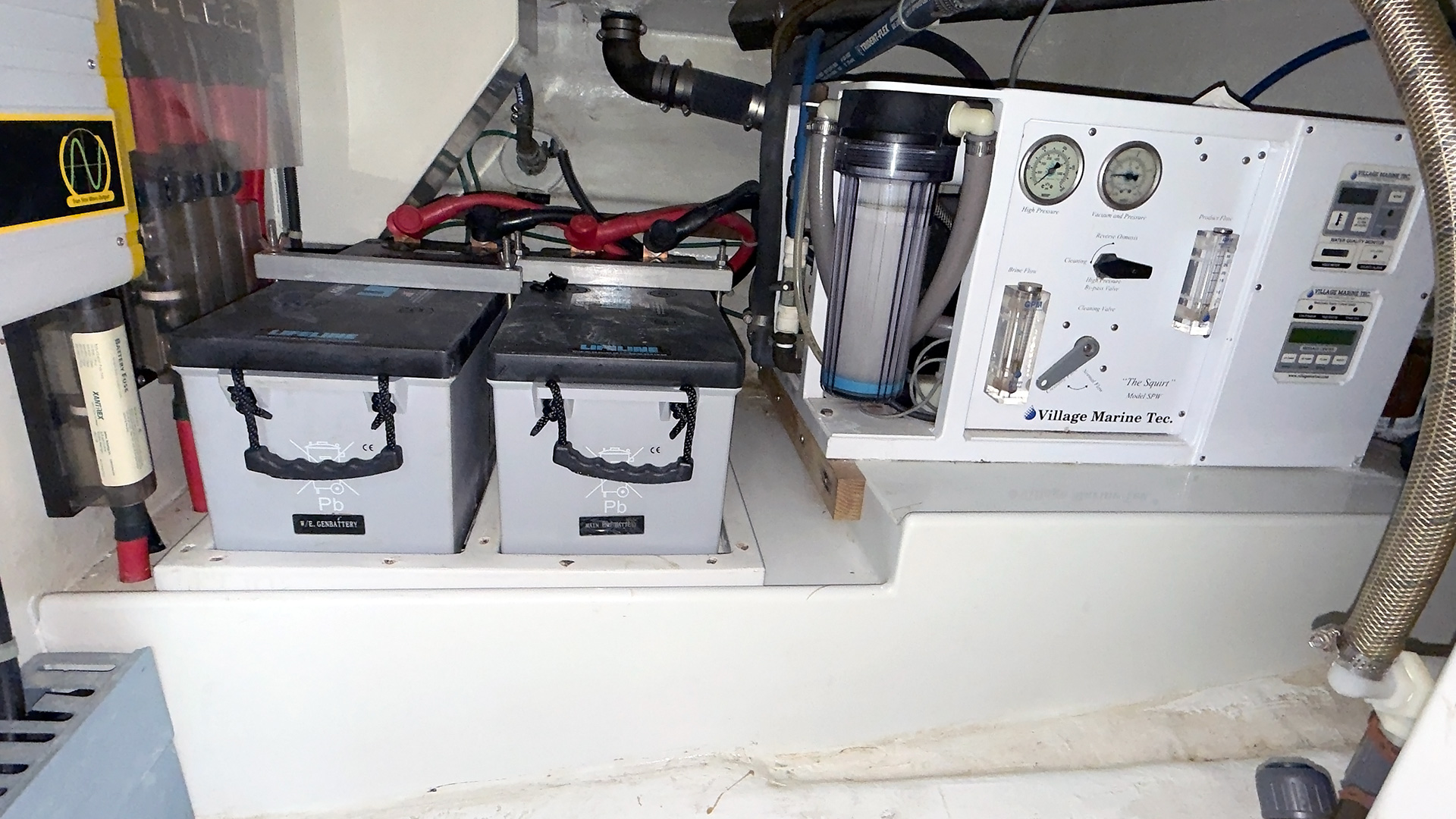

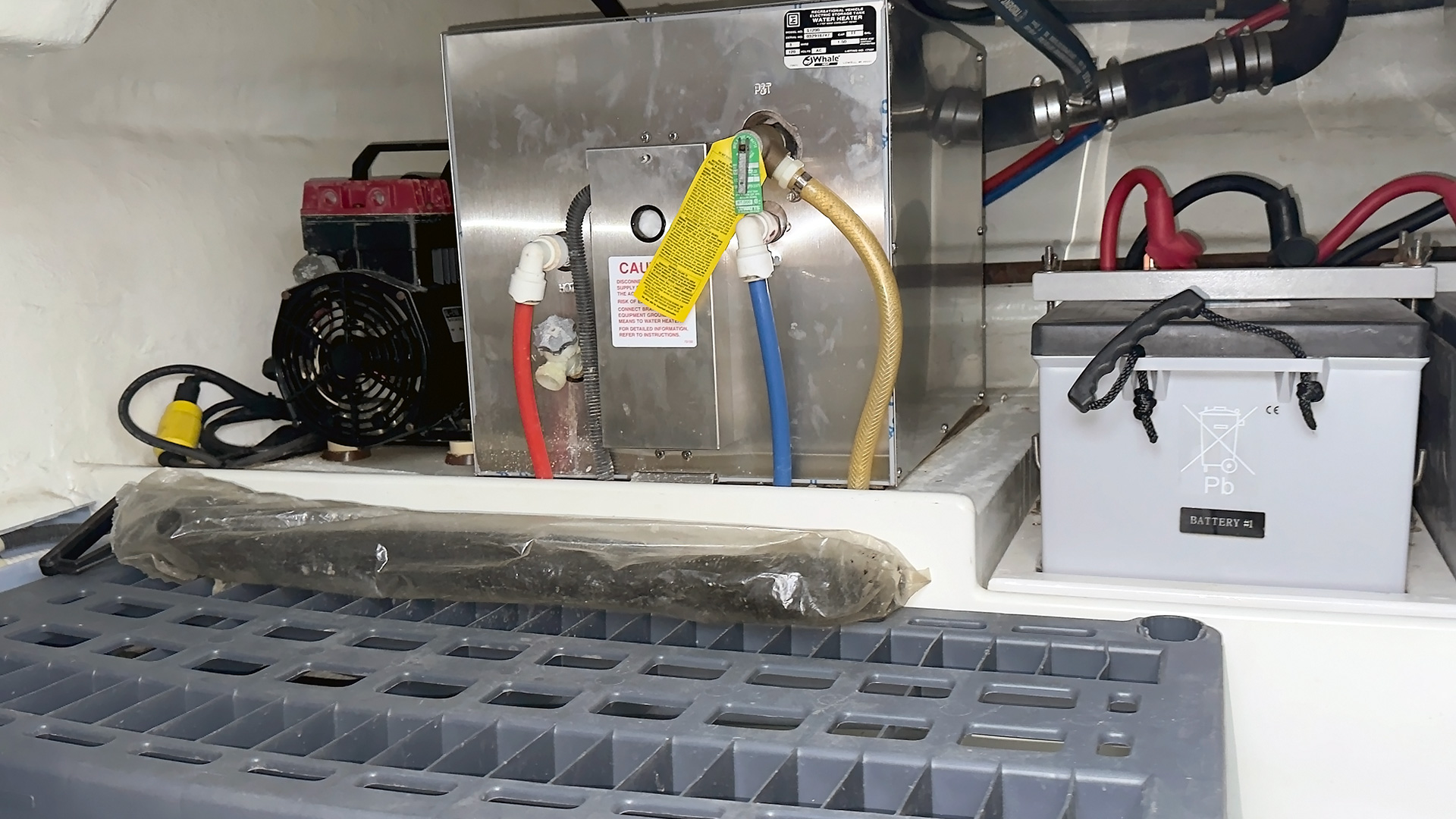

Lazarette:

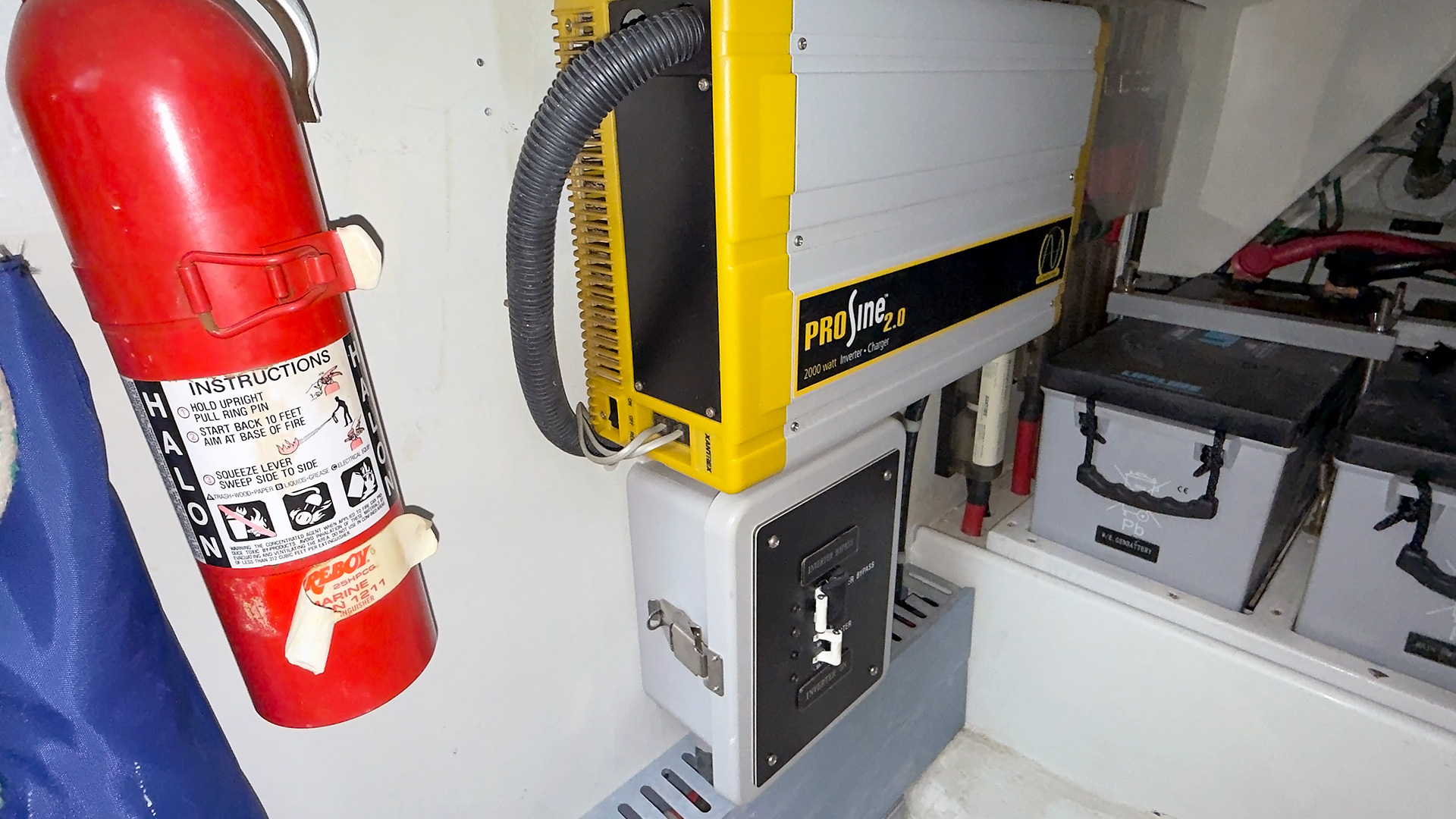

• Prosine 2.0 inverter/charger

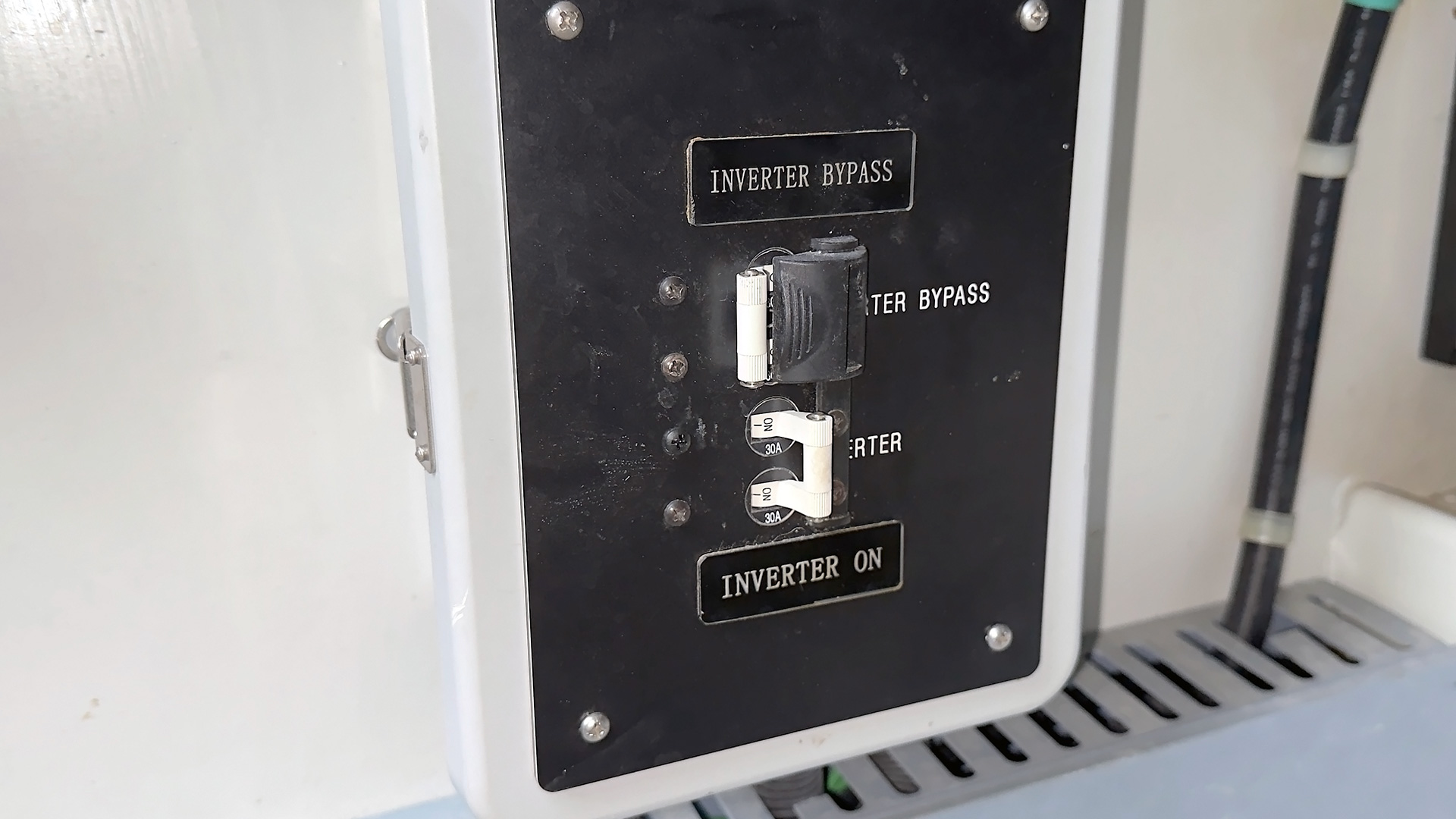

• Inverter bypass

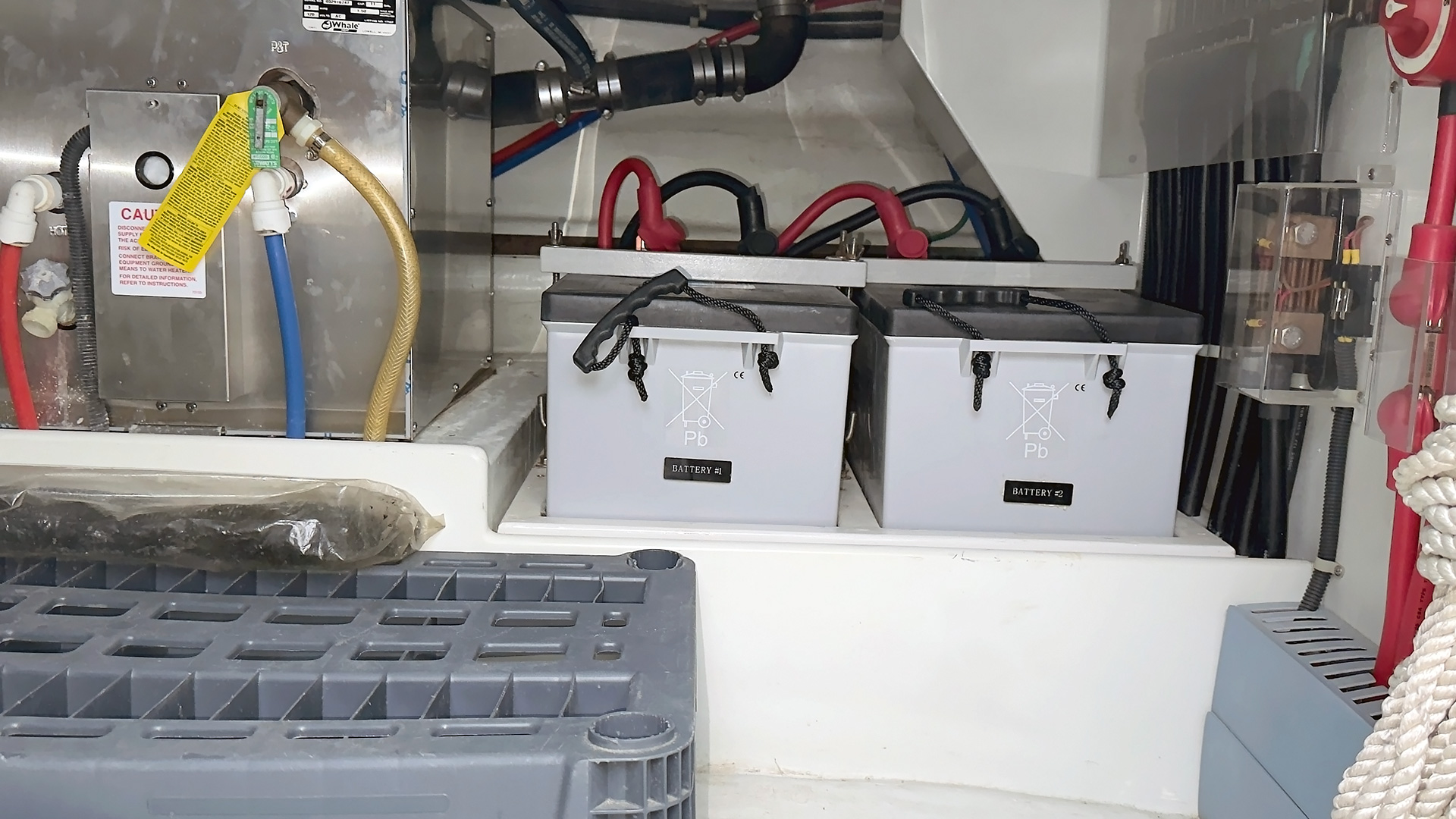

• Lifeline batteries
• Village Marine SPW “Squirt” 600 GPD water maker (has not been operated since 2014)
• Hydraulic steering ram
• Autopilot

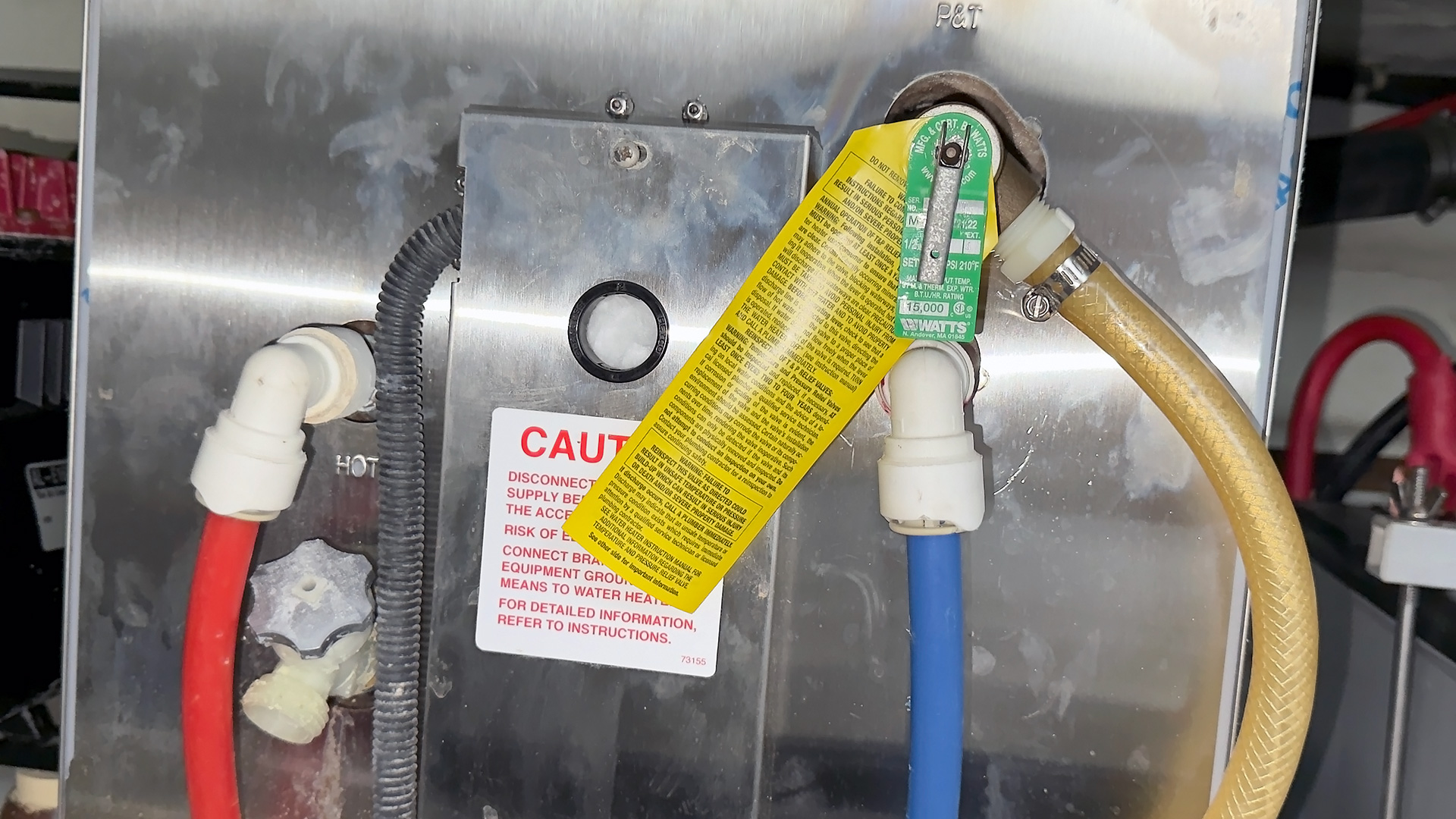

• Whale 10-gallon hot water tank
• Fresh water accumulator tank
• Emergency tiller

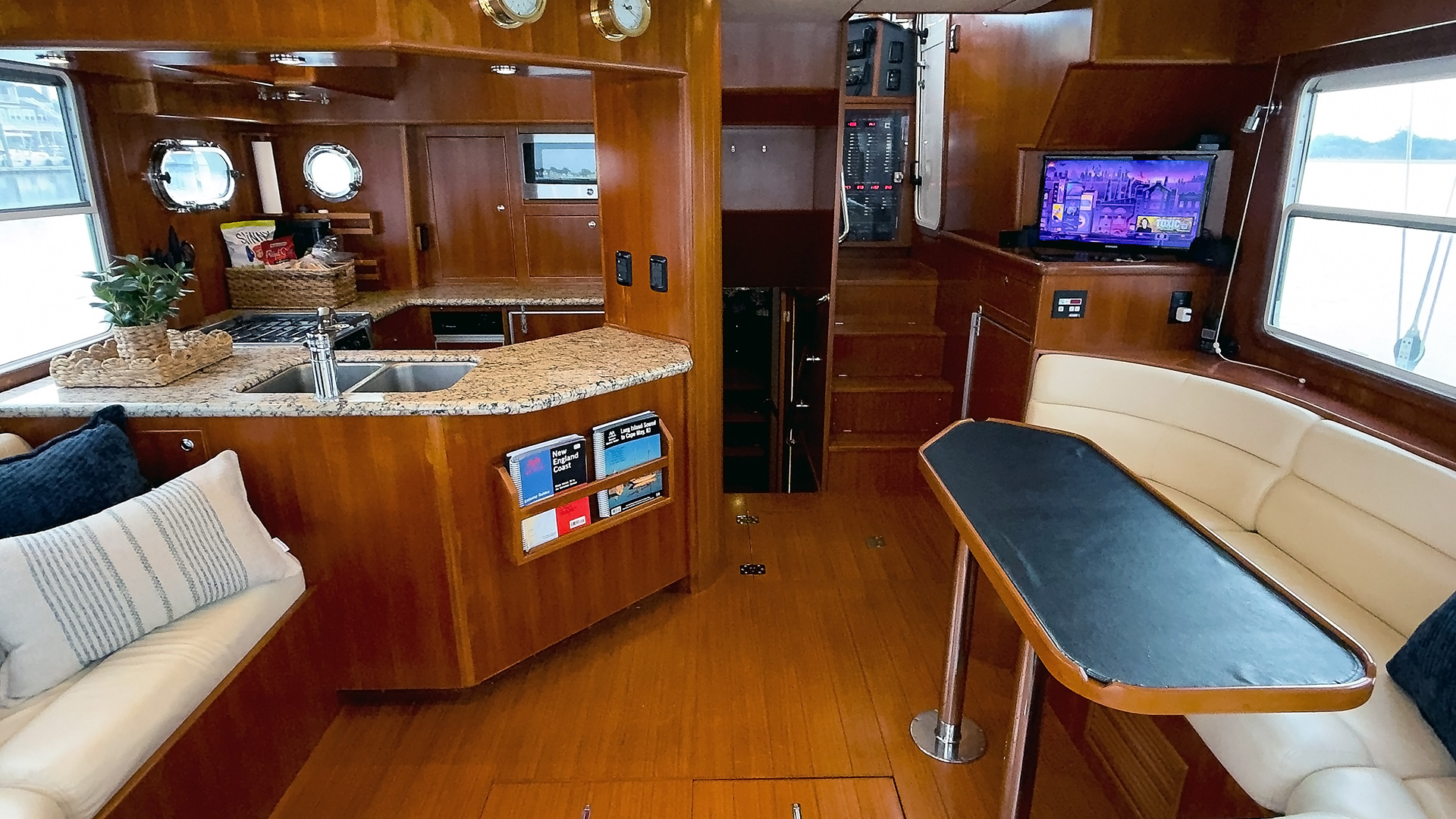

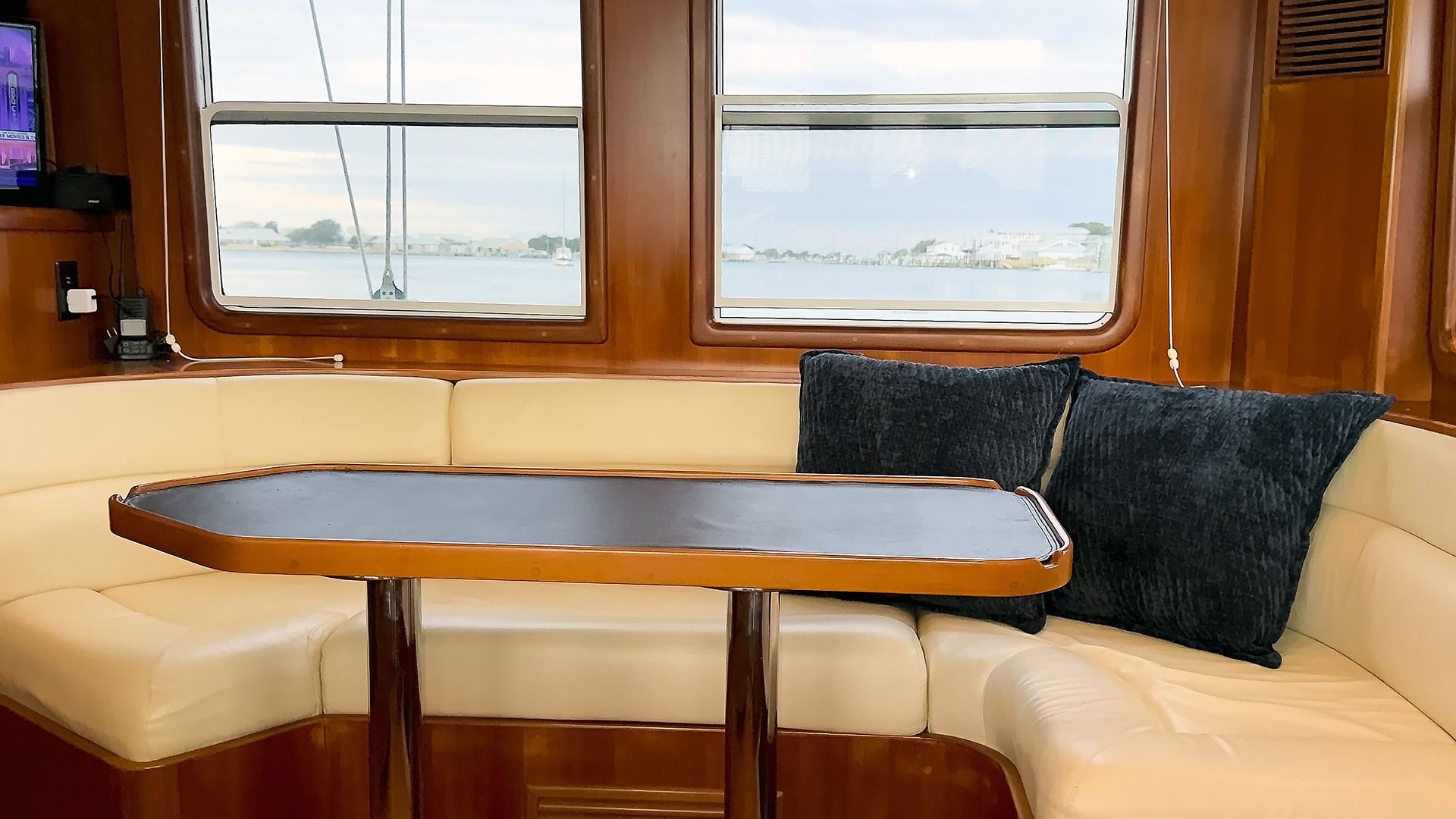

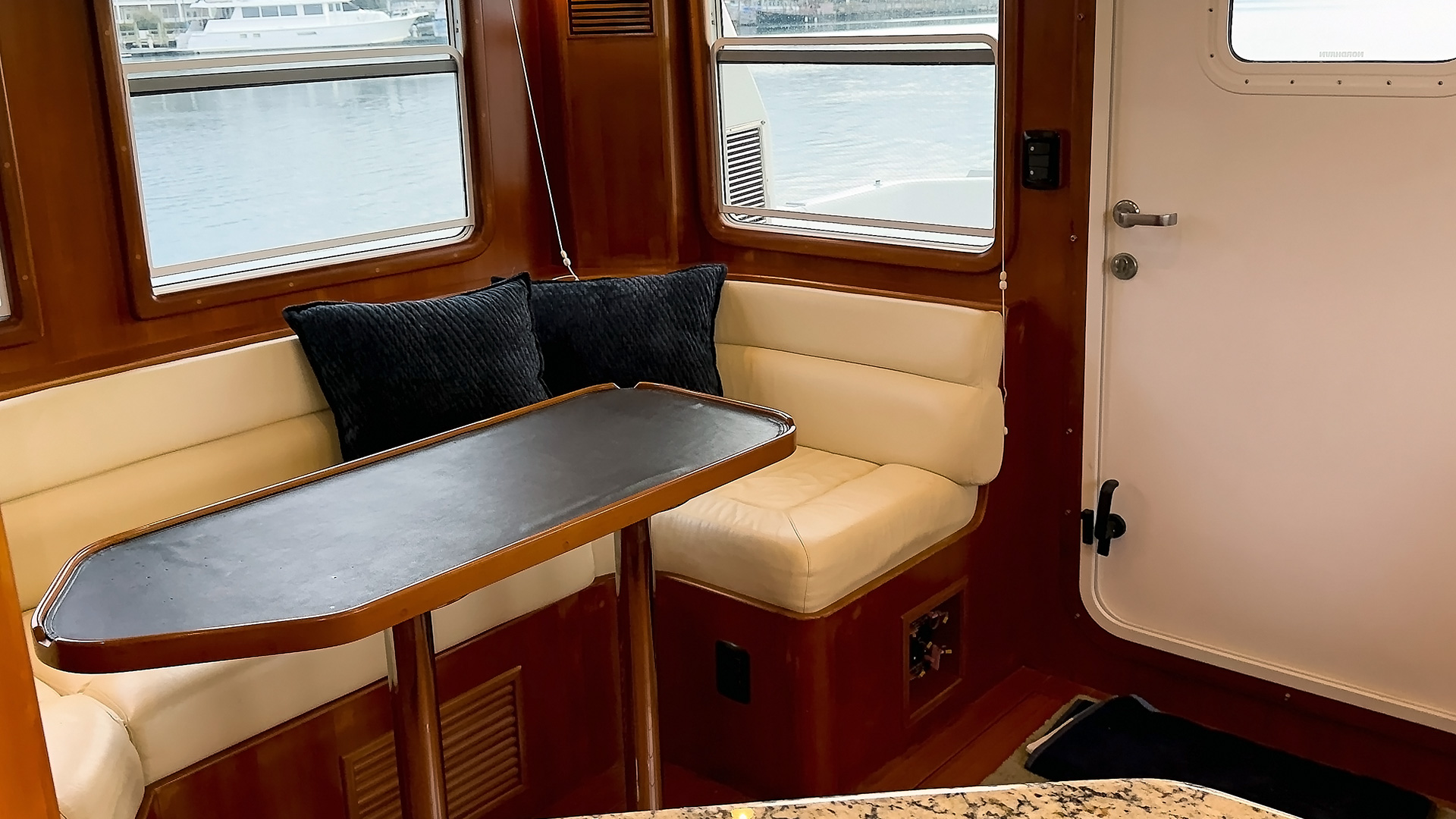

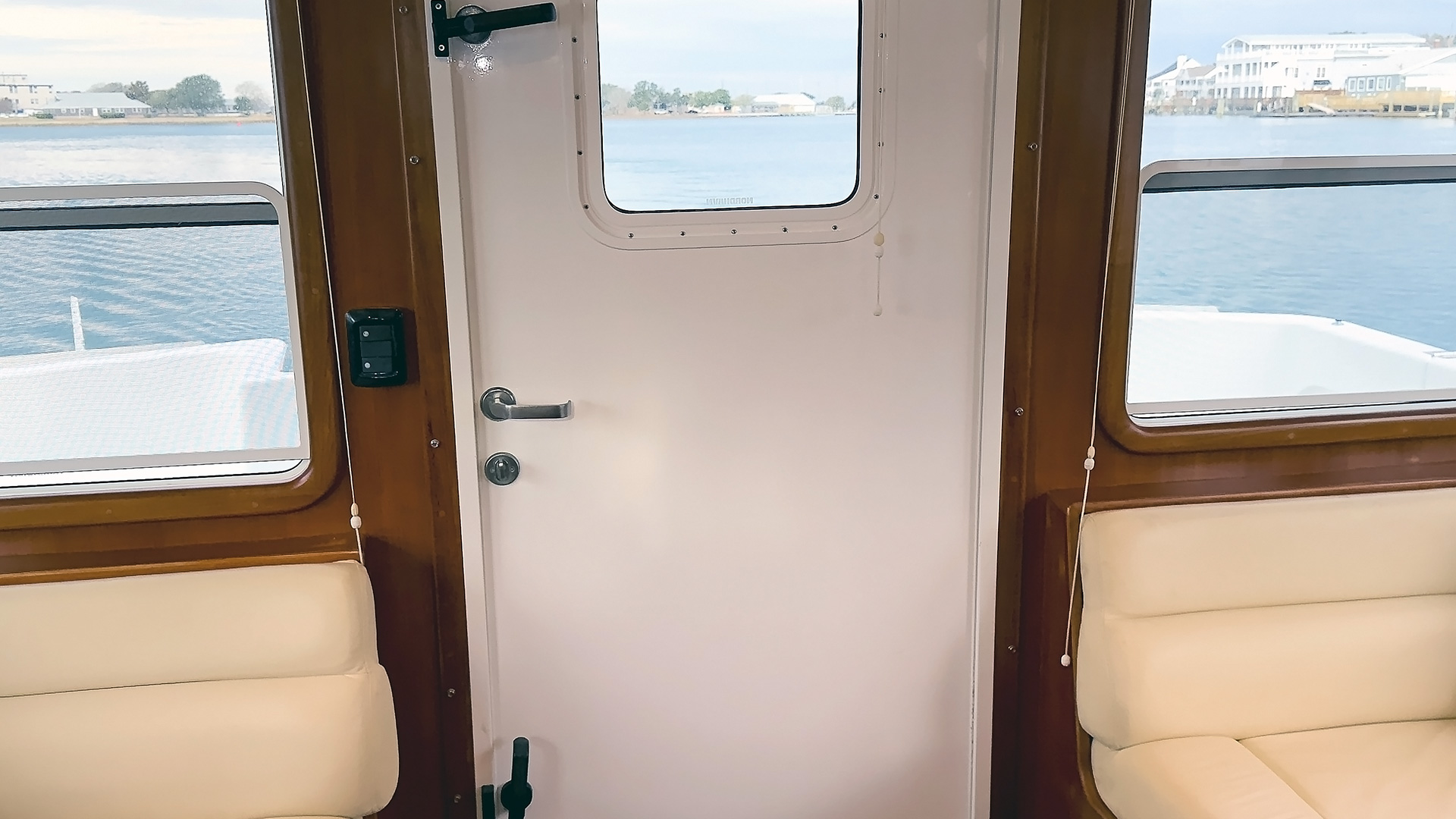

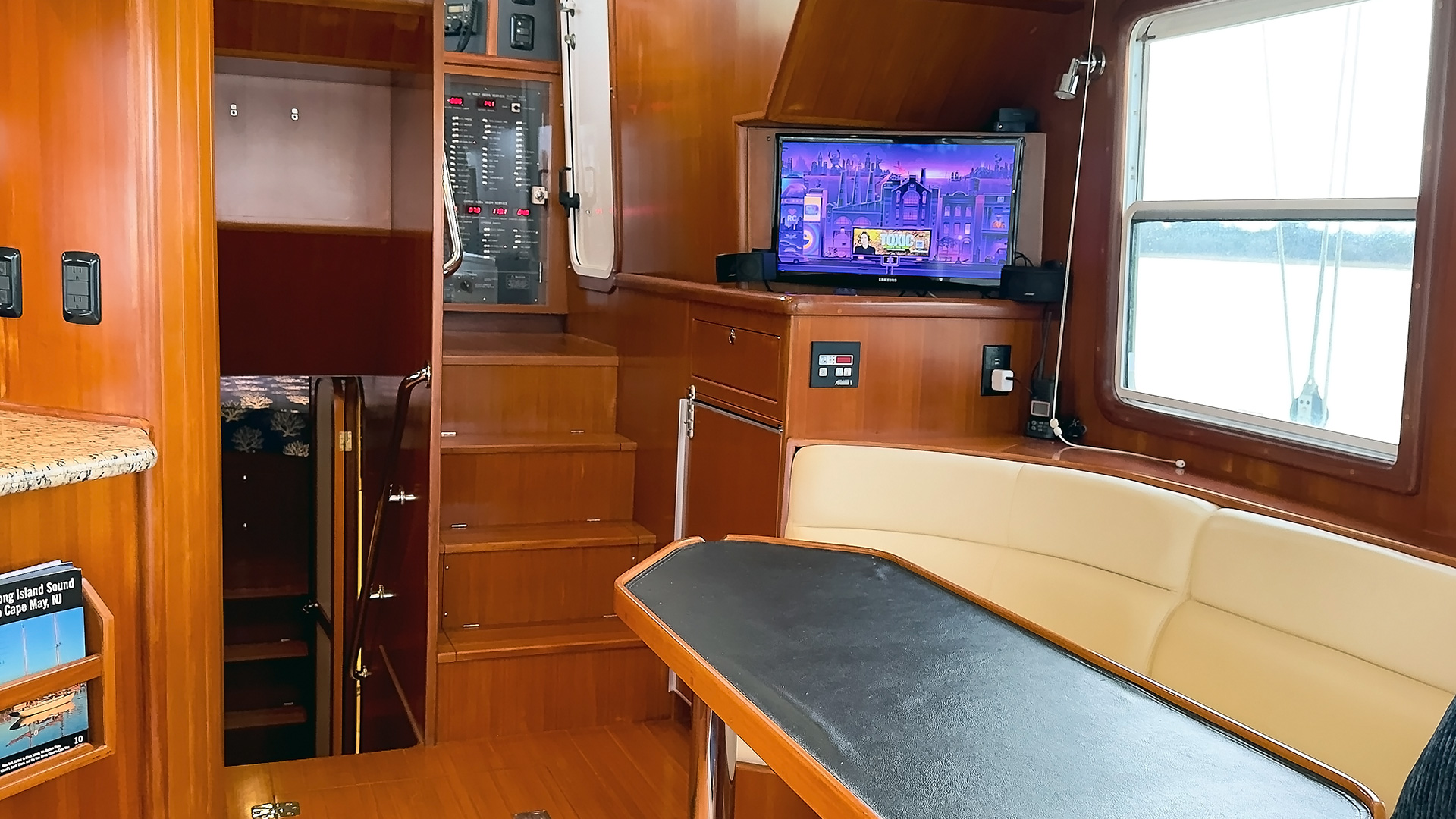

Saloon:

• Teak flooring

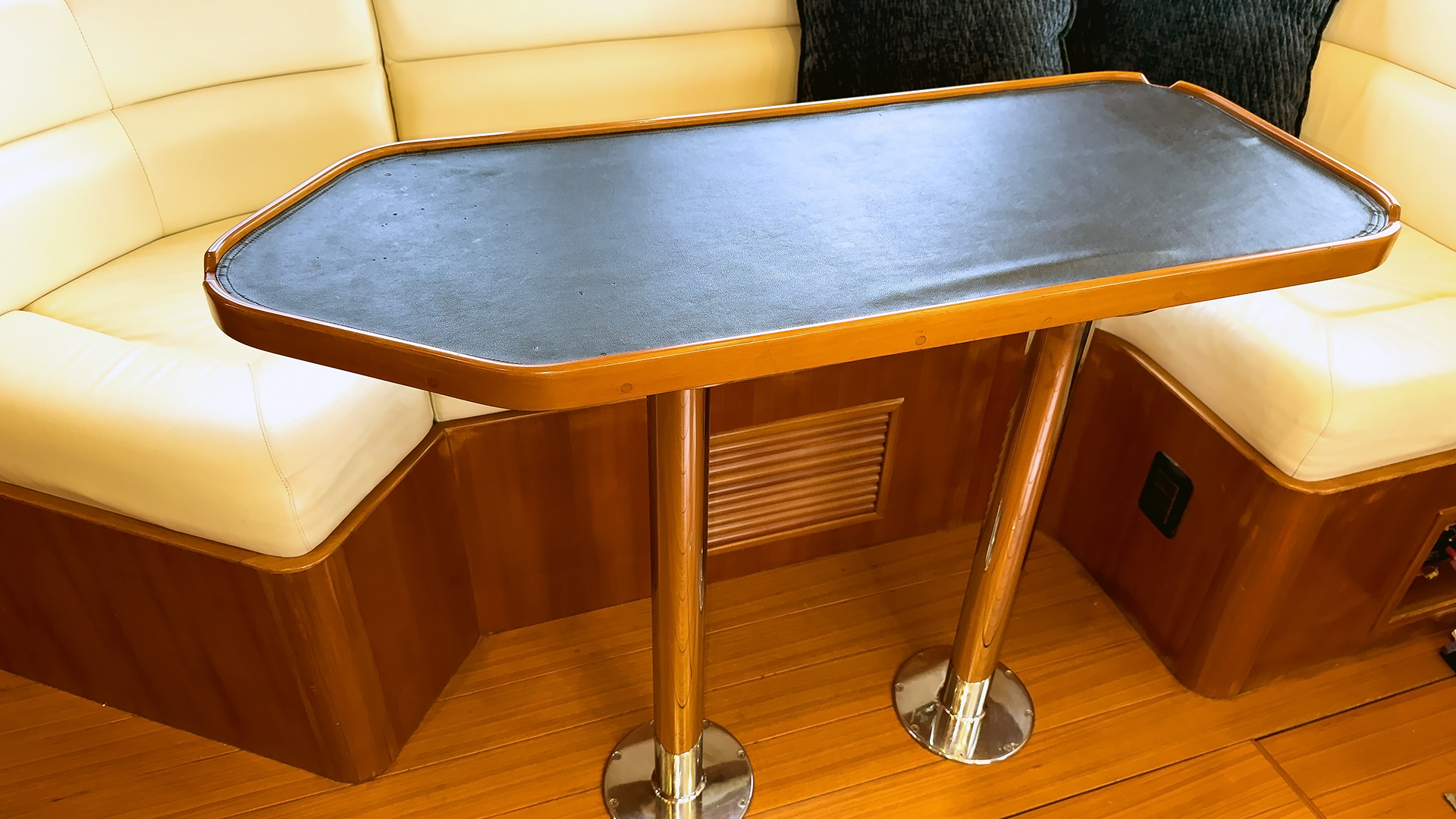

• Fixed dining table port side
• Upholstered settee’s port and starboard with storage under
• Slide windows with screens and blinds
• Teak magazine storage rack
• Entertainment cabinet with flat-screen TV
• Fusion stereo with speakers
• Controls for air conditioning

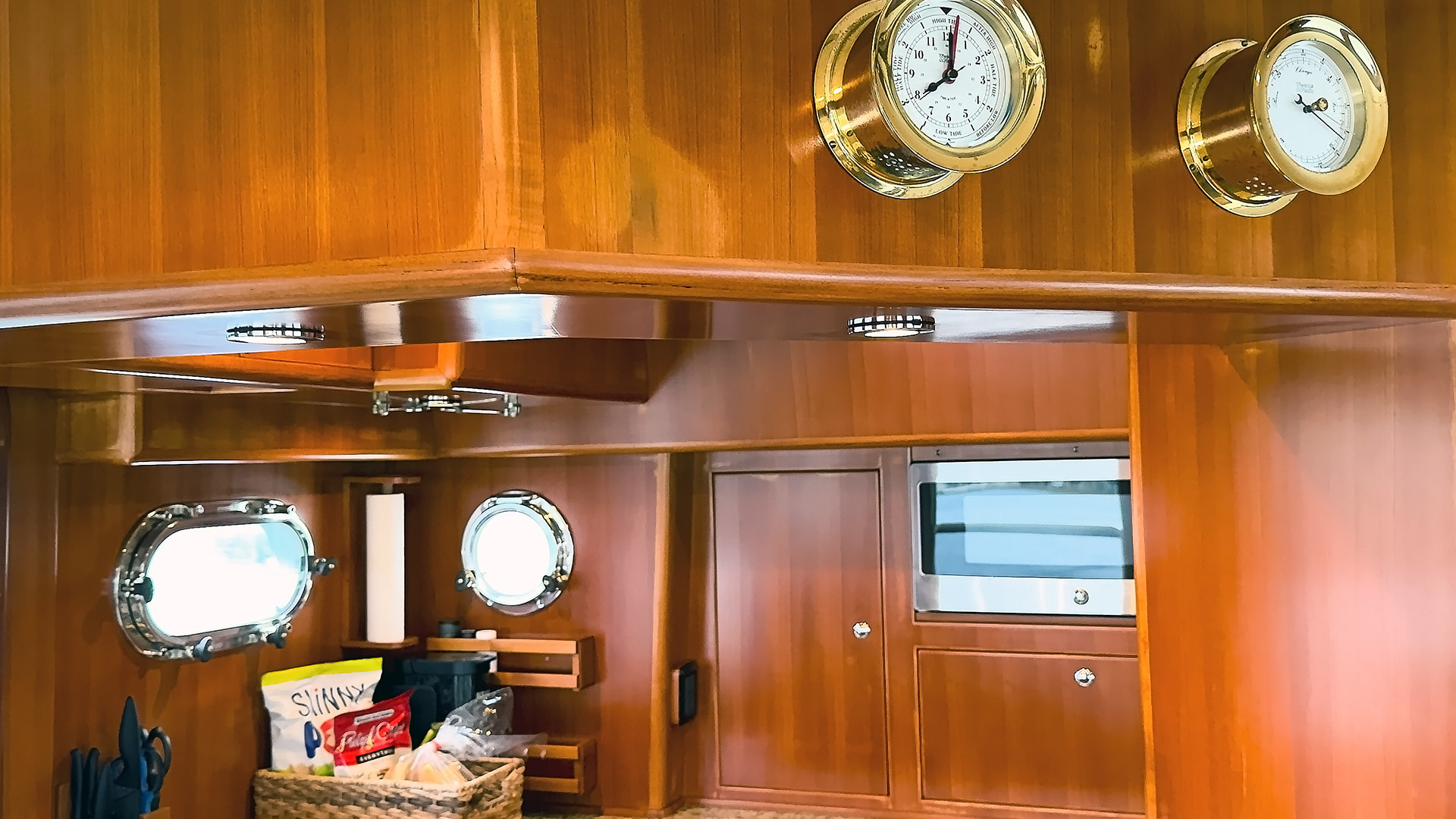

• Ship’s clock and barometer

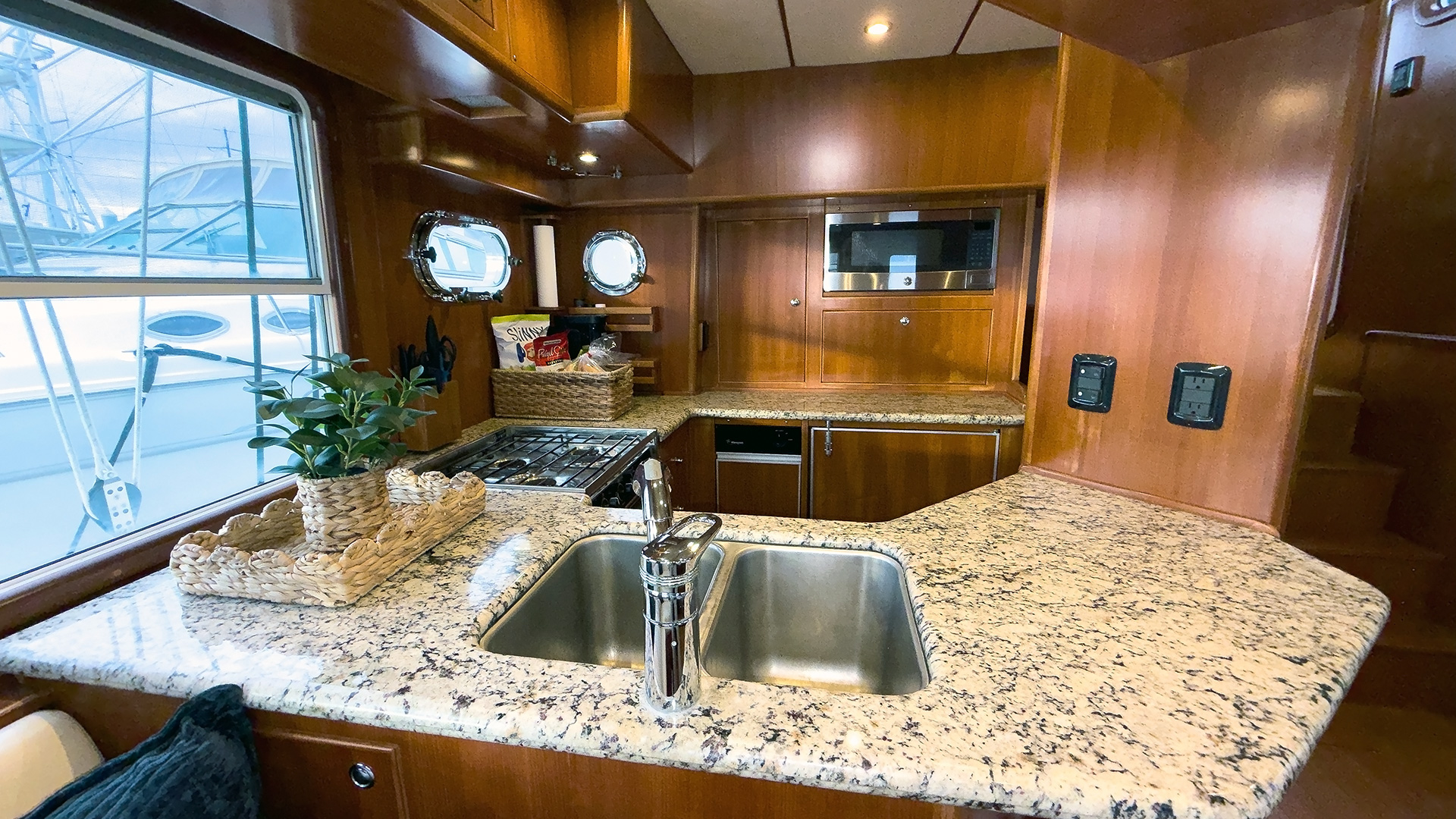

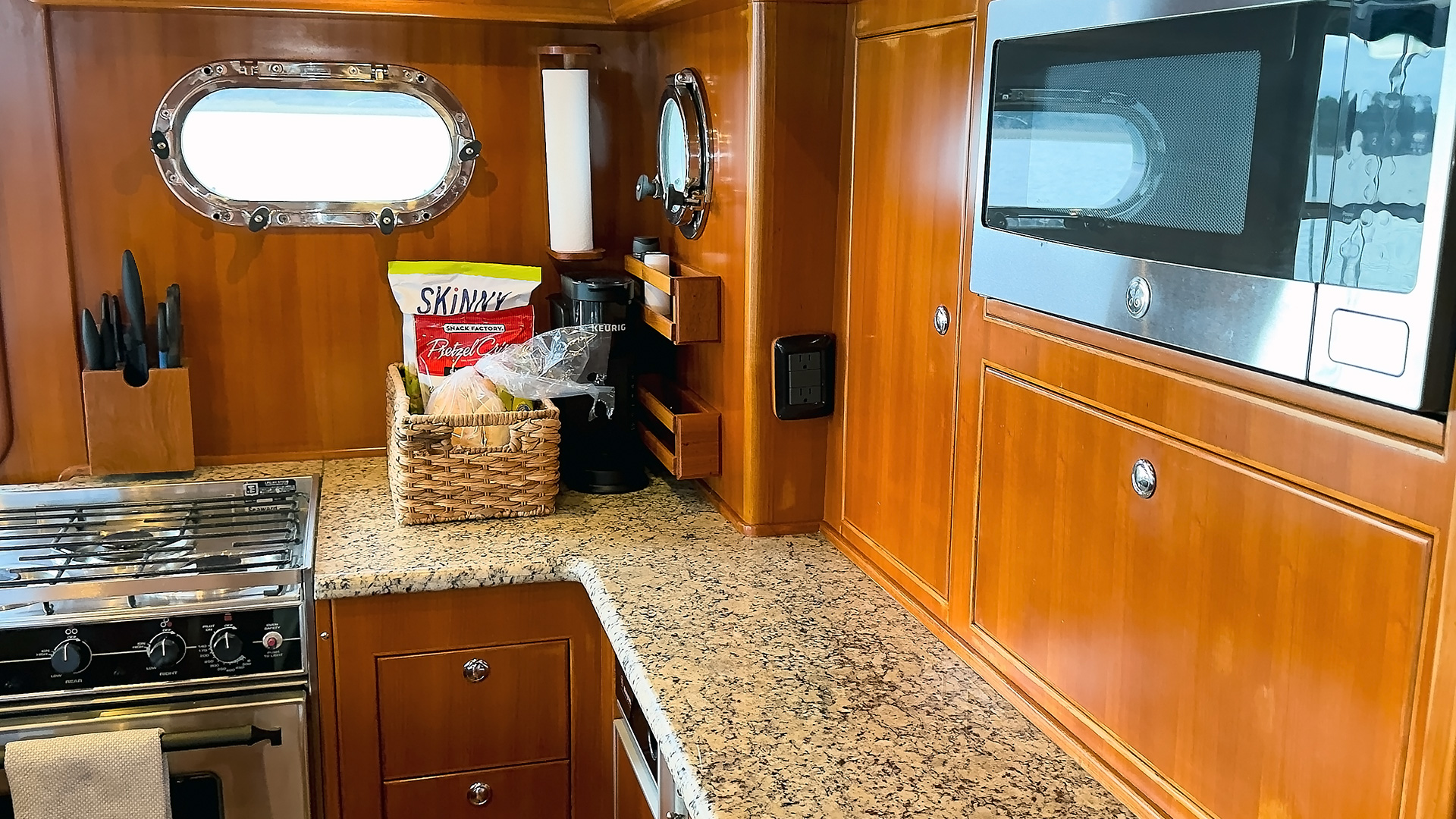

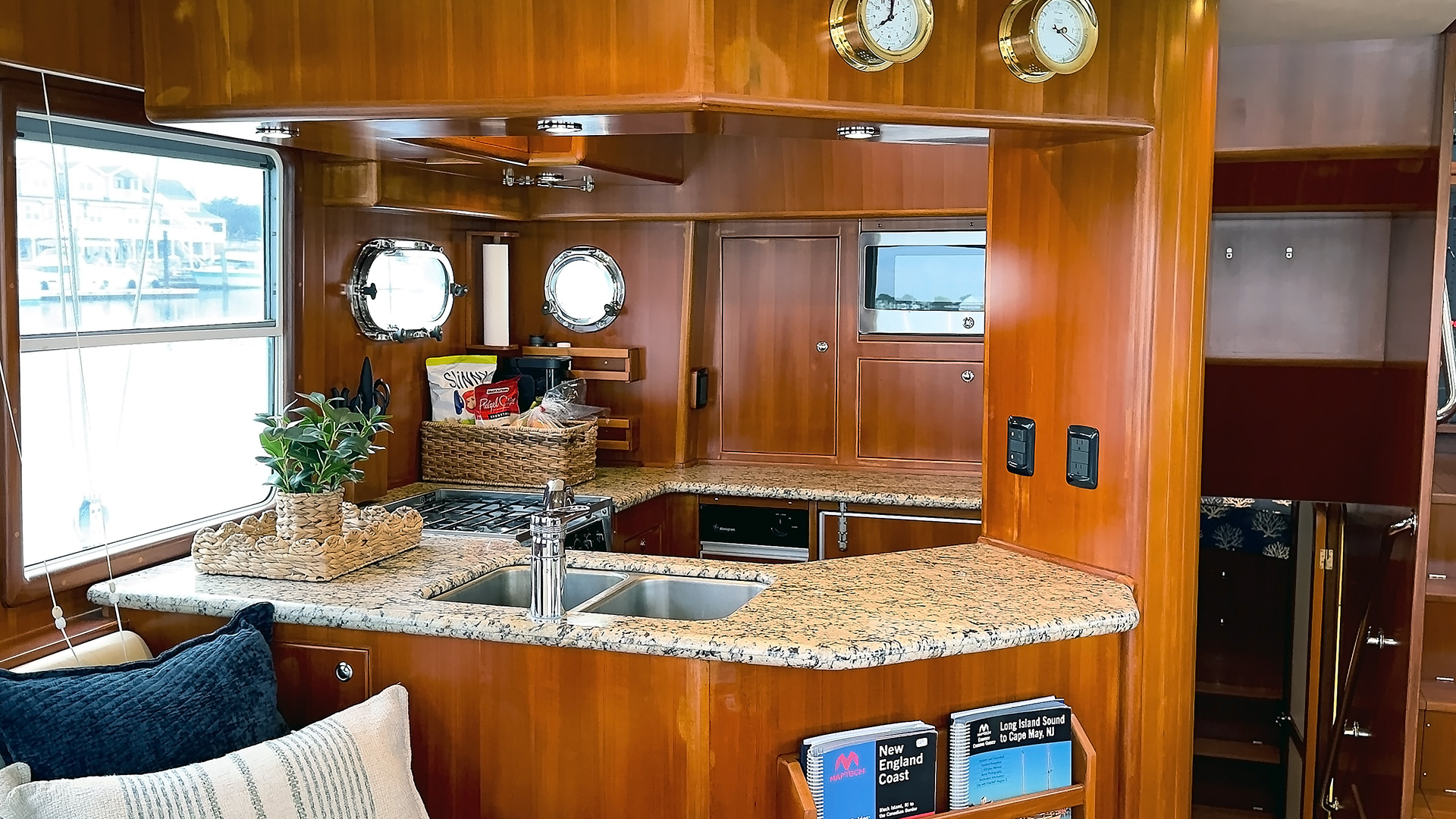

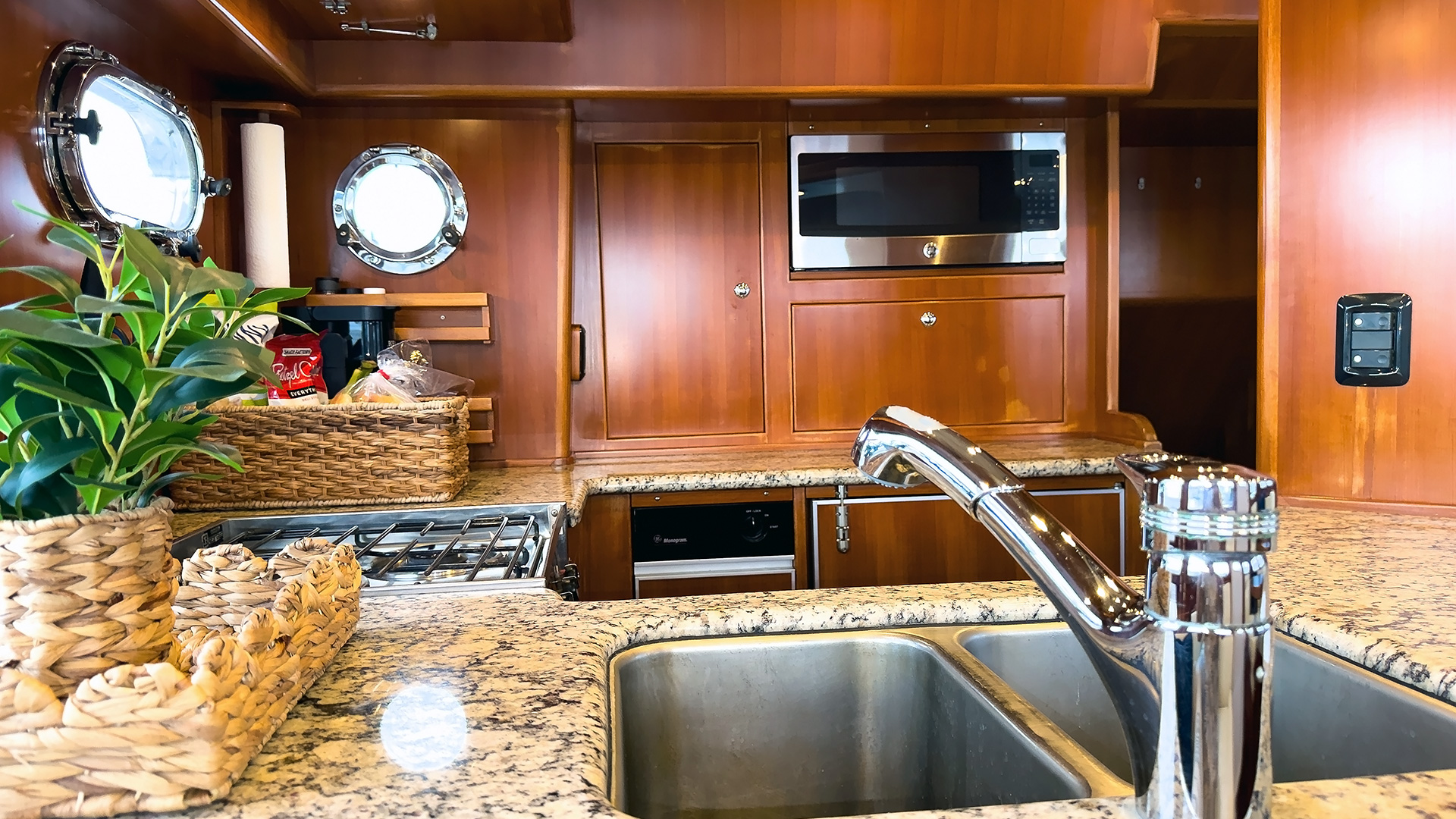

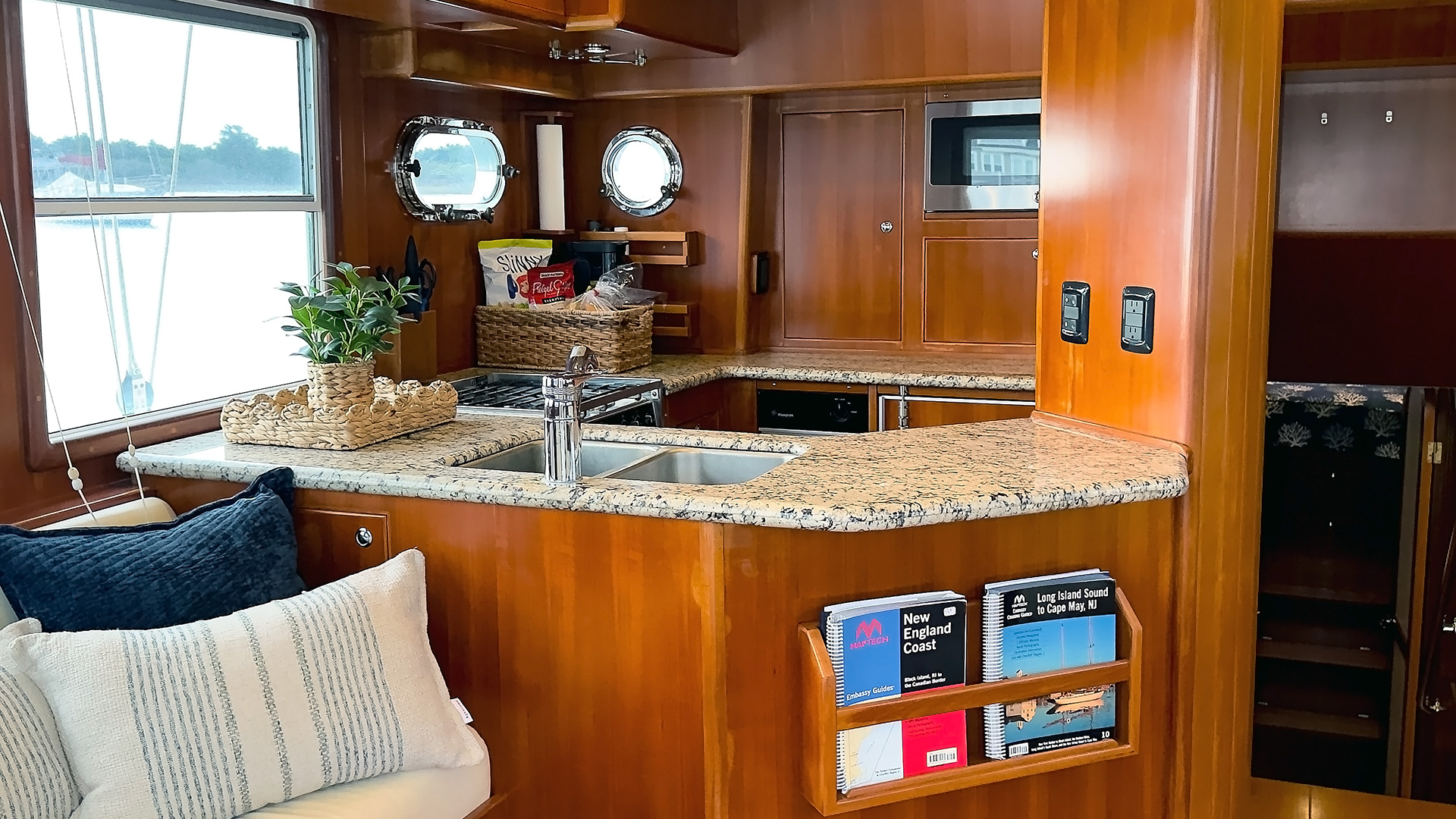

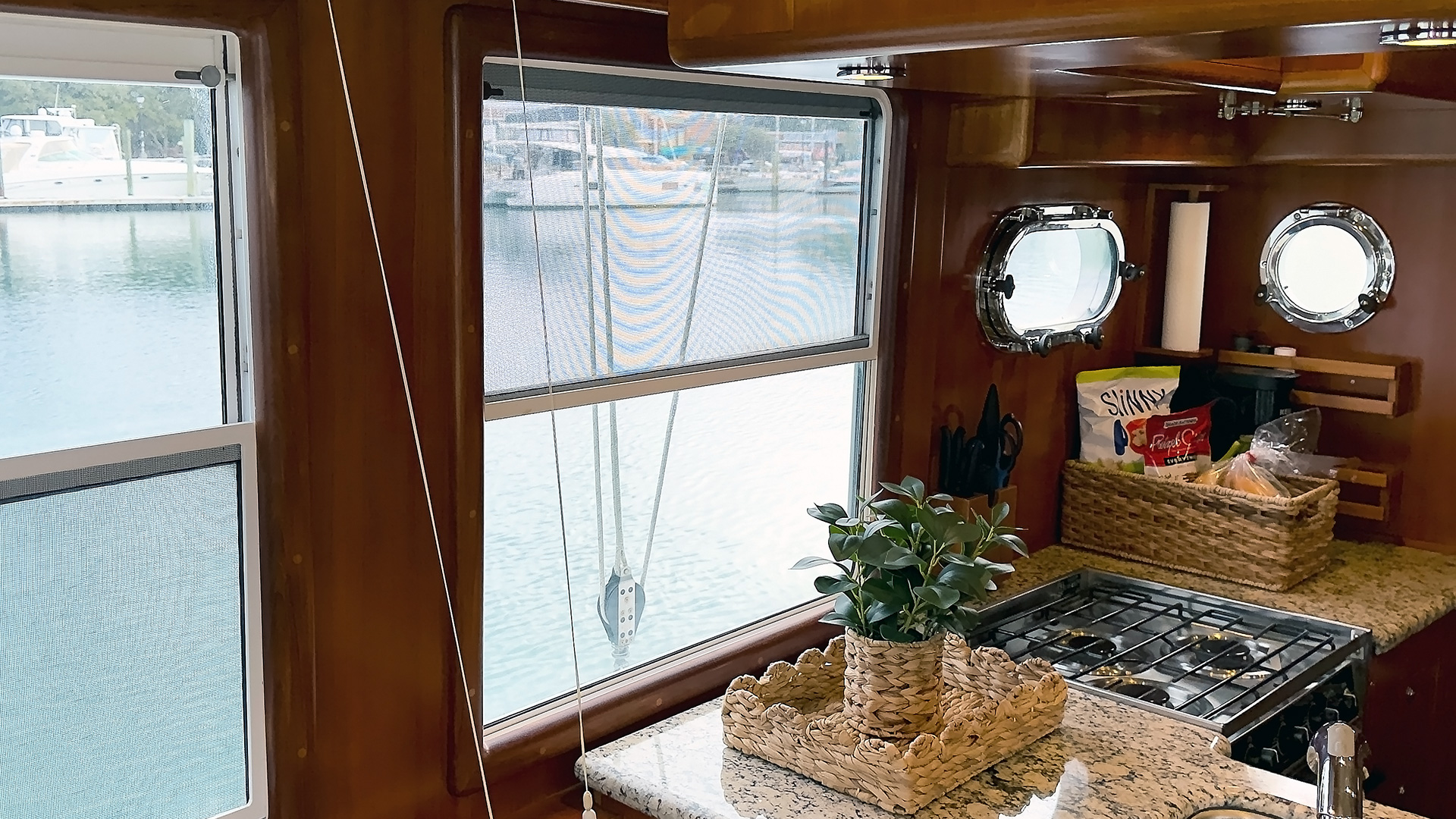

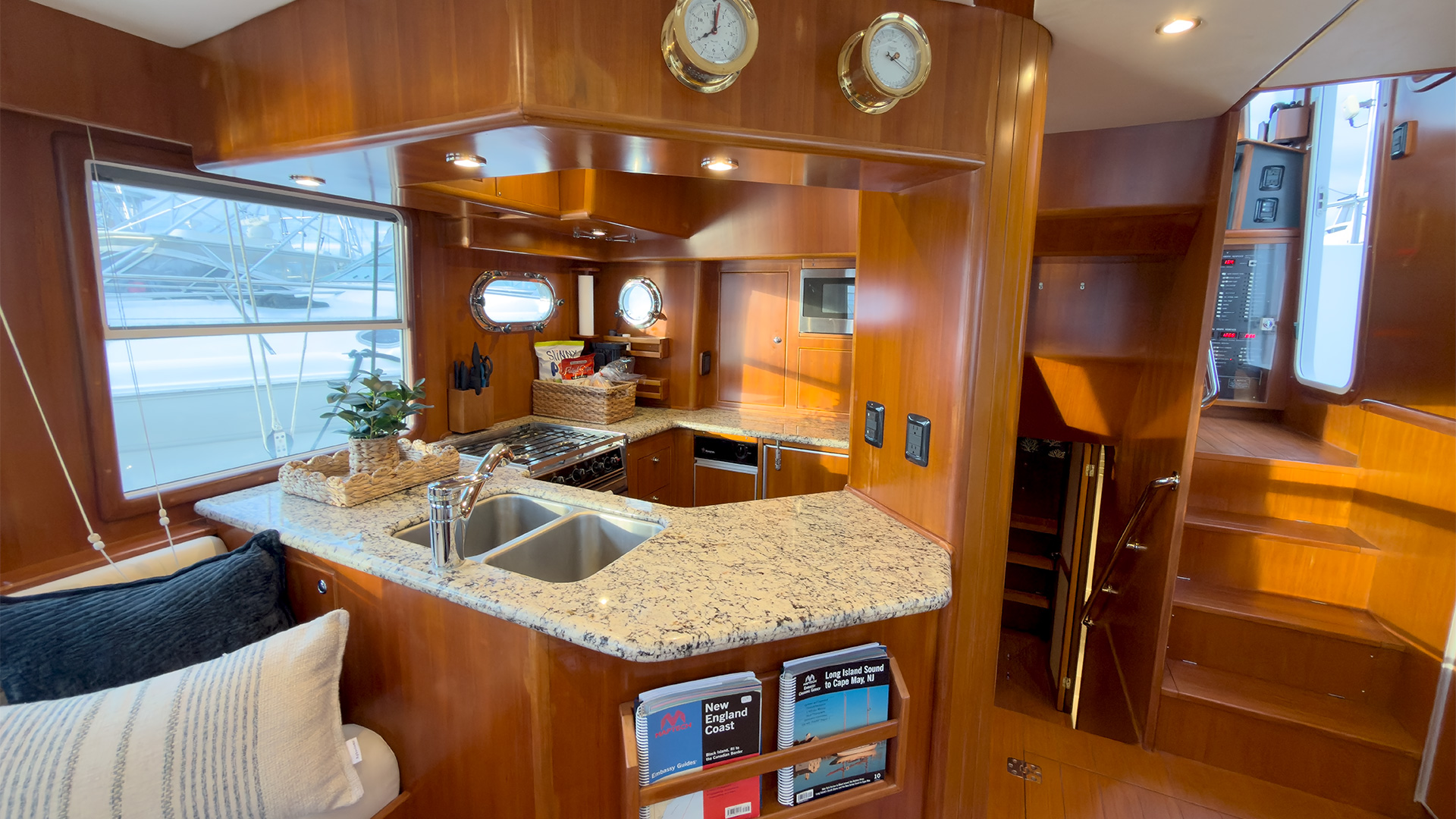

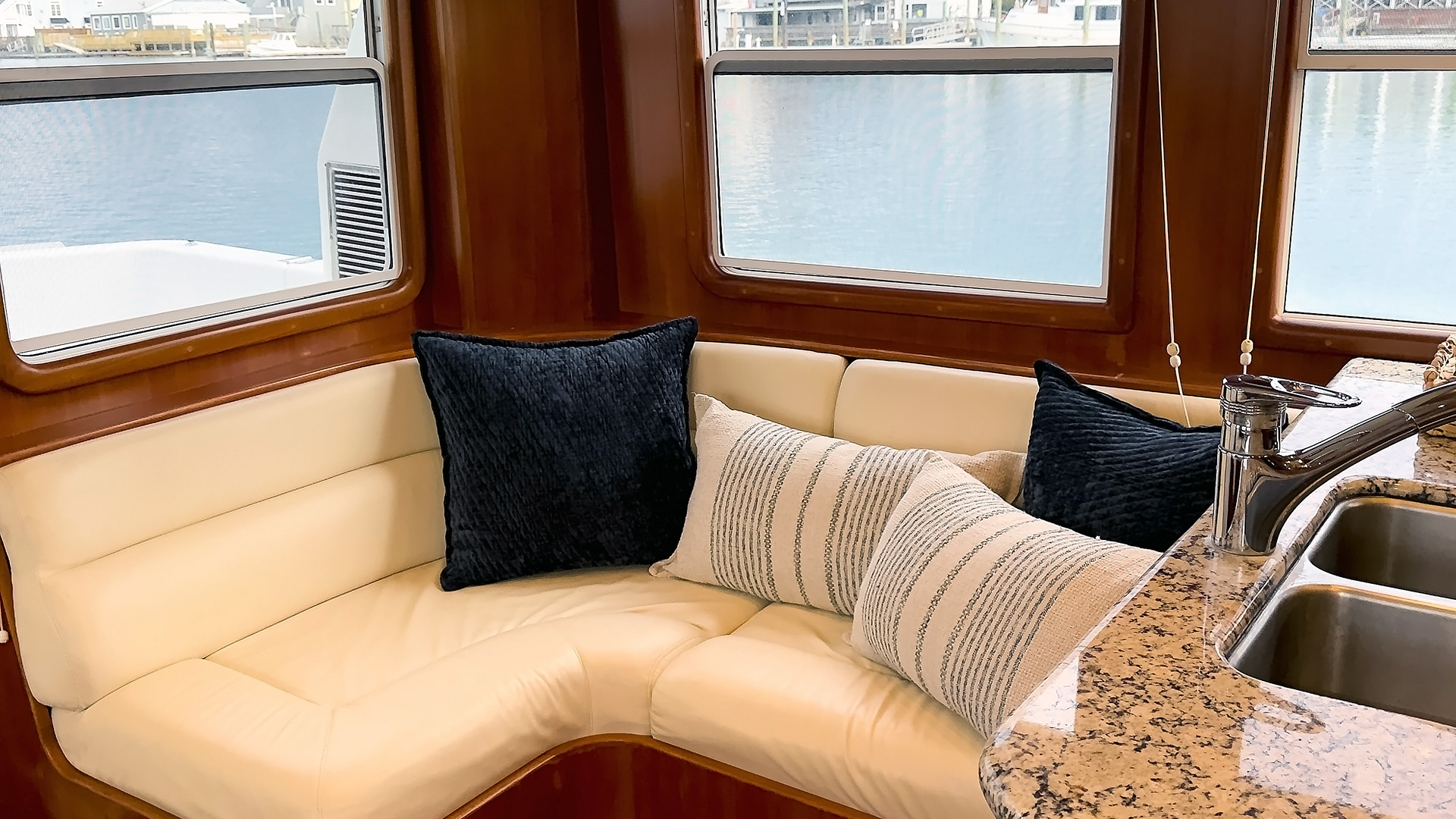

Galley:

• Light-colored granite countertops

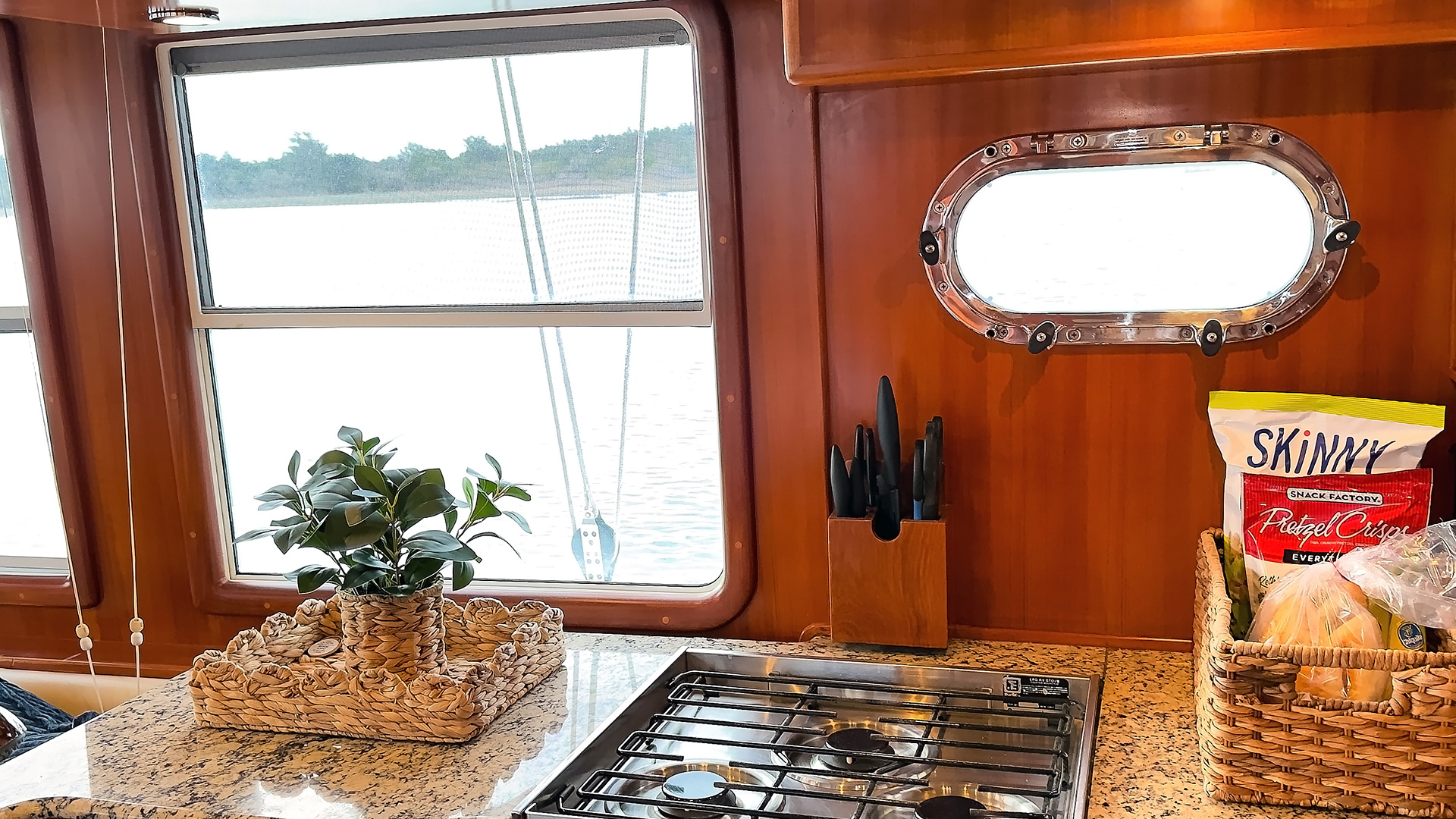

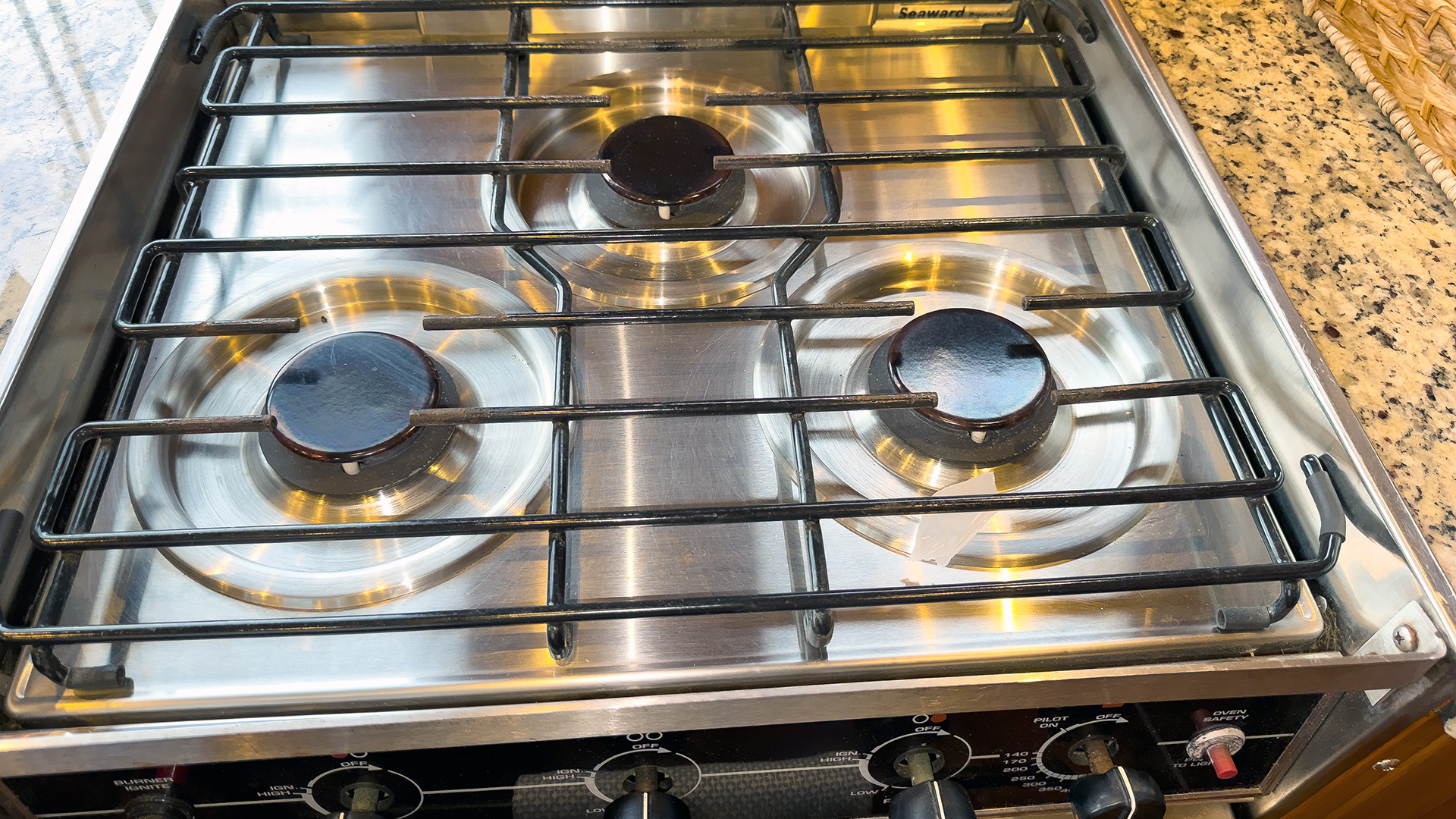

• 3-burner propane stove with oven
• Xintex propane control panel

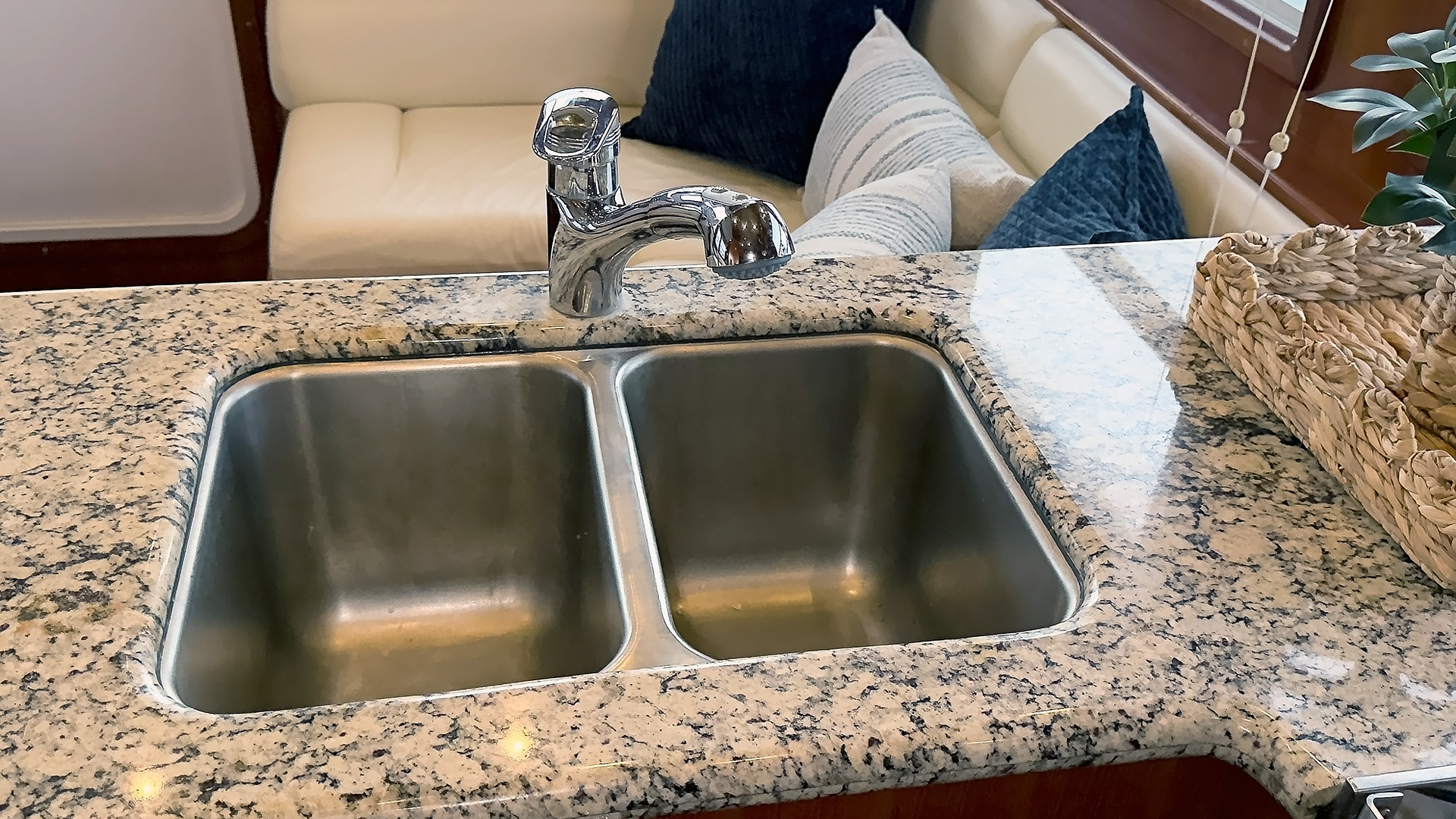

• Stainless steel deep double bowl sink under-mounted
• Grohe mixer faucet with removable sprayer head

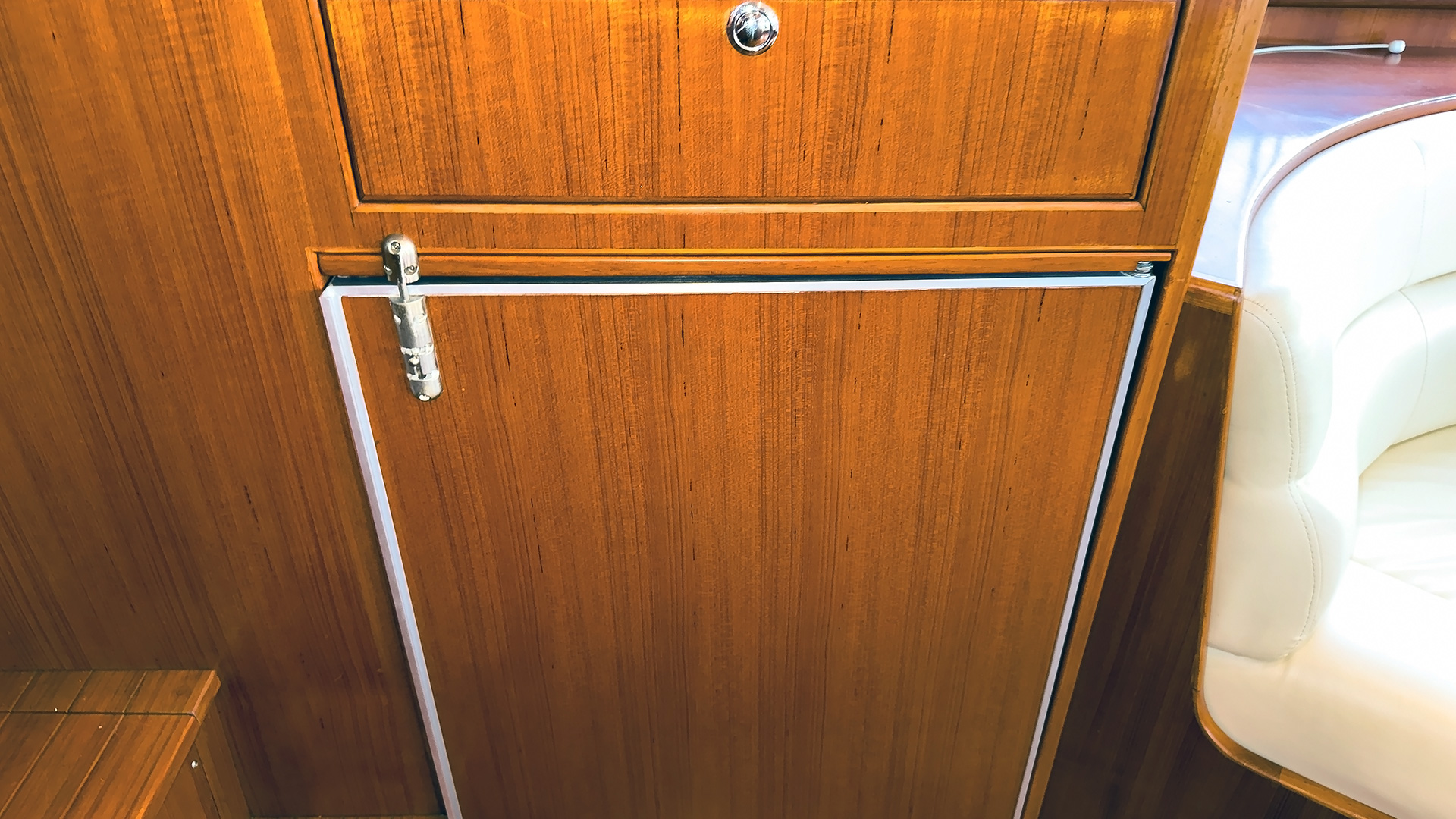

• Sub-Zero below counter refrigerator
• Sub-Zero below counter freezer with icemaker

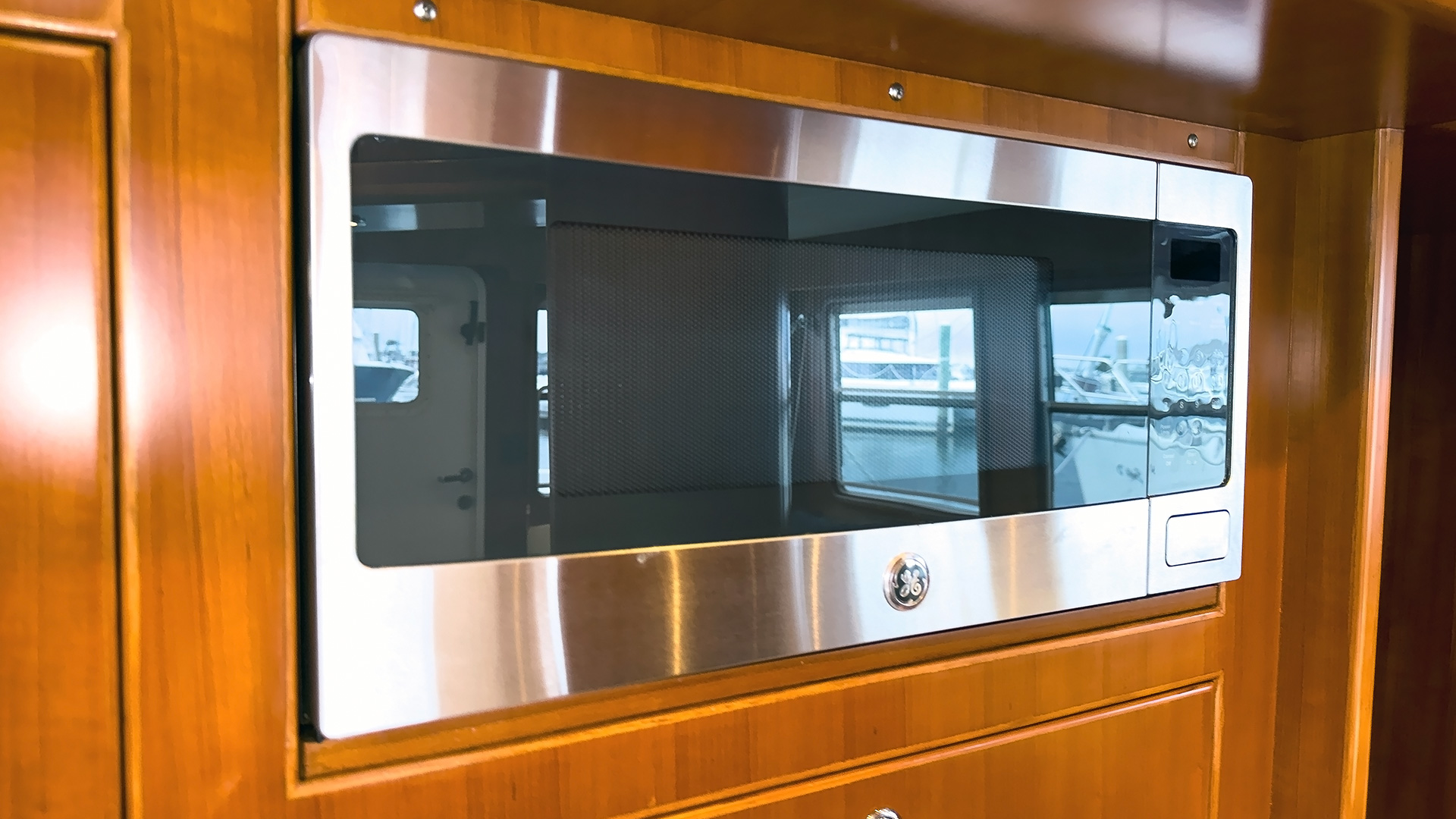

• Microwave oven

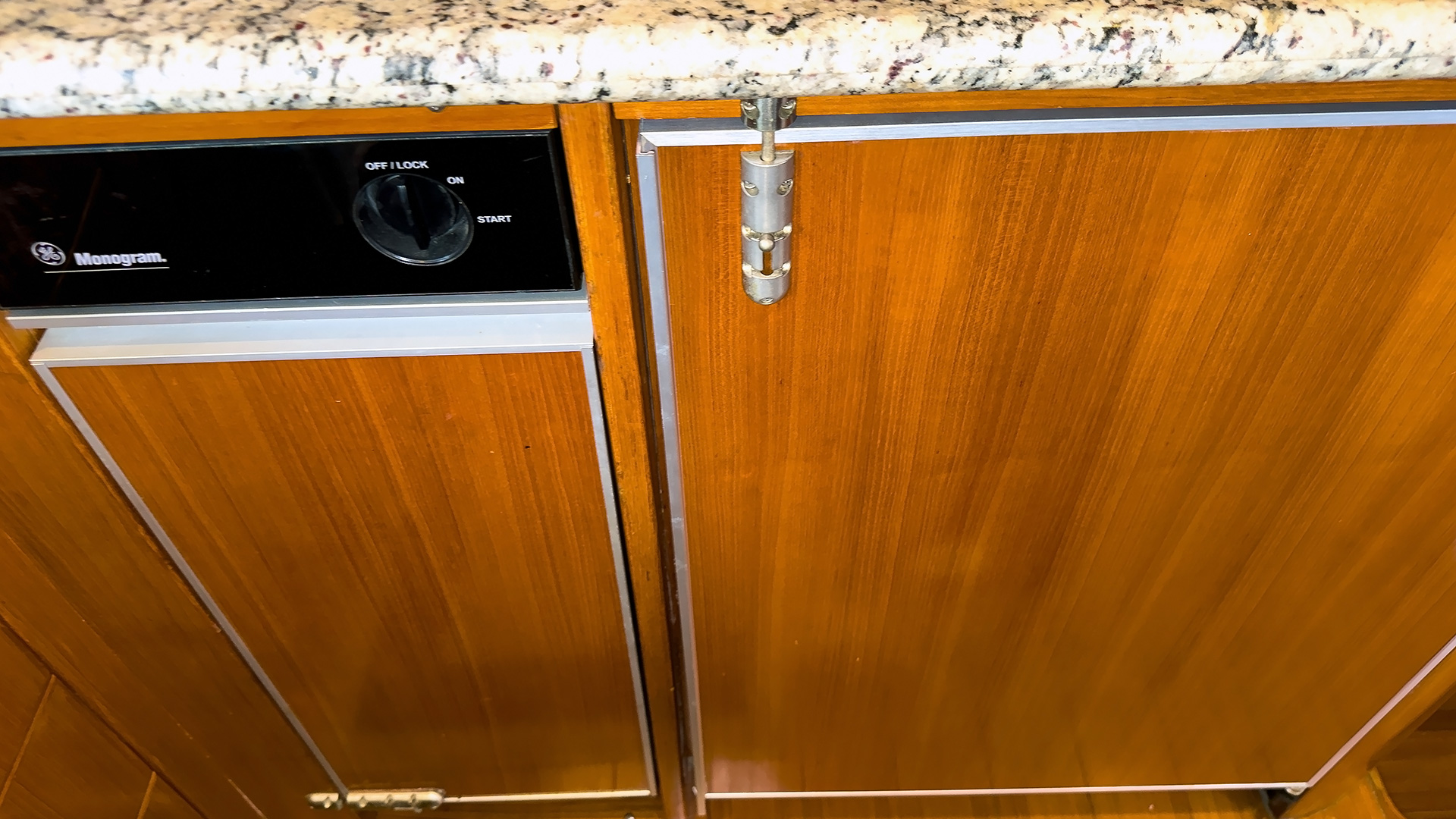

• Trash compactor
• Teak flooring
• Two opening port lights

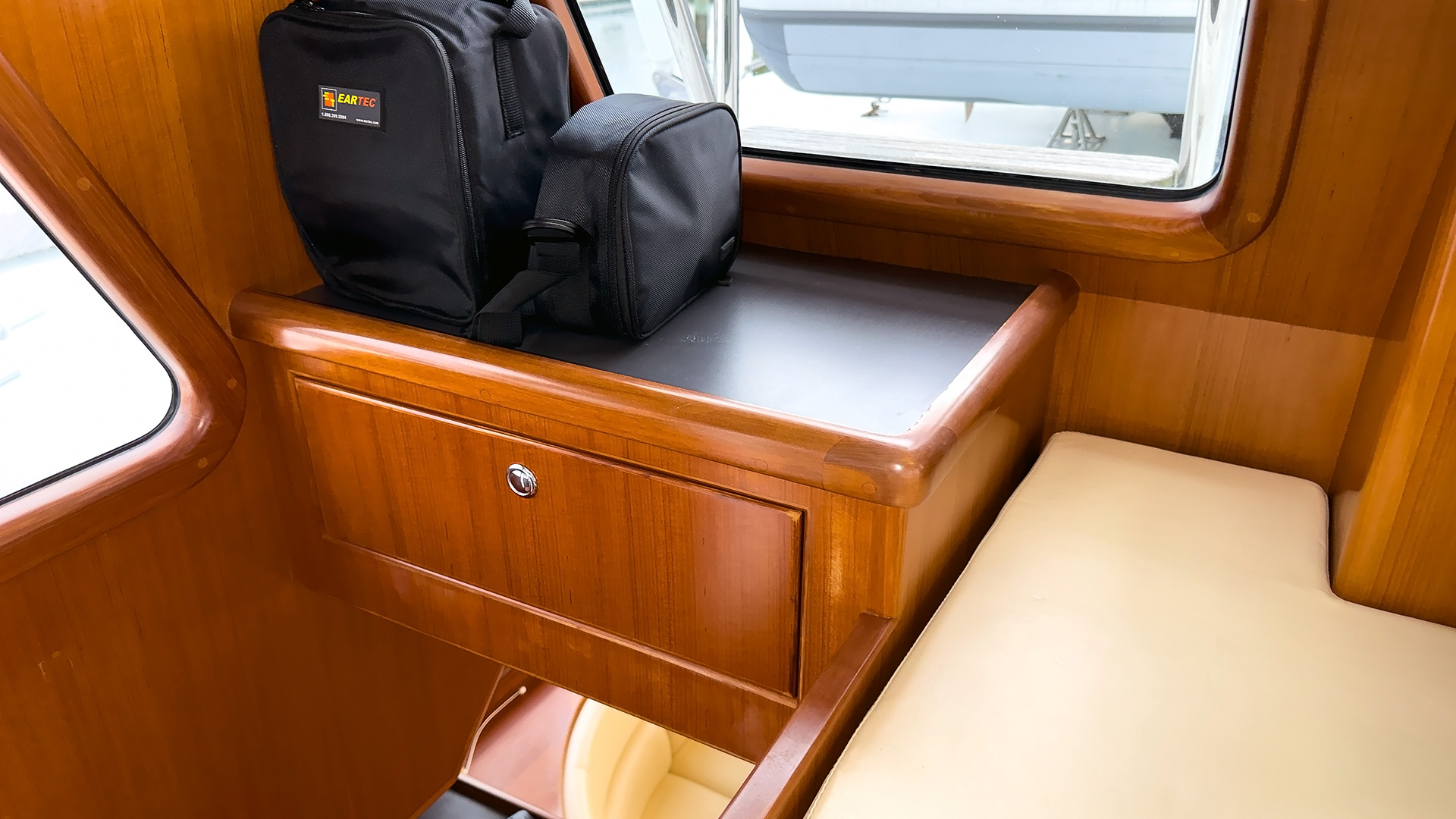

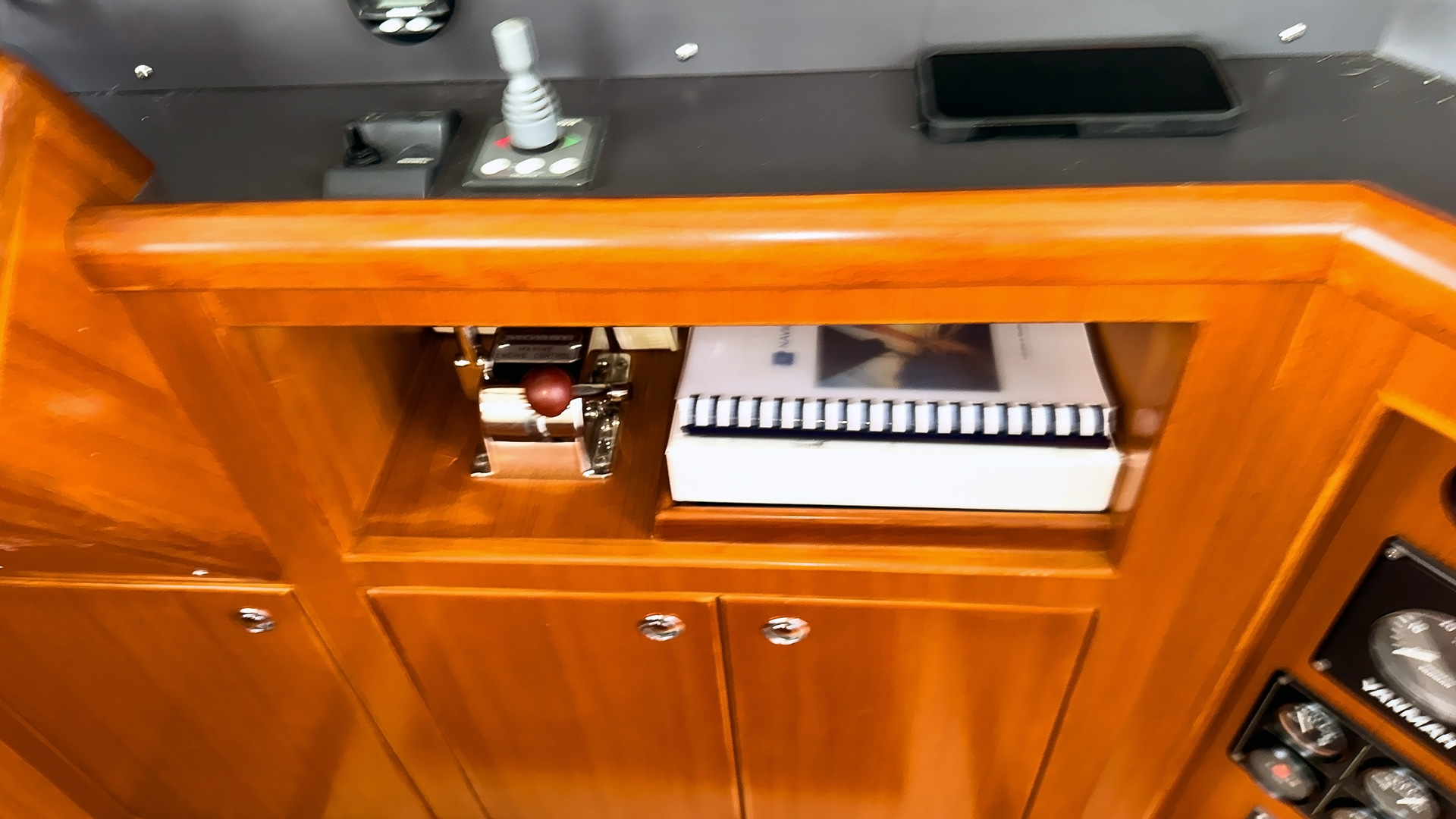

Pilothouse:

• Tilt-up chart table port side
• Ultraleather upholstered settee
• Lewmar hatch with screen overhead

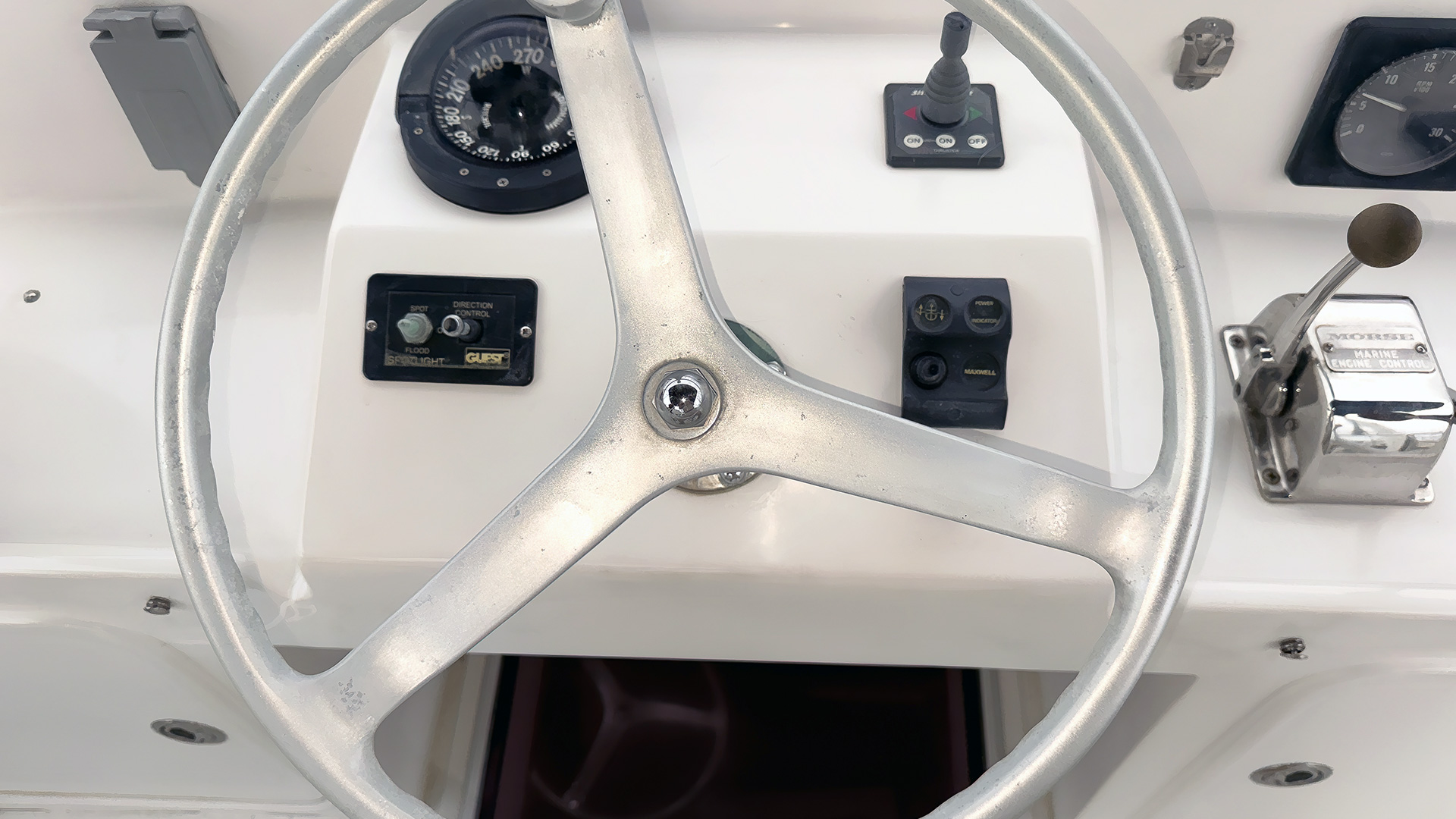

• Angled wheel with speed knob

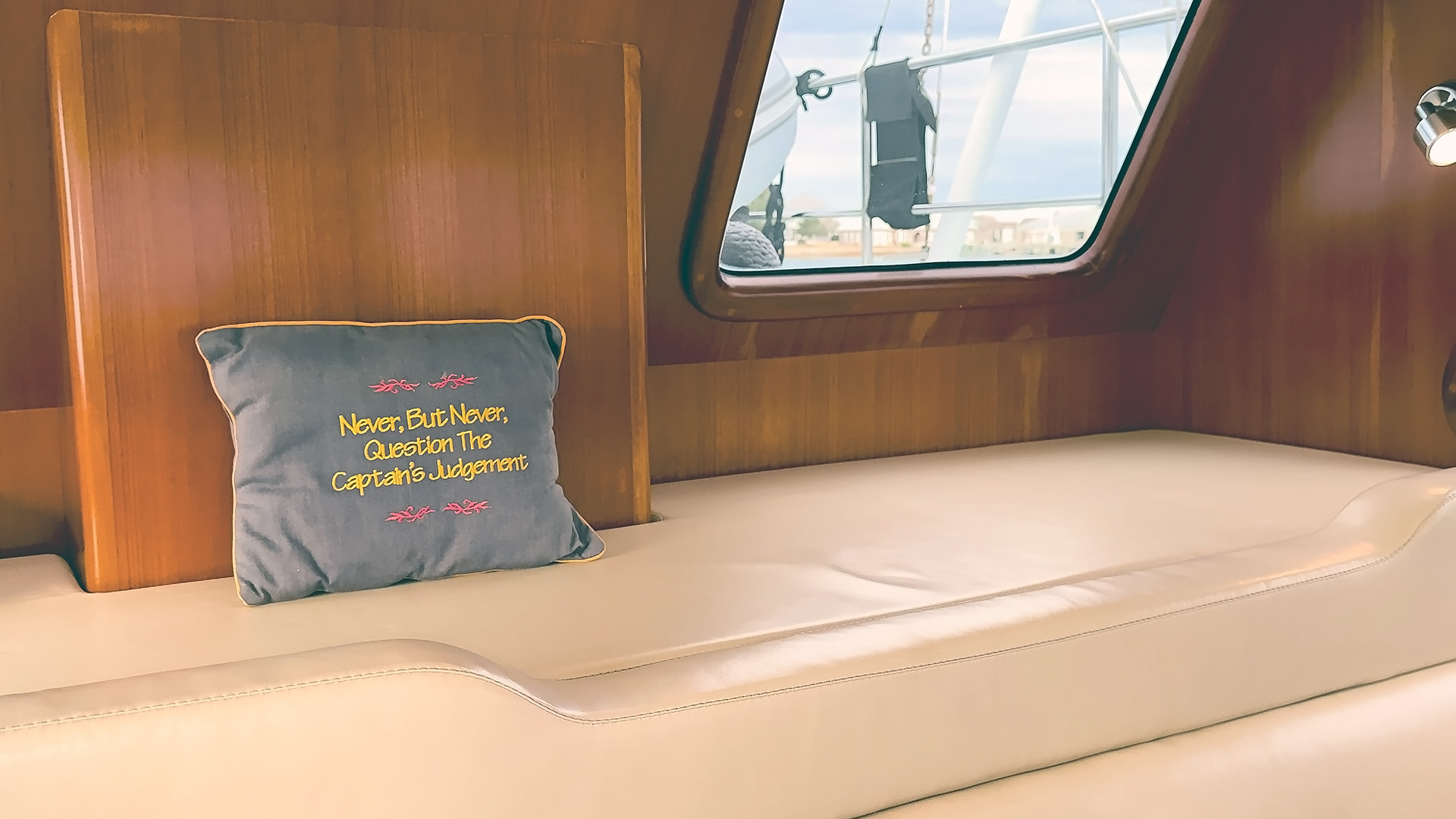

• Watch berth with settee

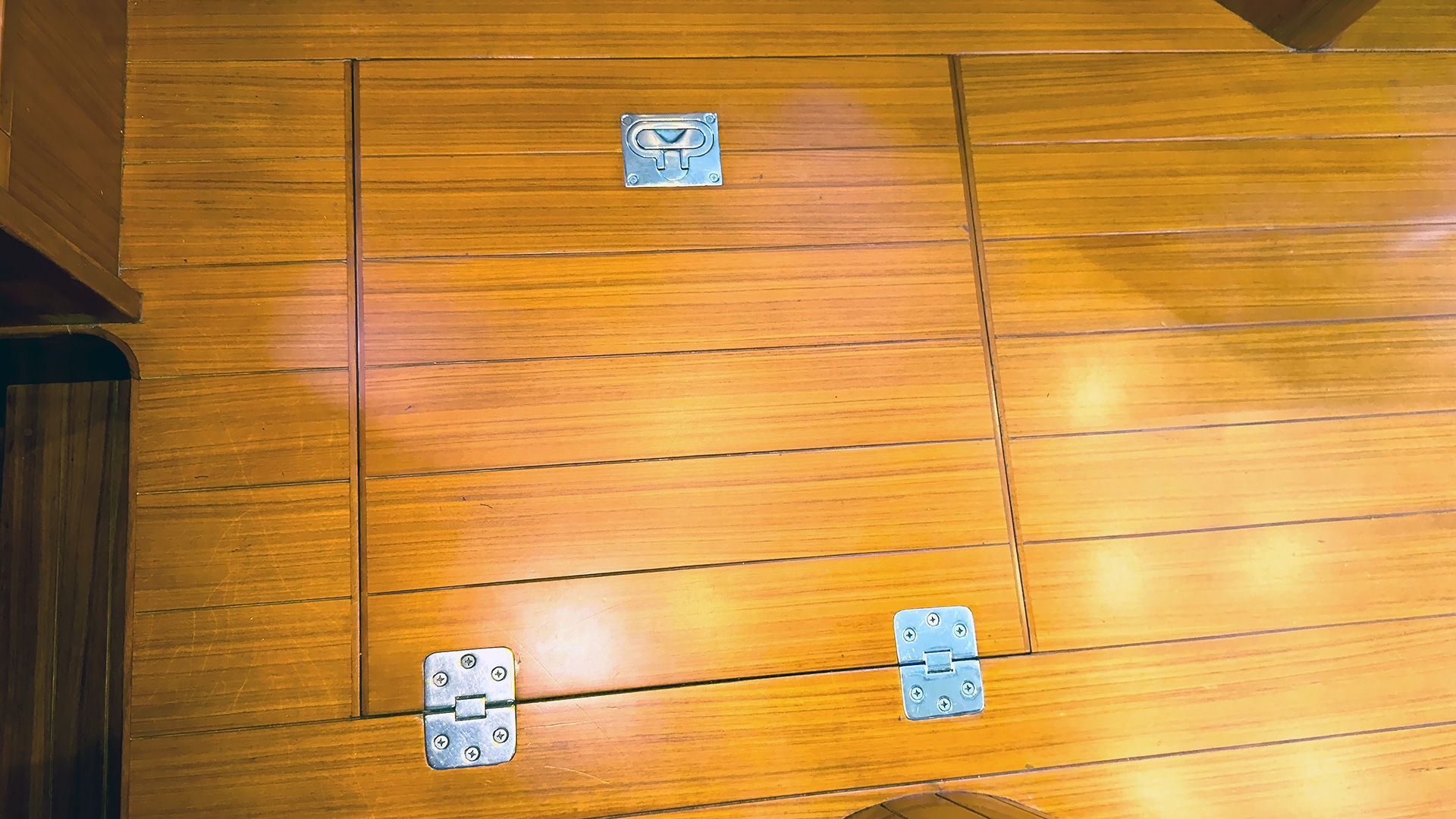

• Teak flooring with micro-grooves
• Side doors are split “Dutch-doors”

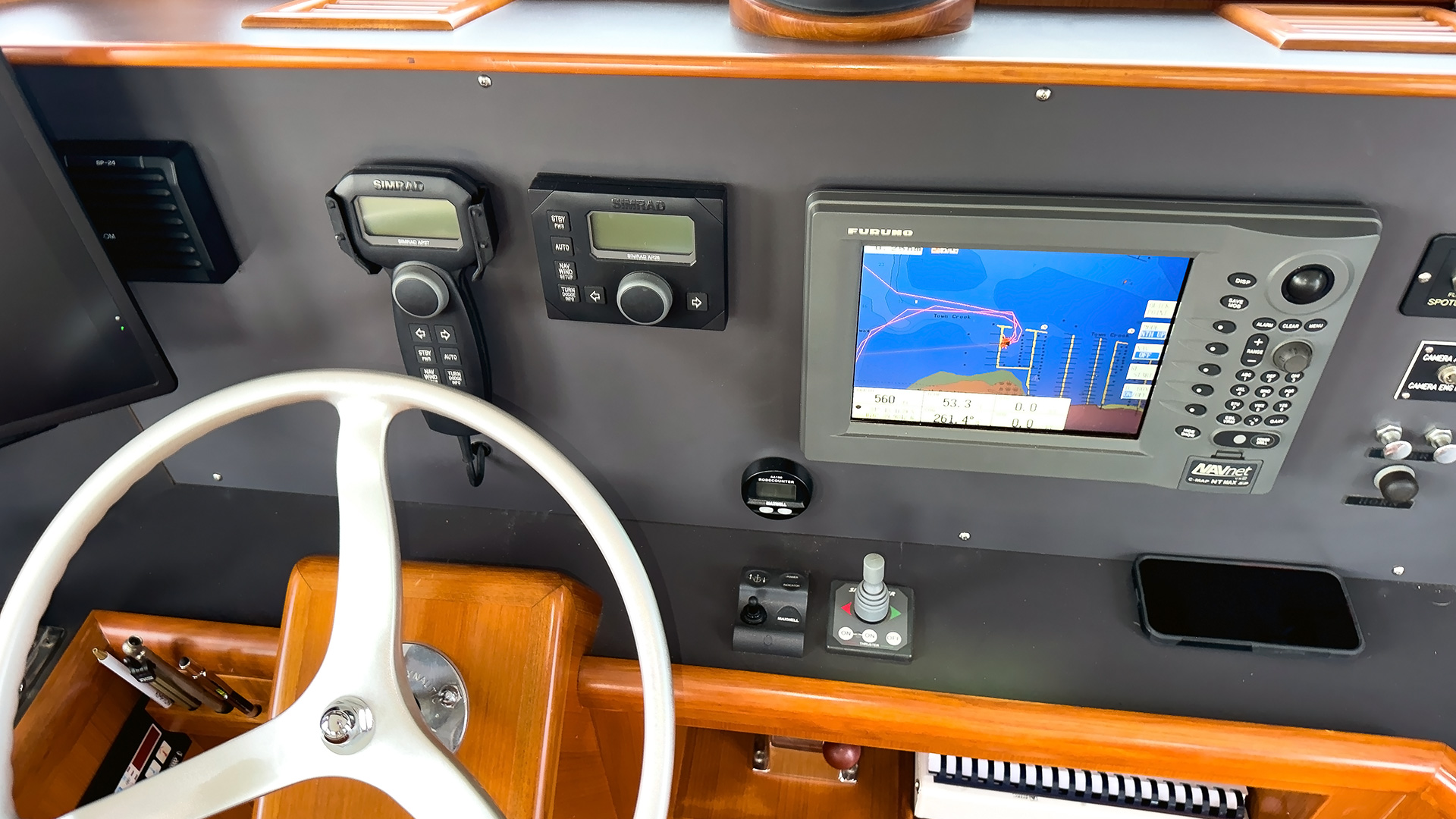

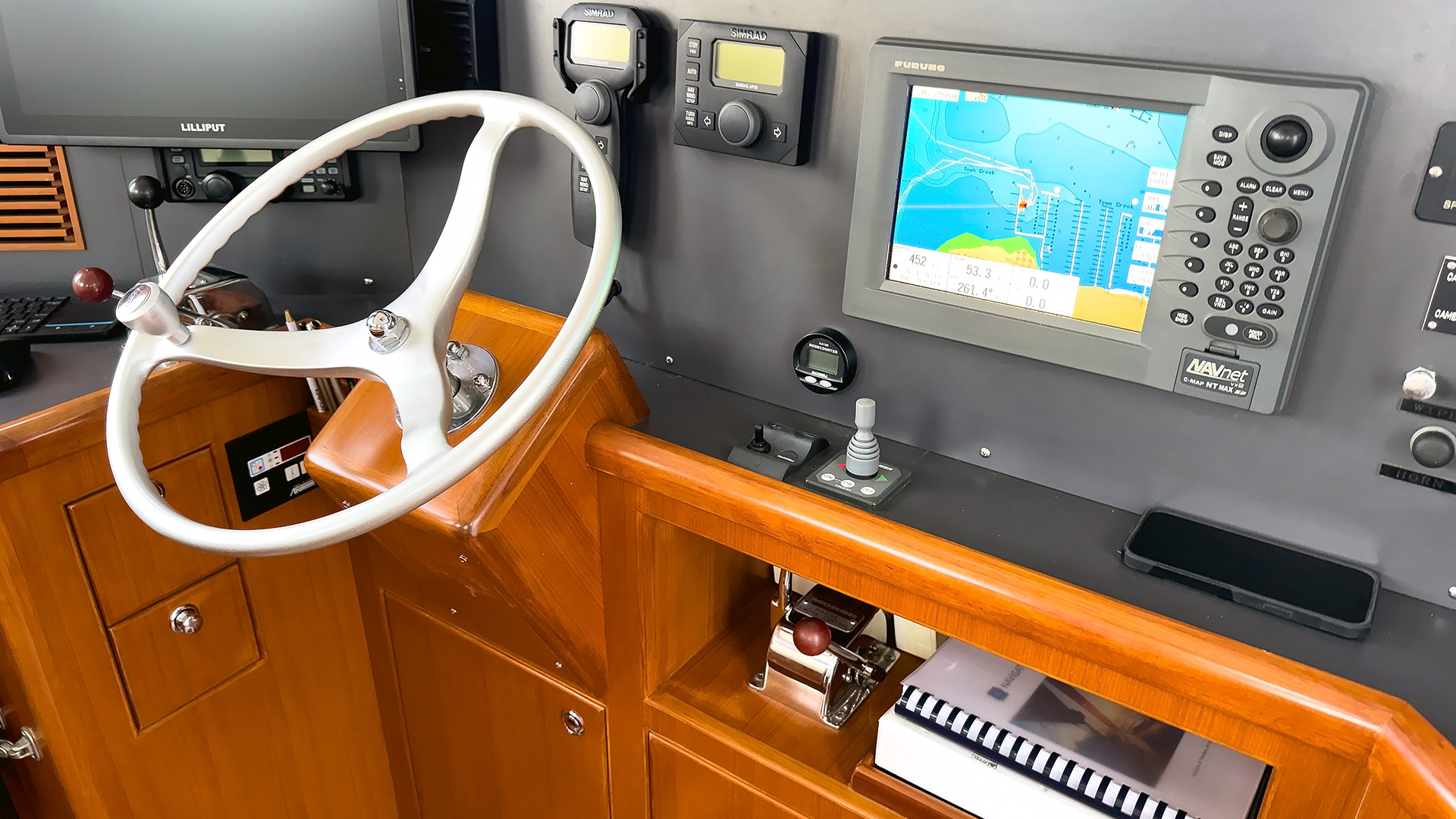

Navigation and Electronics

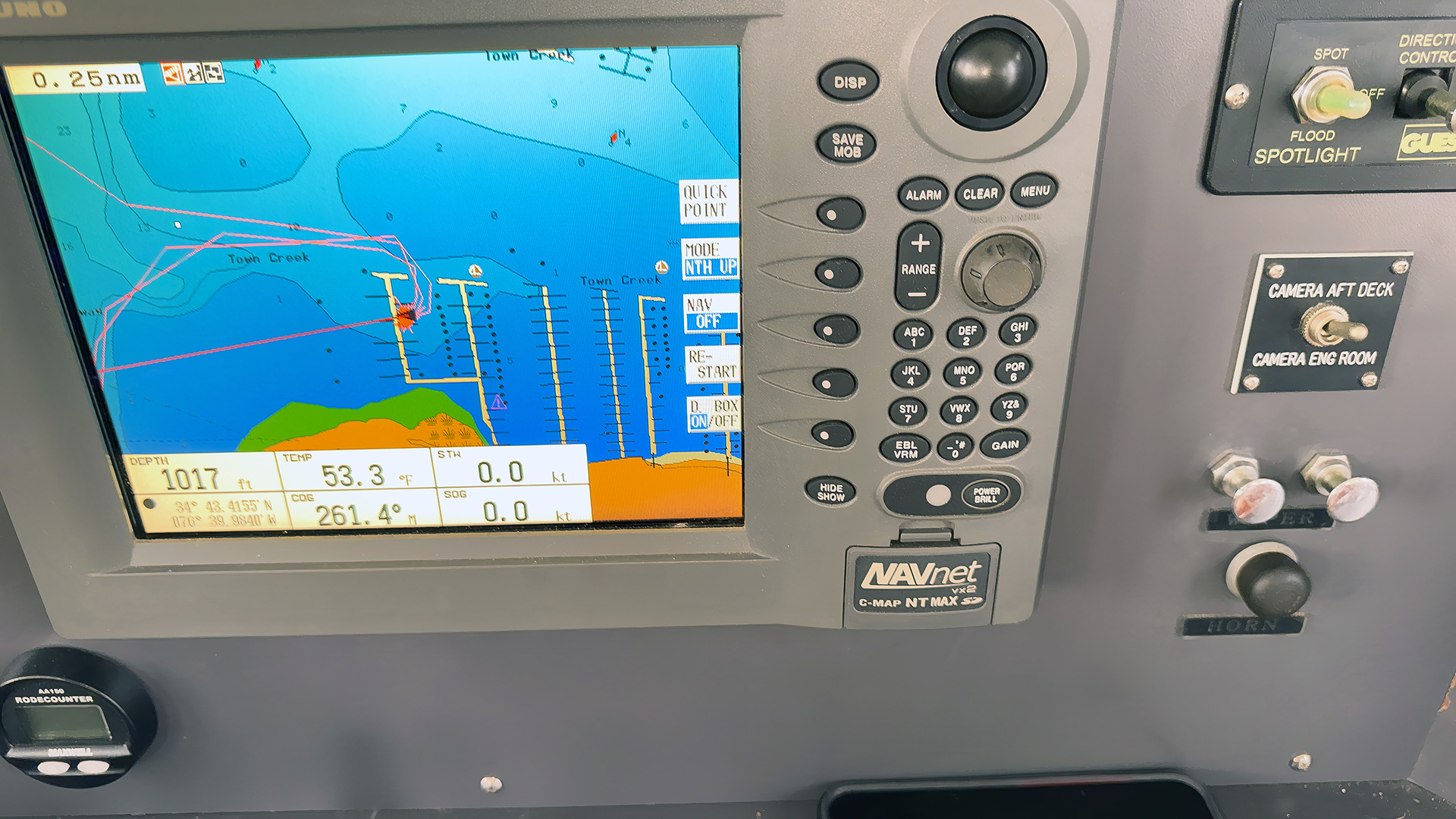

• Furuno 10.4″ Navnet VX2 display with 4 kW radar in Pilothouse
• 4′ open array antenna
• Furuno 7″ Navnet VX2 display on the flybridge
• Furuno Navnet NTSC video input with “Engine Room” and “Stern” Cameras
• Icom M-802 SSB radio
• Furuno 3000 VHF Radio with remote handheld for FLY Bridge (remote replaced July 2025)

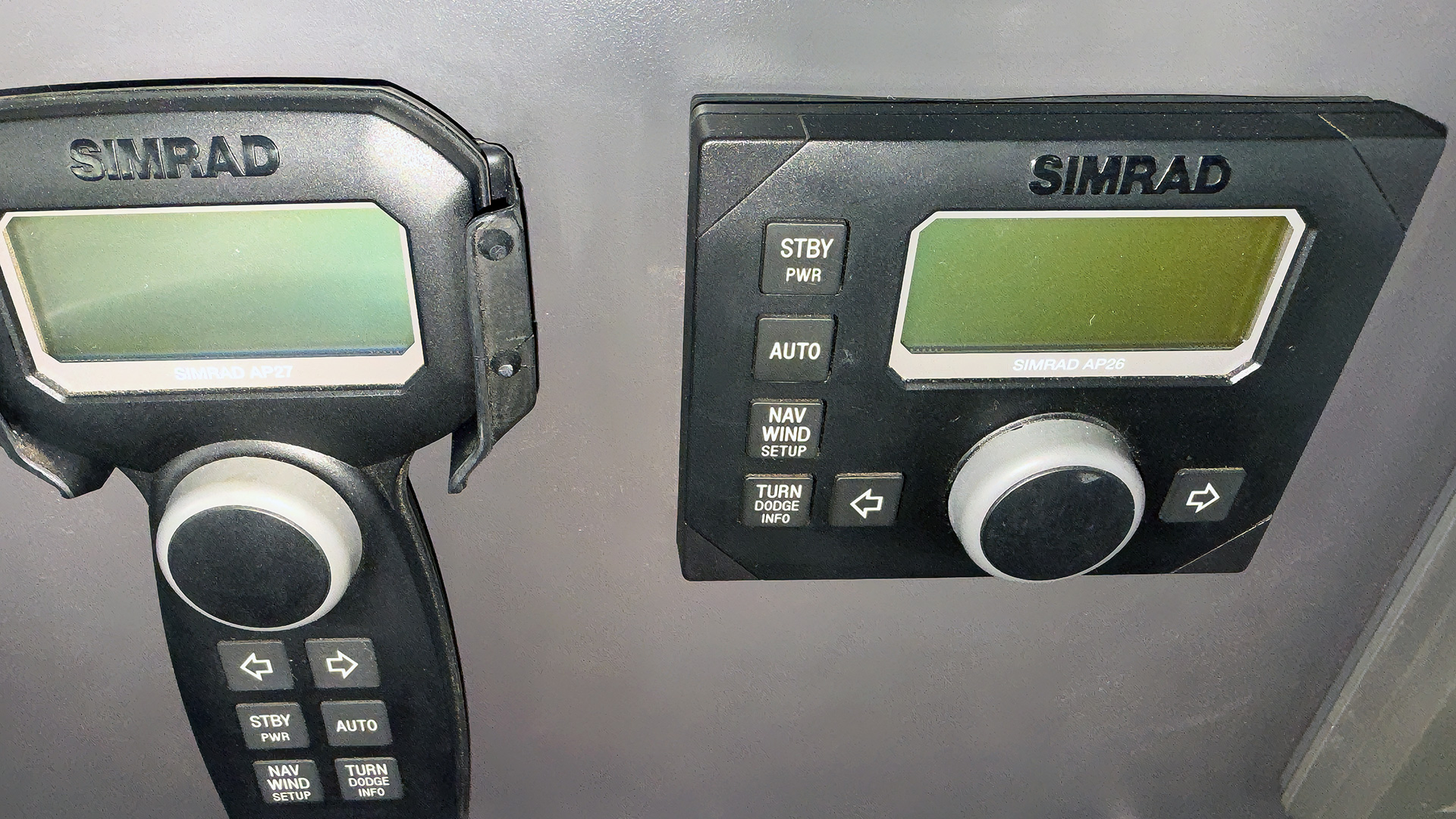

• Simrad AP 26 Pilothouse
• Simrad AP 26 FLY Bridge (Overhauled July 2025)
• Simrad AP 27 Pilothouse- Handheld
• Furuno FA-50 AIS class B

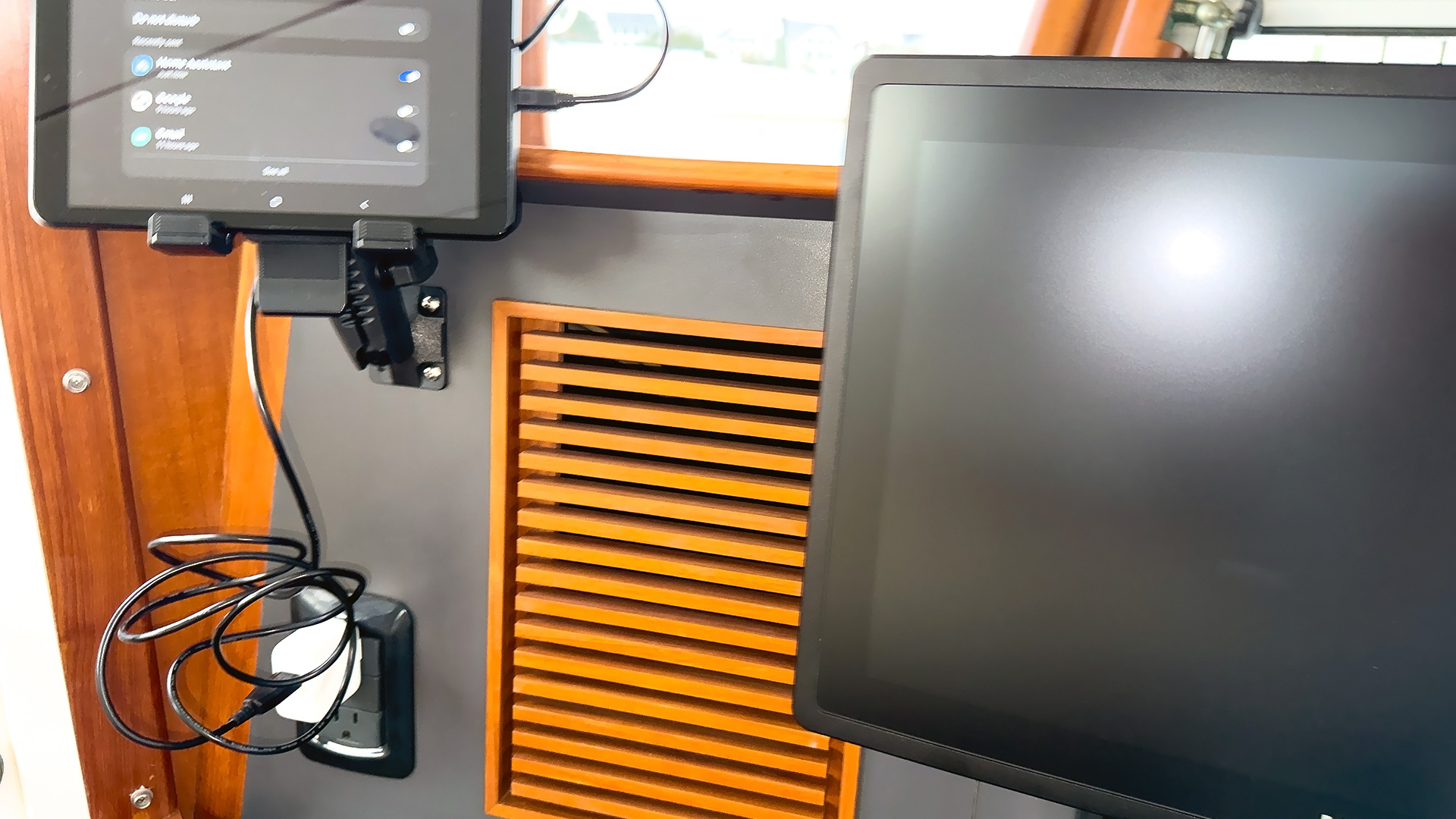

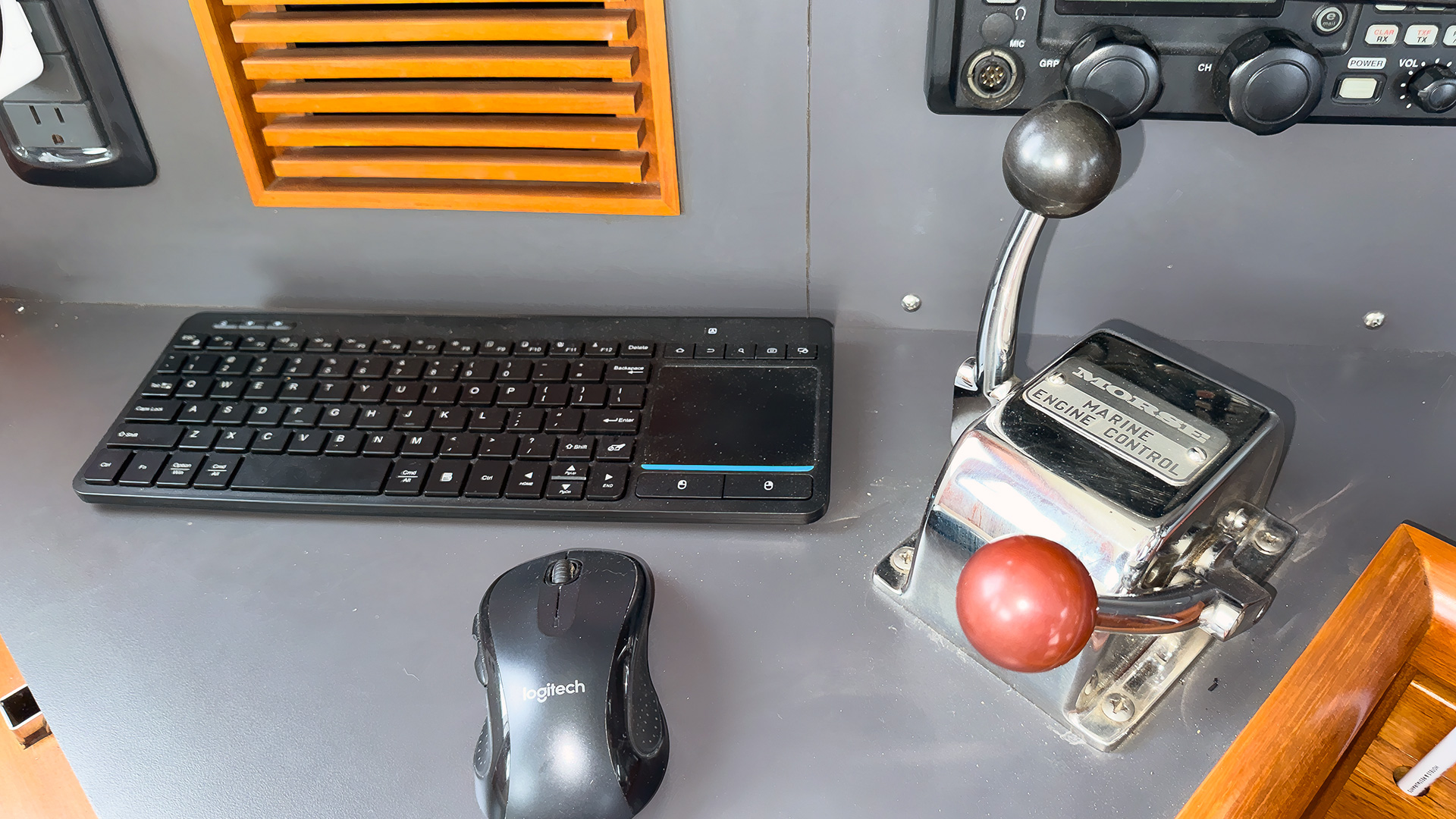

• NUC Computer running TIMEZERO Navigator networked to Furuno VX2 system (August 2025)
• 18” Touchscreen Monitor (August 2025)

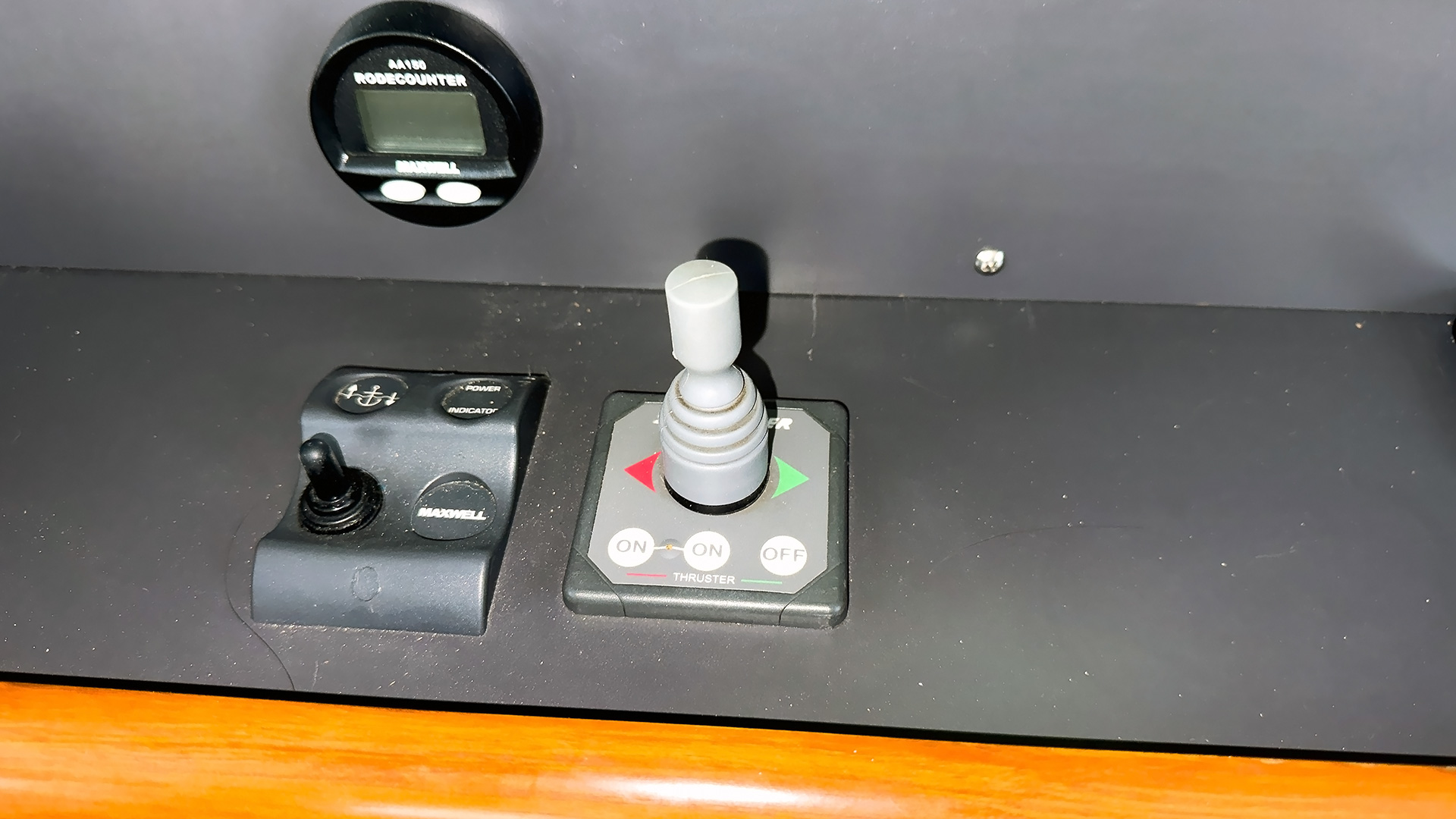

• Maxwell Windlass Controller and Rode Counter

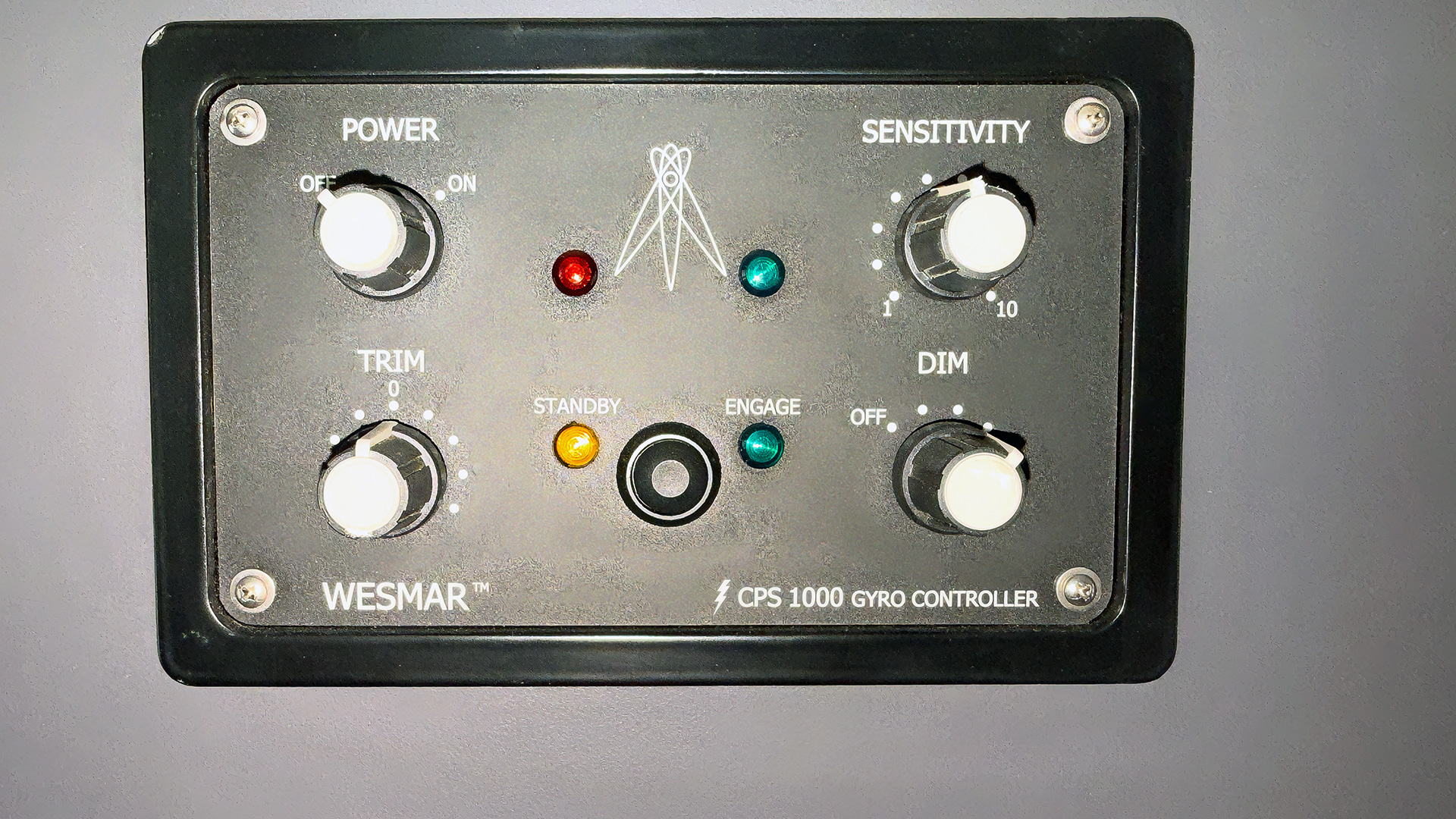

• Wesmar Stabilizer Controller
• Village Marine Water Maker Controller
• Richie compass
• Bow thruster control

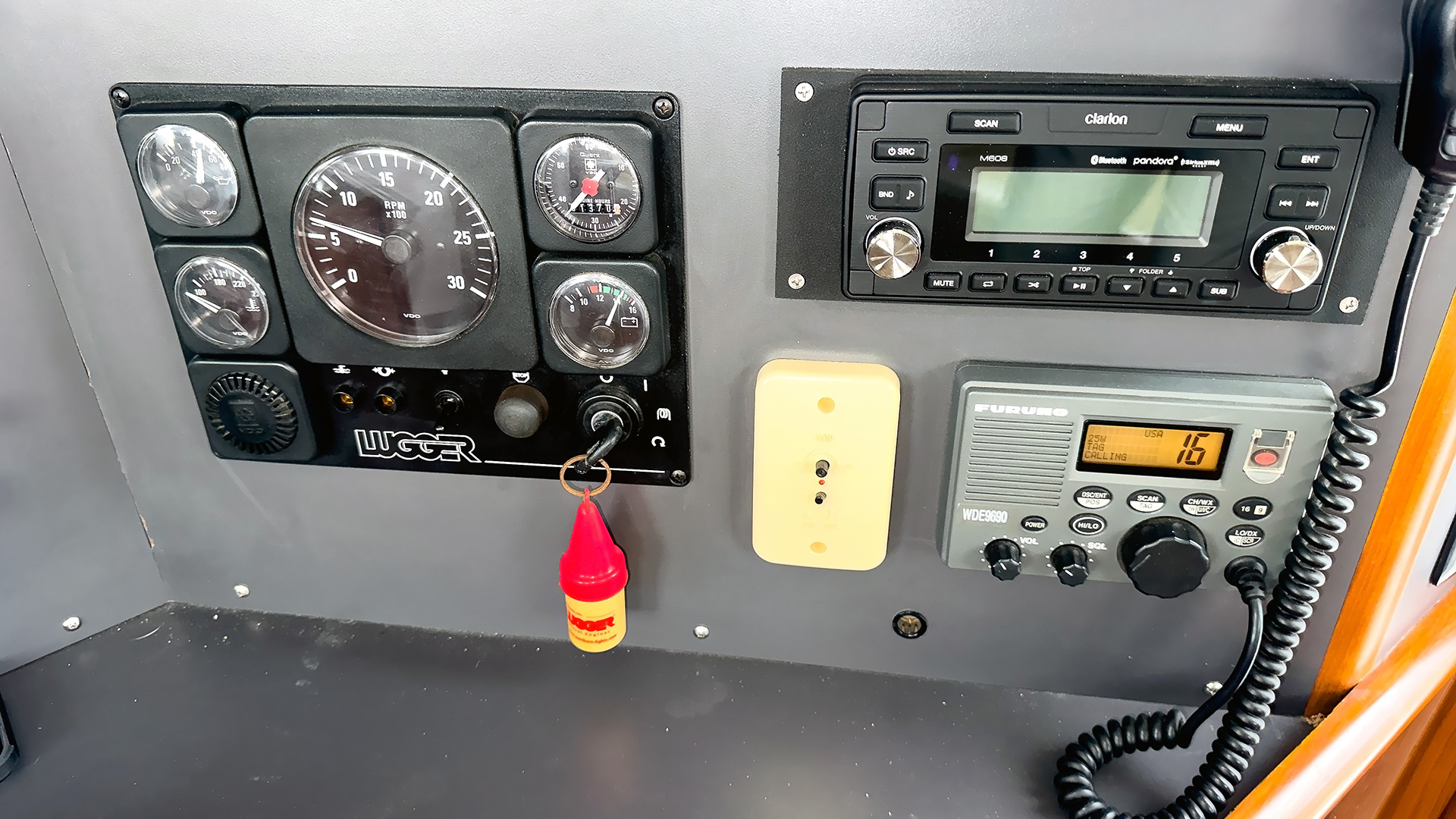

• Clarion M608 AM/FM, Bluetooth, satellite Sirius XM in pilothouse (August 2025)
• Bose Subwoofer and speakers in saloon
• 24-inch TV in saloon with Apple TV
• Starlink standard antenna kit not installed but on boat

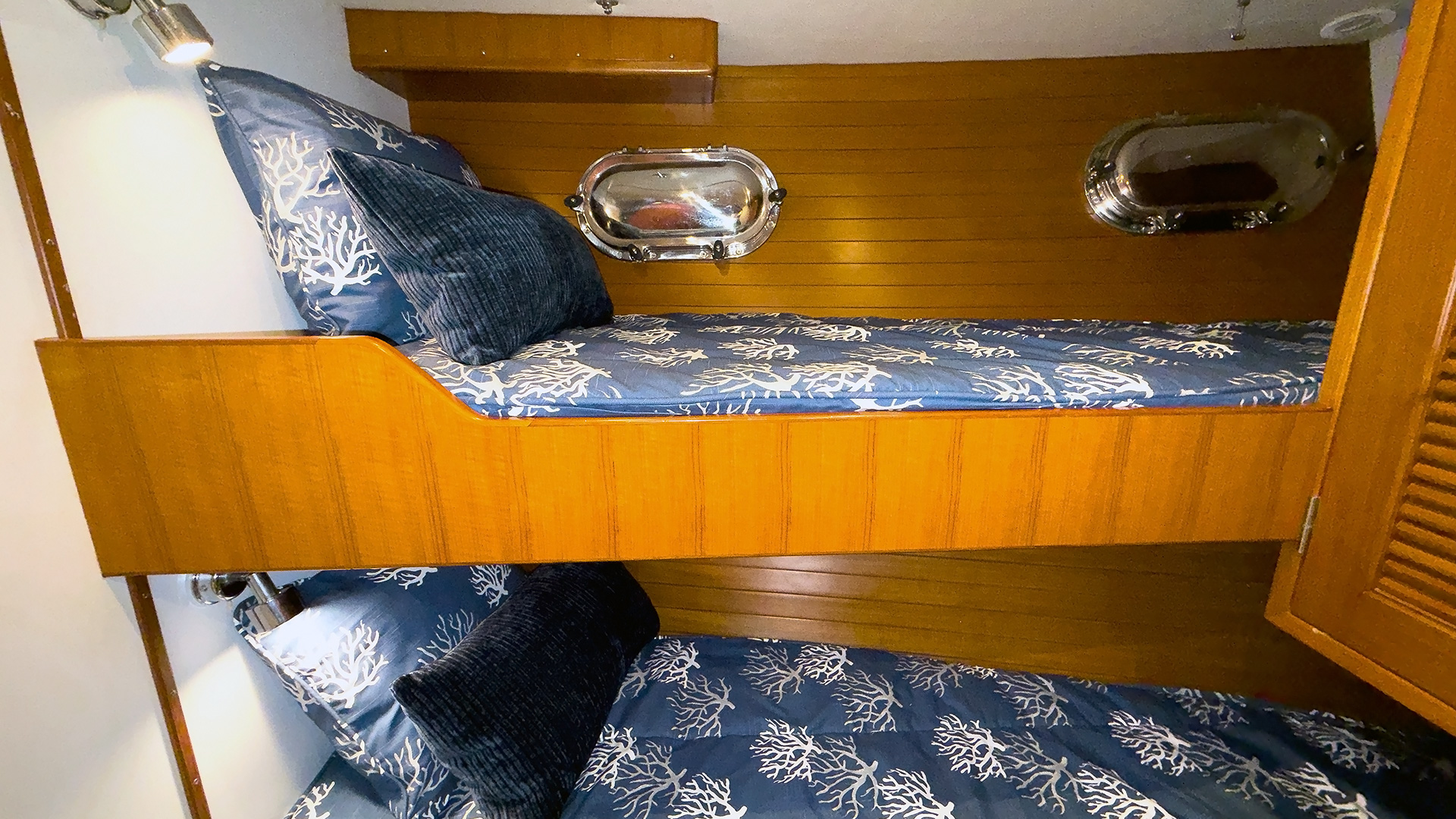

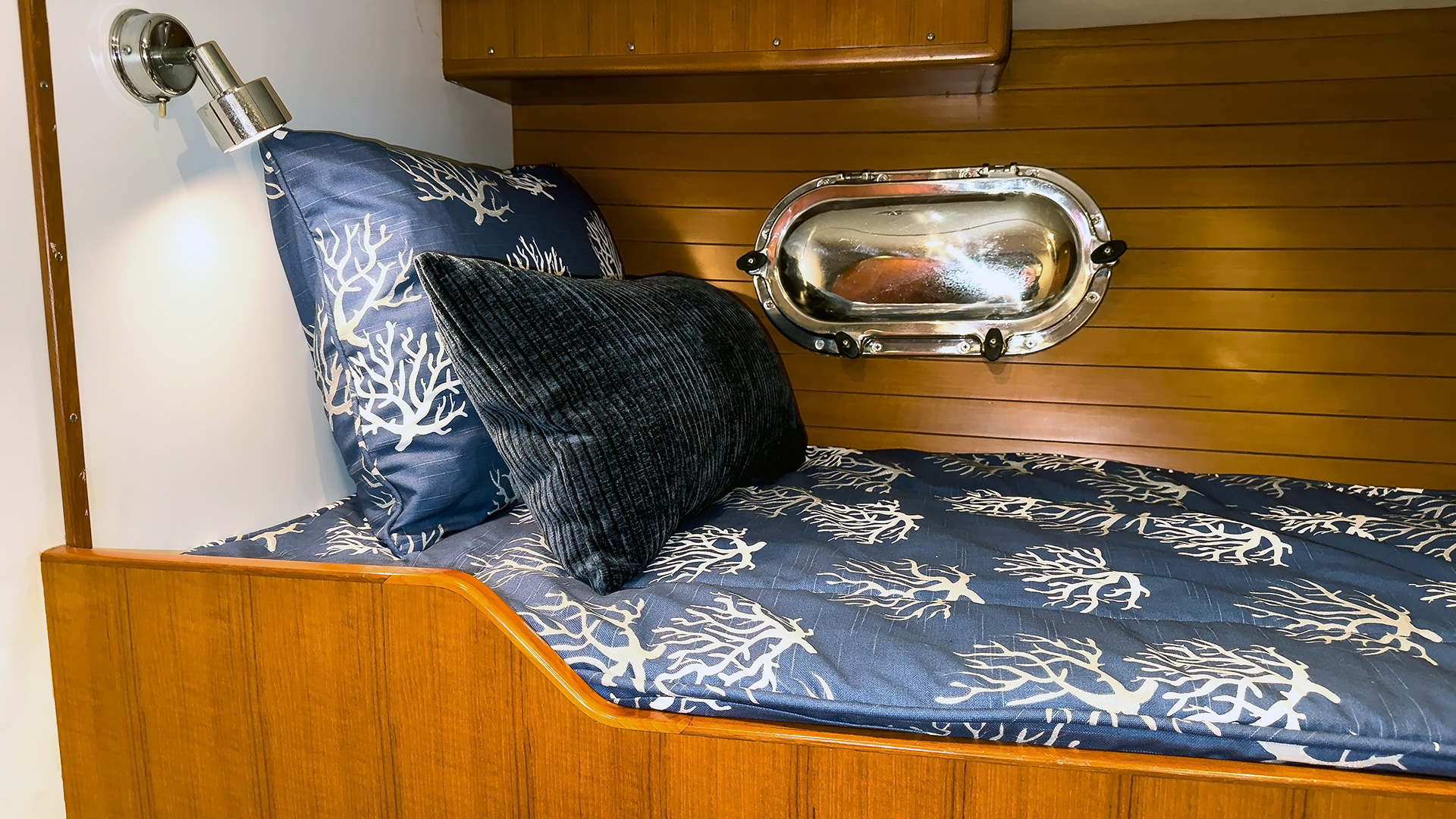

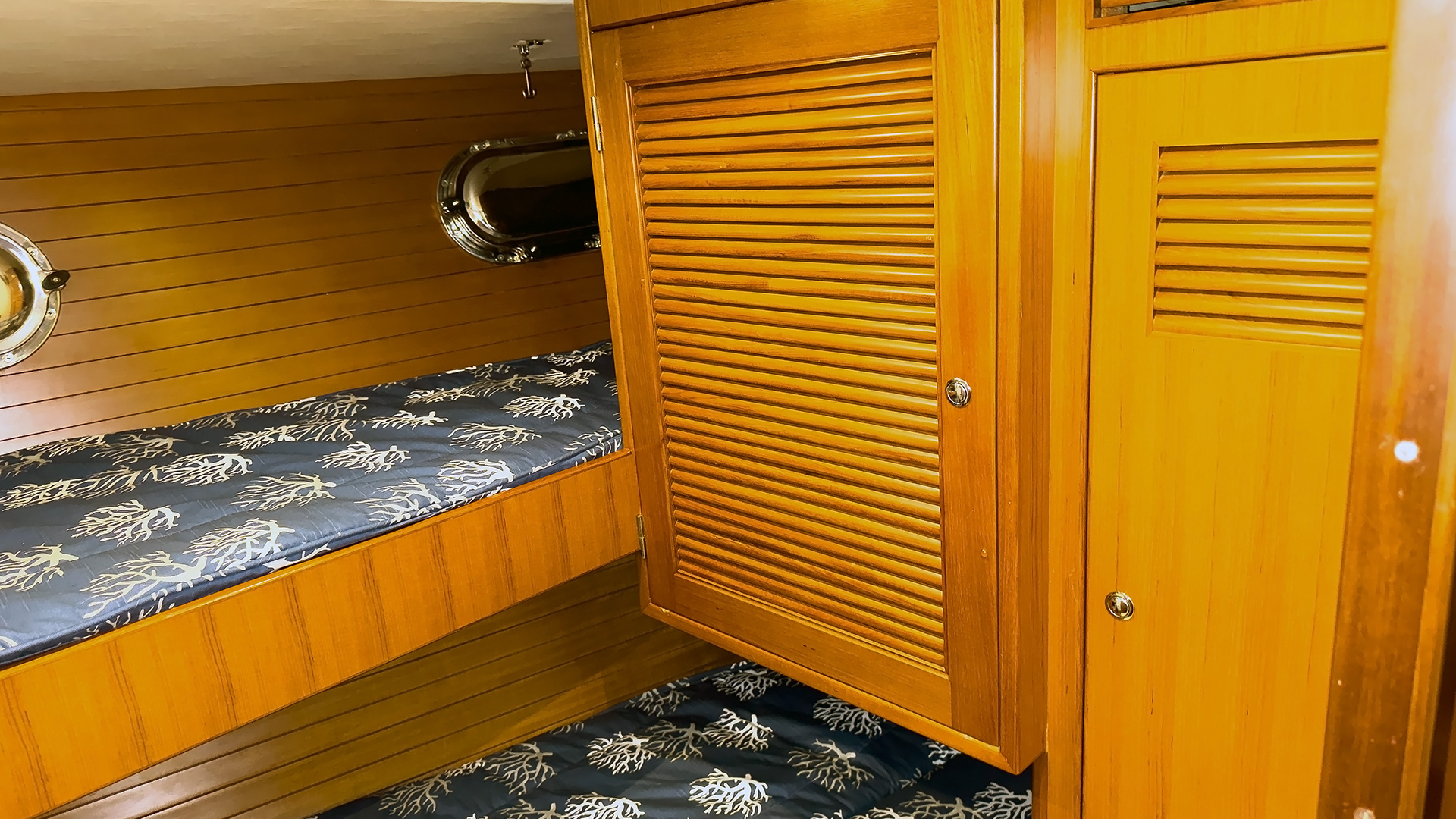

Guest Stateroom:

• (2) Bunk bed berths

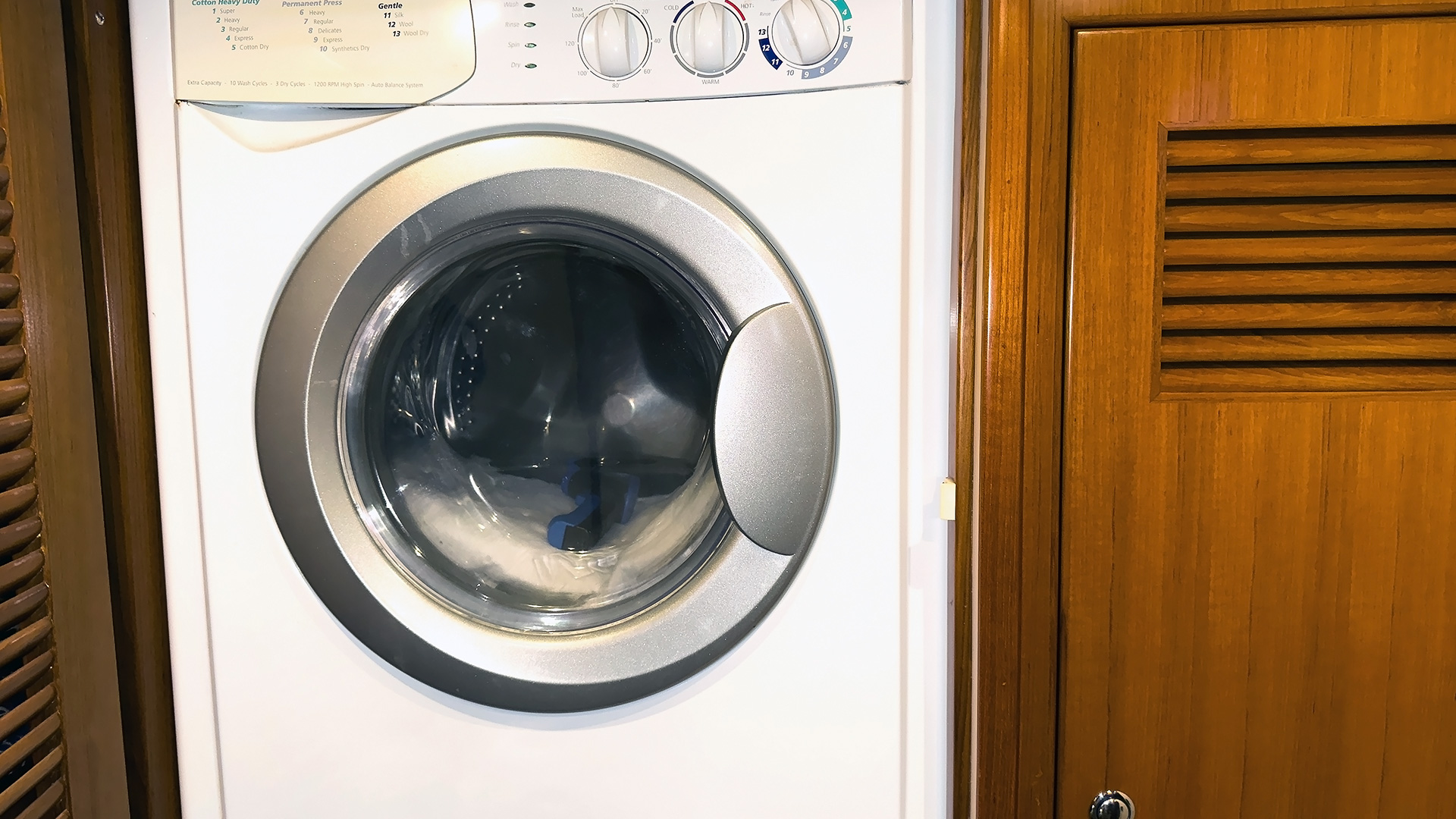

• Combination exterior vented Splendide washer/dryer behind louvered door

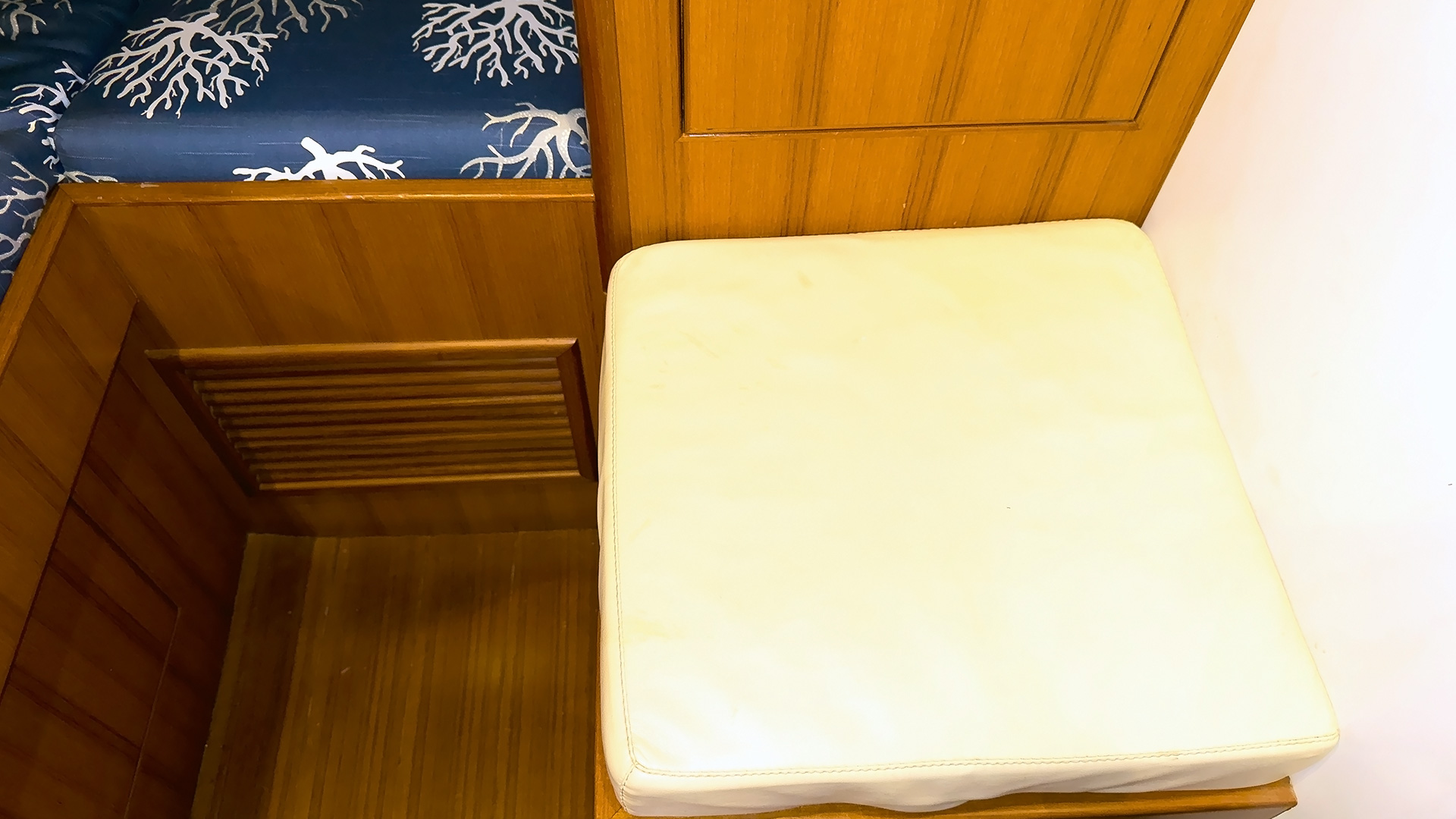

• Upholstered changing seat
• Two oval opening ports with deadlights and screens

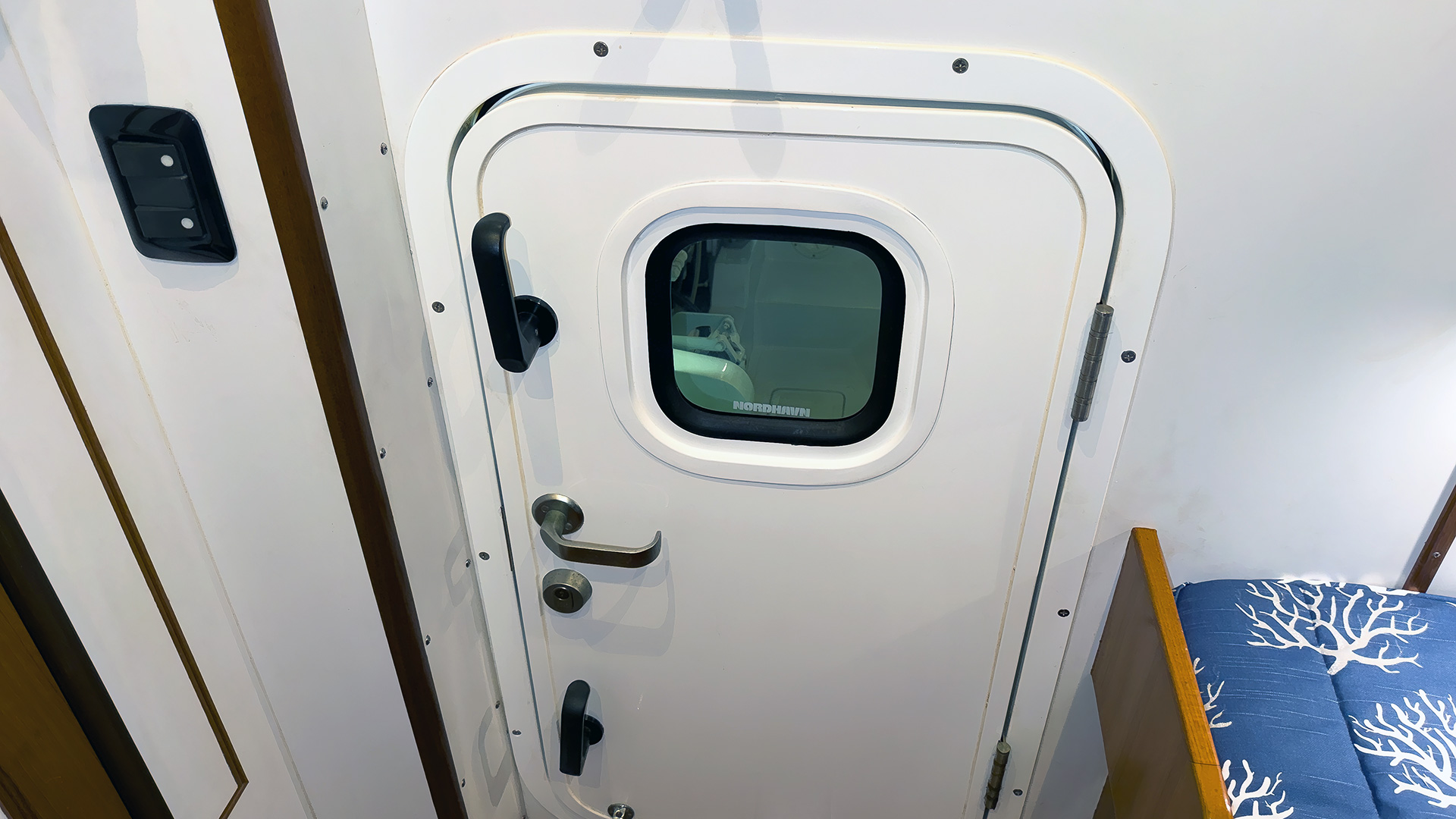

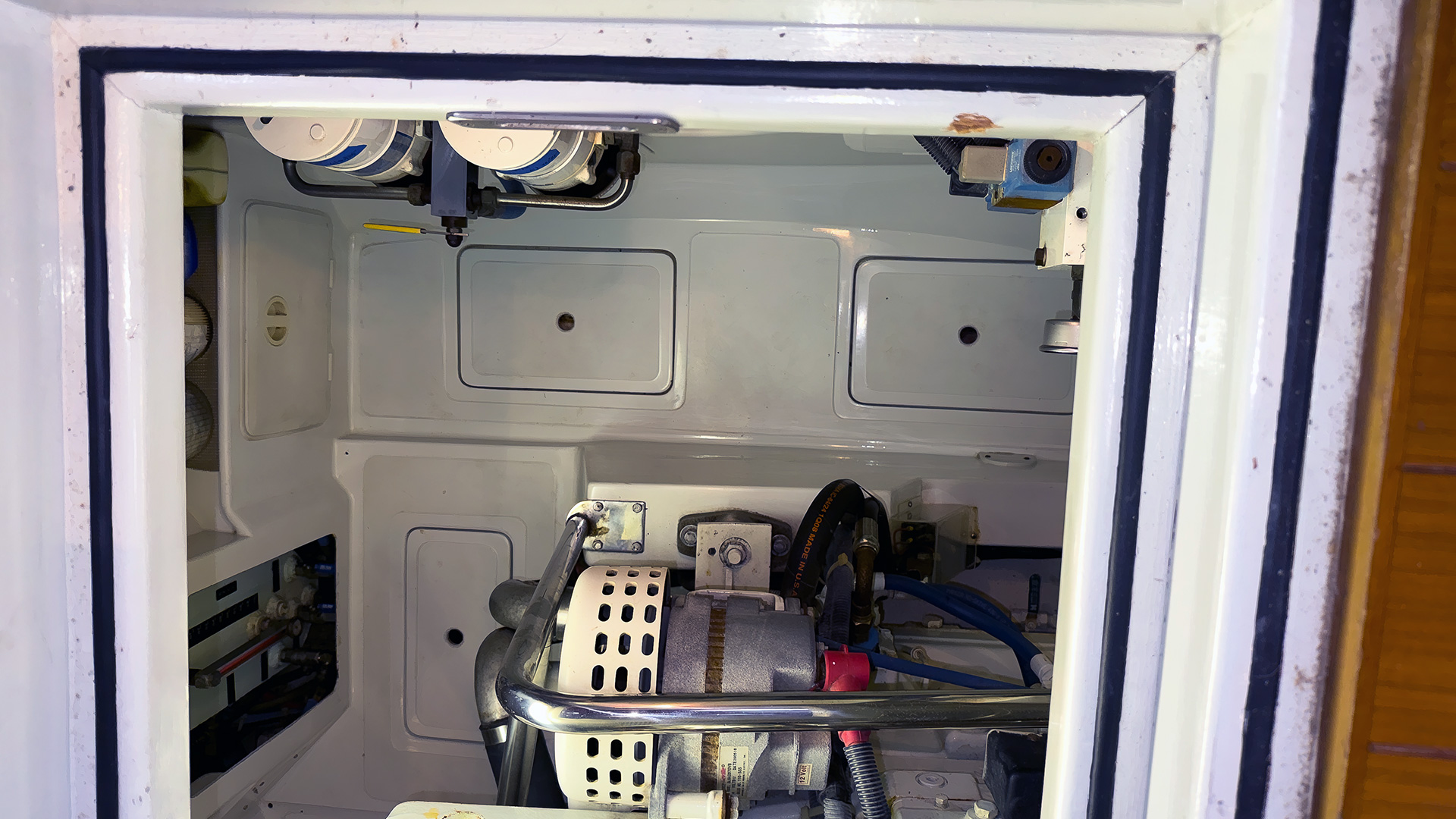

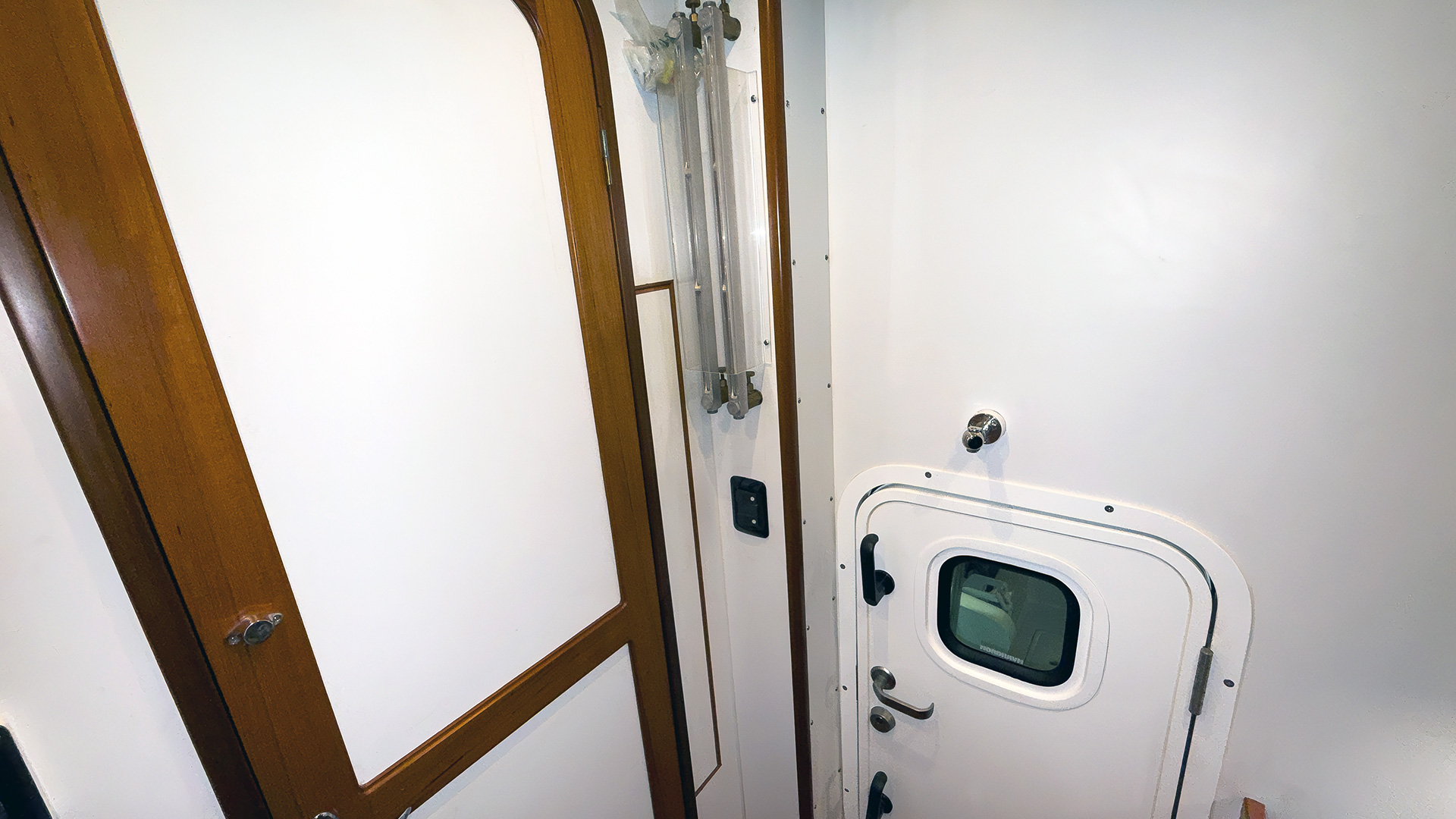

• Engine room access through gasketed, dogged, and insulated, aluminum door with window
• Hanging locker
• Dorade vent inlet
• Custom made bed linens from Yacht Bedding (September 2025)

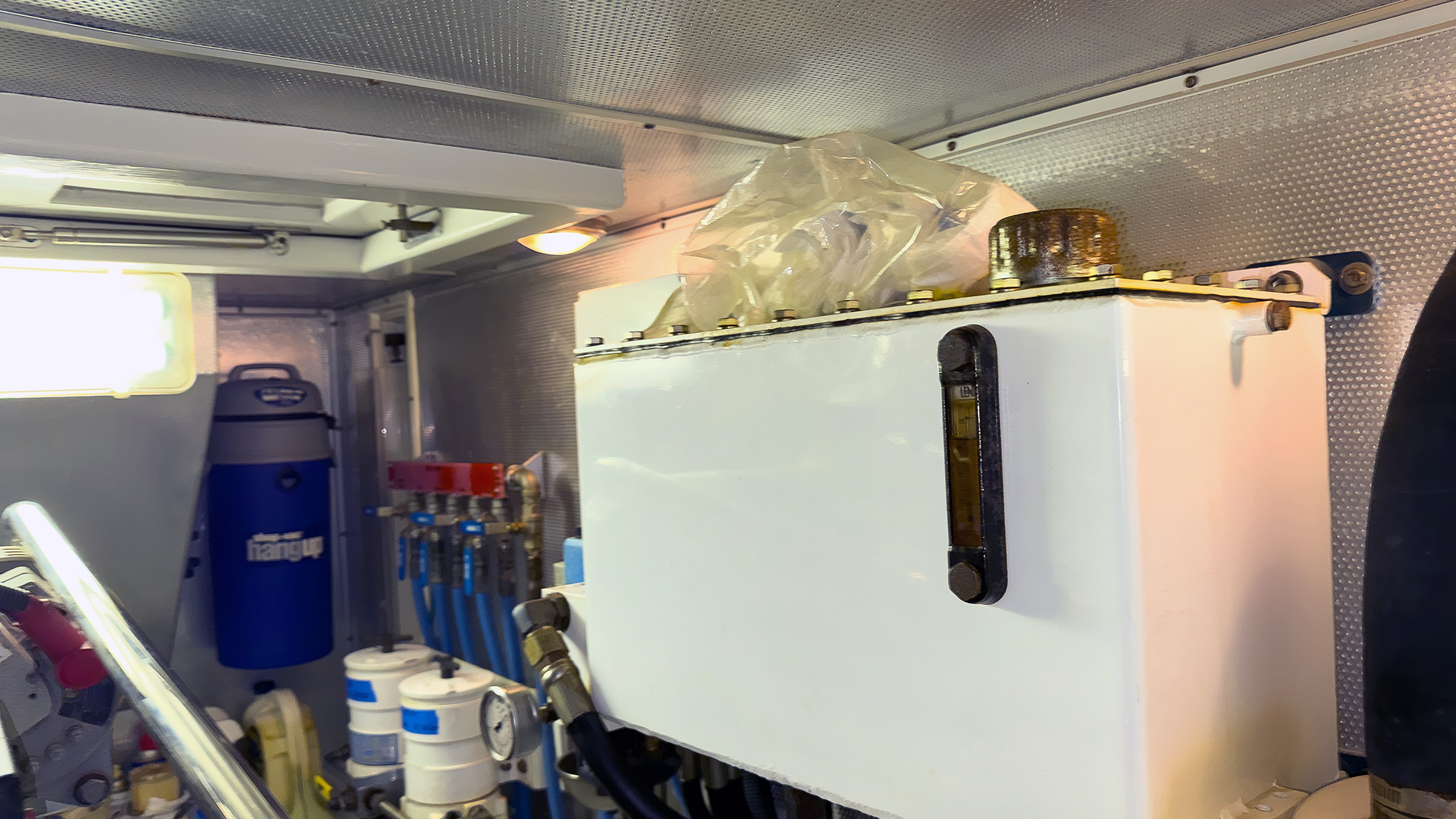

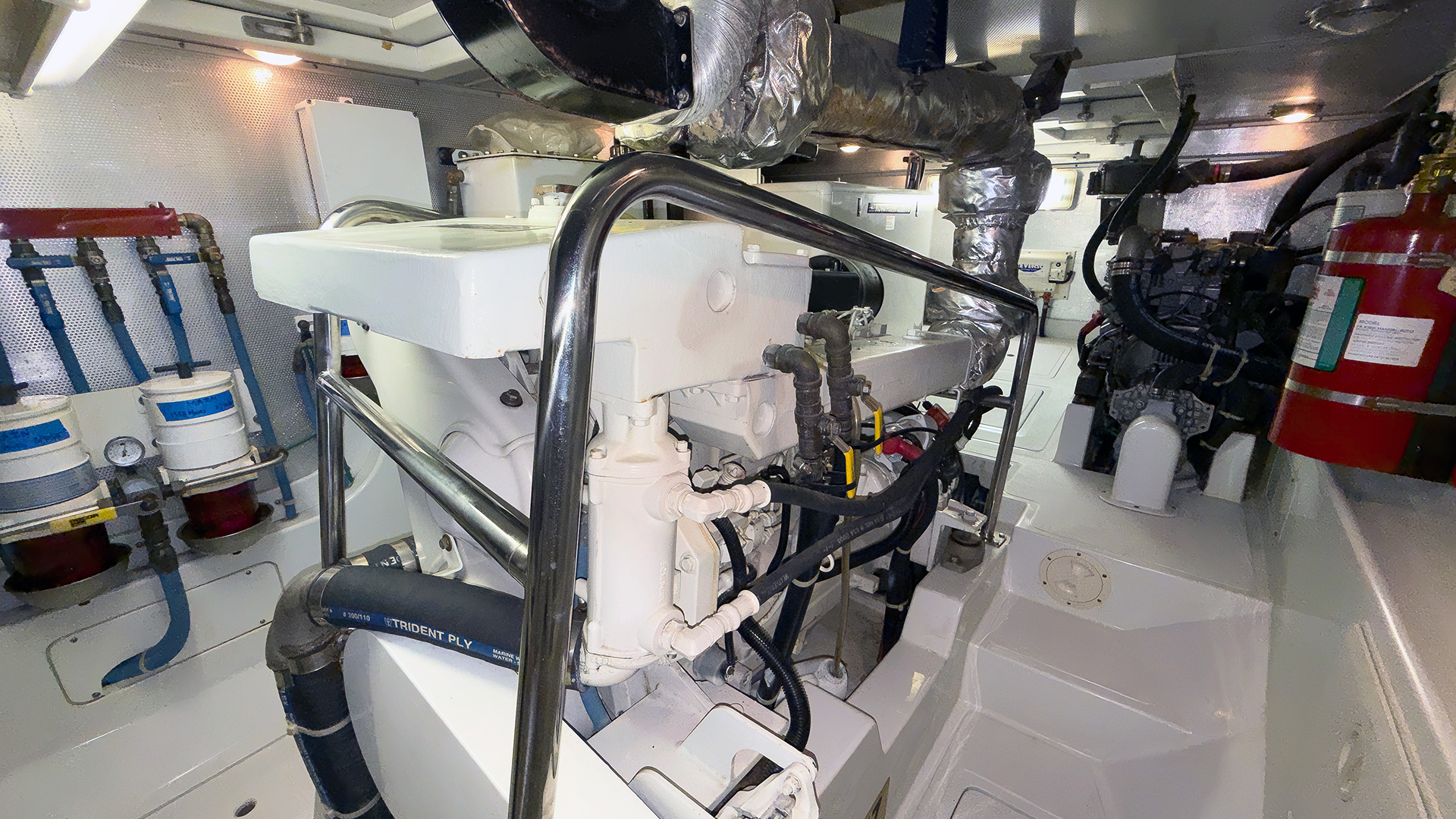

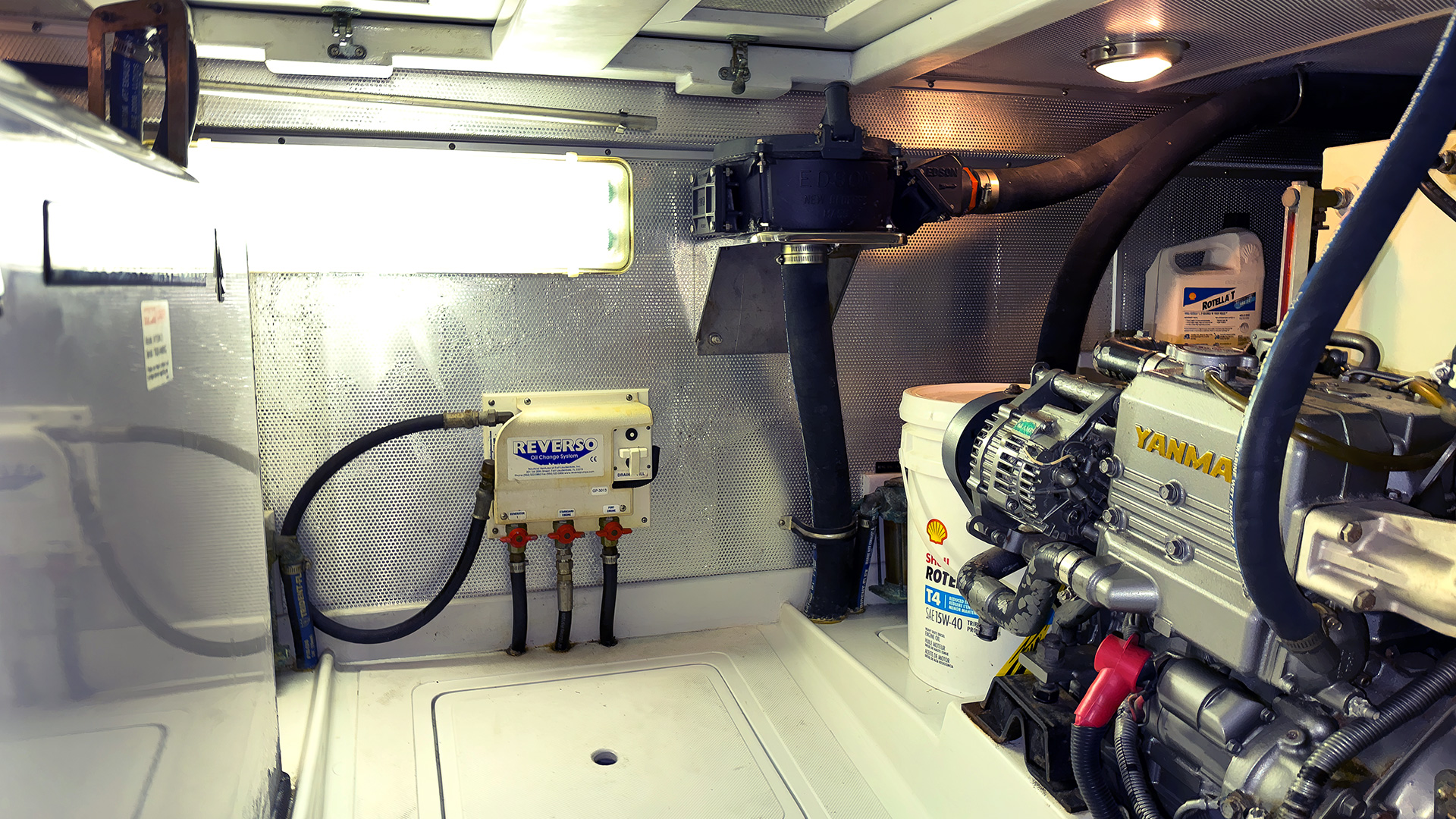

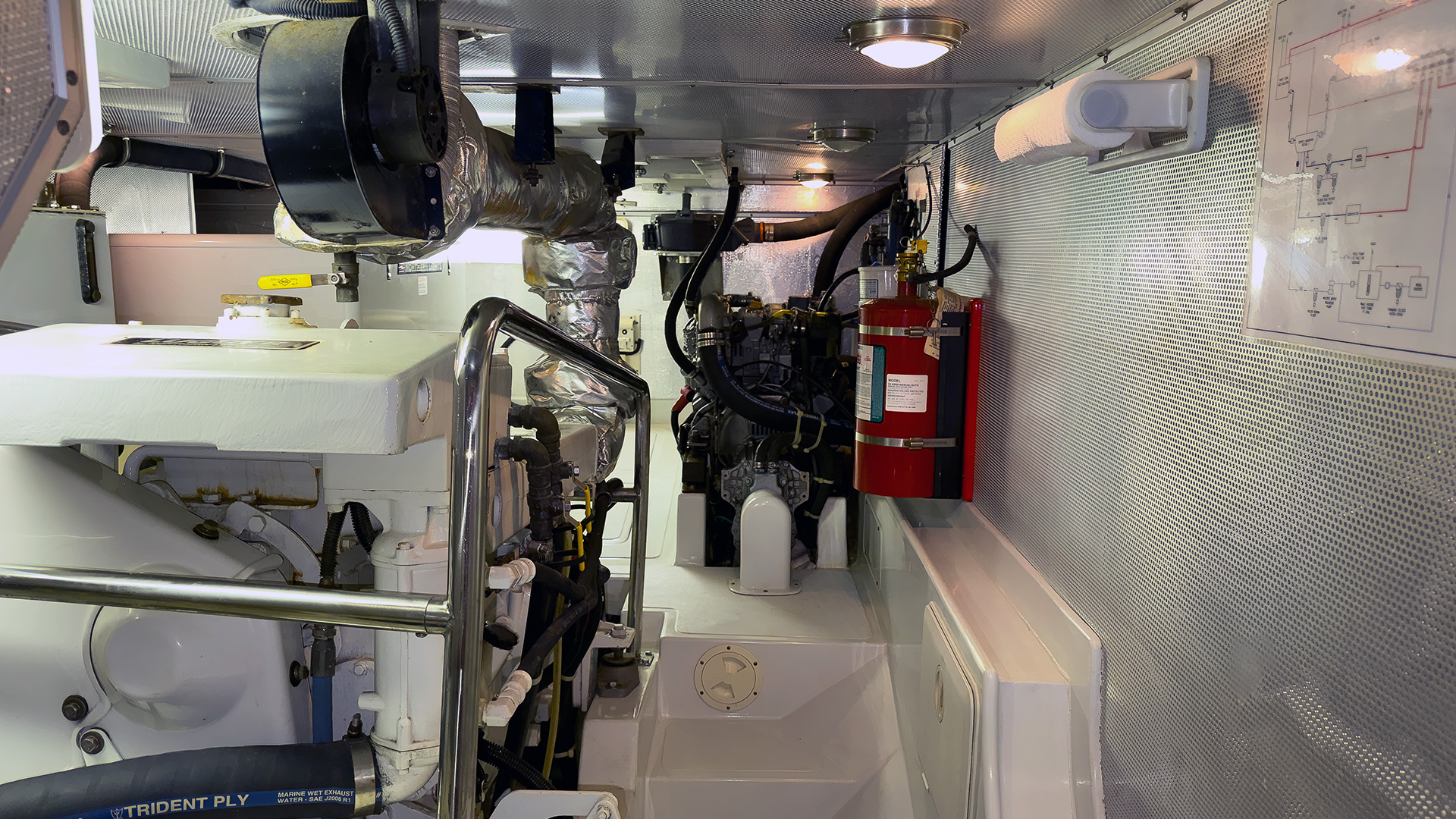

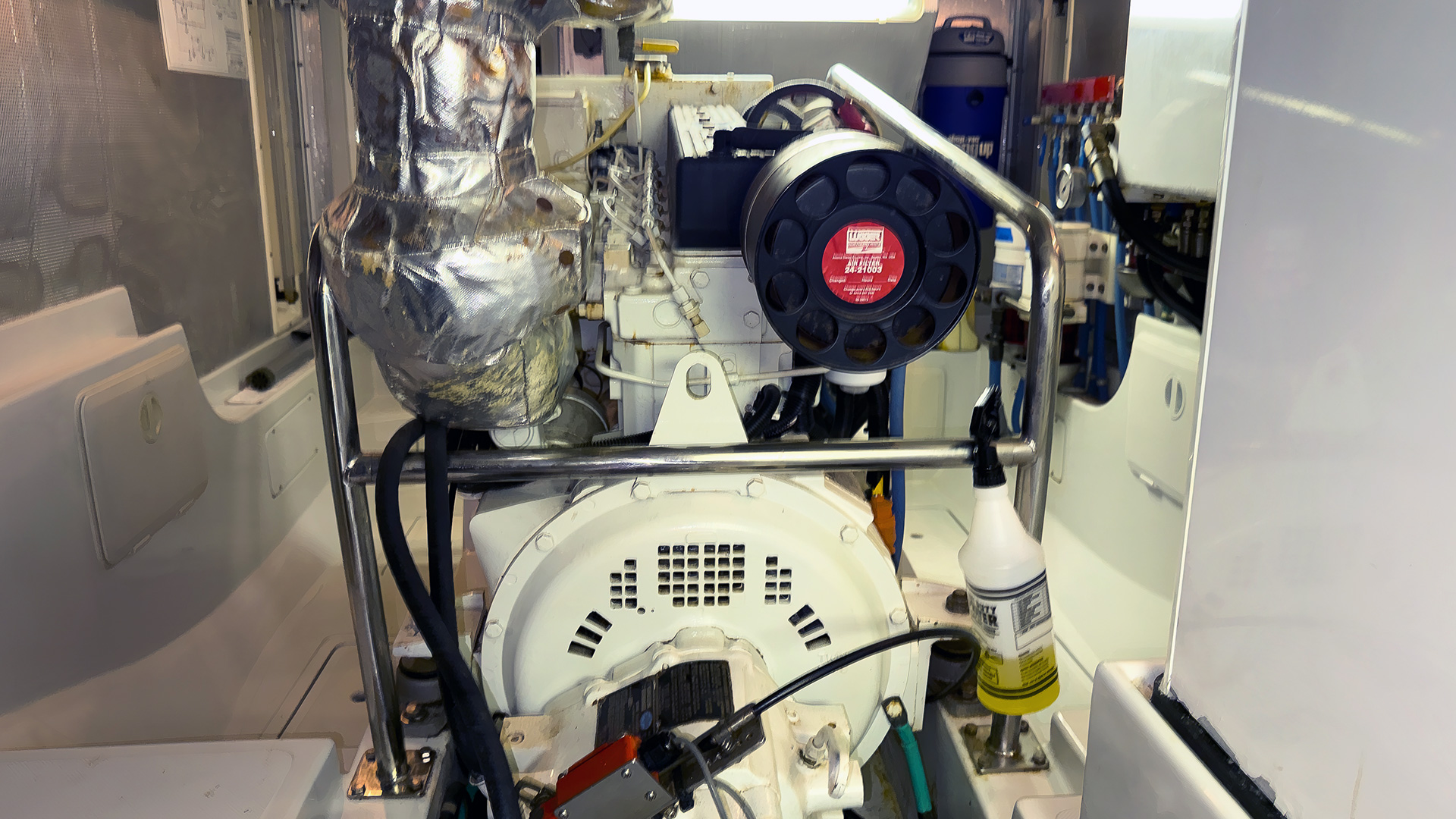

Engine and Mechanical:

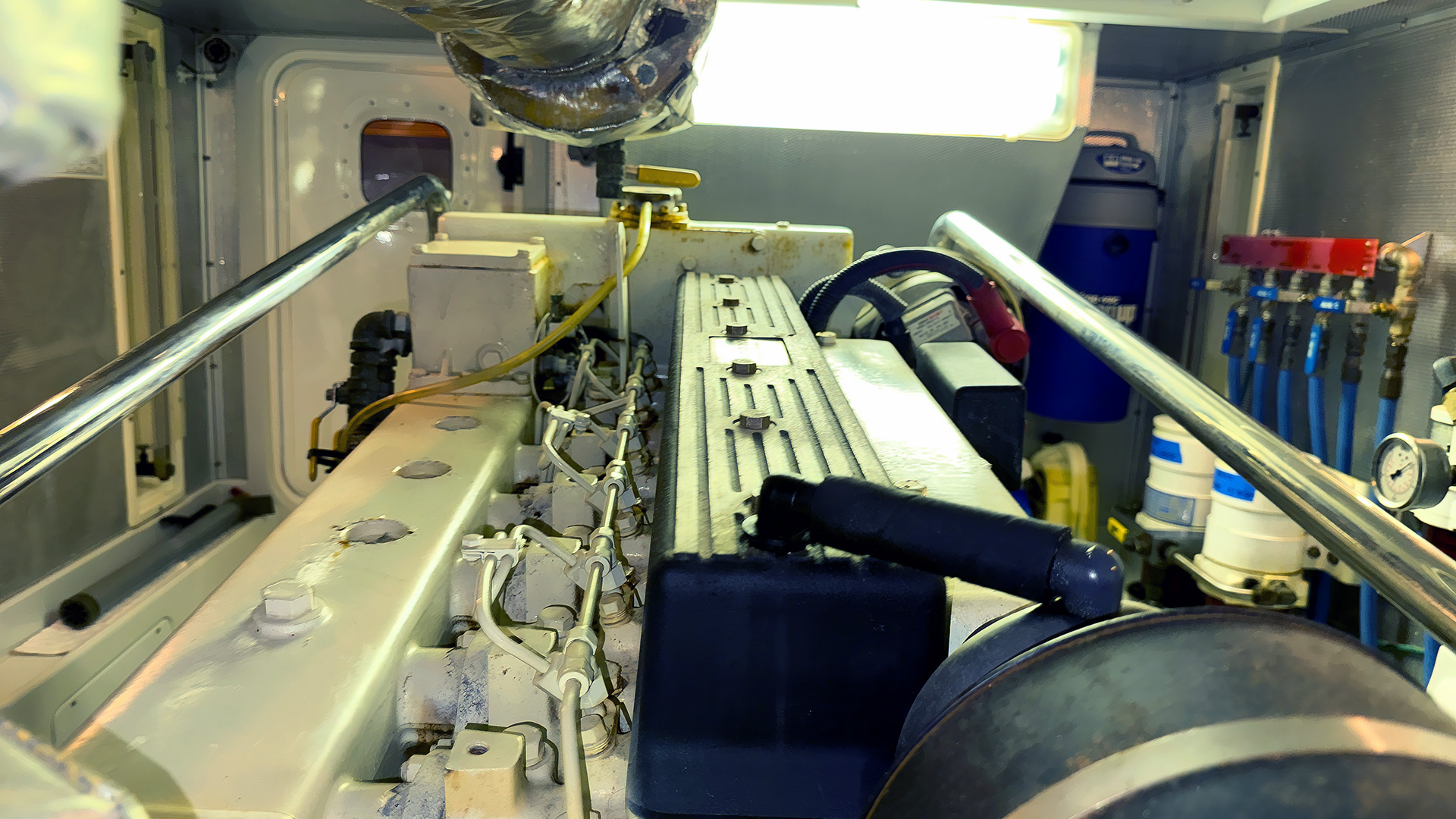

• Main Engine Lugger 668D, 105 HP
• Twin- Disc 3.9:1 transmission and 2″ propeller shaft
• Exhaust is dry stack type
• Closed cooling system circulates through an external keel cooler, eliminating a raw water-cooling pump and raw water contact with engine components

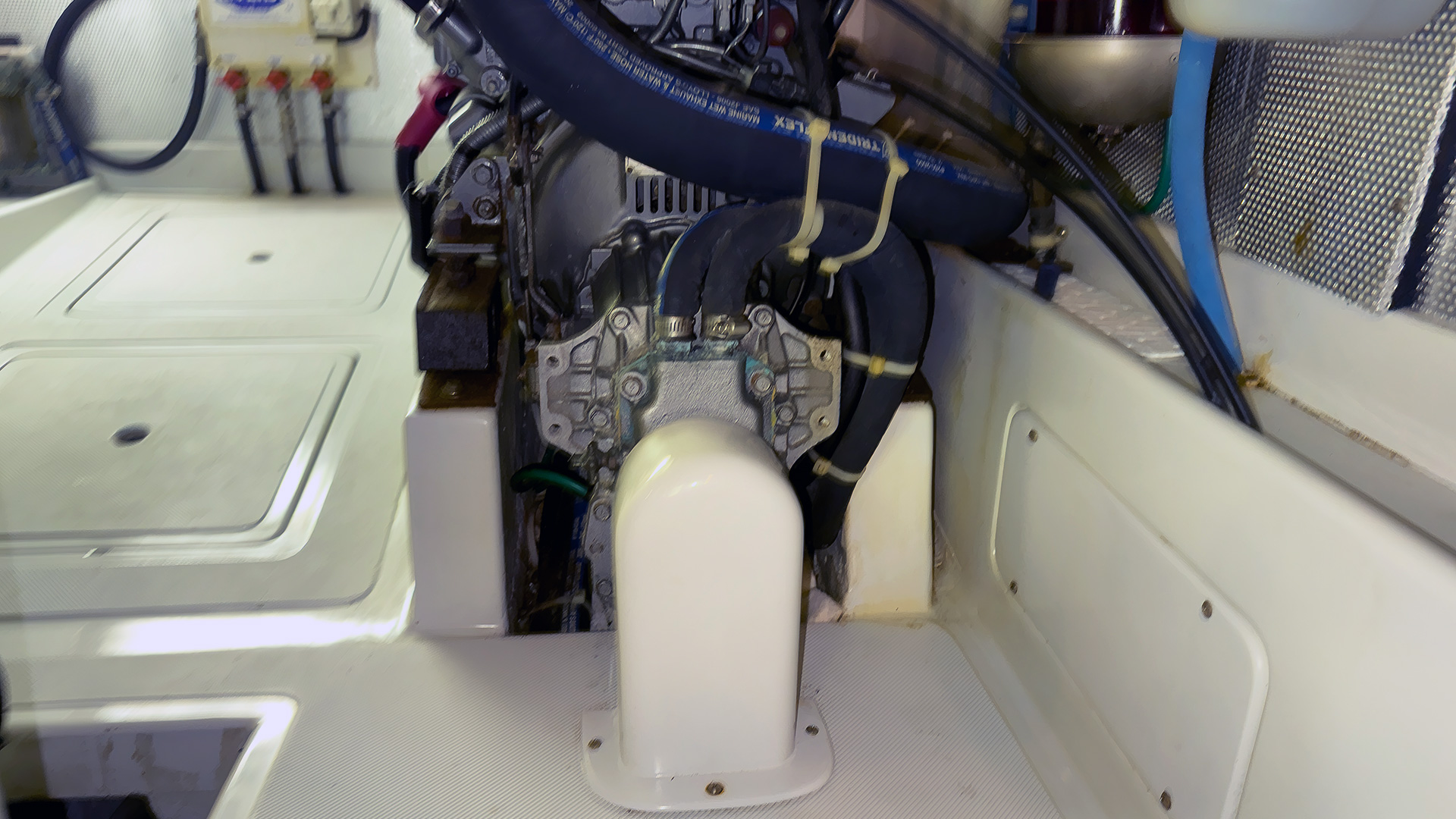

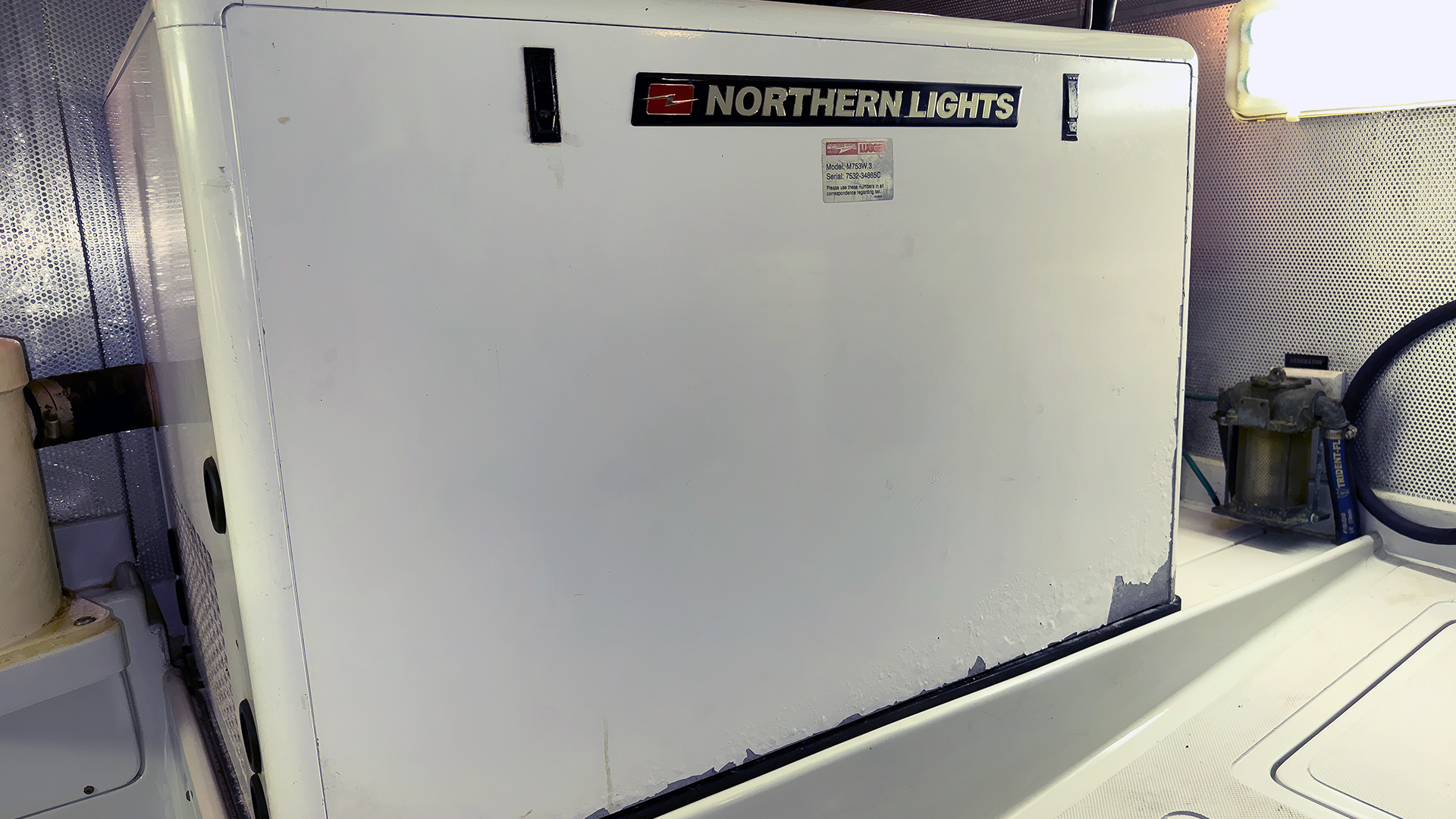

• Northern Lights 8 kW generator

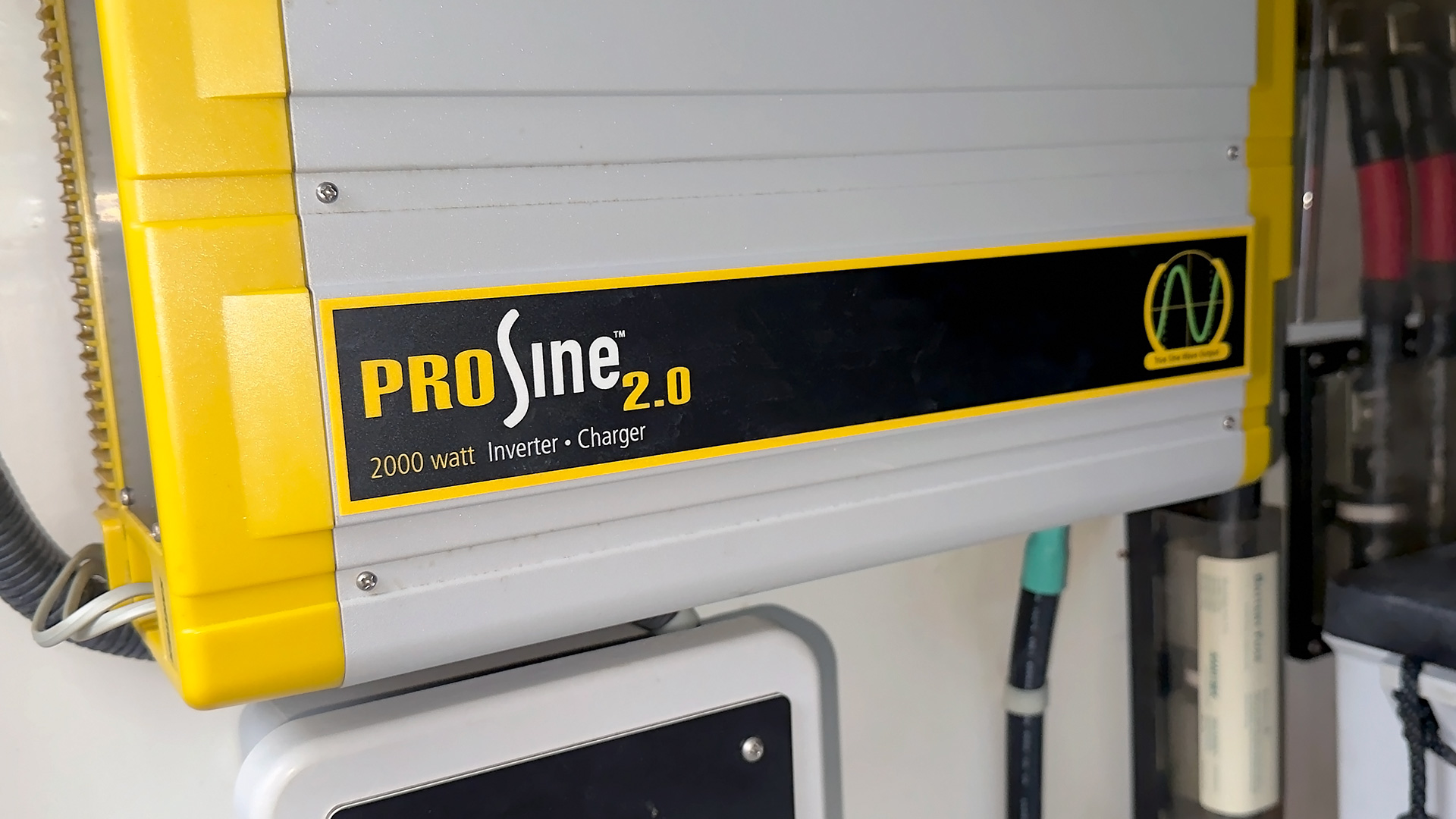

• Prosine 2.0 2000-watt inverter/charger with control panel in pilothouse

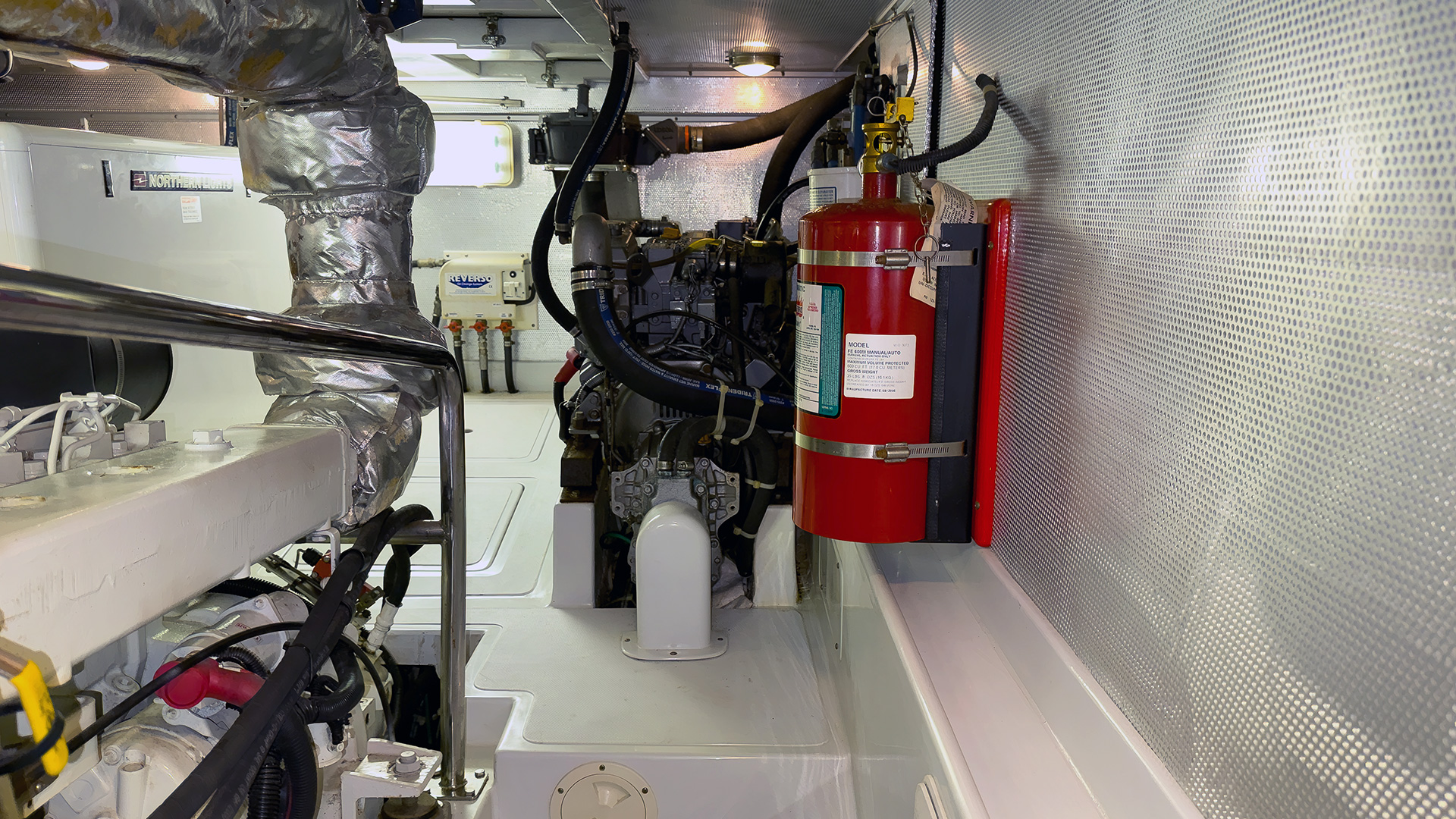

• Seafire FE241 fixed firefighting/suppression system
• 140-amp Main engine alternator

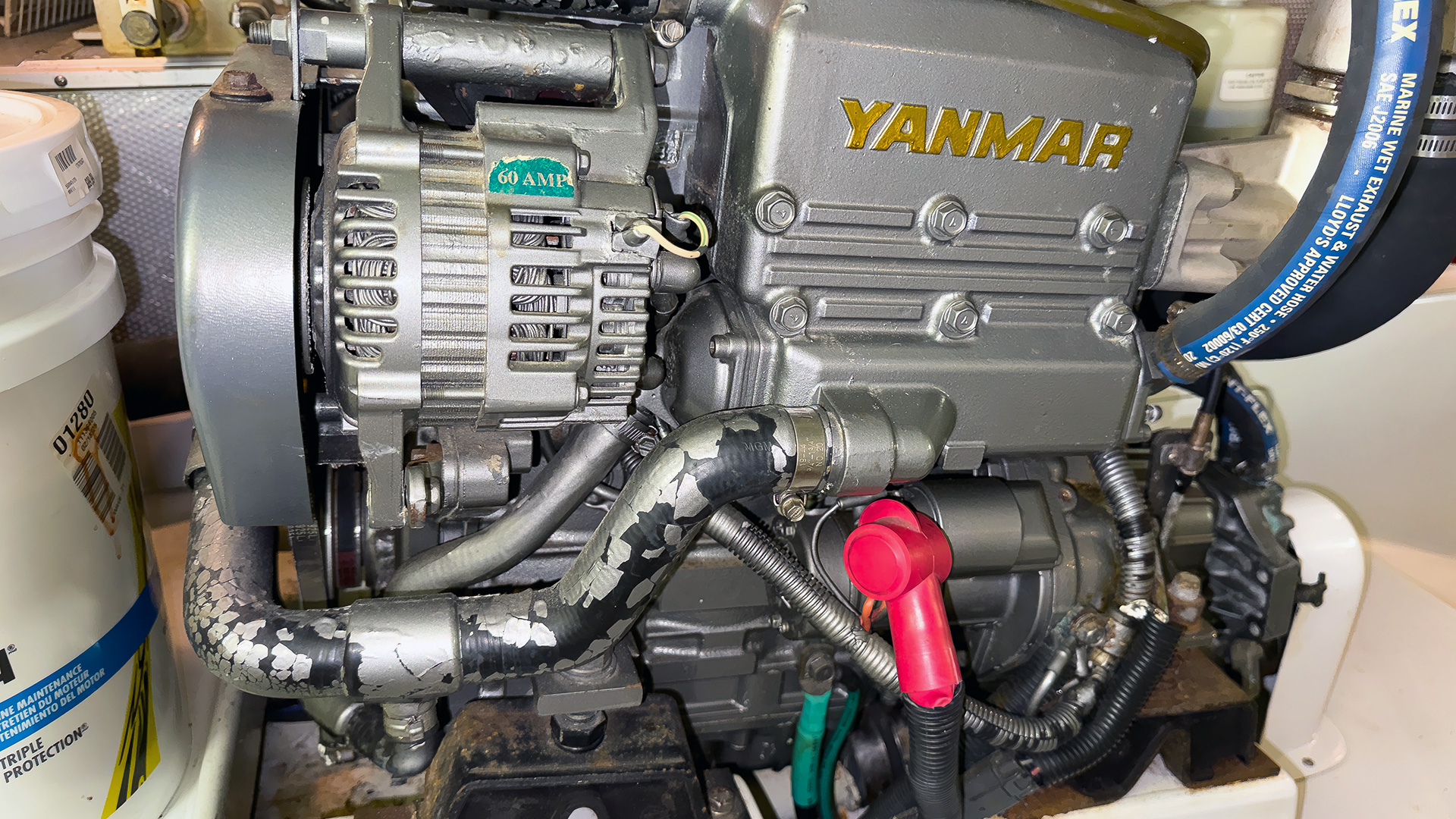

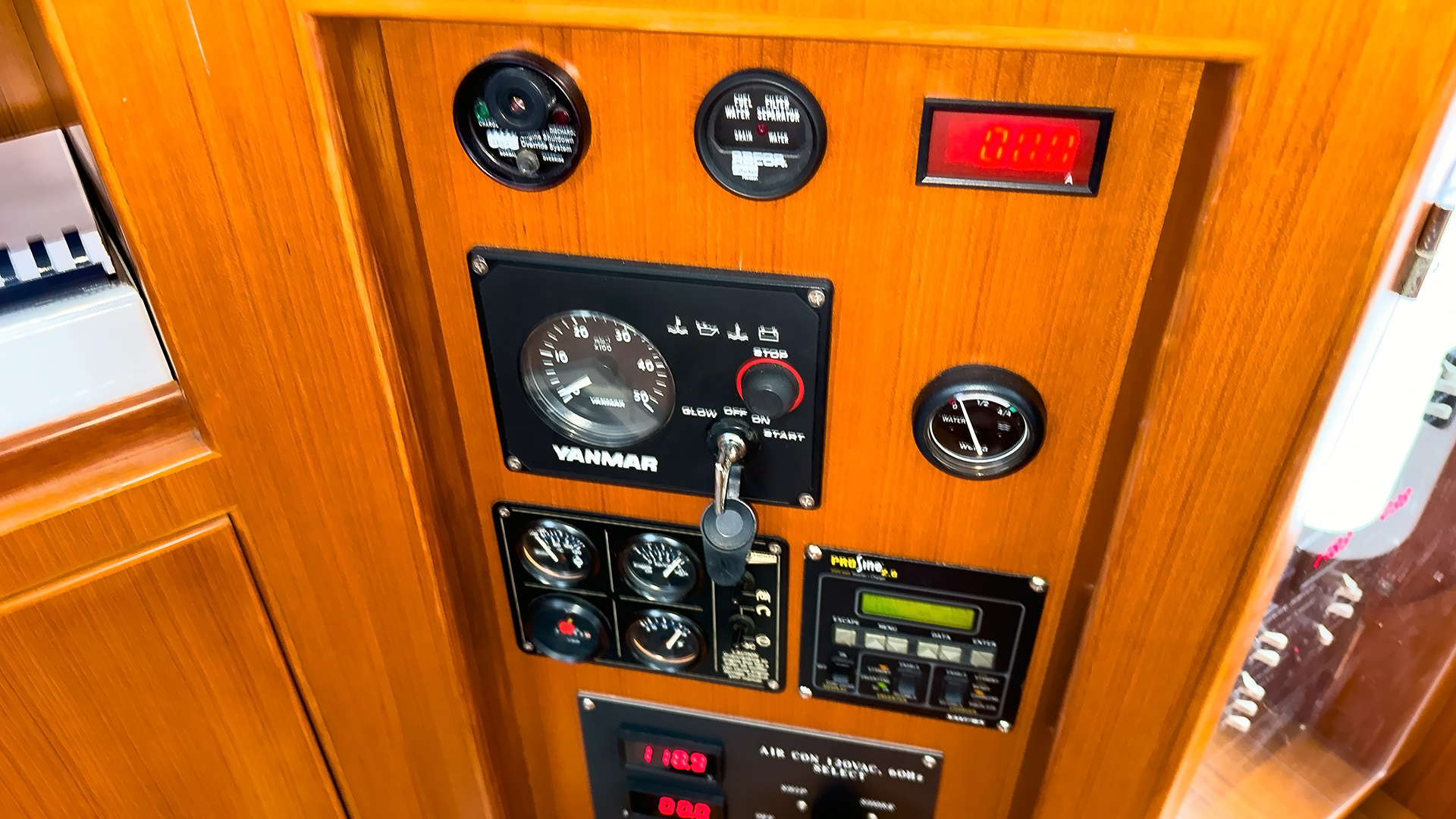

• Yanmar 27 HP wing engine

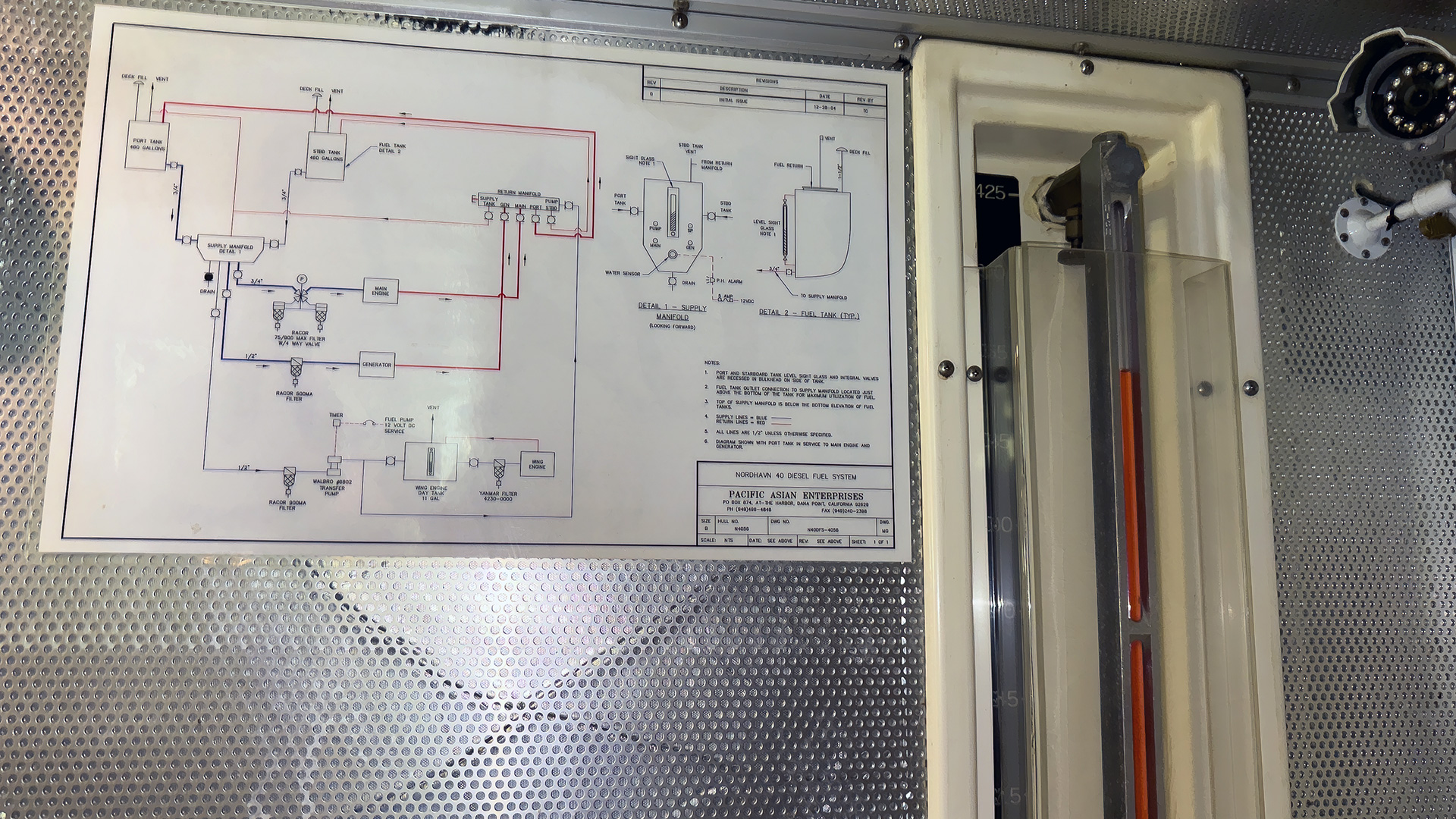

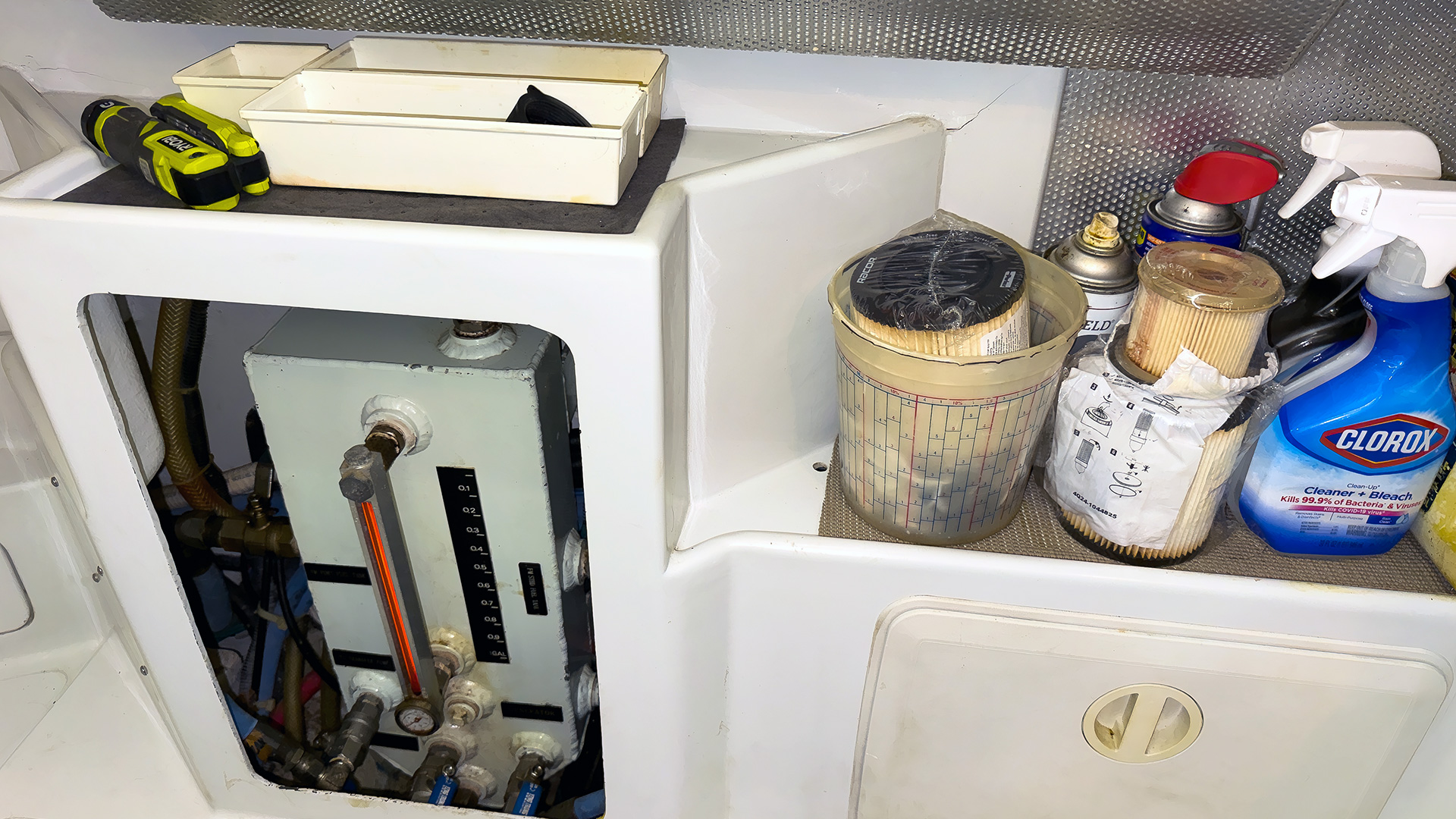

• Fuel transfer and polish system
• Isolated wing engine fuel tank

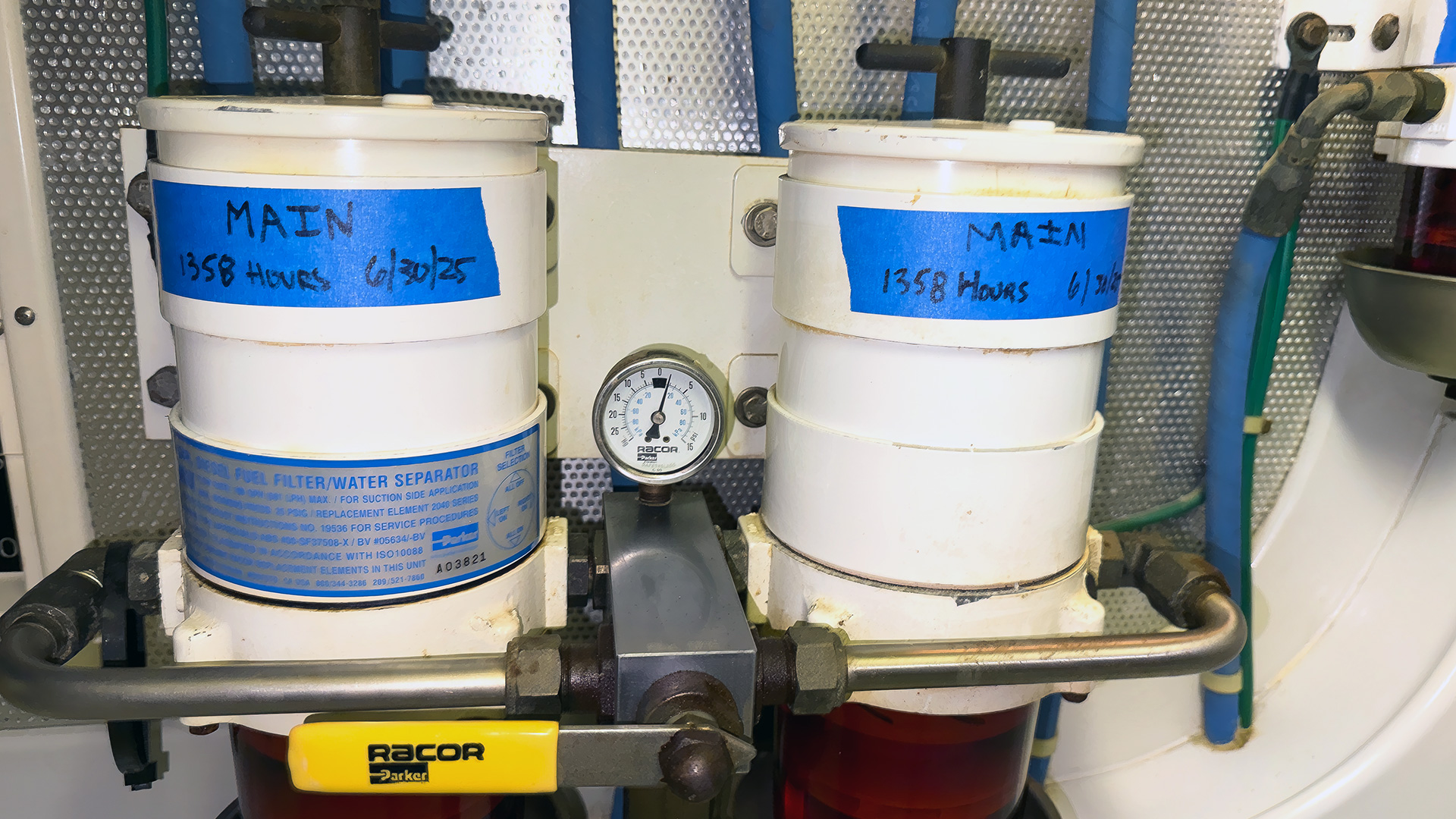

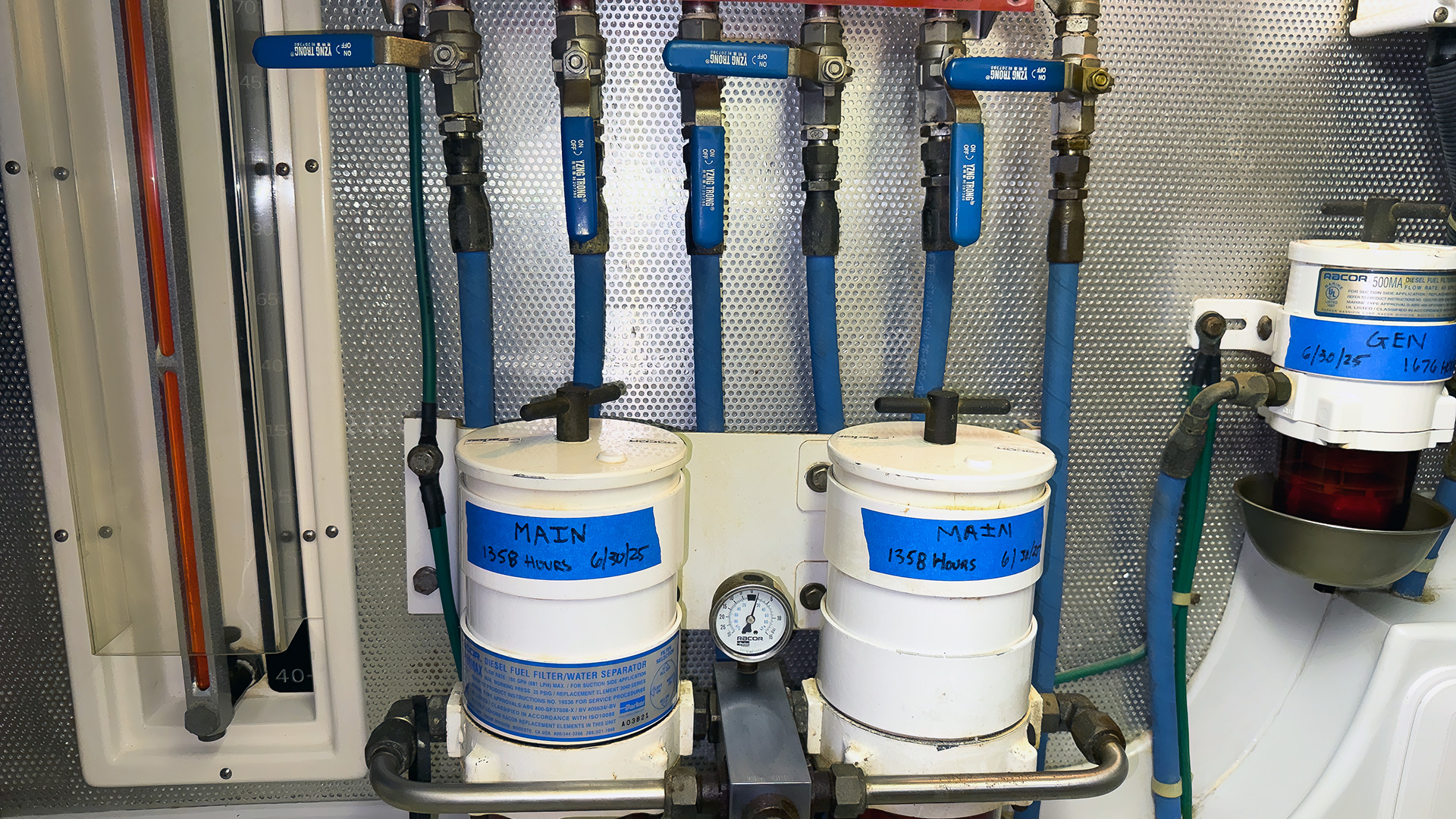

• Racor duplex #75-900 fuel filters with vacuum gauge for main engine

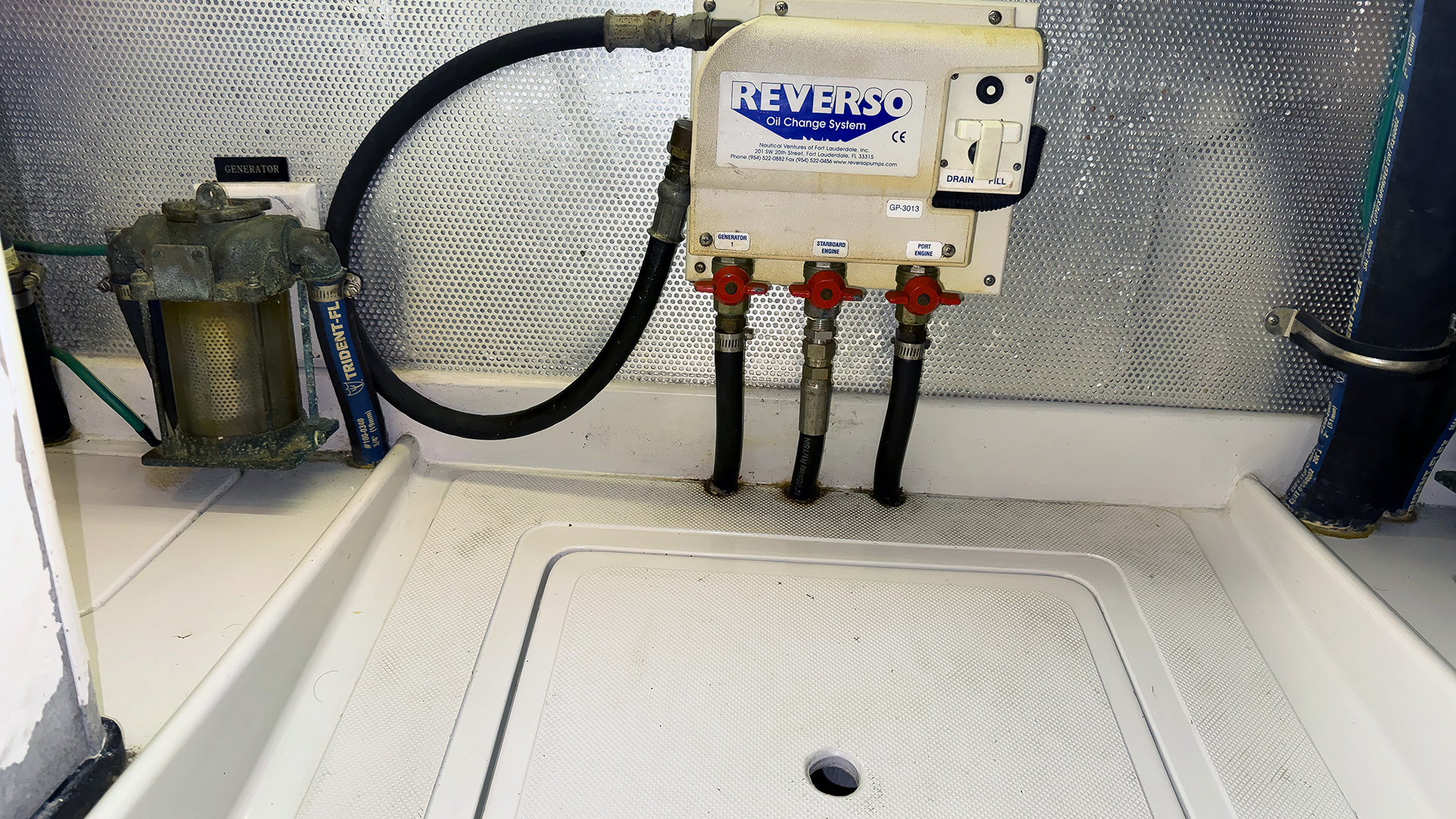

• Reverso oil-changing system – plumbed to main/wing and generator engines

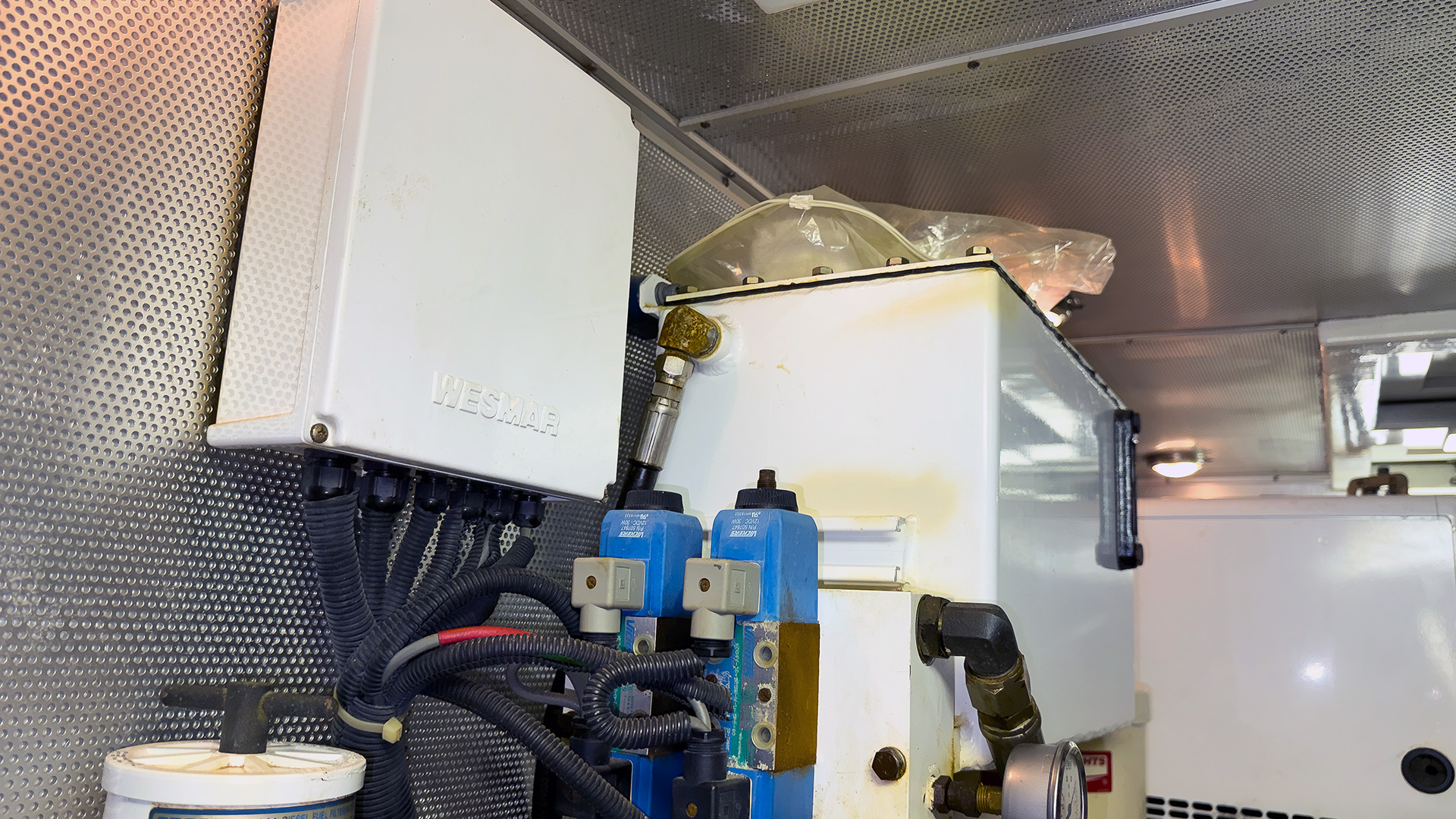

• Wesmar stabilizers-keel cooled (full service and seals replaced August 2025)
• Dual 30-amp shore power electrical service with 4 50’ power cords

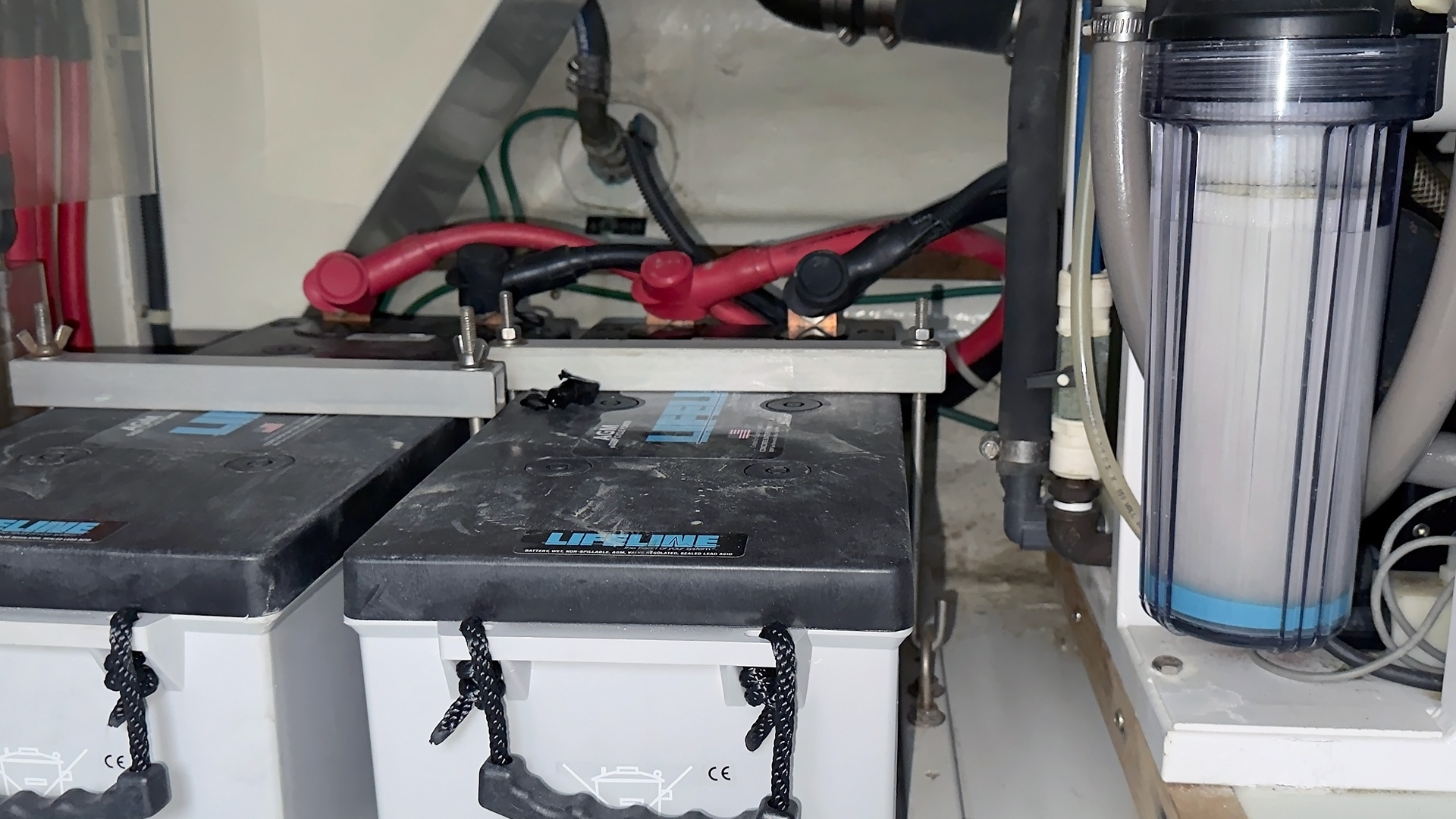

• Six Lifeline Batteries (replaced May 2025)
• Village Marine Squirt Water maker (not operated since 2014)

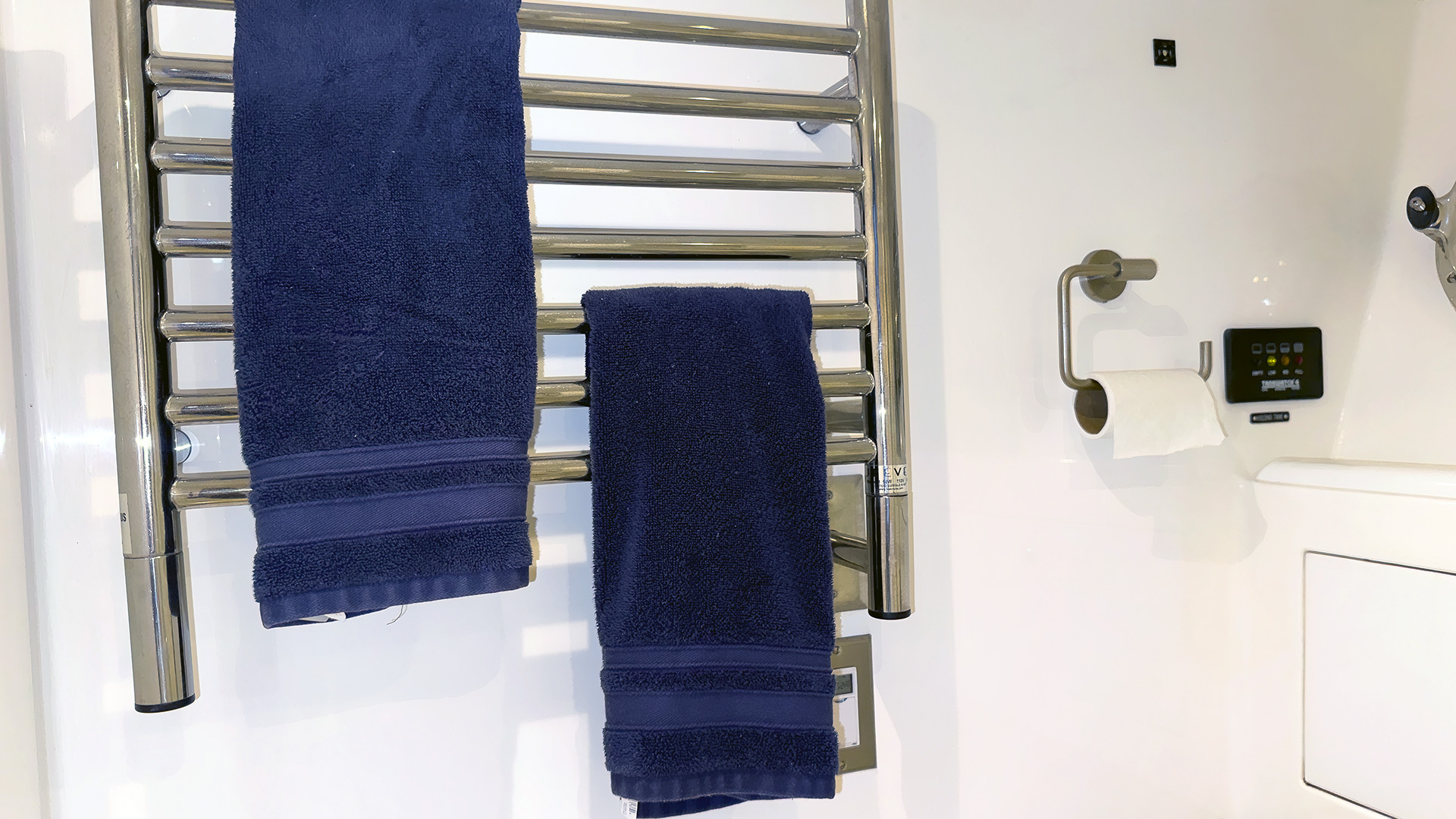

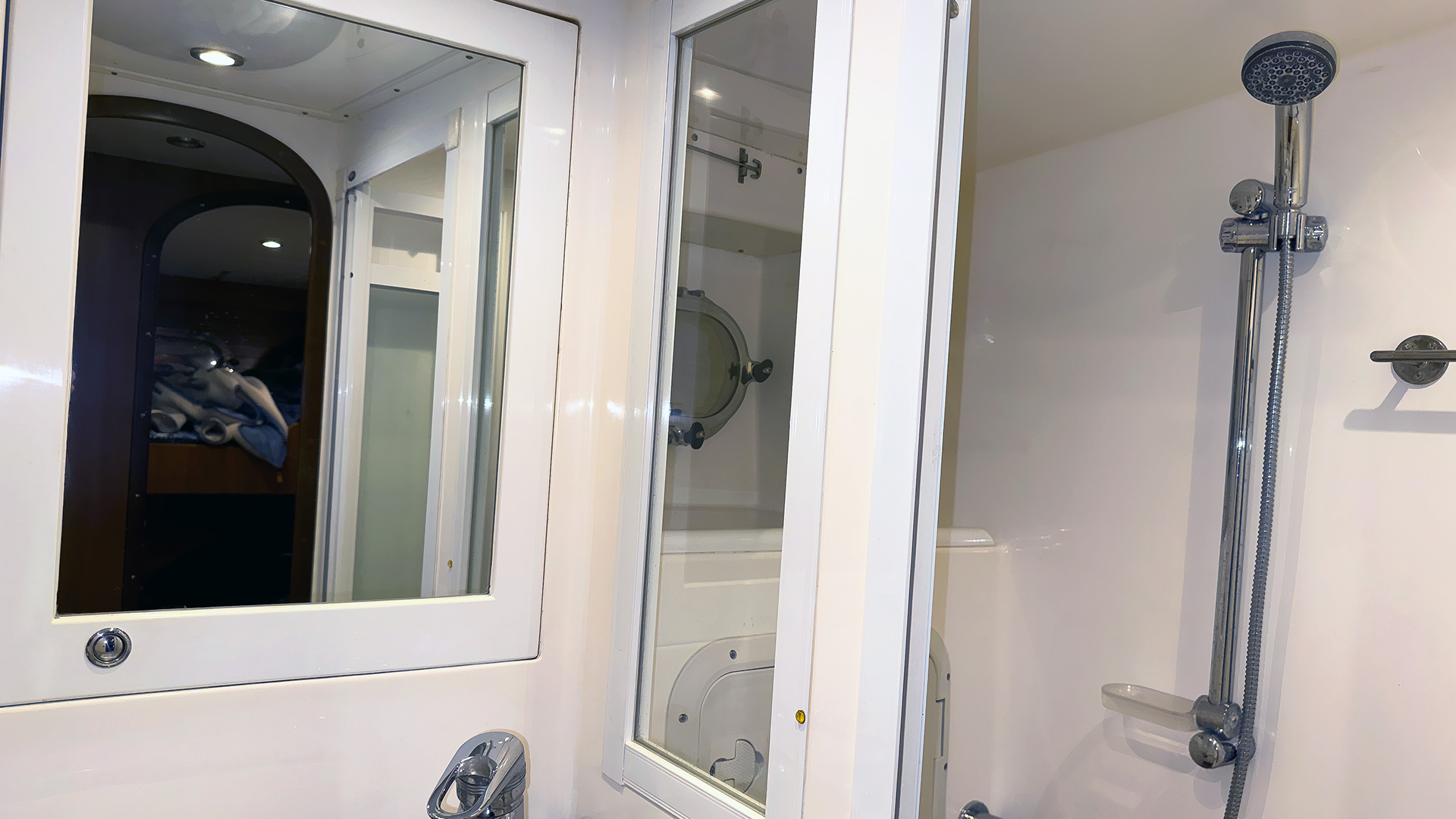

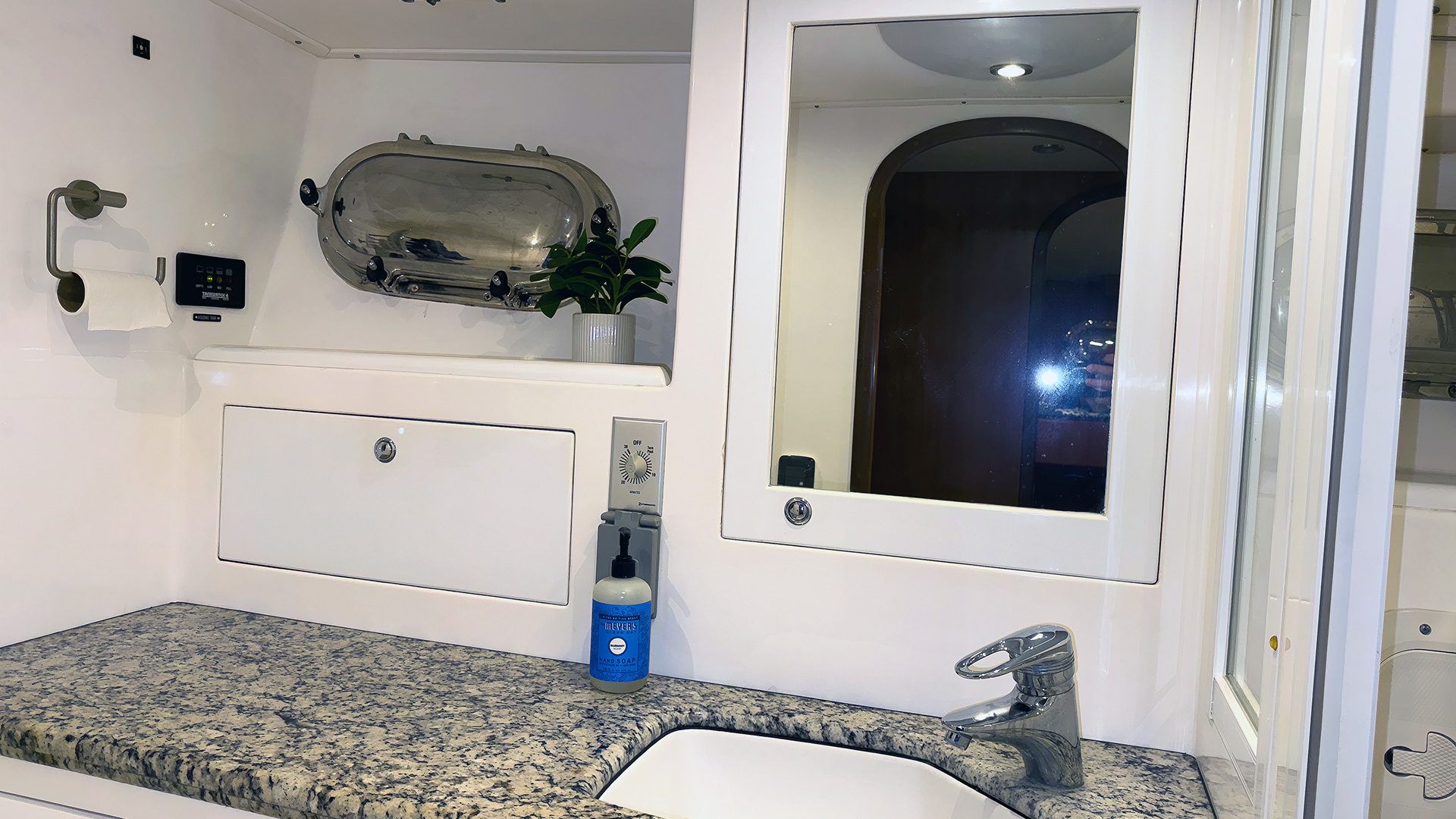

Head and Shower:

• Granite countertop vanity
• Cabinet and locker storage
• Clear glass bi-fold shower door
• Grohe sink and shower fixtures
• Shower sump and exhaust fan

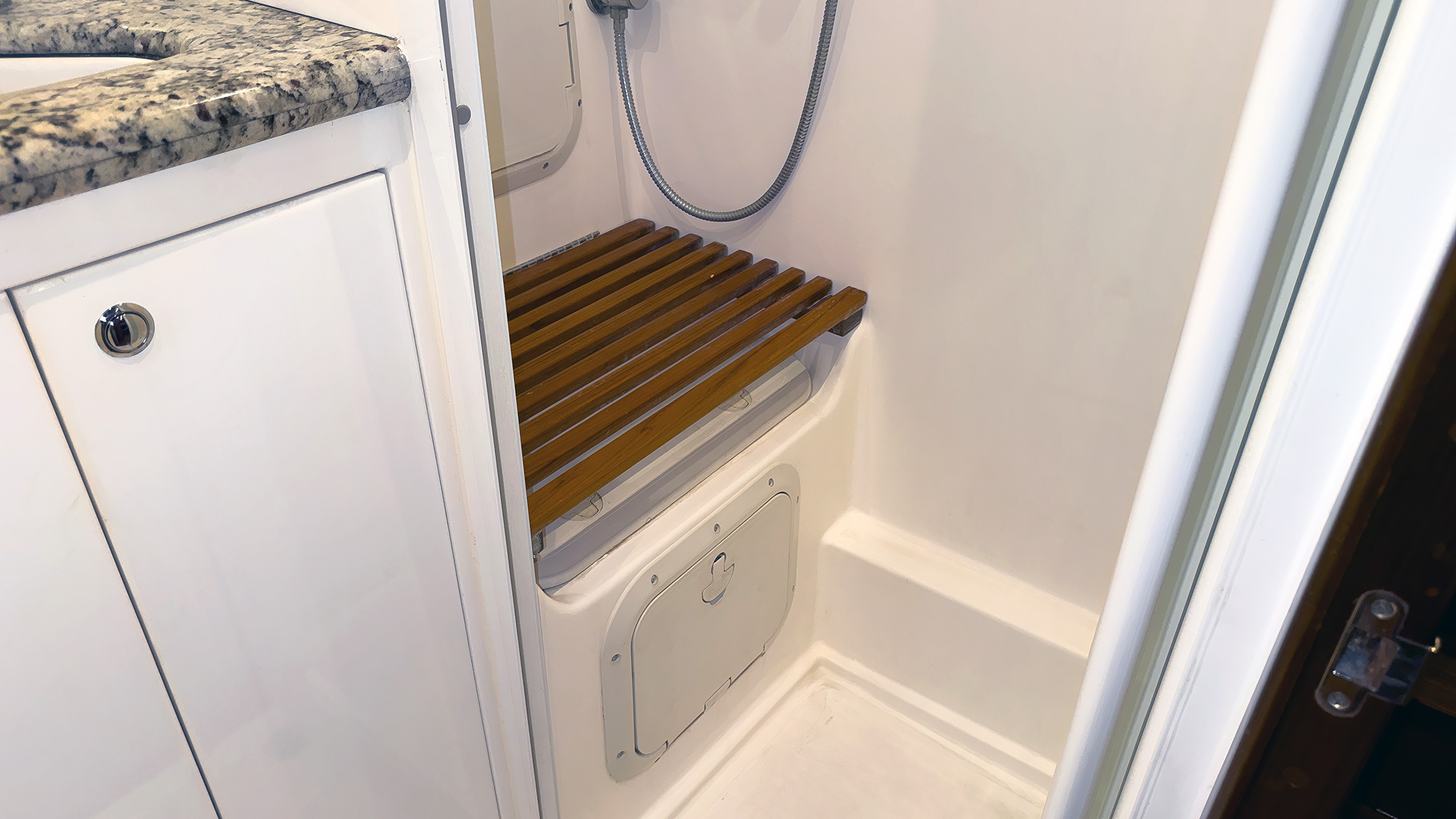

• Shower seat and storage locker inside
• Sea-land Tank watch to monitor holding tank

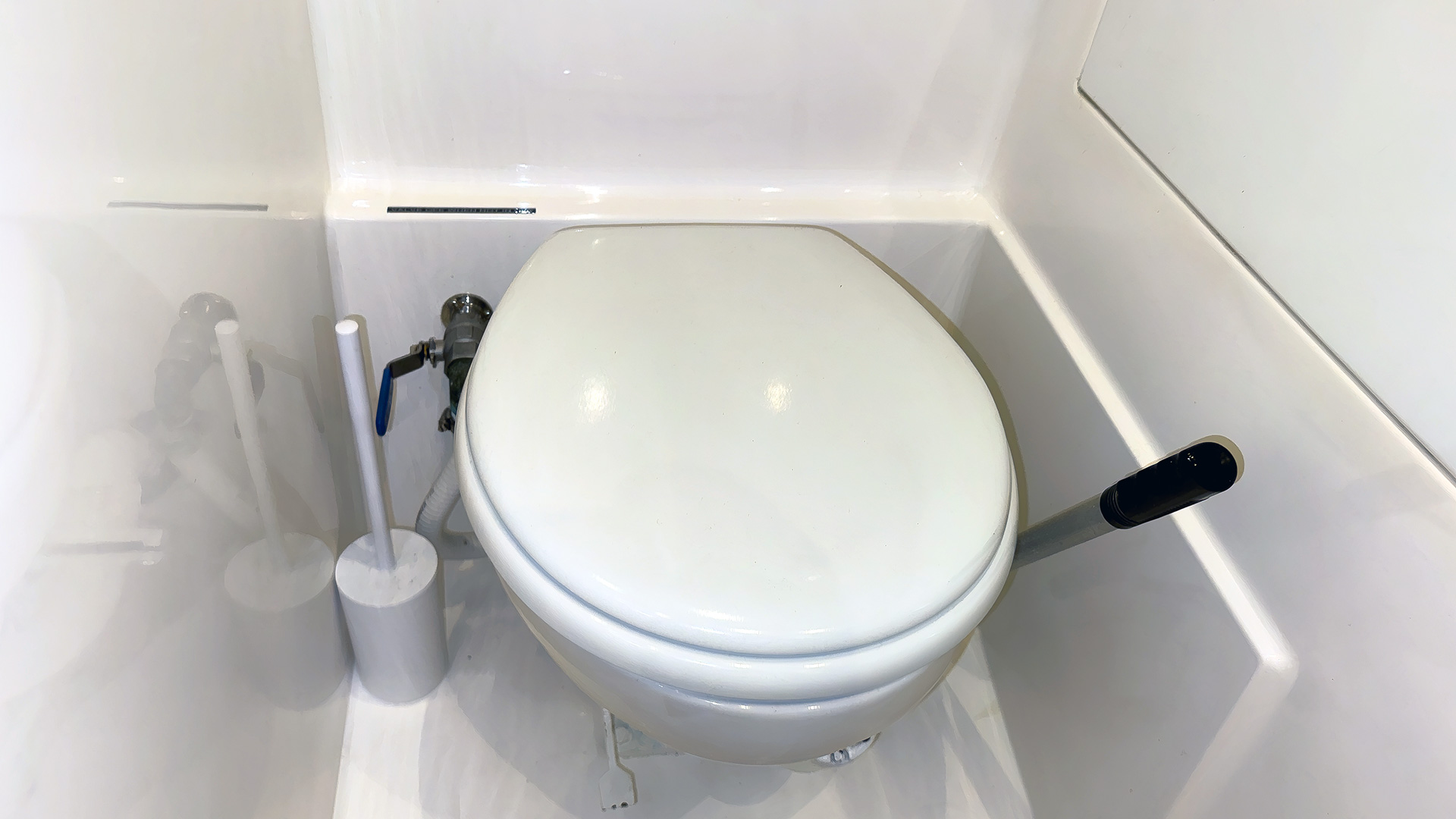

• Groco saltwater flush head (overhauled August 2025) Note: Manual only, electrical control does not operate.
• “Y” valve and manual discharge pump to allow pump-out of holding tank when offshore (replaced July 2025)

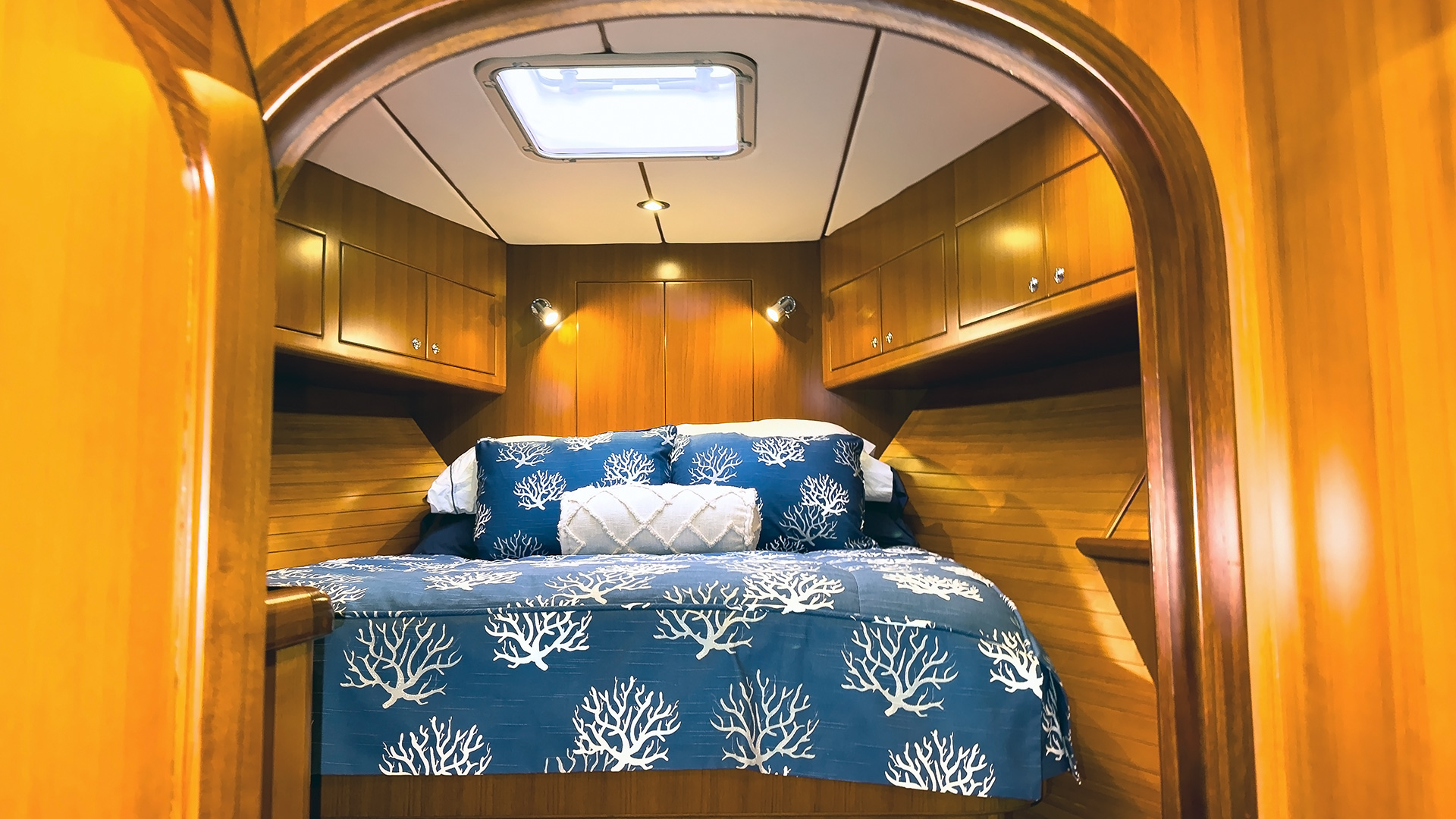

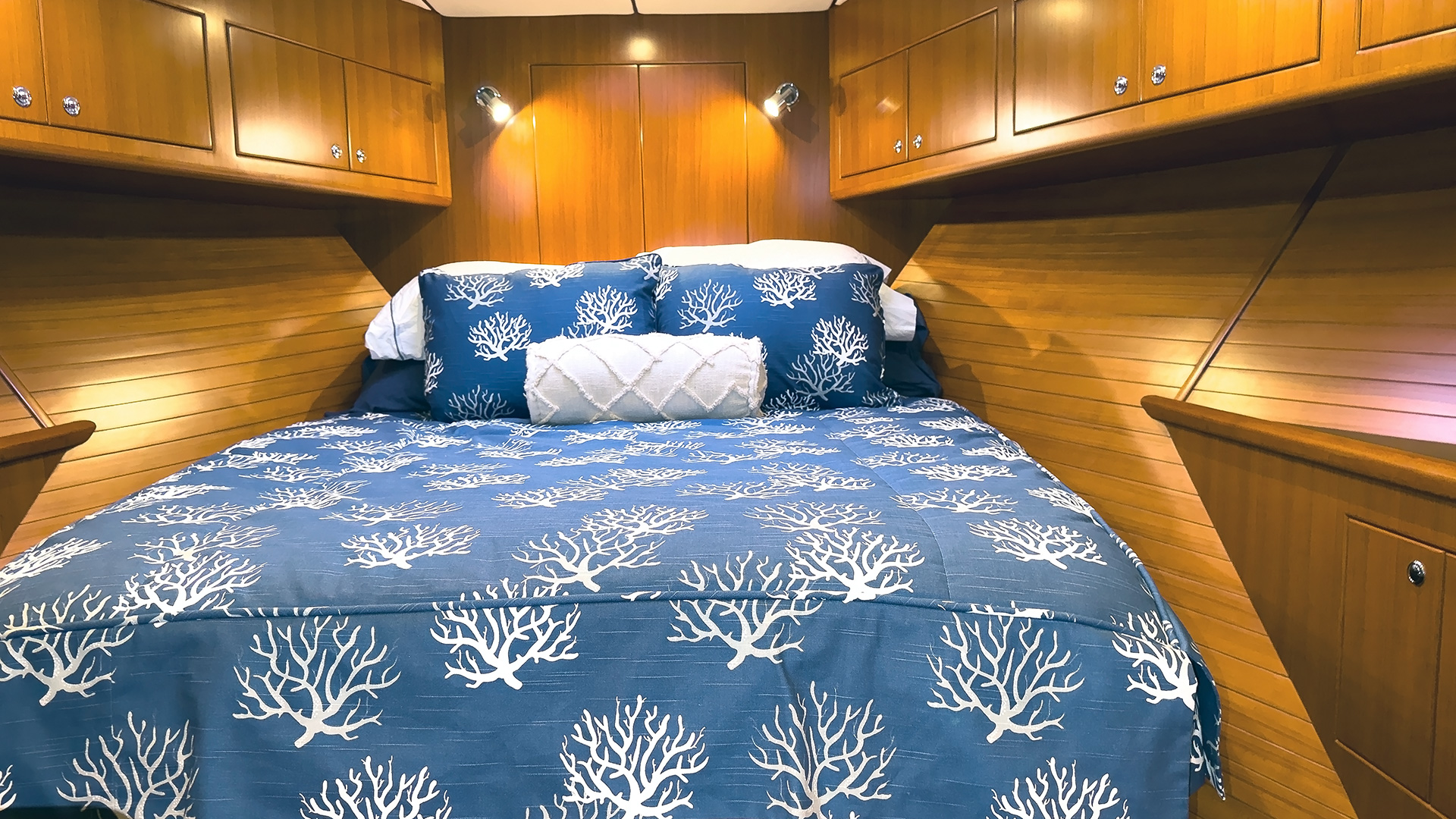

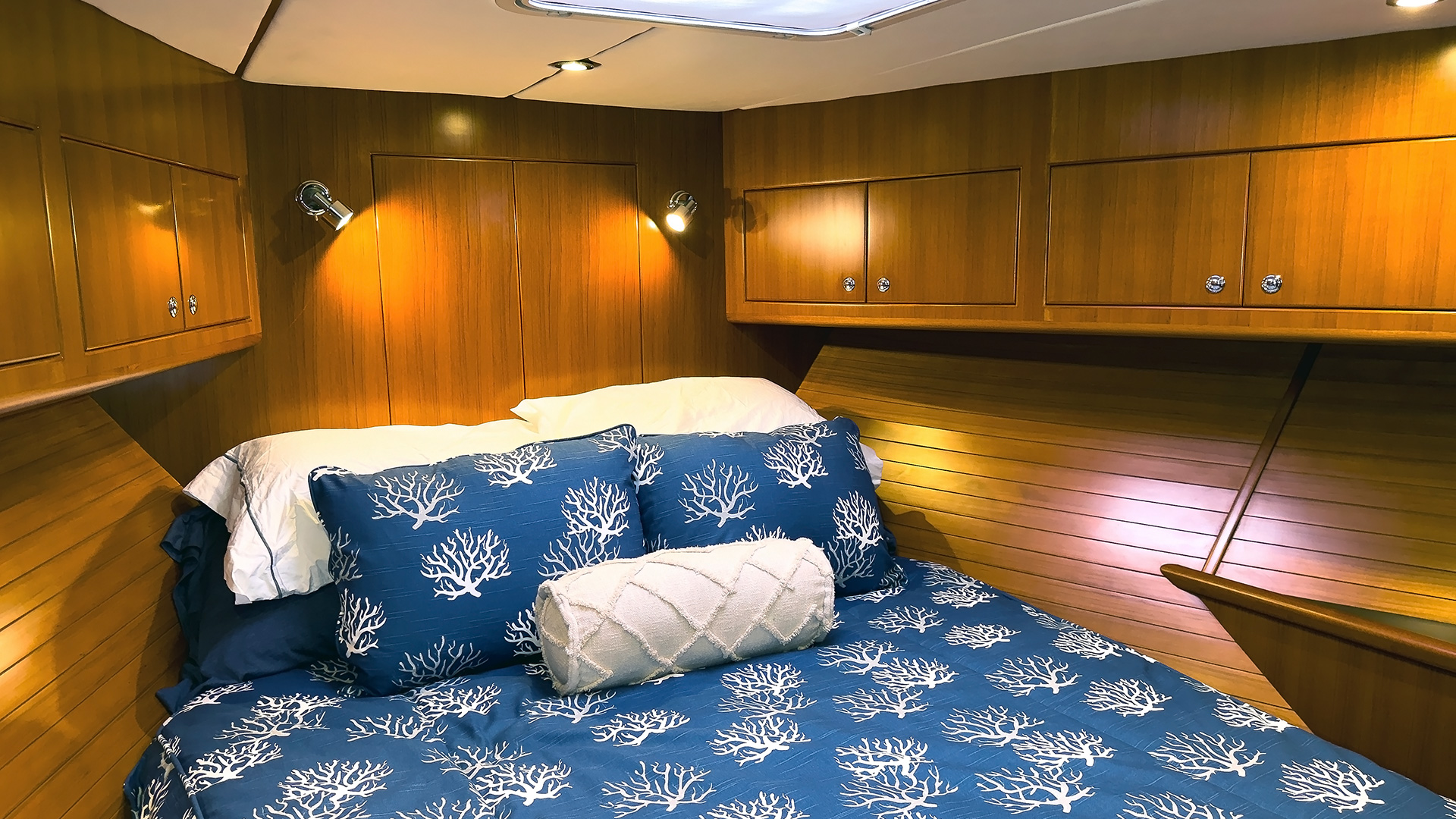

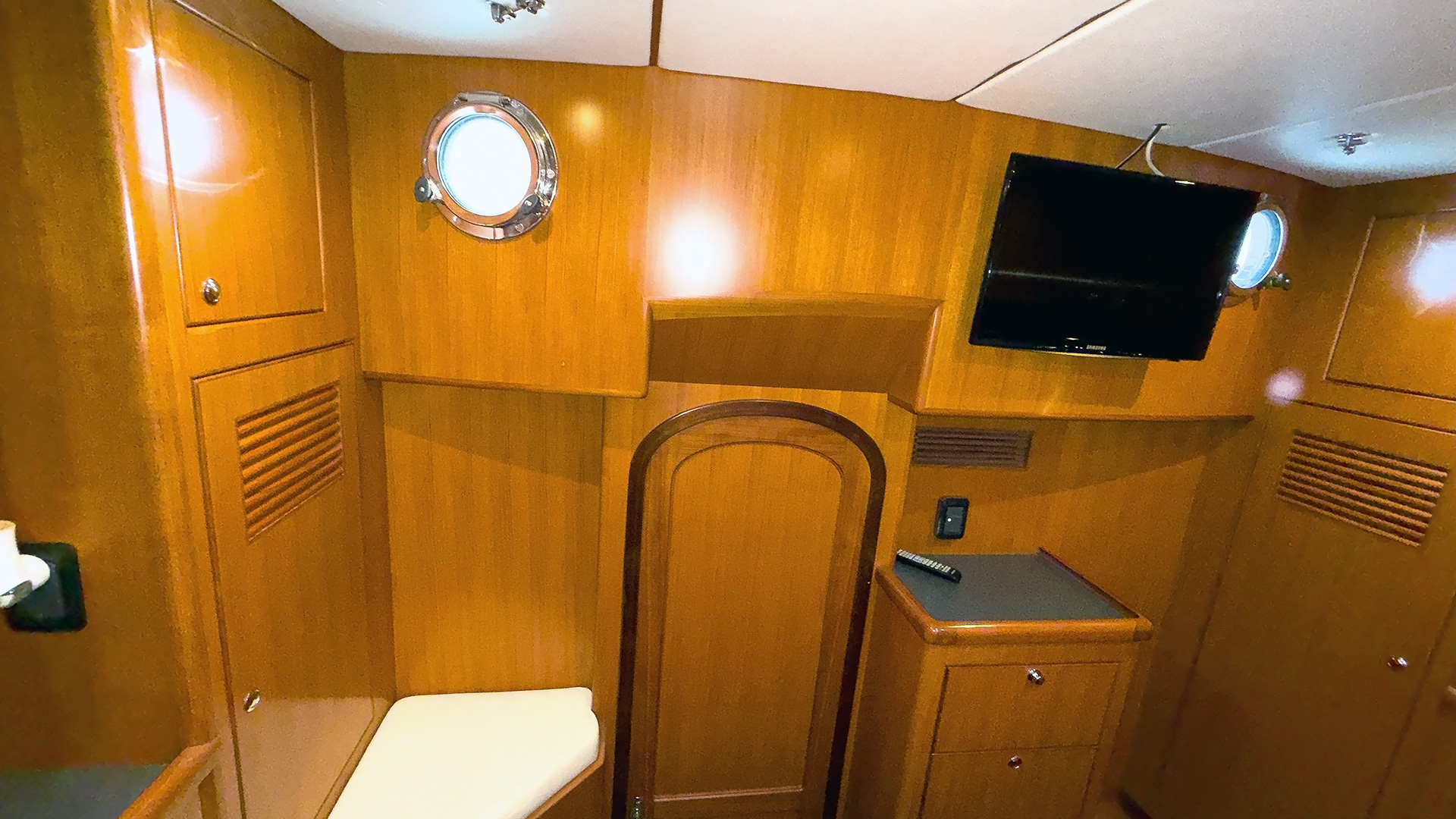

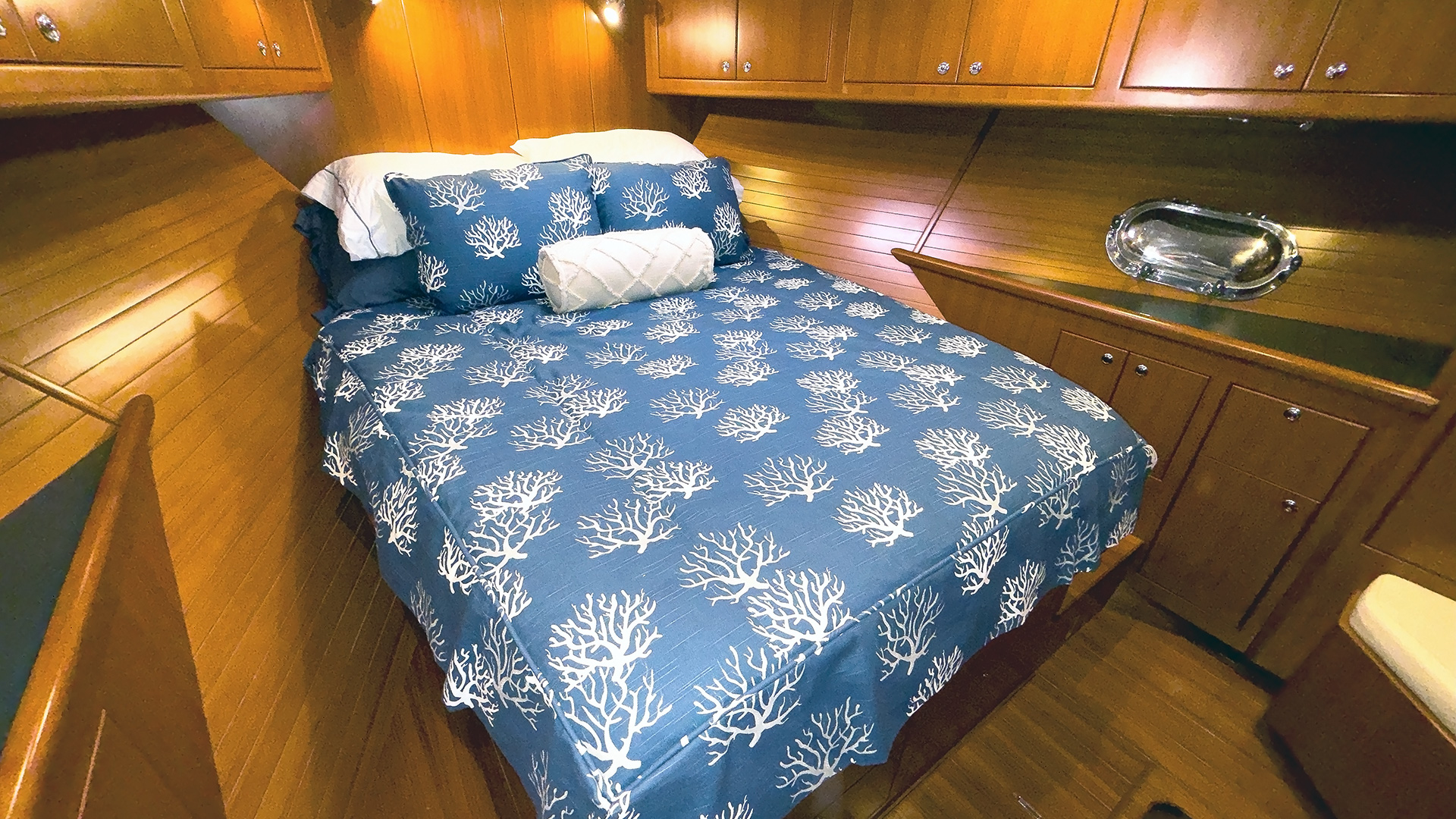

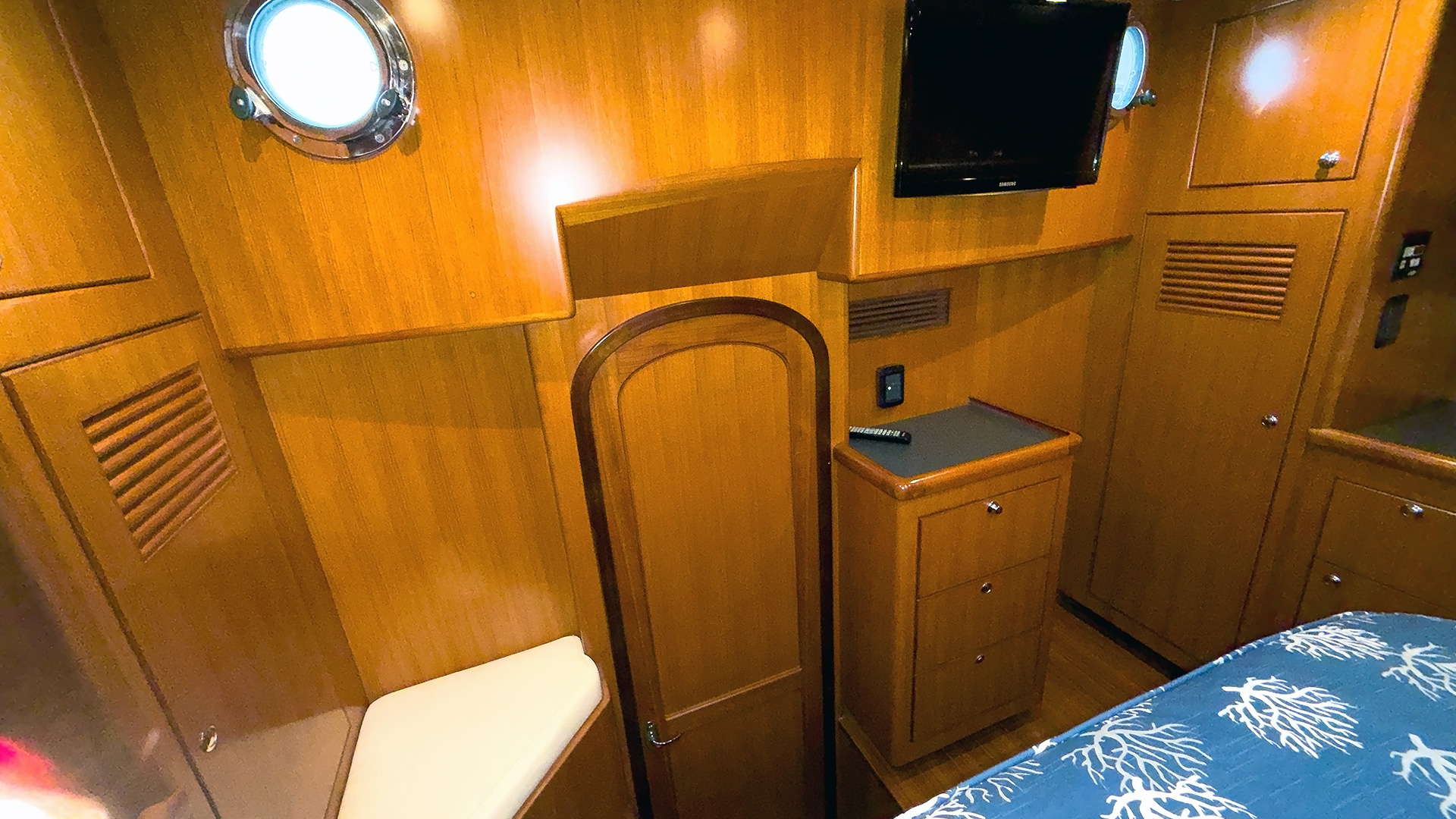

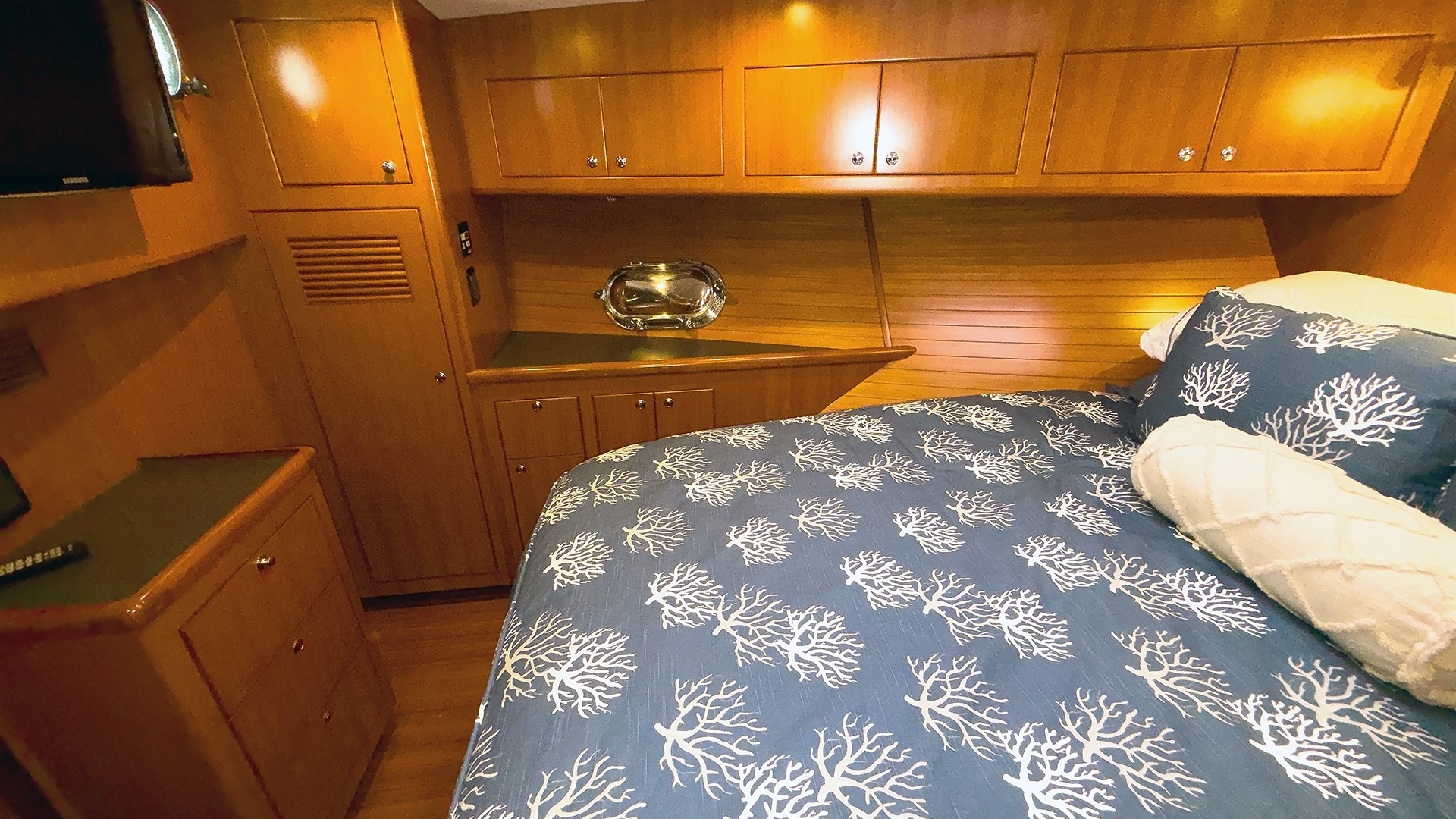

Owner Stateroom:

• Centerline bed with drawers below and access to stowage space beneath
• Upholstered changing seat
• TV
• Hanging lockers port and starboard
• Teak cabin soles with micro-grooves

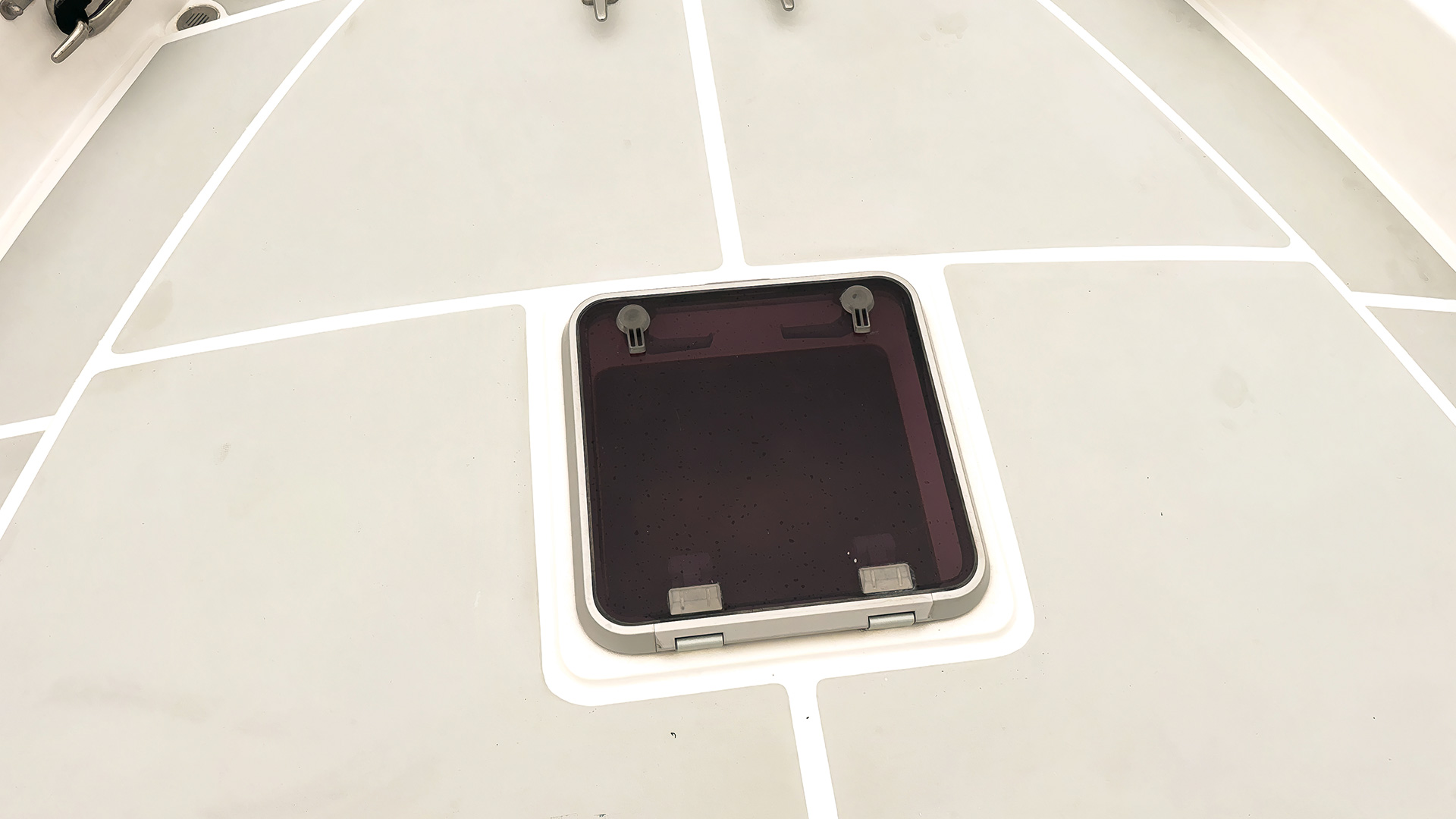

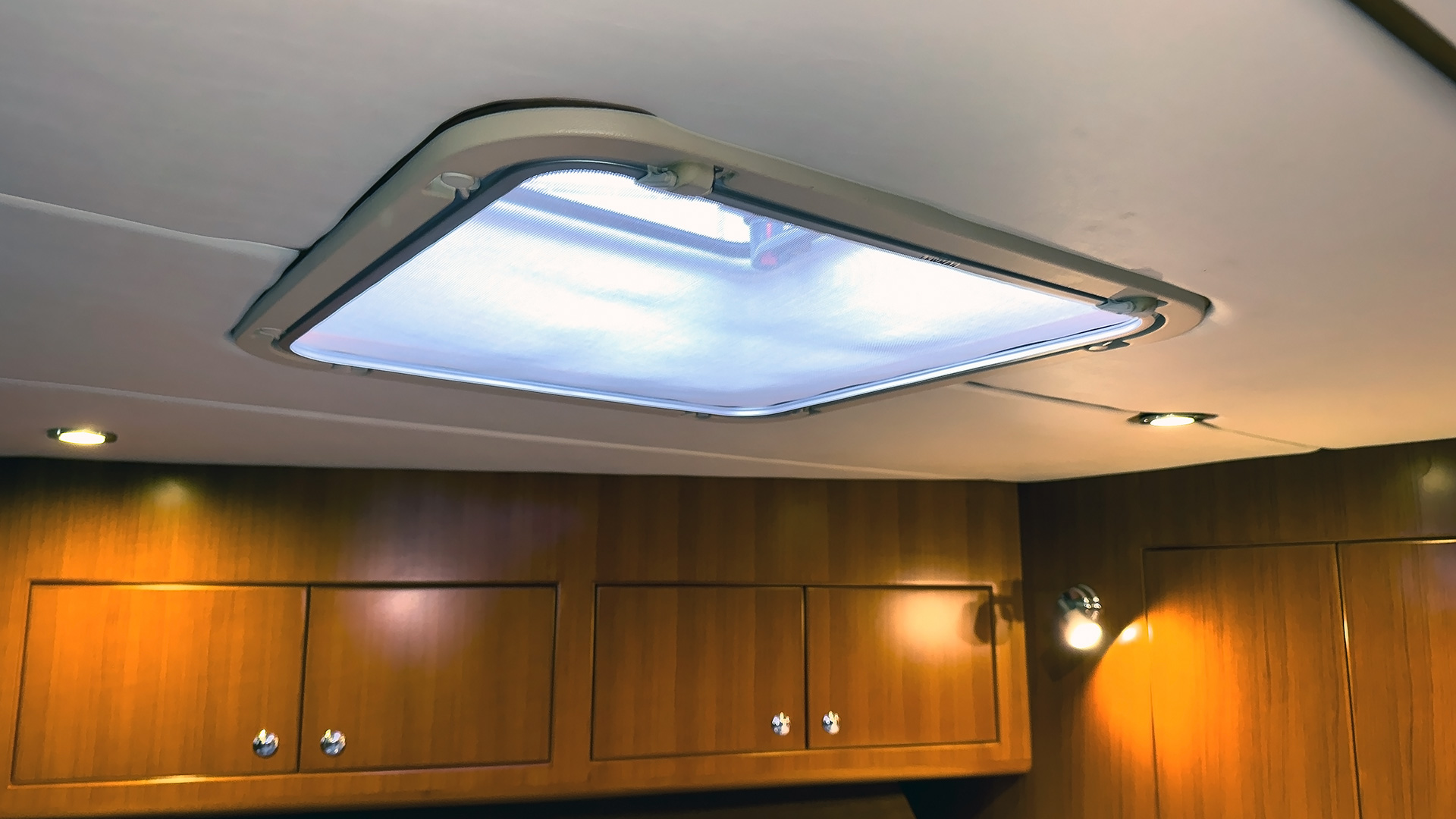

• Overhead hatch with screen and shade
• Opening ports port and starboard and two up and aft opening into the Portuguese bridge. All ports have screens
• Dorade vent inlet
• Custom made bed linens from yacht bedding (September 2025)

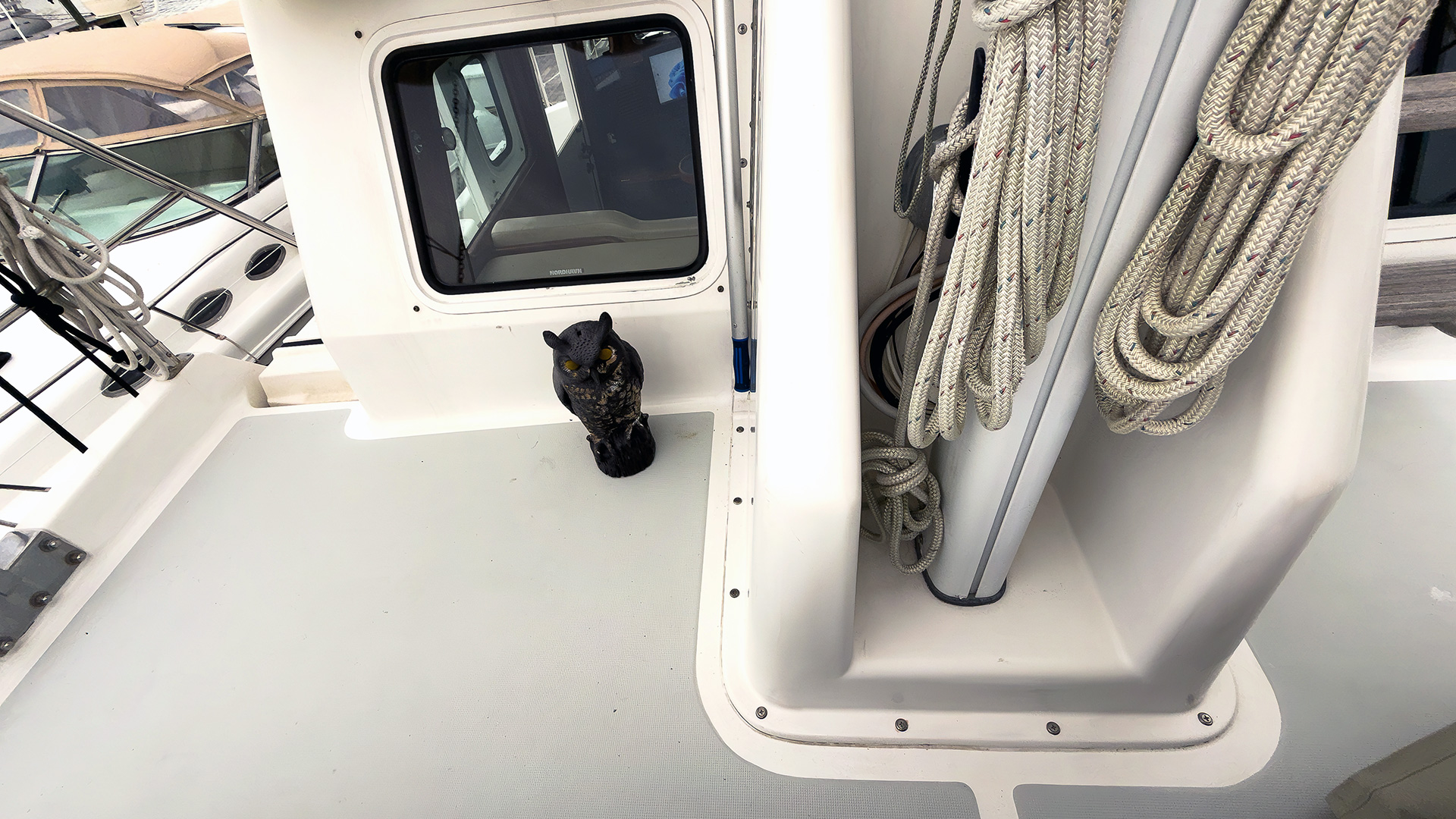

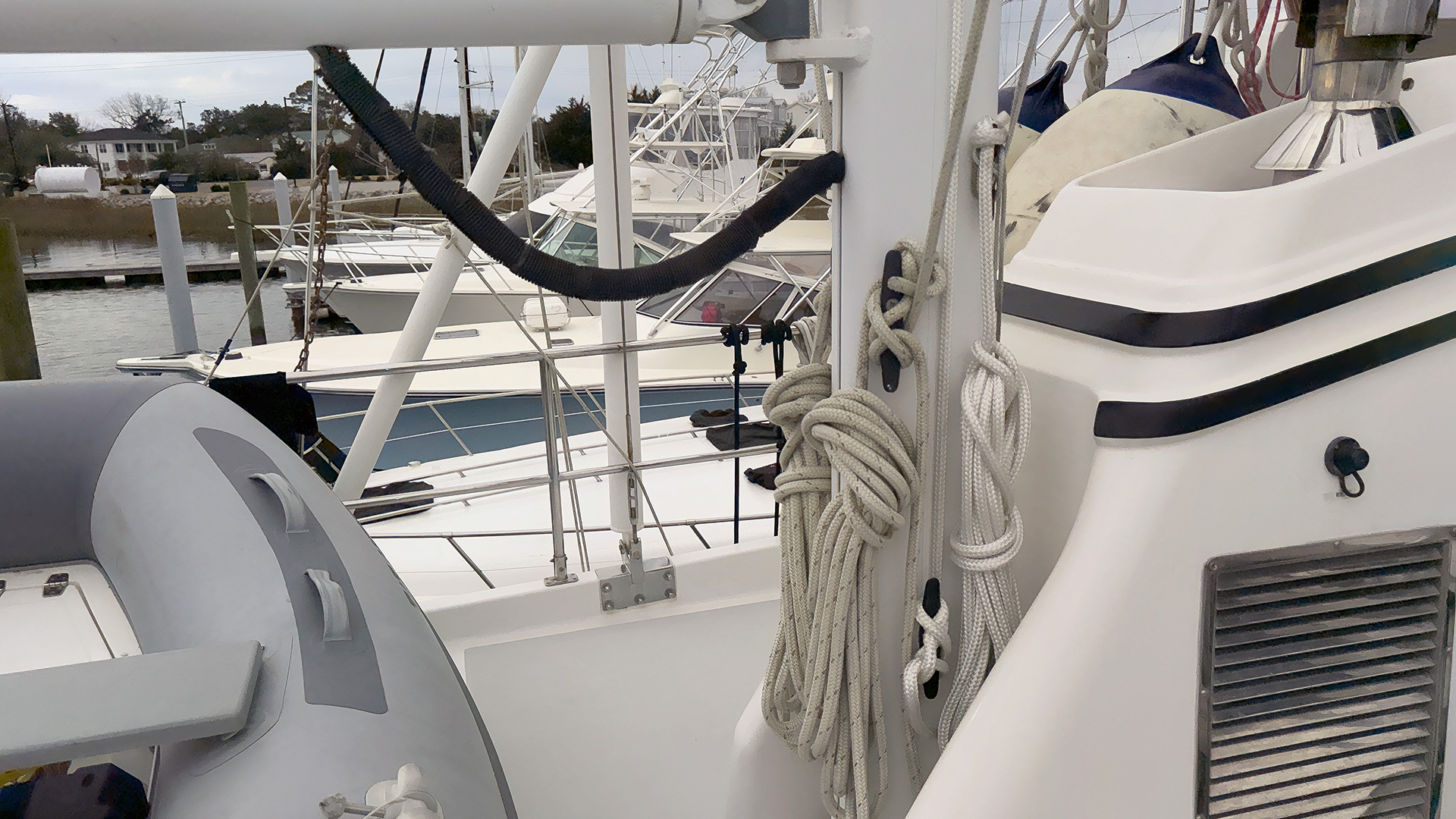

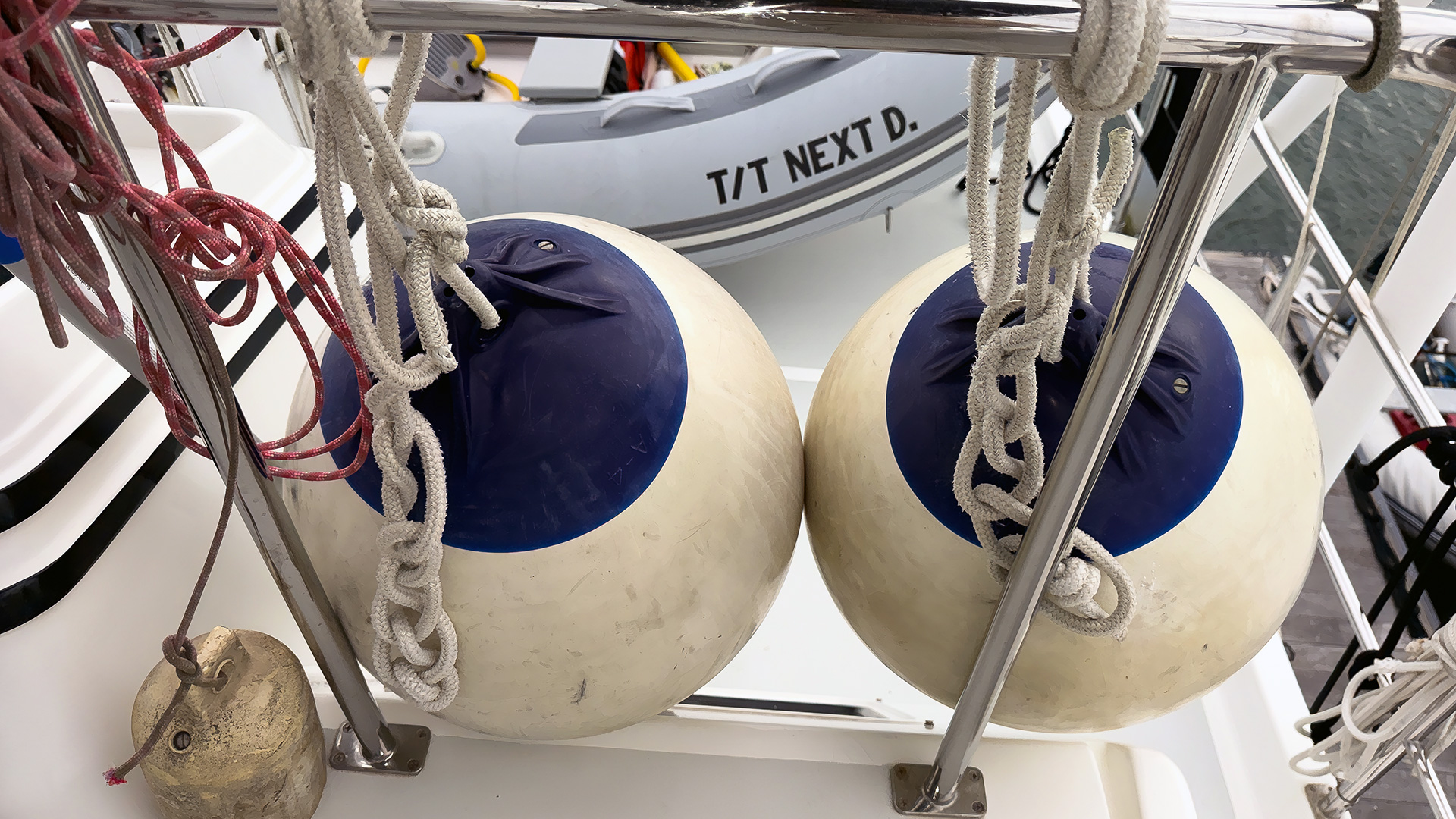

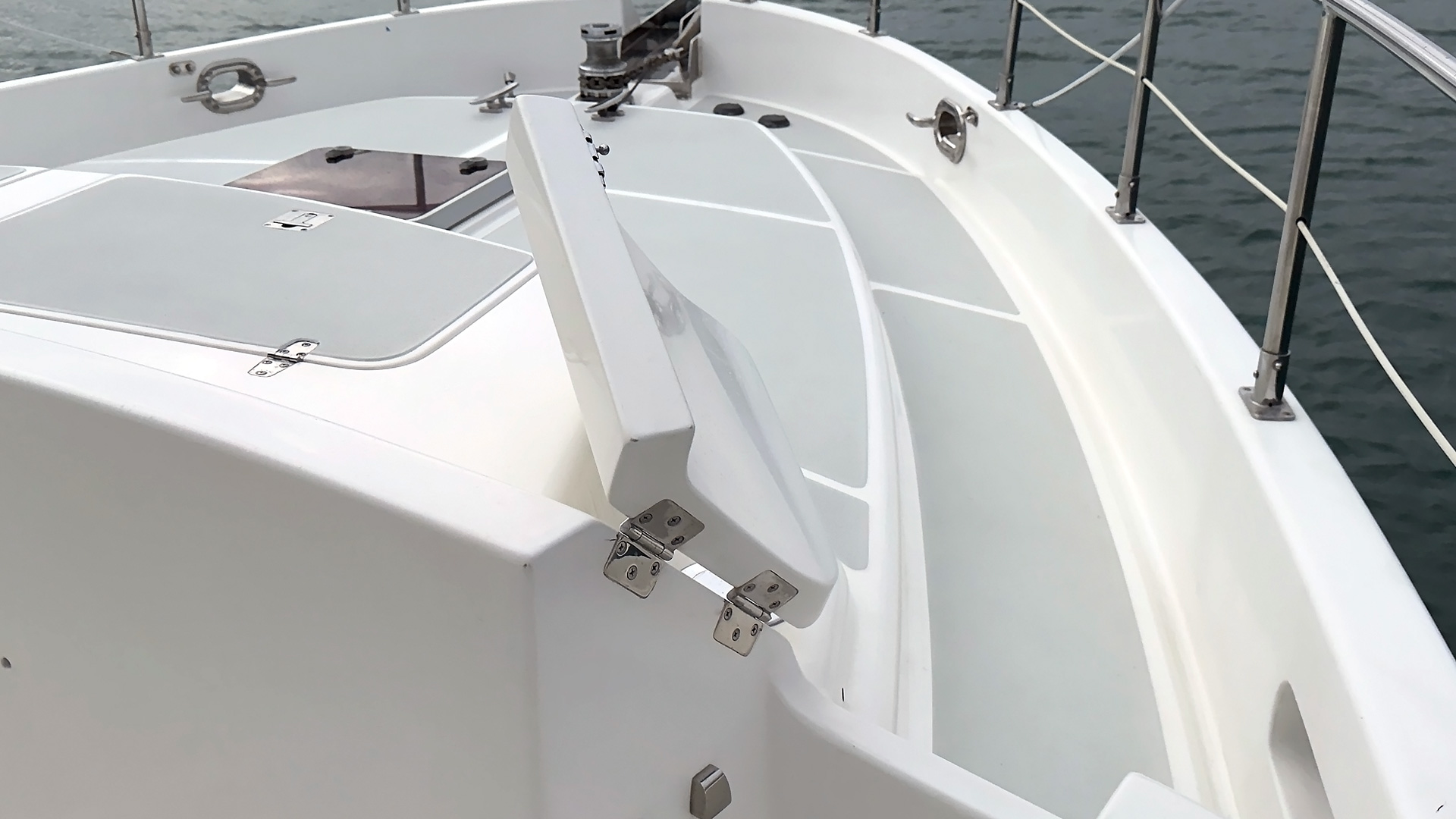

Deck gear:

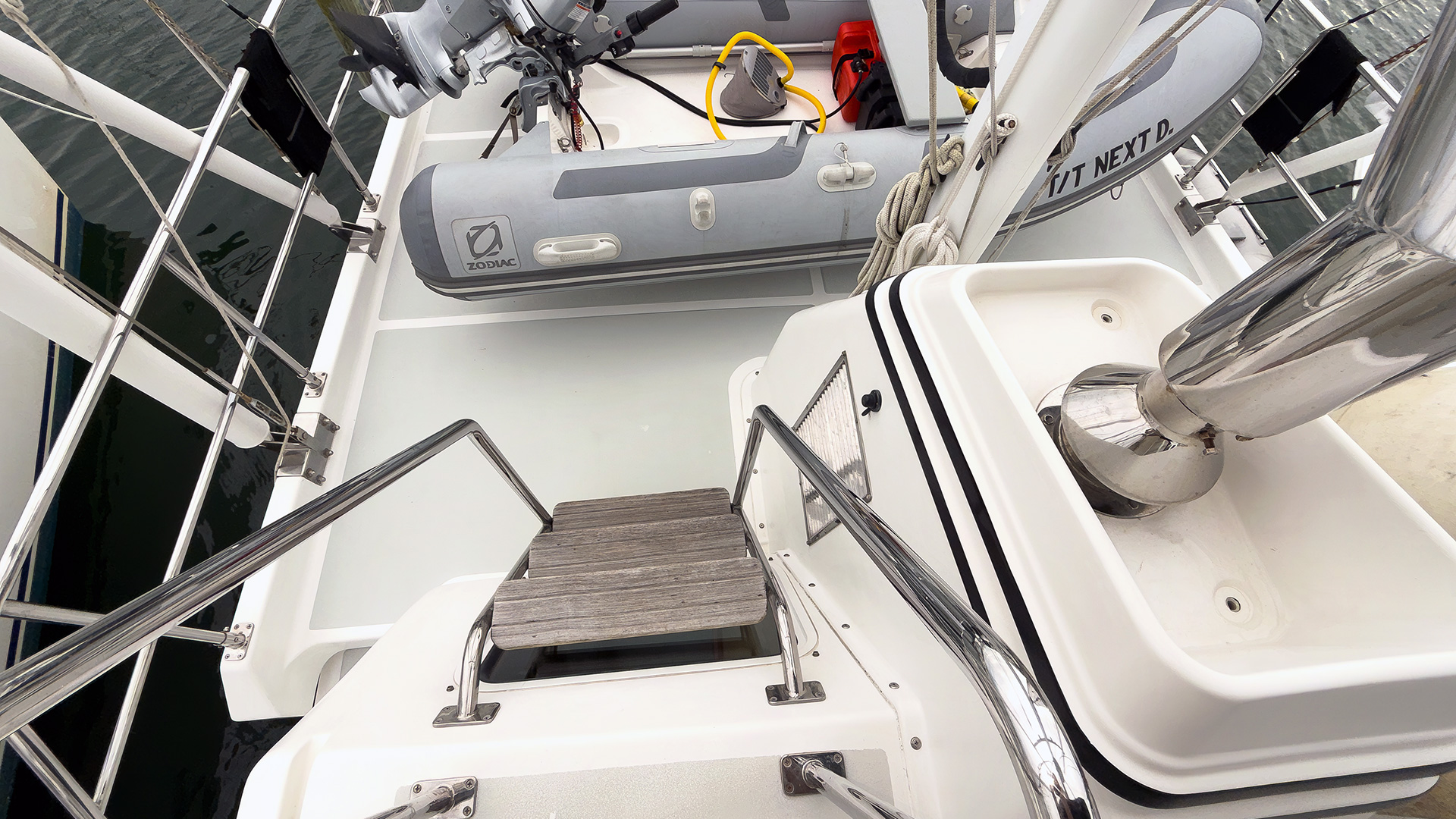

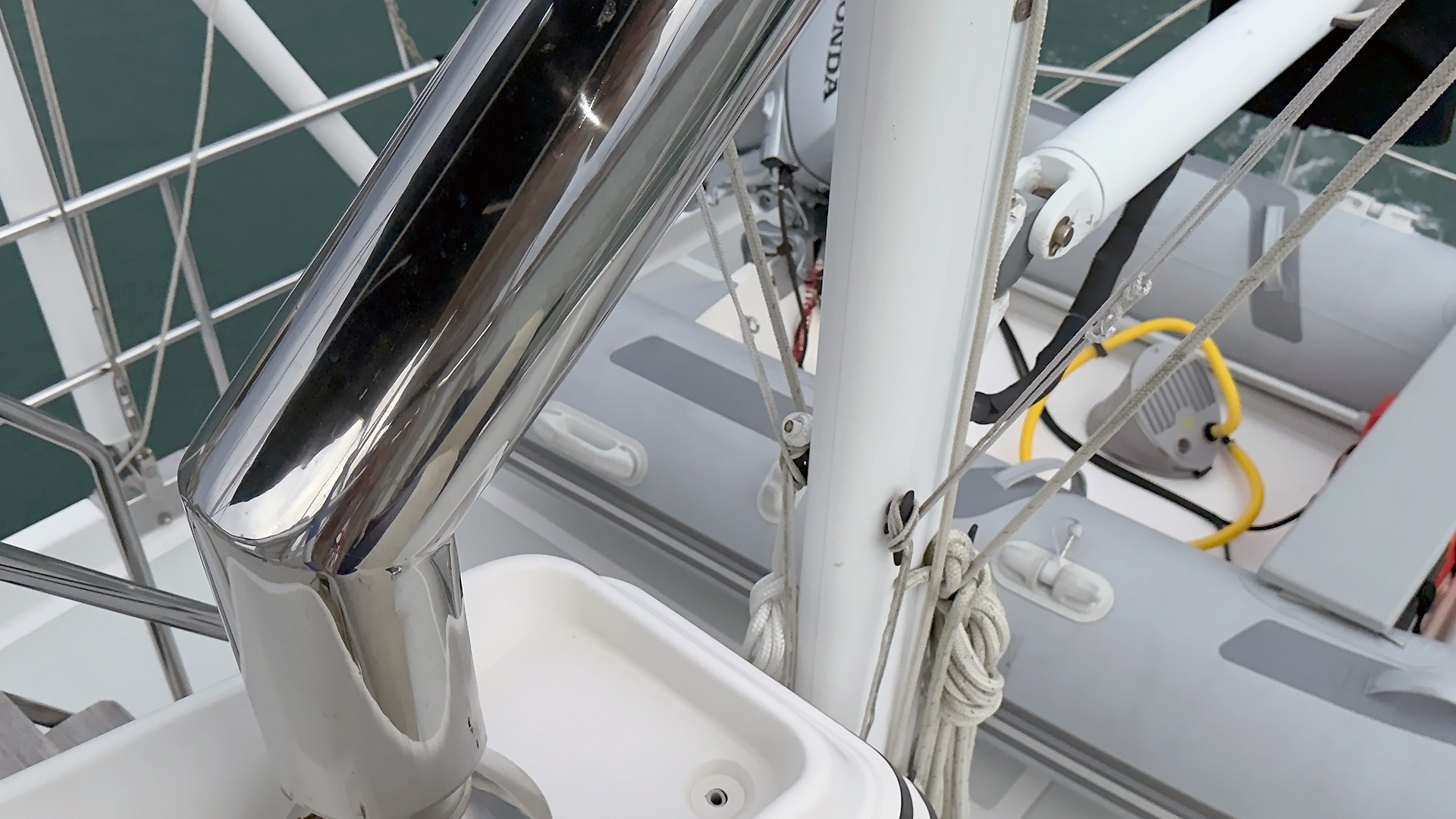

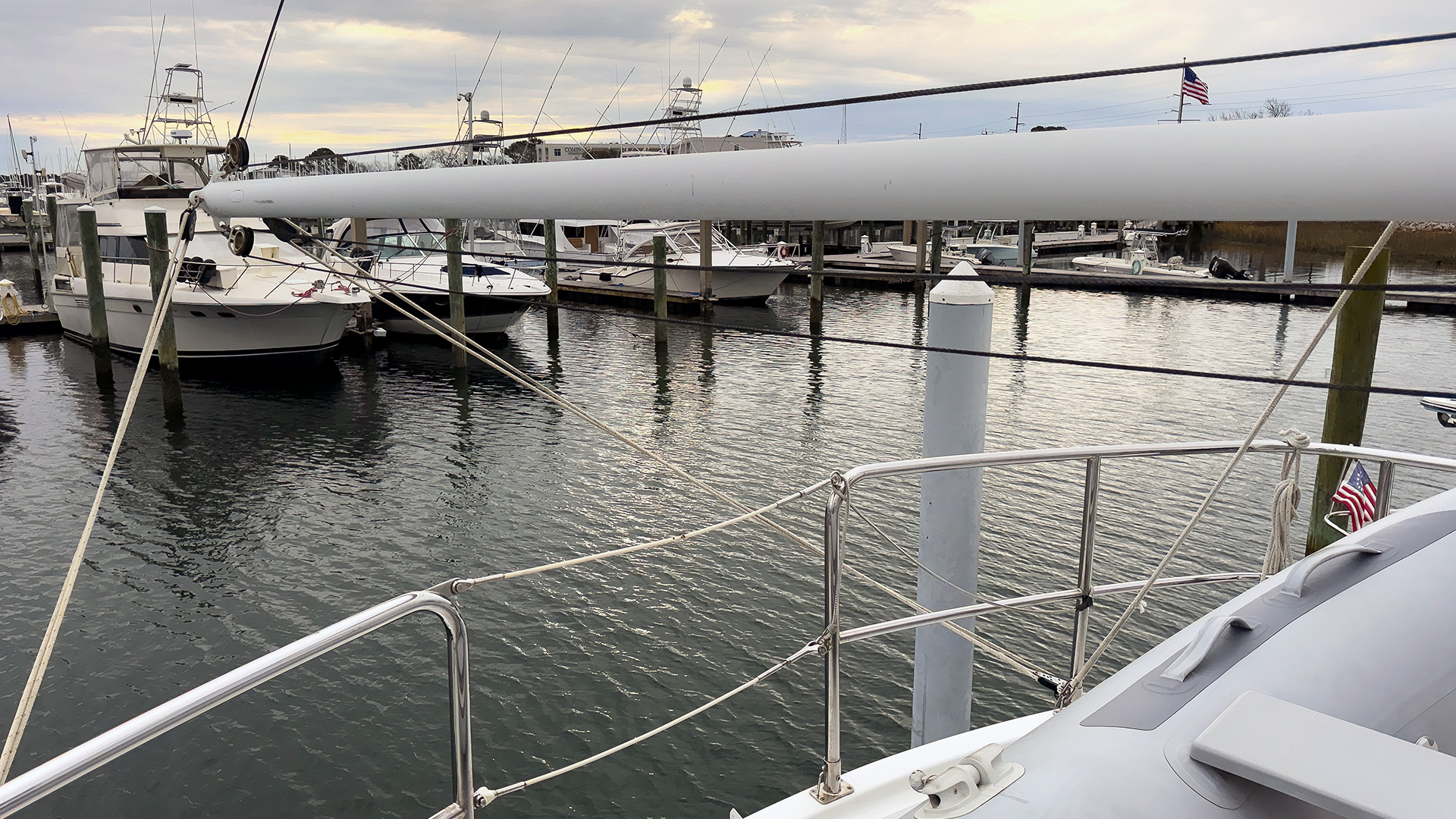

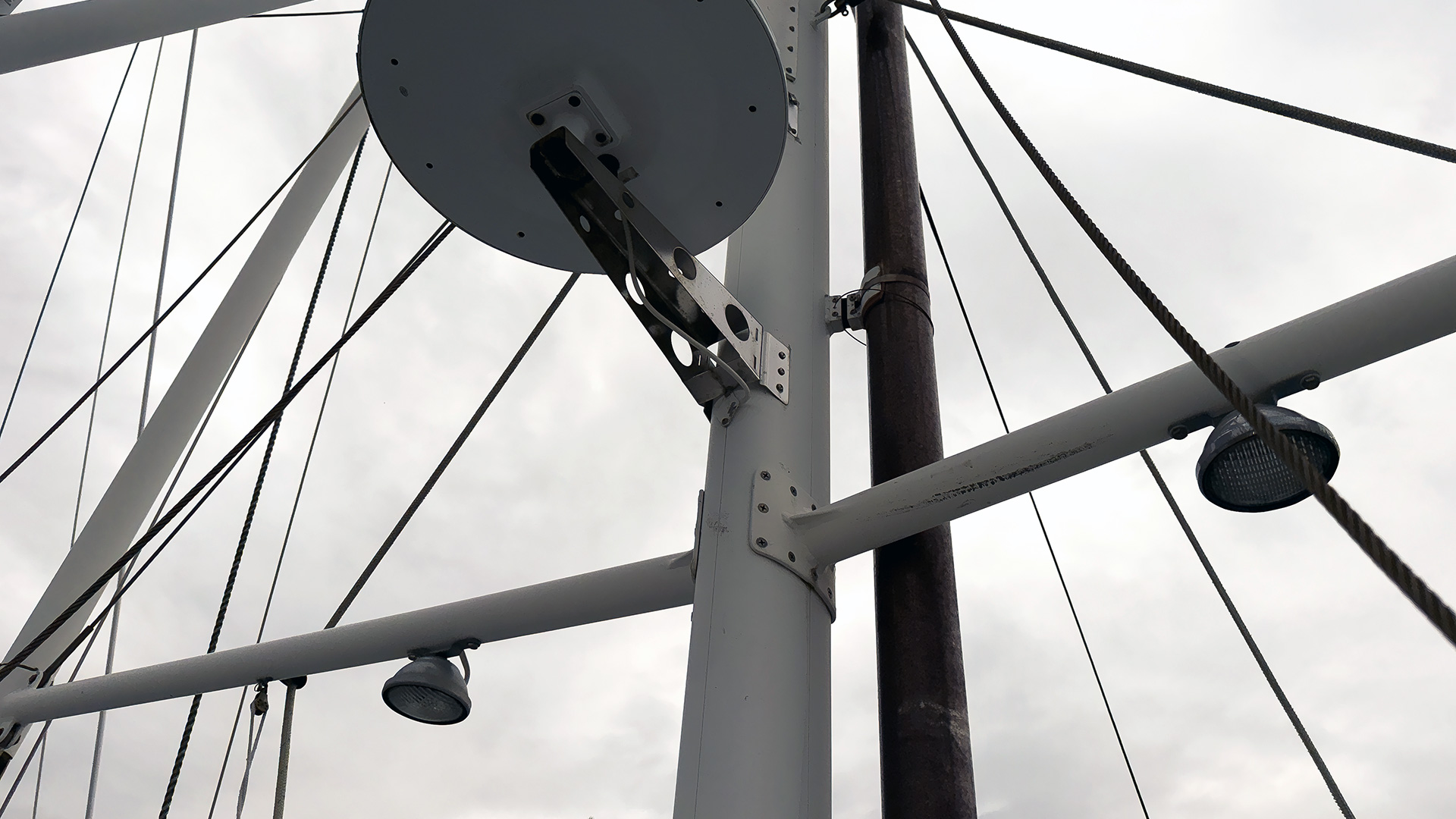

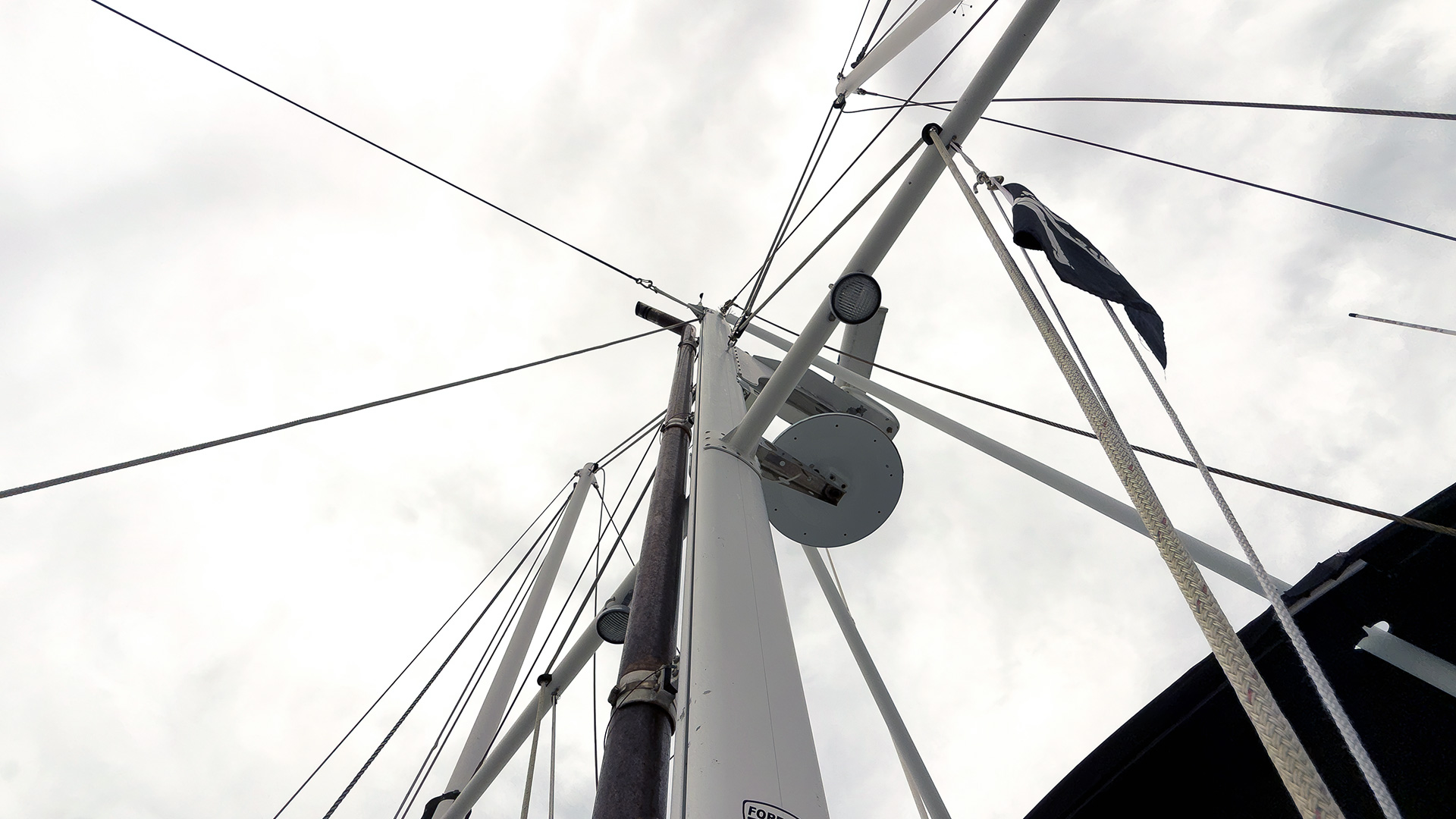

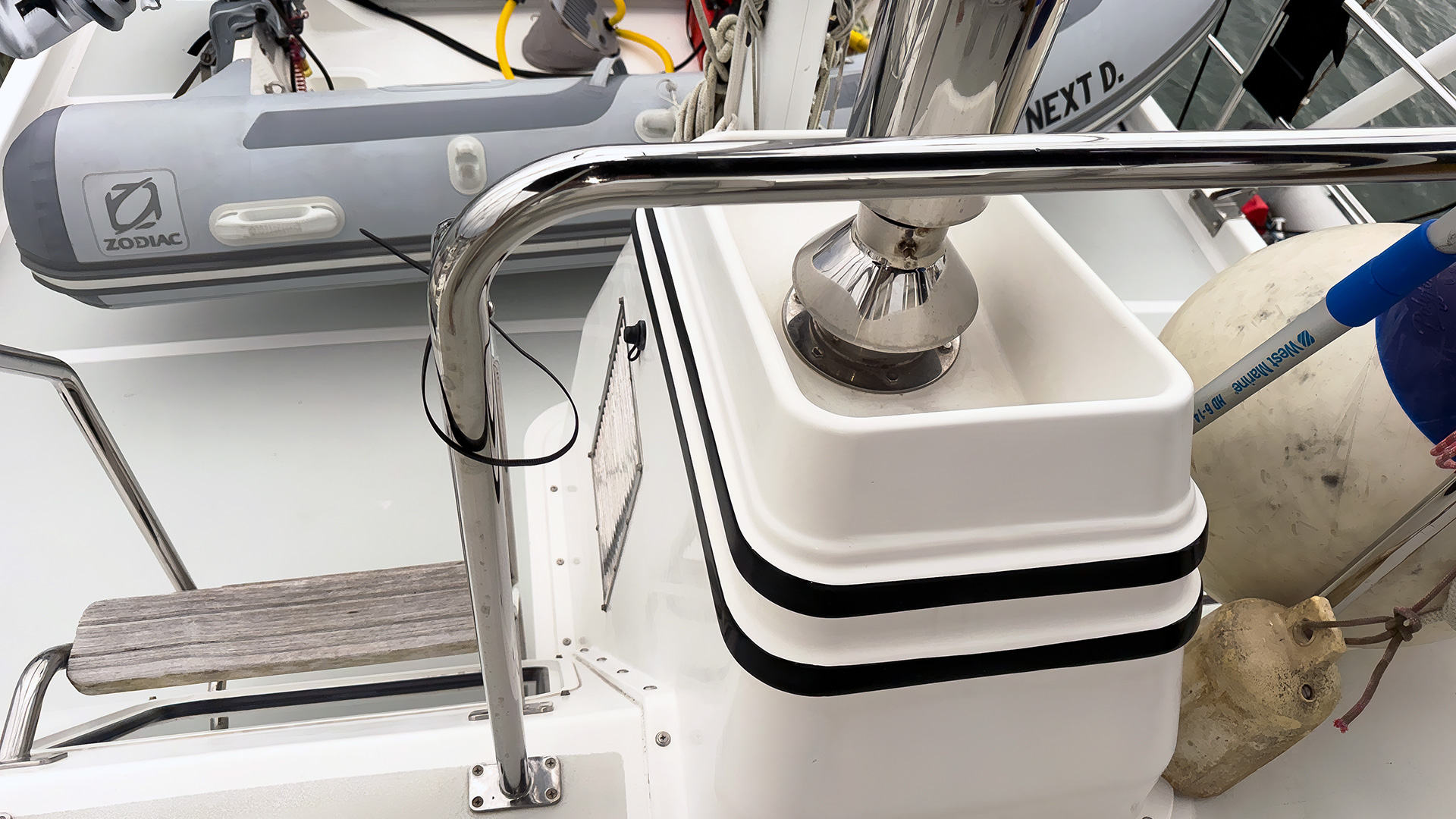

• Trawler mast and boom with Warn electric winches (DC-1000) for dinghy (Warn winches replaced August 2025)

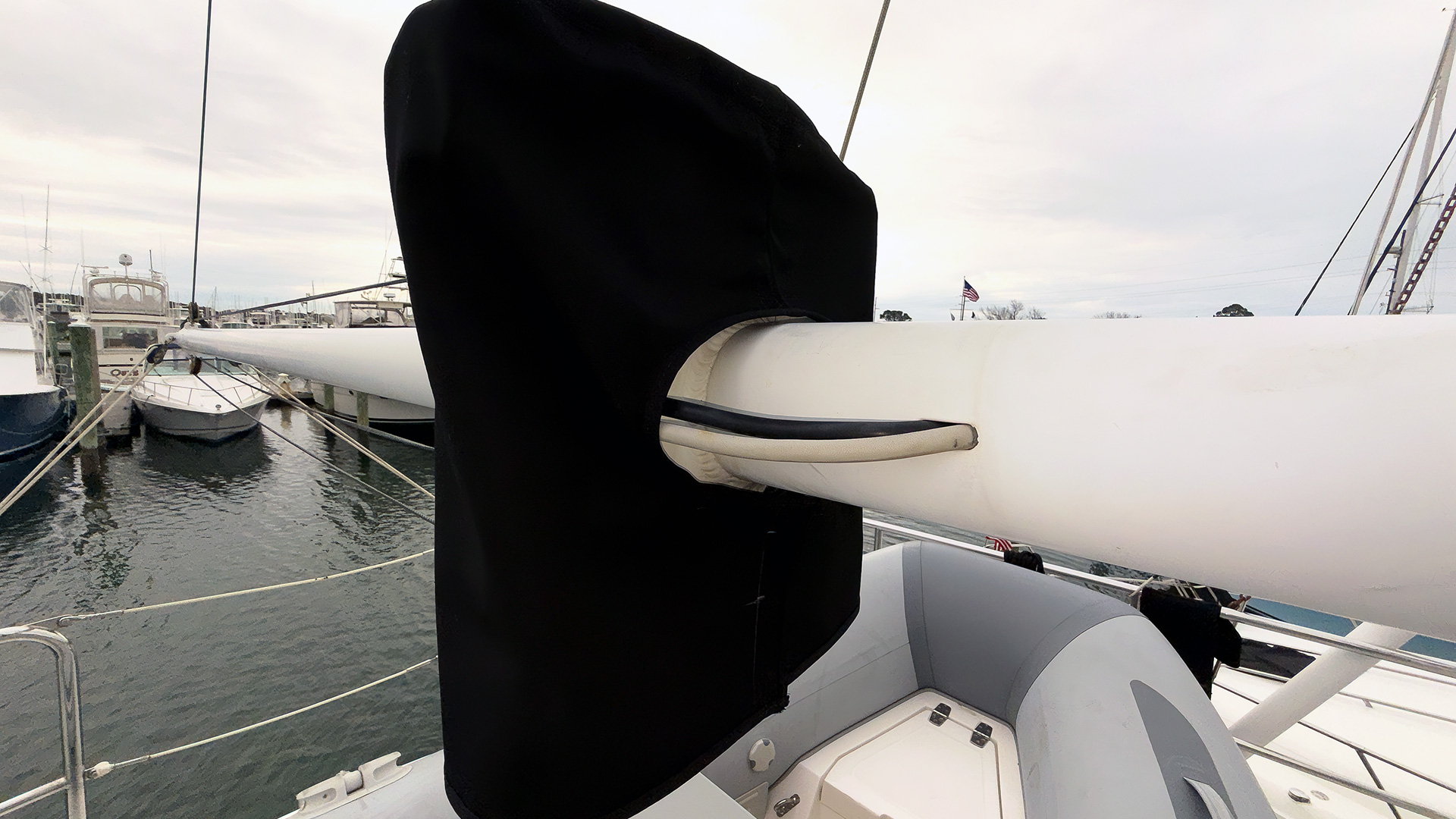

• Boom/Mast Winch Cover (replaced November 2025)
• Boom winch control plugs on boat deck and in cockpit
• Boom Dyneema and Dinghy Dyneema lines (replaced August 2025)

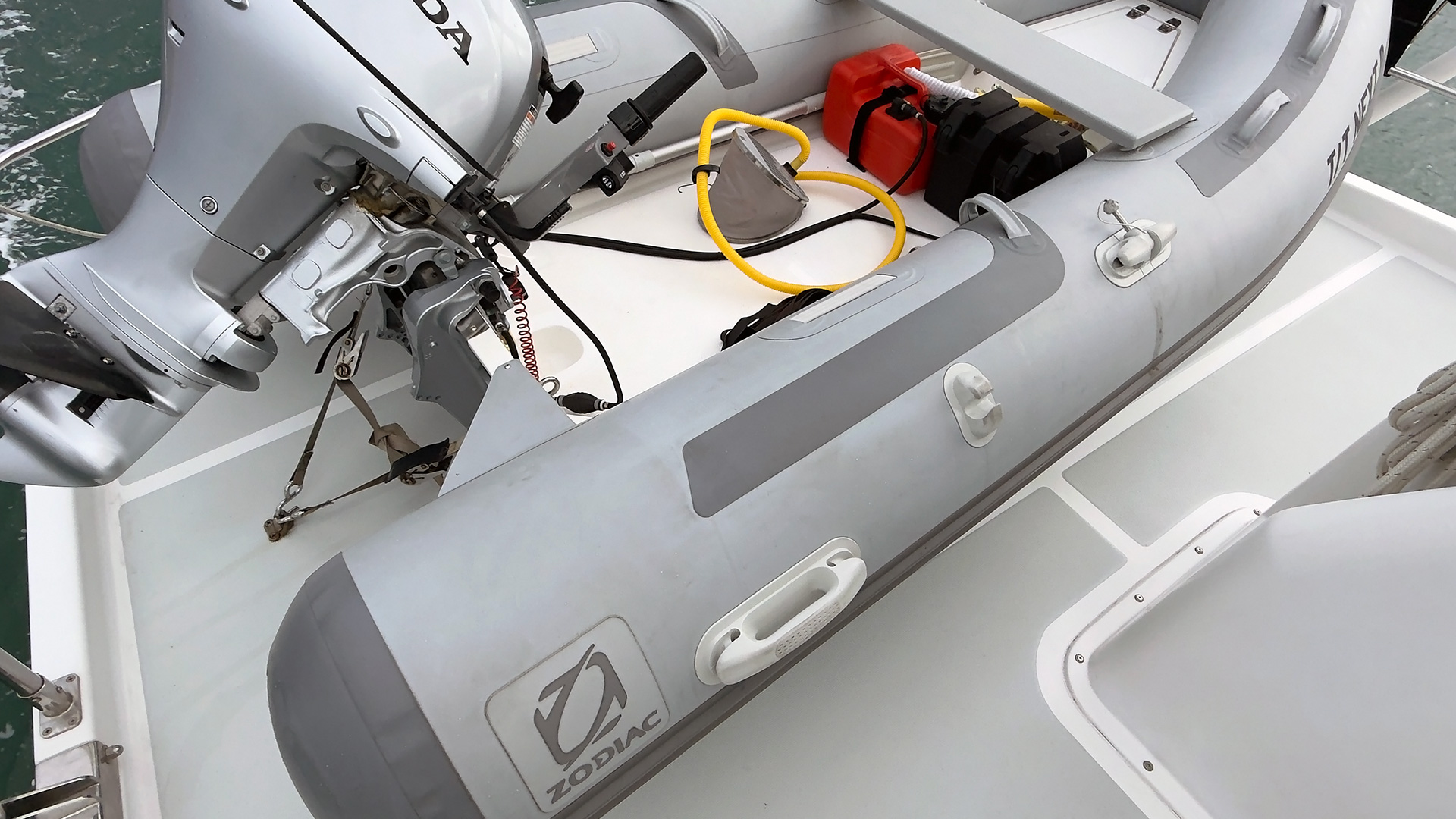

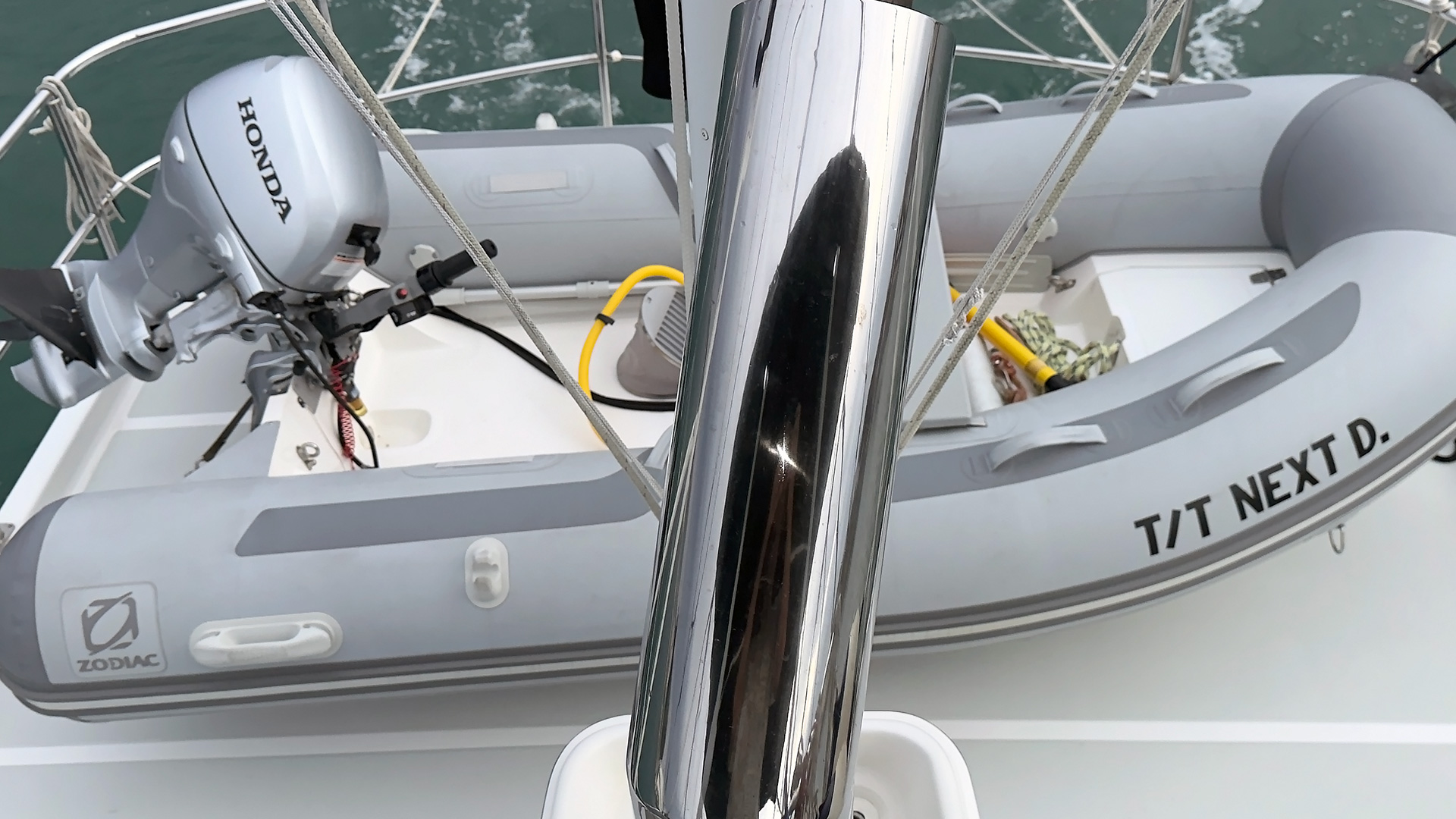

• 2019 Zodiac Dinghy with Honda 15 HP four stroke engine

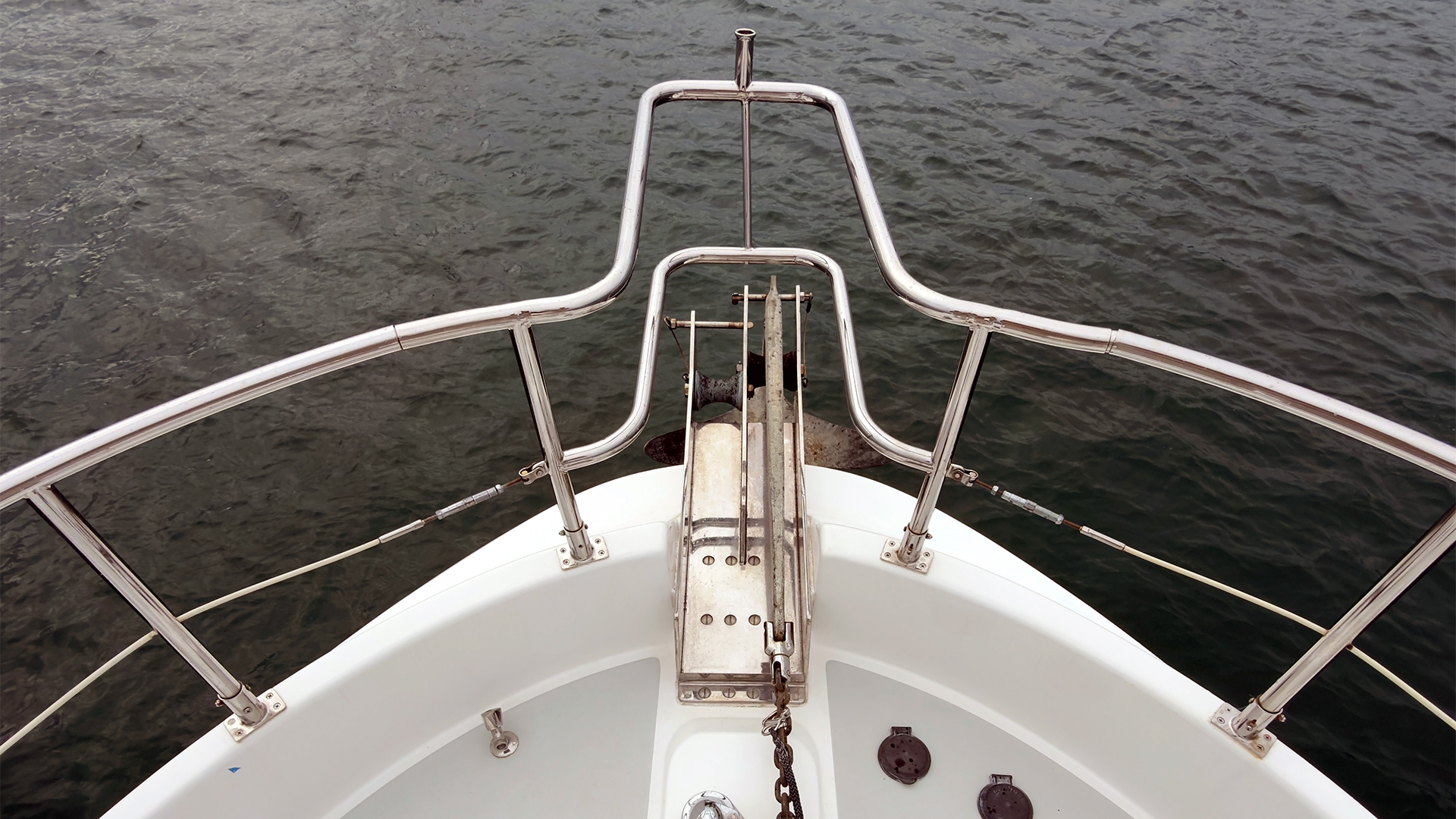

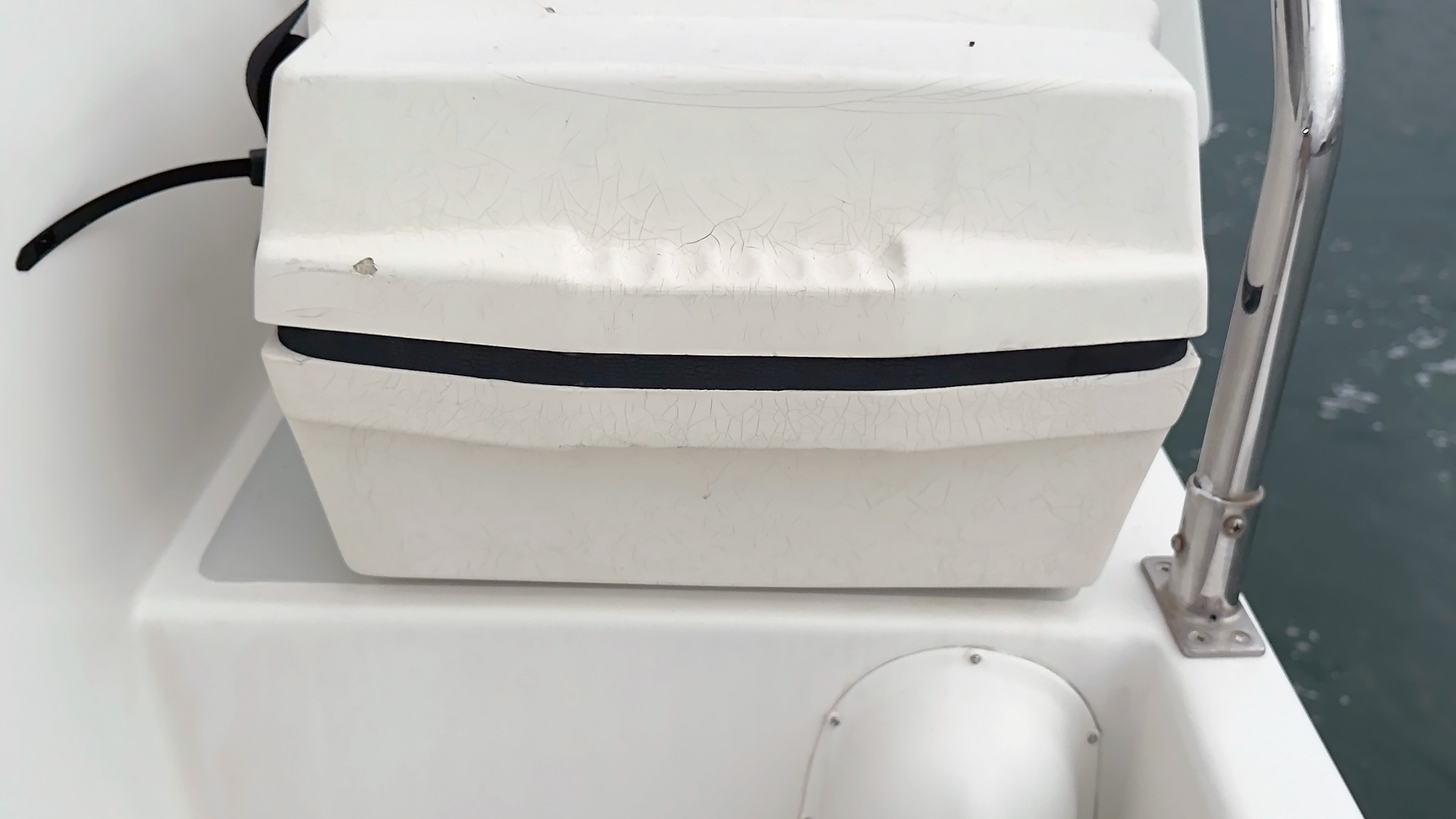

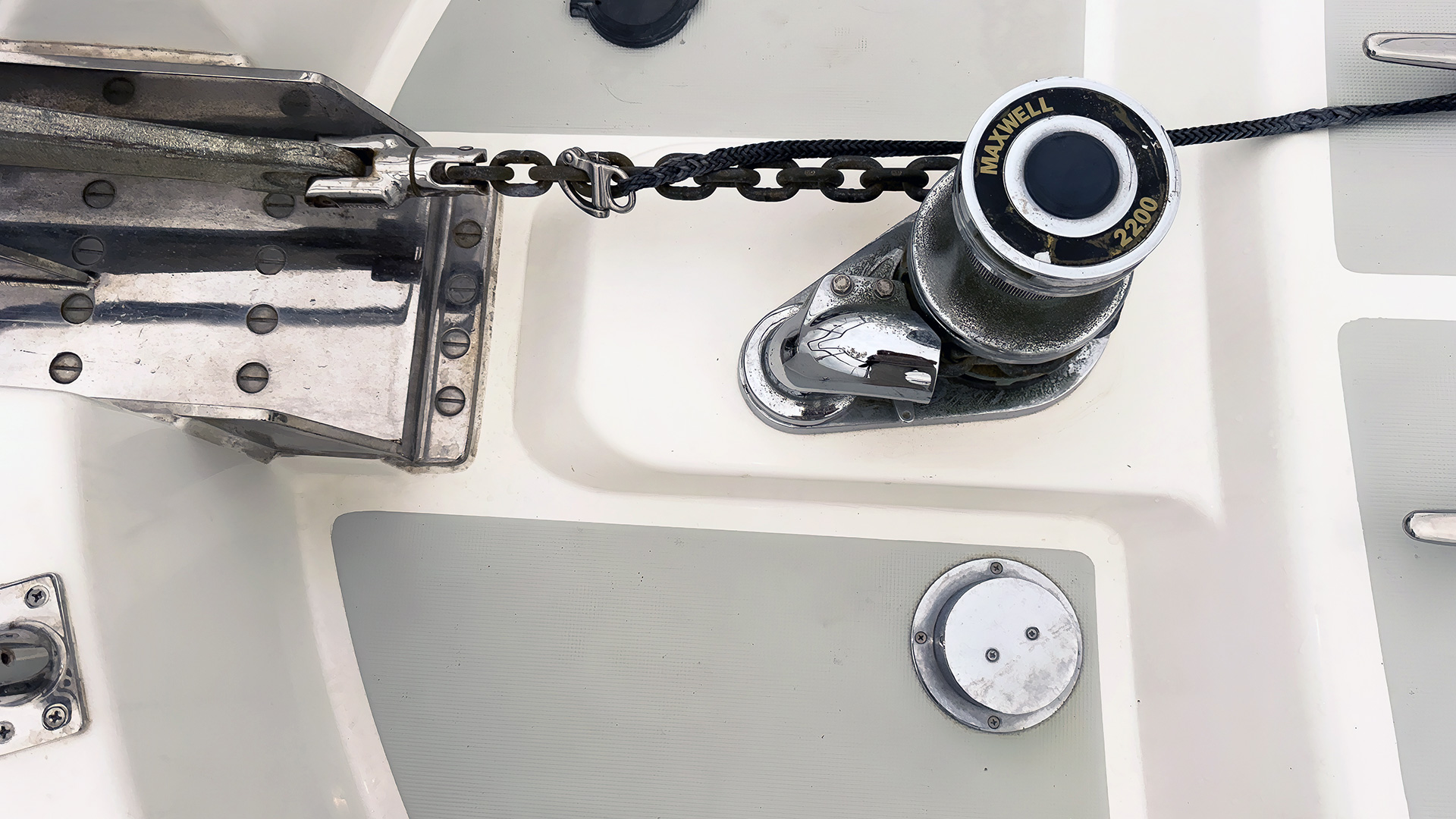

• Maxwell 2200 electric anchor windlass with remote in pilothouse and flybridge
• Bruce anchor
• 400′ of 3/8″ BBB anchor chain
• Second anchor, Fortress with chain
• Additional anchor chain guide in anchor roller channel
• Hot and cold cockpit shower
• Freshwater wash down fore and aft
• Spurs line cutter
• Sunshade window covers
• Avon Life Raft (out of inspection)

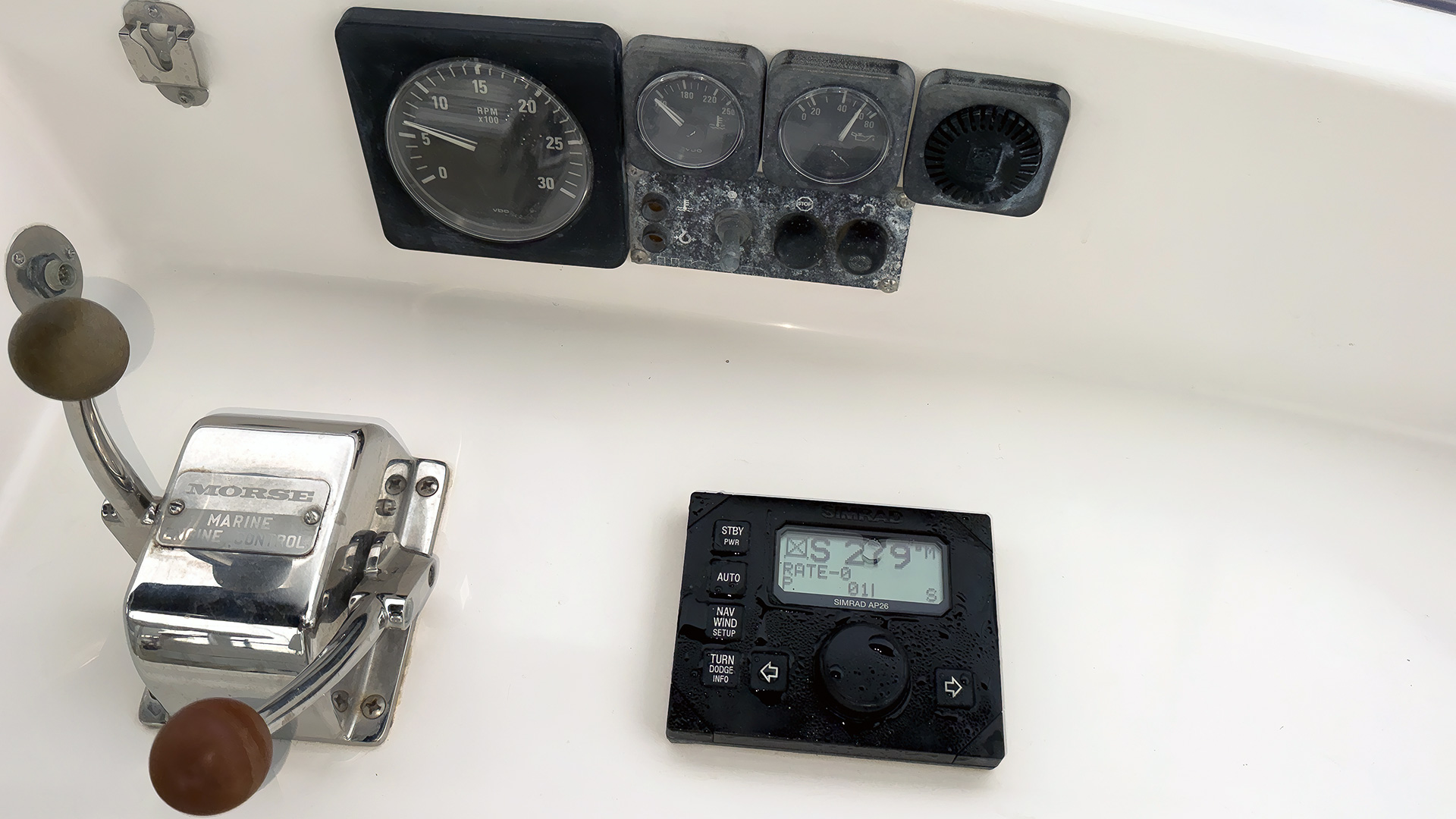

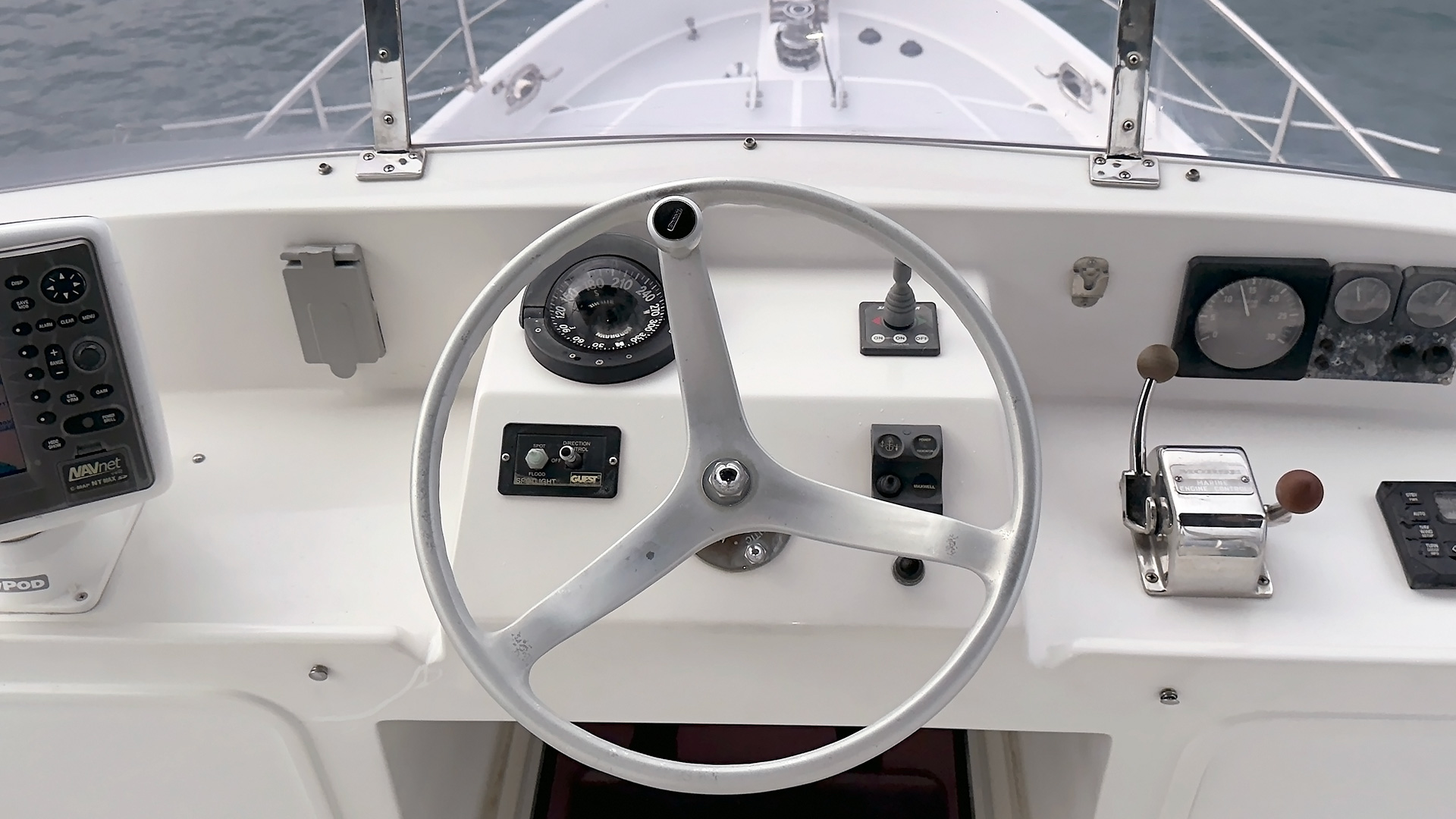

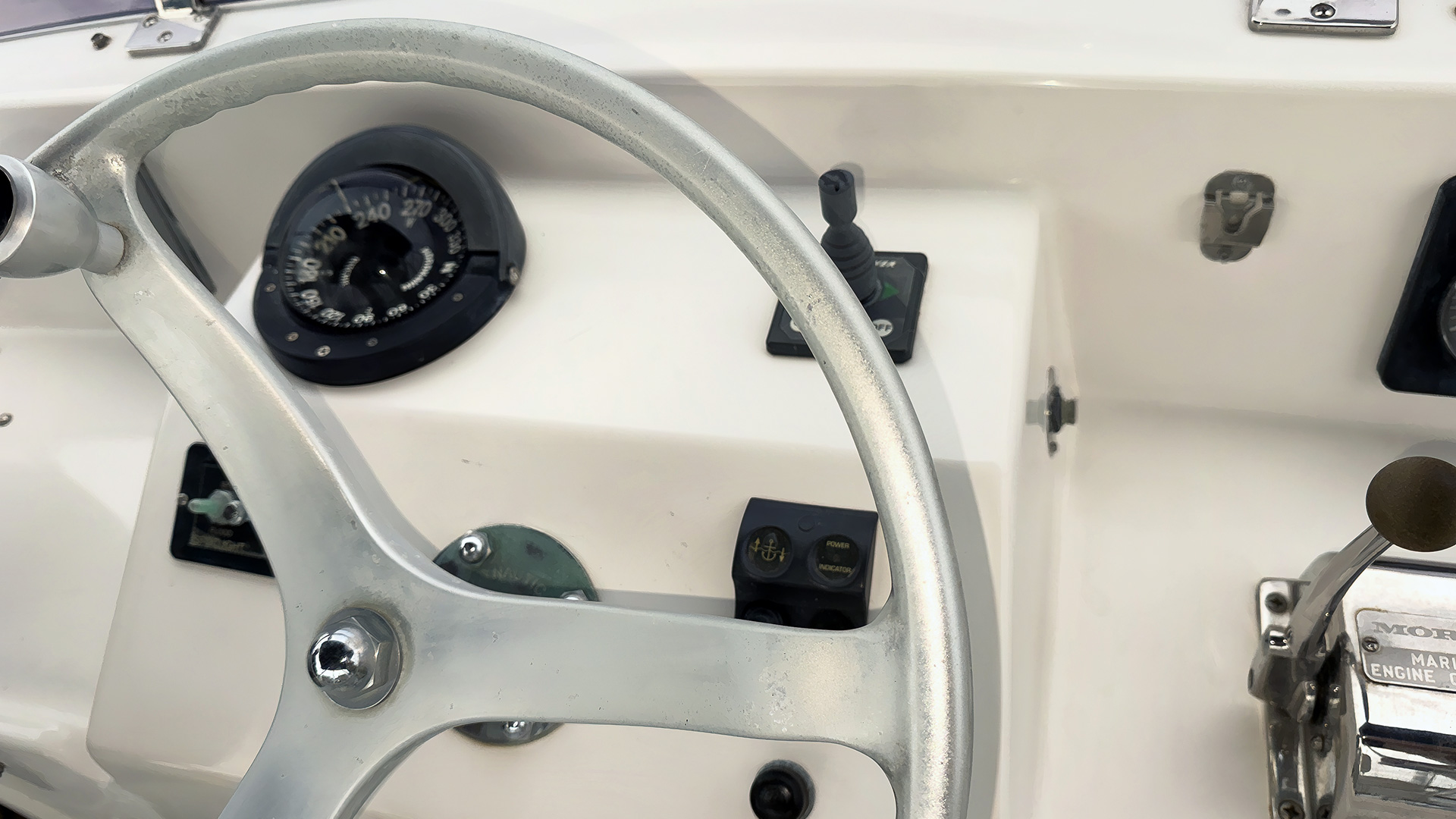

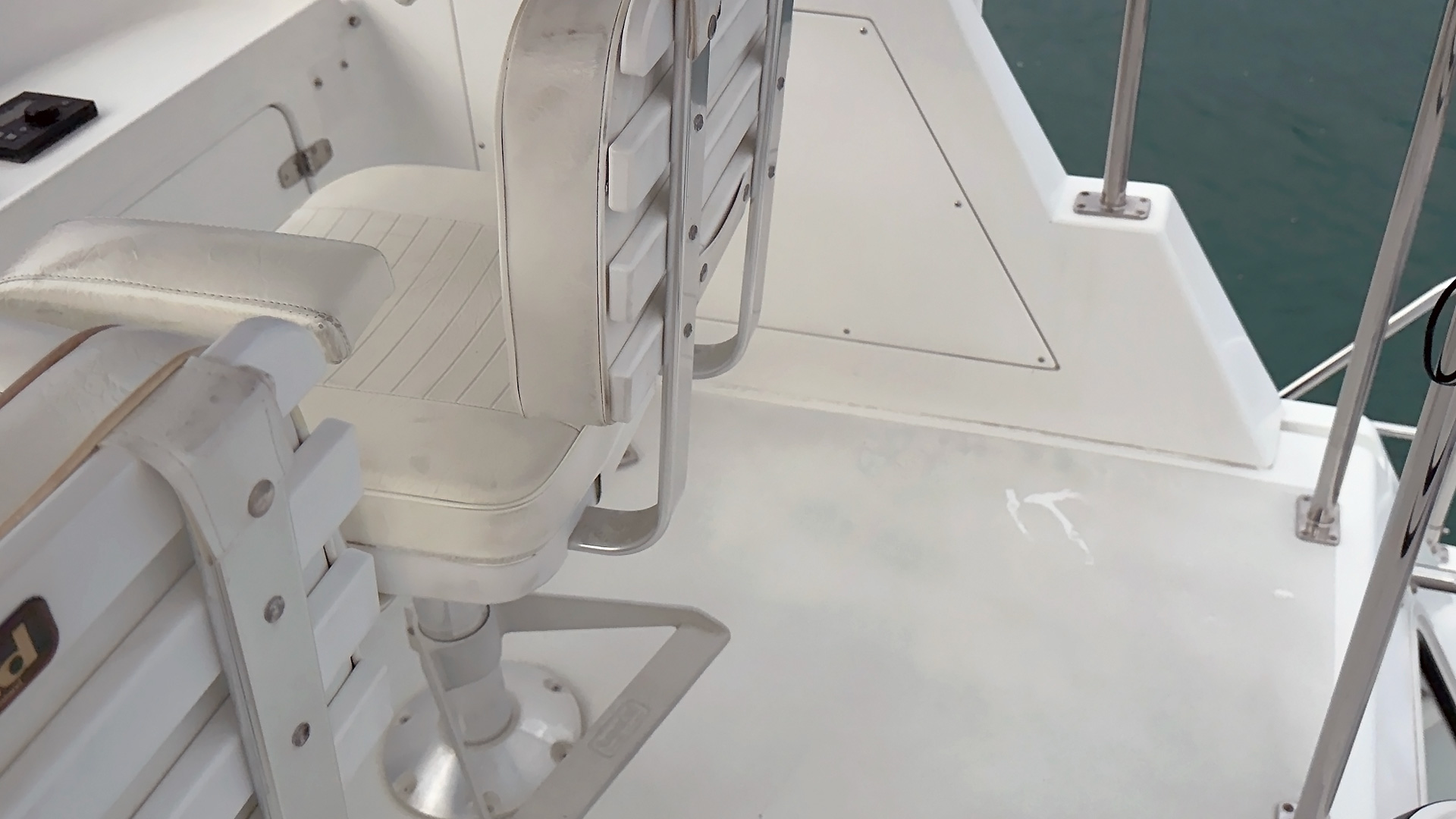

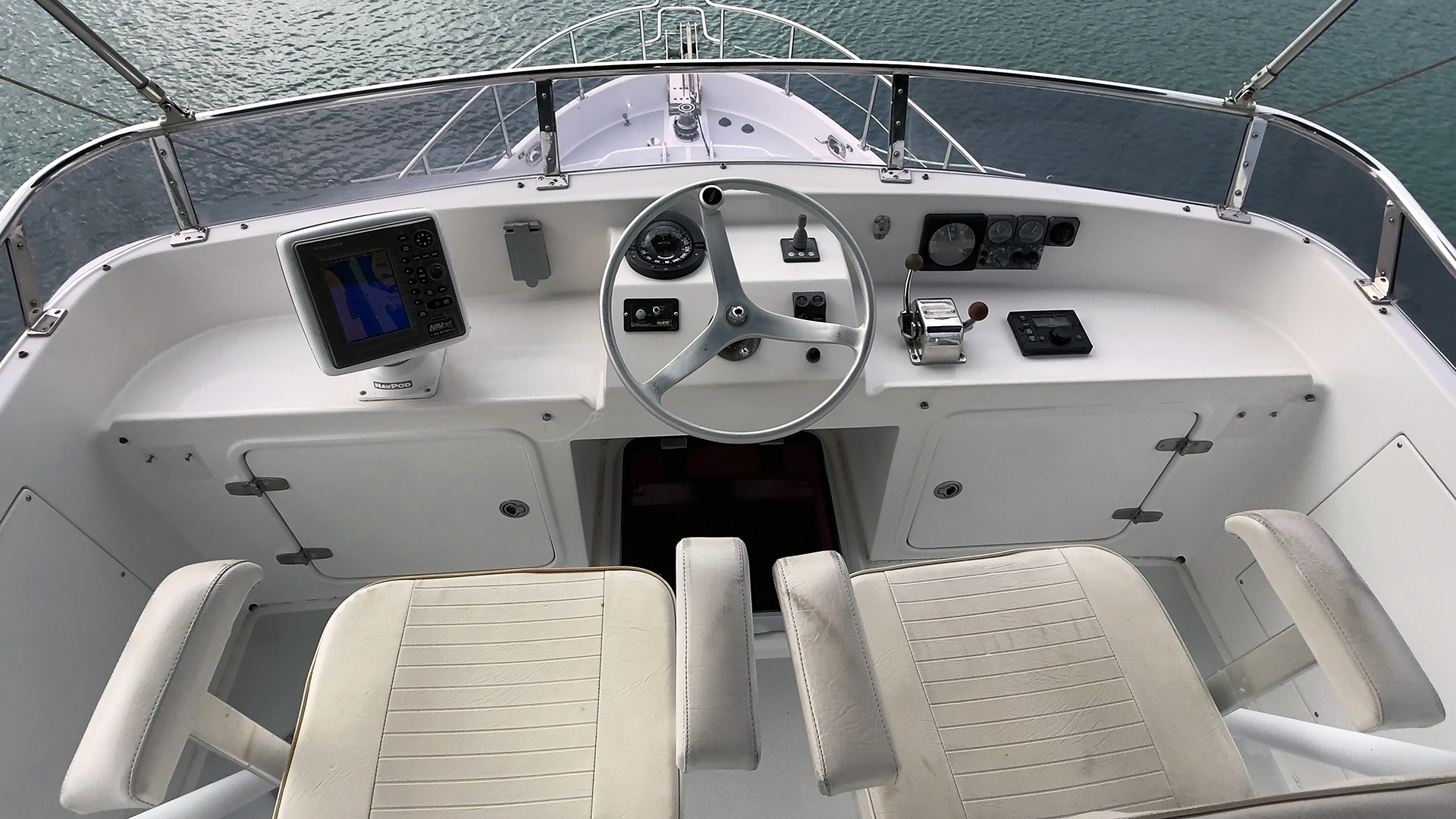

Flybridge:

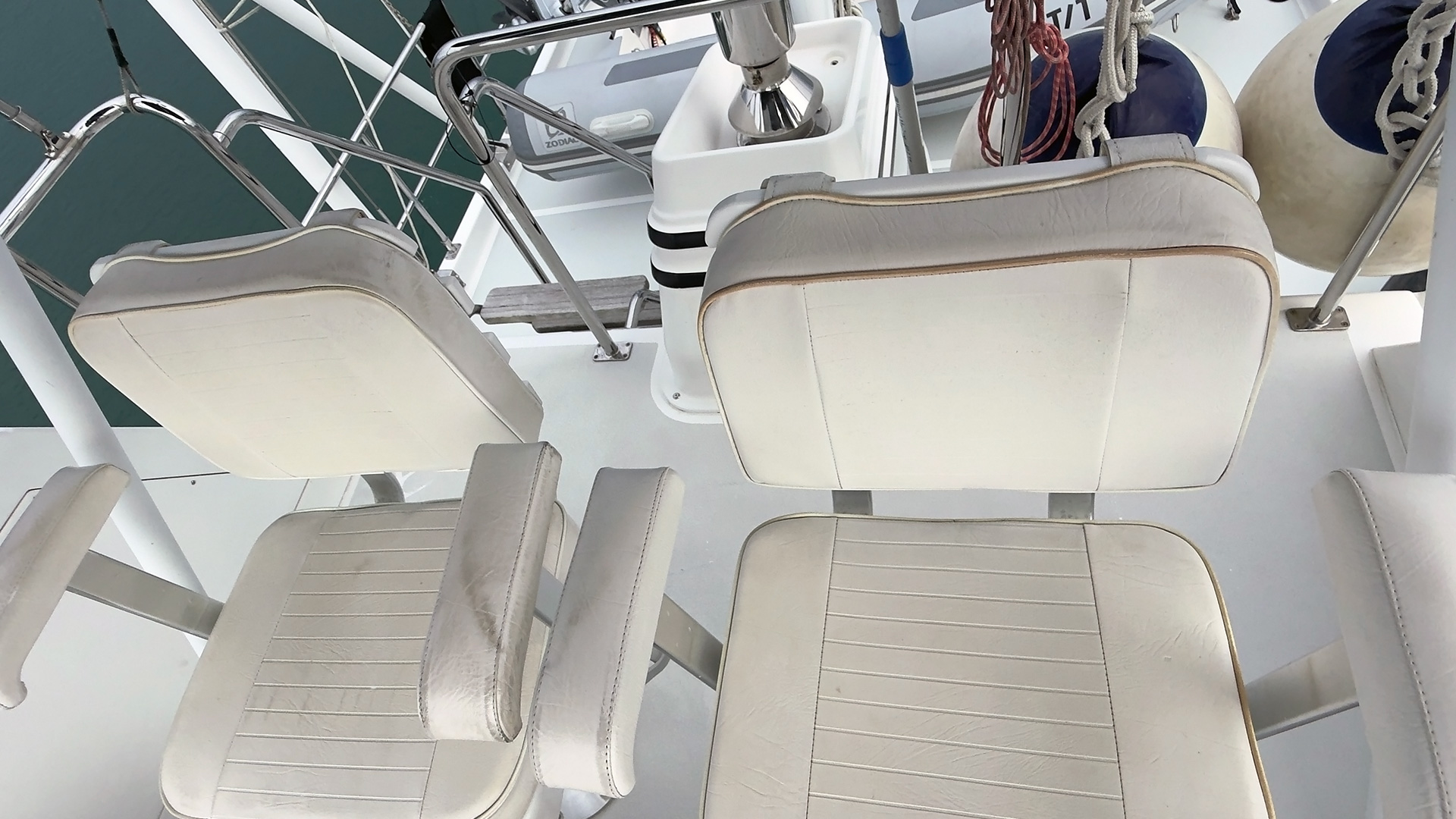

• Flybridge with two Todd helm chairs

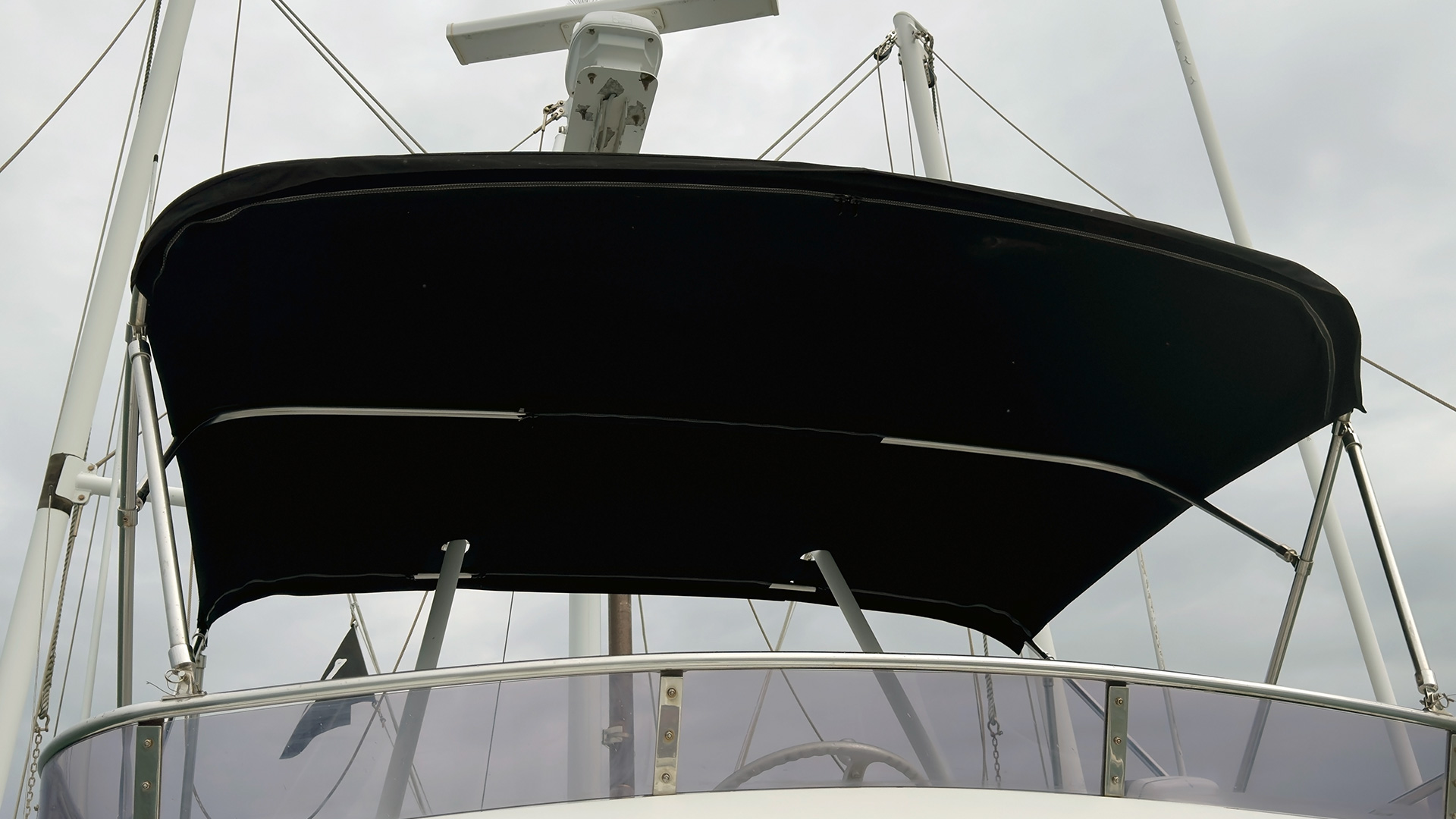

• Flybridge Bimini

Service Notes (Additional records available upon request)

• Oil changes done every 200 hours consistently.
• Replaced seawater pump impellers on generator and wing engine (April 2025)
• Replaced A/C circulation pump (August 2025)
• Bottom painted and prop speed on running gear (November 2025)
• Hull waxed annually. Topside waxed two times per year.
• Professional Captain in Beaufort
• Scheduled diver and detailer

Notable Updates:

2015:

• Replaced main engine muffler.

2016:

• Replaced the 10K Btu A/C unit in Pilot House.

2025:

• Dropped keel cooler; painted behind cooler; re-bedded cooler
• Full bottom job including Prop Speed (November)
• Stabilizers removed and resealed along with hydraulic system flushed and filter replaced. (August)
• Numerous minor/cosmetic gel coat repairs during recent haul out (August)
• Hull buff and wax (July)
